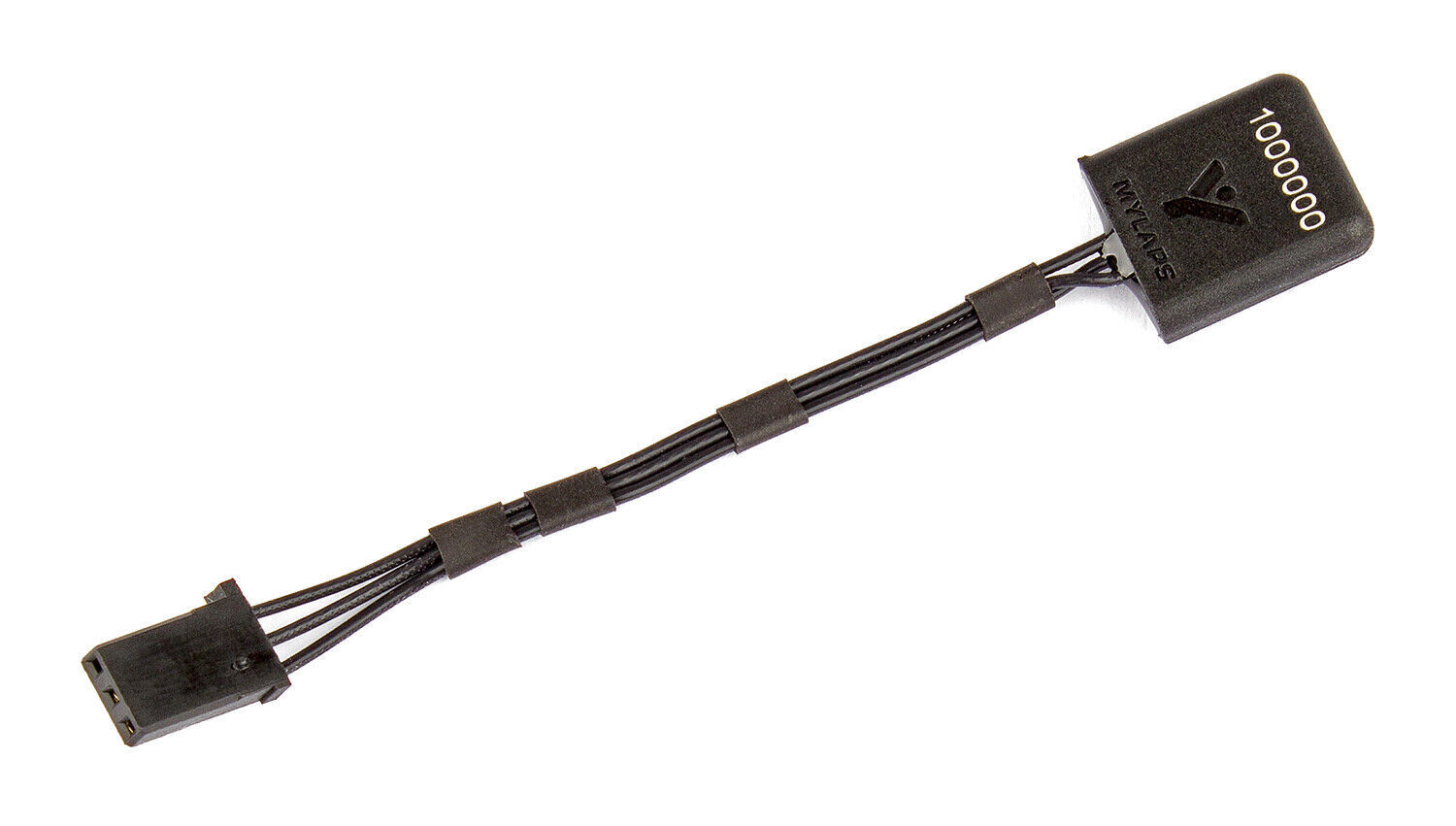

MYLAPS RC4 Pro Direct-Powered Personal Transponder

Record accurate lap times while keeping weight and installation space to a minimum with the MYLAPS RC4 Pro Personal Transponder. Designed for competitive RC racing, this compact transponder is 25% smaller than the standard RC4 model and weighs only 3 grams including its holder.

The RC4 Pro connects directly to a spare receiver channel using its standard servo plug, so there is no separate battery to charge. Its short 80mm lead helps provide a neat installation in RC cars where space is limited.

Each transponder has a unique seven-digit identification number that allows compatible MYLAPS RC4 timing equipment to identify the vehicle and record its laps. It is suitable for indoor and outdoor RC racing, including applications exposed to dirt, mud and vibration.

Key Features

• Genuine MYLAPS RC4 Pro Personal Transponder
• Manufacturer part number 10R147
• Approximately 25% smaller than the standard RC4
• Weighs only 3 grams including holder
• Compact black housing
• Short 80mm receiver lead
• Direct-powered through the vehicle’s receiver
• Standard servo-style connection plug
• No charging or separate transponder battery required
• Unique seven-digit transponder number
• Suitable for indoor and outdoor RC racing
• Shock-resistant and mud-resistant construction
• Compatible with the MYLAPS Speedhive platform where supported
• Mounting holder included

Compact Pro Design

Measuring approximately 15.7 × 18 × 4.5mm, the RC4 Pro is ideal for lightweight competition vehicles and tightly packaged chassis. Its reduced dimensions and short cable make it easier to position the transponder correctly without adding unnecessary wiring or weight.

Despite its compact design, the RC4 Pro supports detection at speeds up to 120km/h when installed correctly with compatible timing equipment.

Installation

Connect the transponder to an available receiver channel, typically channel three or four. Install the supplied holder securely inside the vehicle and keep the transponder no more than 150mm above the track surface.

For dependable detection, position the transponder away from carbon fibre, metal chassis plates and other materials that could obstruct its signal. Follow the timing system or track operator’s mounting requirements where provided.

Timing-System Compatibility

The RC4 Pro is compatible with:

• MYLAPS RC4 timing systems
• All RC4 firmware versions

It is not designed for older AMBrc, RC2 or RC3 timing systems. Racers requiring compatibility across older and newer MYLAPS systems should use a compatible MYLAPS RC4 Hybrid Transponder instead.

Specifications

• Brand: MYLAPS
• Product: RC4 Pro Personal Transponder
• Part Number: 10R147
• Transponder Type: Direct-powered, three-wire
• Housing Colour: Black
• Dimensions: 15.7 × 18 × 4.5mm
• Weight: 3g including holder
• Cable Length: 80mm
• Connection: Standard servo plug
• Power Source: Spare receiver channel
• Operating Voltage: 2.8–16V DC
• Recommended Voltage: 3.5–12V DC
• Power Consumption: 19mA at 6V DC
• Maximum Detection Height: 150mm
• Maximum Speed: 120km/h
• Code Resolution: 1.5ms
• Signal Transfer: Magnetic induction
• Operating Temperature: 0–50°C
• Maximum Relative Humidity: 90%
• Wire Insulation: High-temperature PTFE
• Timing-System Compatibility: MYLAPS RC4 only

Package Includes

• 1 × MYLAPS RC4 Pro Personal Transponder
• 1 × Integrated 80mm receiver lead and servo plug
• 1 × Transponder mounting holder

Compatibility Note: Check which MYLAPS timing system is used at your club or track before purchasing. Part 10R147 is intended for RC4 systems and is not backwards-compatible with older RC2 or RC3 systems
