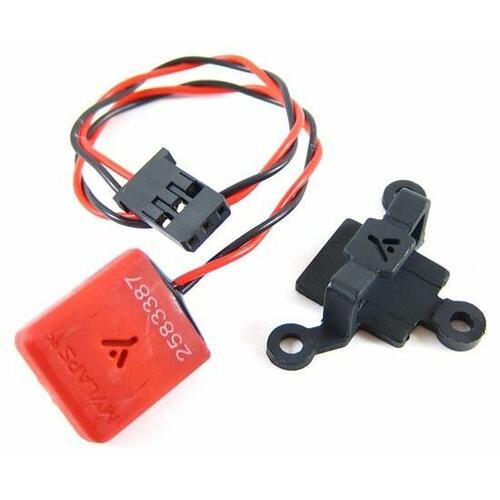

MYLAPS RC4 3-Wire Personal Transponder

Record accurate lap times and race positions with the MYLAPS RC4 3-Wire Personal Transponder. Designed for RC racing, this compact and lightweight transponder connects directly to a spare receiver channel and transmits its unique seven-digit identification number whenever the vehicle crosses a compatible timing loop.

The RC4 transponder can be used for indoor and outdoor racing across a wide variety of surfaces. Its small dimensions and low weight make it suitable for many RC vehicles, including touring cars, buggies, trucks, large-scale models and selected racing boats.

Key Features

• Genuine MYLAPS RC4 personal transponder
• Unique seven-digit transponder number
• Suitable for indoor and outdoor RC racing
• Records accurate lap times and race positions
• Supports selectable car identification numbers
• Reports connected voltage and transponder temperature
• Directly powered by the vehicle receiver
• Standard three-wire servo-style connector
• No separate transponder battery or charging required
• Compact and lightweight construction
• Shock- and mud-resistant design
• High-temperature PTFE-insulated cable
• Quick-change mounting holder included
• Compatible with the MYLAPS Speedhive app
• Suitable for RC cars and selected model racing boats

Easy Installation

Connect the transponder to a spare receiver channel, such as channel three or the battery connection, and secure the supplied quick-change holder inside the vehicle.

For reliable detection, the transponder should be installed no more than 15cm above the track surface. Avoid mounting it directly against conductive materials such as carbon fibre or metal that may interfere with the signal.

Timing-System Compatibility

The standard RC4 3-Wire transponder is designed specifically for:

• MYLAPS RC4 timing systems
• RC4 decoders operating with compatible firmware

It is not compatible with older AMBrc2 or RC3 decoder systems. For tracks using older MYLAPS equipment, an RC4 Hybrid transponder may be required instead.

Specifications

• Brand: MYLAPS
• Product: RC4 3-Wire Personal Transponder
• Part Number: 10R120
• Alternative Part Number: MLP10R120
• Connection: Standard three-pole receiver plug
• Operating Voltage: 3.0–16.0V DC
• Power Consumption: 14mA at 6V
• Maximum Detectable Speed: 120km/h
• Timing Code Resolution: 1.5 milliseconds
• Signal Transfer: Magnetic induction
• Dimensions: 16 × 19 × 6mm, excluding holder
• Weight: Approximately 4.7g with holder
• Operating Temperature: 0–50°C
• Maximum Relative Humidity: 90%
• Cable Insulation: High-temperature PTFE
• Power Source: Vehicle receiver
• Timing-System Compatibility: MYLAPS RC4 only
• Speedhive Compatibility: Yes

Package Includes

• MYLAPS RC4 3-Wire personal transponder
• Integrated receiver lead and servo-style plug
• Quick-change mounting holder

Important Compatibility Note: This 10R120 RC4 transponder only works with compatible MYLAPS RC4 timing systems. It will not operate with older AMBrc2 or RC3 decoders. Confirm the timing system used by your club or track before purchasing.
