real racing buggy performance sits on the palm of your hand.
the perfect first (or even second) r/c car!

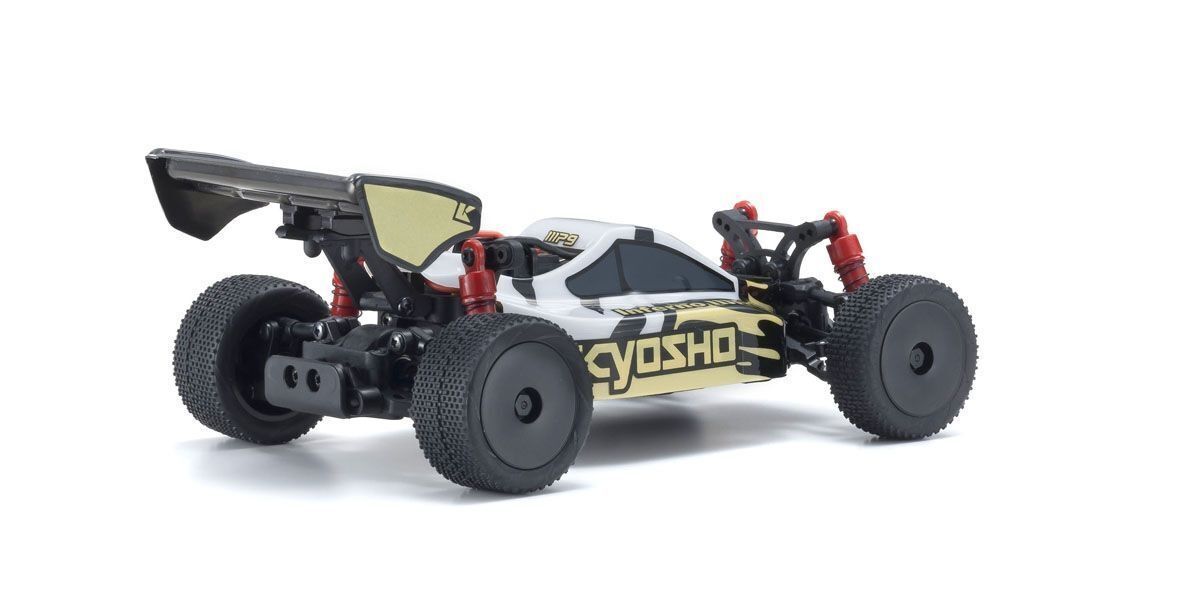

Simply add eight aaa-size alkaline batteries to this readyset and the mini-z buggy brings the fun of r/c car action. The advanced compact design includes 4wd drive train with slipper clutch to protect the gear system, and 4-wheel independent double wishbone suspension with oil-filled shocks to deliver true racing buggy performance. Most critical components are protected within the high-rigidity dustproof chassis shell. 7-stage geared steering servo provides plenty of torque for precision steering response and combines with the control program to realize the mini-z s signature linear handling and light feel. The circuit board also features manual left/right volume adjustment for the optional gyro unit (sold separately) that stabilizes straight line running and improves cornering control. Modeled on the popular inferno mp9, the mini-z buggy body matches performance with style featuring a distinctive new printed color scheme complimented by black wheels for the sharpest looking machine on the track. The fully pre-assembled readyset package makes it simple and enjoyable for anyone to experience advanced r/c buggy performance, whether it s your first car or as fun-driving second car.
*as the readyset includes the syncro kt-531p transmitter operating on fhss 2. 4ghz, it cannot be used with asf/mhs/fhs 2. 4ghz systems.

• readyset package allows model to be enjoyed straight after purchasing batteries.
• fully pre-assembled chassis with printed polycarbonate body.
• real racing performance will please buggy owners. Great for indoor practice.
• includes syncro kt-531p transmitter. Allows various setting adjustments such as steering angle.
• fhss 2. 4ghz r/c system removes the need to manage frequency bands.
• frequency crystals are not required and up to 40 cars can be run at the same time.
• optional gyro unit set (sold separately) can be installed. Gyro sensitivity can be manually adjusted on the chassis.
• most optional parts already released for mini-z buggy can be installed.

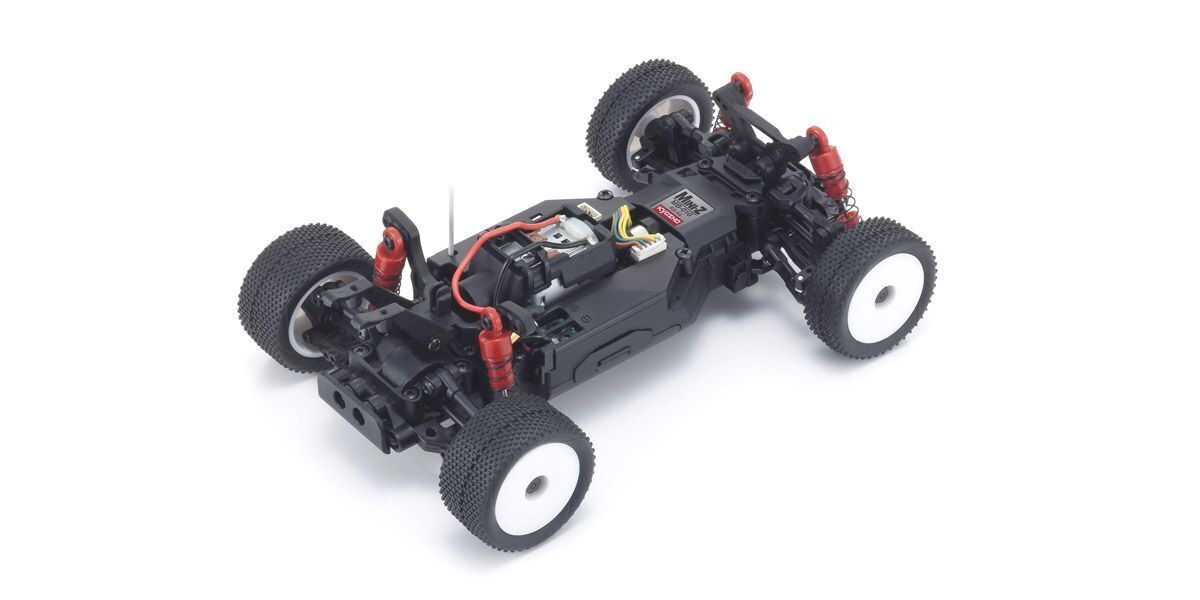

shaft driven 4wd and 4-wheel independent suspension are condensed in the mini-z s compact size. The chassis powers easily over small bumps and gaps.

main parts including sealed diff gearbox are contained within the dust proof structure. 15 ball bearings and a slipper clutch make this machine ready for serious action.

flat finish to underside of chassis is achieved with contours for each part shape. Efficient design allows tie-rods to be changed simply by removing the chassis cover.

includes connector for optional gyro unit (sold separately) and the tiny volume allows gyro unit s sensitivity to be manually adjusted.

4-wheel independent double wishbone suspension equipped with oil shocks. Delivers surefooted road holding over a variety of different road surface conditions.

realizes integrated coupling of drive shafts despite the constraints of its size. Also front suspension arms produce a 10-degree skid angle for improved rough-road performance.

chassis features shell structure with battery boxes on each side. High rigidity extracts full effectiveness from the suspension.

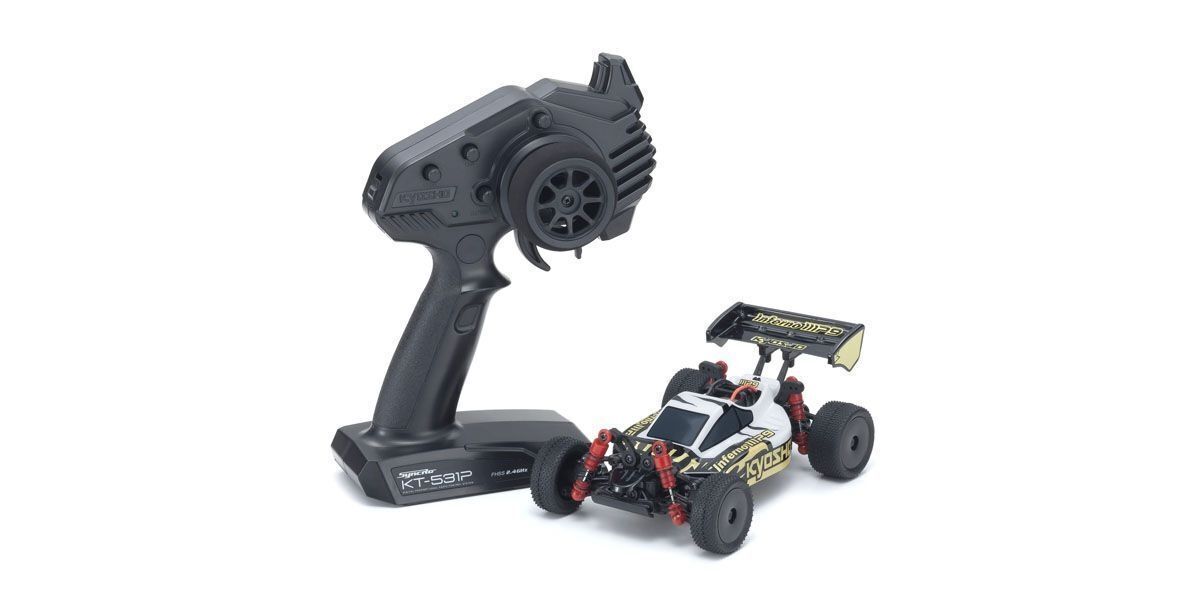

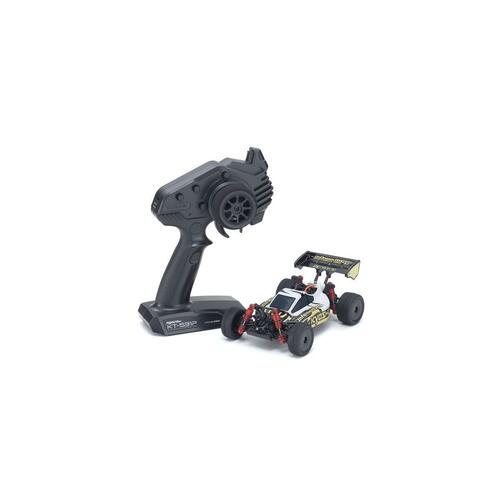

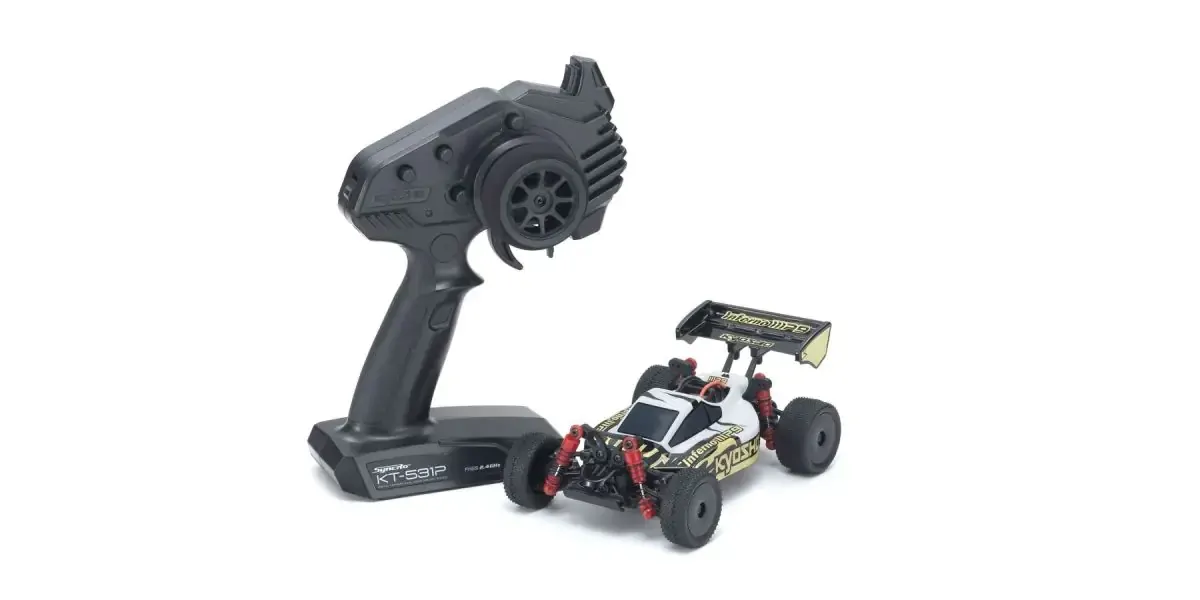

readyset includes kt-531p transmitter and other items. Requires only 4 batteries for the transmitter to start enjoying realistic buggy performance.

optional syncro touch kt-432pt transmitter is recommended if increased precision and control response is required. Provides even more precise setting flexibility with smartphone-like control.

• length:               167mm
• width:                 106mm
• height:                68mm
• wheelbase:        115mm
• tread (f/r):        89mm/89mm
• tire(f/r):             f37 x 13. 5mm/f37 x 18. 5mm
• weight:               200g (approx. )
• motor:                 130 class
• battery:               aaa alkaline x 4
• r/c system:       kt-531p fhss 2. 4 ghz

• factory assembled chassis with pre-installed r/c unit
• kt-531p transmitter
• pre-painted polycarbonate body finished with markings
• pinion gears (11t, 13t, 15t)
• spur gears (33t, 35t)
• pinion gear tool
• pairing stick
• wheel wrench
• spare nuts for wheels

• aaa alkaline batteries x 4 or nimh batteries x 4 for chassis
• aaa alkaline batteries x 4 for kt-531p transmitter
