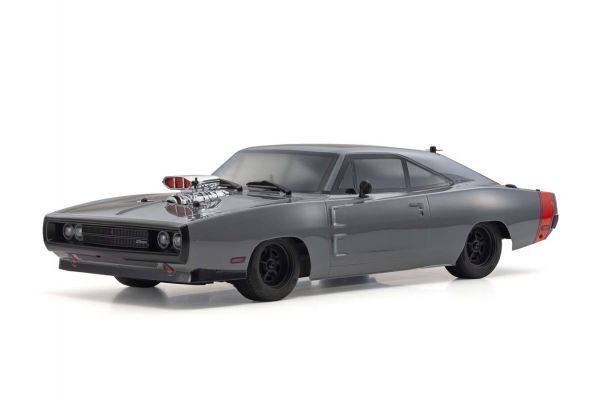

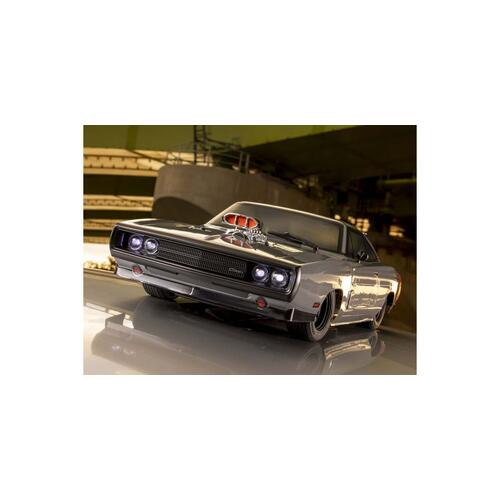

Designed and built for the pure enjoyment of r/c car driving, the fazer mk2 welcomes this brushless motor addition to the series. Powering up from the conventional g14l brushed motor to the torx 10e brushless motor, the 1. 6 x speed boost delivers 65km/h (up from about 40 km/h) backed up by the newly incorporated brainz 10 speed controller, sintered pinion gear and aluminum hd center shaft l (previously an optional upgrade) to support the extra power and higher rpms. This fully upgraded version of the ve specifications boasts an ultra-scale 1970 dodge charger body much loved in america, with a kyosho designed supercharger, and features light buckets that can be equipped with front and rear leds and open/close function for concealed headlights. Kyosho s original color scheme pays homage to the rebel image of this machine and this 1970 dodge charger supercharger spec ve gray is packaged as a pre-built readyset, so its easy even for beginners to enjoy without delay. Just use your own battery, battery charger and transmitter to experience the first brushless motor-powered model in the ve series!

• ultra-scale body specifications feature concealed headlights with open/close function and a kyosho designed supercharger. In addition, led compatible headlights, taillights, wipers, mirrors, and fuel fillers are being designed.
• install micro servo (sold separately), to operate the open/close function of the concealed headlights using the 3rd channel of the kt-231p + transmitter included in the readyset.

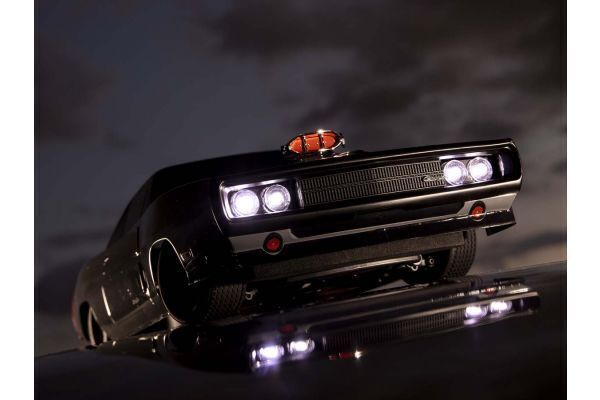

• elevate the scale finish by installing 97054 led light unit series (sold separately) in the front and rear light buckets.
• equipped with high-power torx 10e motor. In addition, sintered pinion gear (32t) is equipped as standard to reliably transmit the full force from the motor.
• waterproof brainz 10 60a esc with cooling fan provides stable power without heat loss.
• equipped with vintage touring car (vtc) tires with compound optimized for brushless performance, and new color rostyle-type wheel design to match the classic style of the dodge charger.

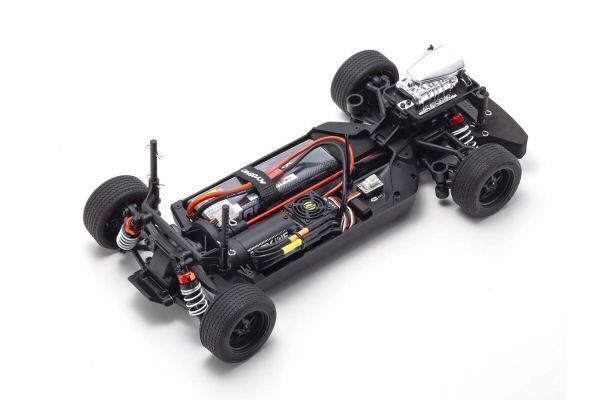

• aluminum center shaft prevents twist and delivers high-rpm drive. Shaft-driven full-time 4wd touring chassis provides easy handling and is a joy to drive for anyone.
• includes advanced functioning ks4031-06w steering servo as standard.
• factory-completed readyset only requires 4 x aa batteries for the transmitter as well as a charger and battery for the chassis.
• full ball bearing specifications reduce drive loss in all drive components.
• sealed differential and transmission realize excellent reliability, even in dusty parking lots.
• equipped with a plated dummy brake disc and painted brake caliper for an elevated sense of scale.
• uses hexagonal button screws throughout. Allows secure tightening torque to be applied and maintenance with fewer tools.
• motor mount has mounting holes according to pinion gear, eliminating the need for tricky backlash adjustment. Supports pinions from 29t to 37t.
• wide range of optional parts are available to further boost driving performance.

kit contents:

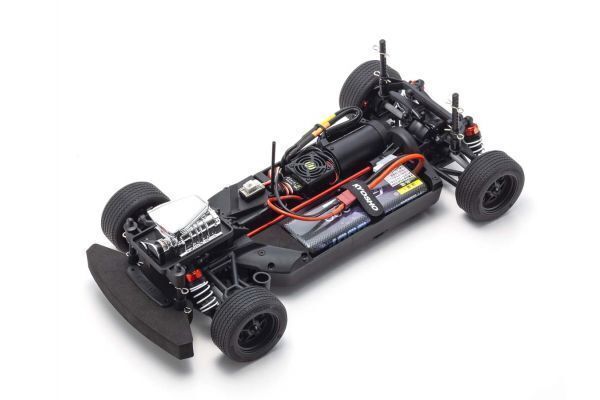

• completed chassis with r/c radio installed
• factory assembled body complete with color scheme
• syncro kt-231p+ transmitter
• +5mm off-set wheel hub (for 200mm width chassis), m4 x 22 wheel screw
• hexagonal wrench
• spanner

required:

• 4 x aa batteries for transmitter
• battery for chassis (recommended: 7. 2v ni-mh battery)
• charger for battery for chassis

technical data

• length 507mm
• width 195mm(body width:210mm)
• height 128mm
• chassis height 15mm(approx. )
• wheelbase 274mm
• tread (f/r) 167mm
• tires (f/r) f?64 —27. 7mm
• gear ratio 6. 54:1
• weight 1680g (approx. )
• r/c system syncro kt-231p+
• motor torx10e

kit content

• completed chassis with r/c radio installed
• factory assembled body complete with color scheme
• syncro kt-231p+ transmitter
• hexagonal wrench
• spanner
• setting change parts

requirement to run

• required for operation
• 4 x aa batteries for transmitter
• battery for chassis (recommended: 7. 2v ni-mh battery)
• charger for battery
• tools
