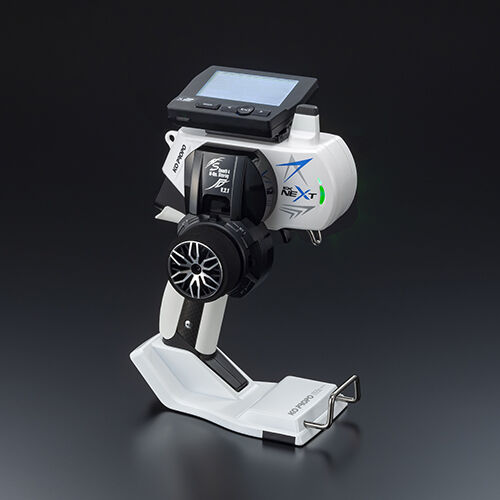

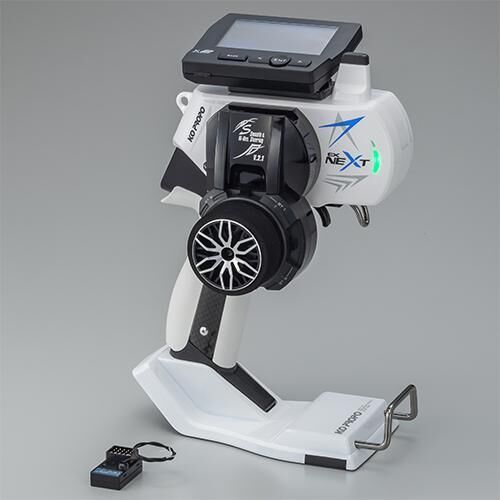

KO EX-NEXT 2.4GHZ RADIO SET WITH KR420XT RECEIVER SHORT WIRE - KO10663

[Specficatios]
— Dimensions:240.5 —163.0 —107.2mm ¼ Does not include protrusions ¼‰
— Weight: 551g ¼ battery not included ¼‰
— Power supply: AAA size dry battery,Ni-MH battery x4 (sold separately)
Li-Fe battery ¼ 2cell 6.6V ¼‰(sold separately)
Li-Po battery ¼ 2cell 7.4V ¼‰(sold separately)
— Current: 200mA or less
— Channel ¼šPWM 4ch/ Serial 8ID
  *Maximum setting ID number of serial are different by each products.
— Frequency: 2.4GHz
— Radio Mode: XT
— Model memory 50

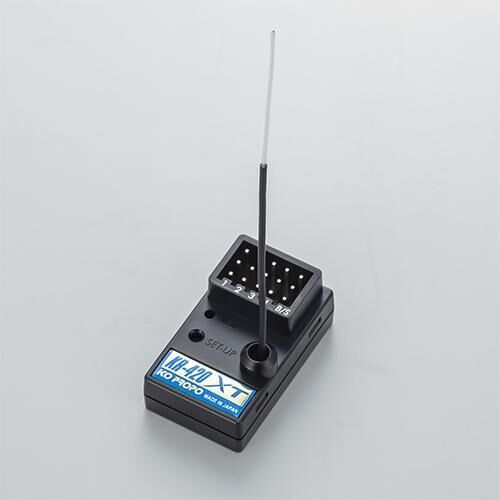

— Compatible receiver: KR-420XT

*This product € s manual is not included in the package, pleasedownload from here.
*If you use Li-fe, Li-po, you must use with our option unit (Battery stand Unit).
*The product photos on this site are prototypes, which may be different to production models

Equipped with a new standard "XT" that achieves the fastest communication speed in the industry € ‹.
You can choose and use from "XT advanced mode" which is the world record response for one way communication and "XT telemetry mode" which is compatible for Telemetry ( 2 ways communication).

XT Advanced Mode
An all new control software and radio communication software of the EX-NEXT has been developed.  World record communication response and High resolution control are installed.
"XT Advanced mode" that is the highest speed in EX-NEXT is about 3 times the speed of the EX-RR.
The performance far exceeds the conventional high-speed communication.

High-speed communication in the XT advanced mode improves the information density that will be sent to the receivers.
You will feel a "Fine and smooth maneuvering feeling" by unprecedented high-definition and high-resolution control when operating.

XT Telemetry mode
EX-NEXT supports "XT Telemetry mode" that uses 2-way communication. When "4S series servos" that support serial compatible are connected to the B/S port in the new receiver KR-420XT, you can use "REAL TIME ICS". So, you can easily change parameters of servos from the transmitter without accessing the car directly. Setting your car with more freedom and more detail without compromise.

Also, even using the XT Telemetry mode that is 2-way communication, the High-speed response is still faster thanthe EX-RR.

High speed supported by Serial servo. € ‹
Currently mainstream servo control method is performed by PWM control. PWM control method uses pulse width to send position of servos output from receiver. Serial control method uses a digital signal value to send the position of the servo output. So, communication speed of the Serial control method will be significantly faster than a PWM control method, time ofthe servo € s action from your operation input is shorter. Operating feeling will be ultra high speed like operating thecar directly.
