Description

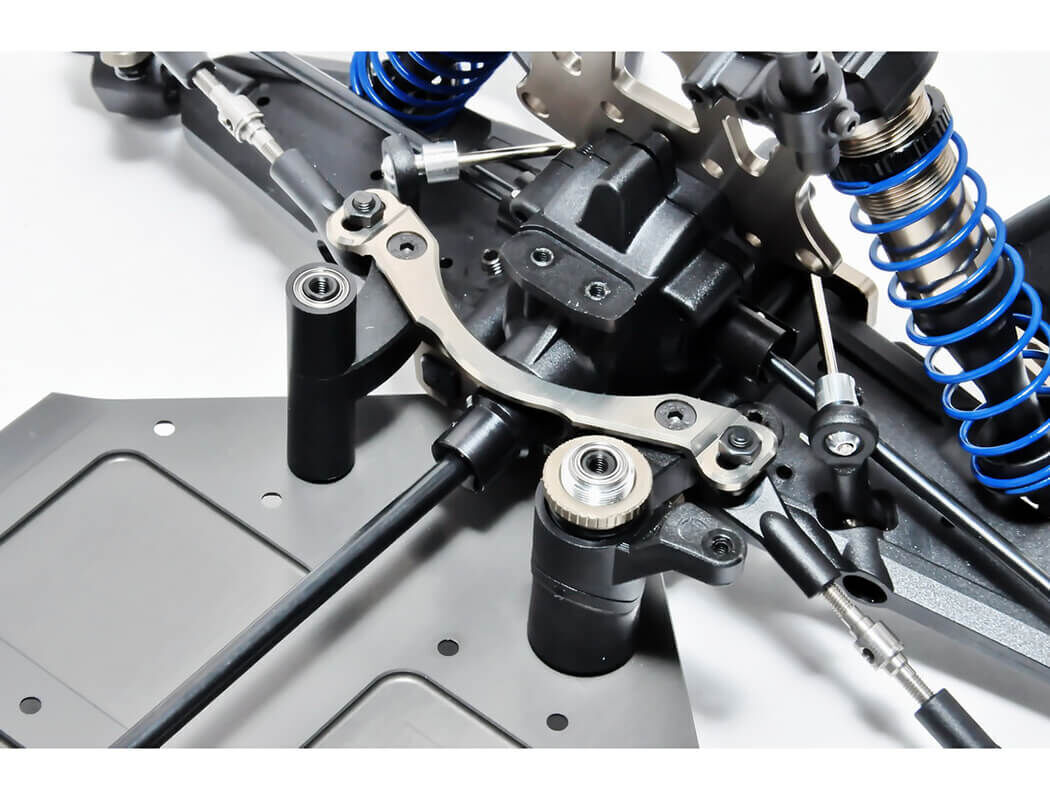

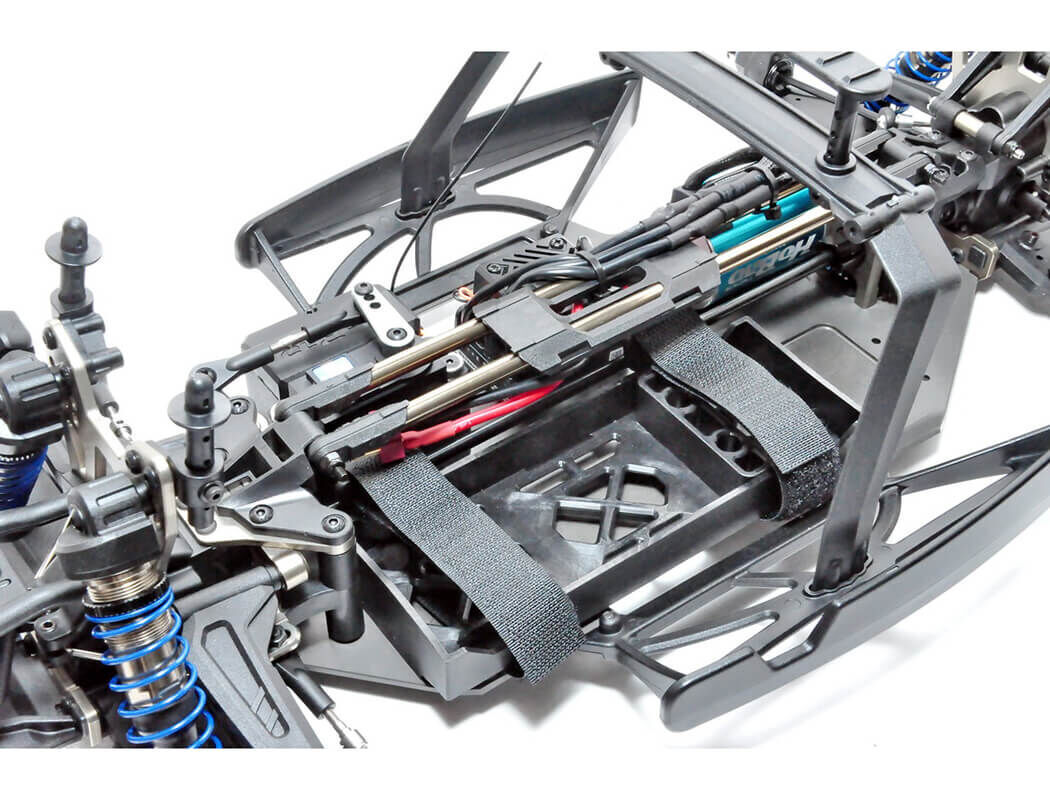

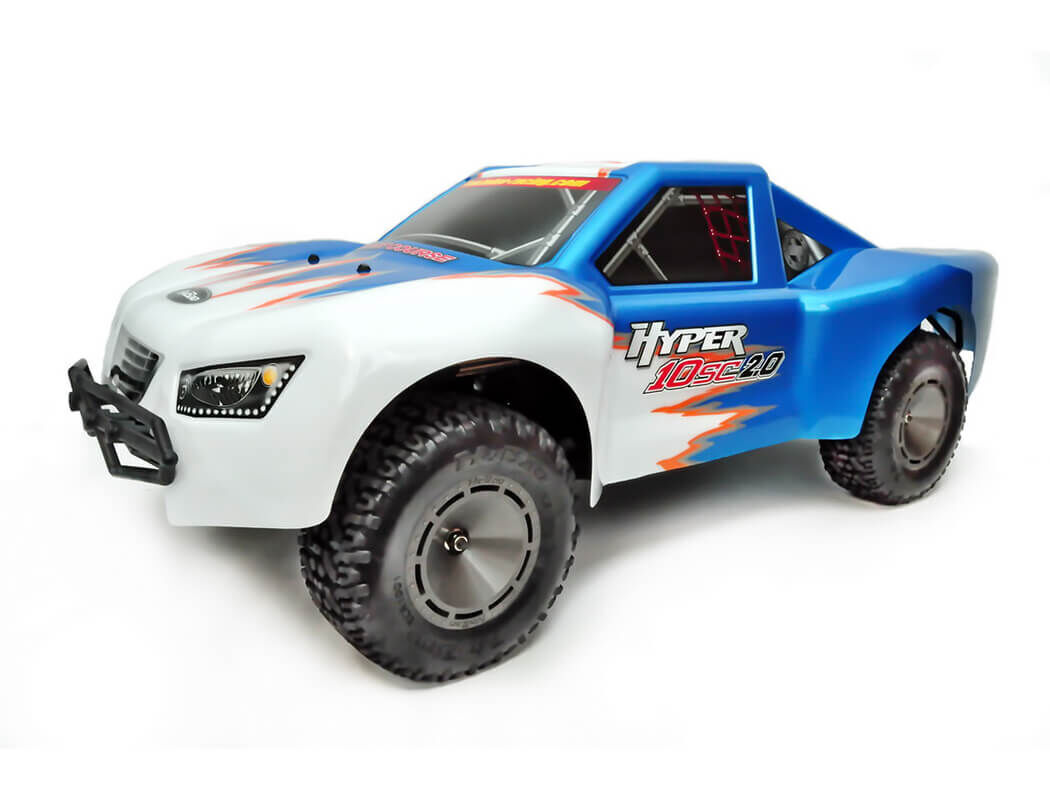

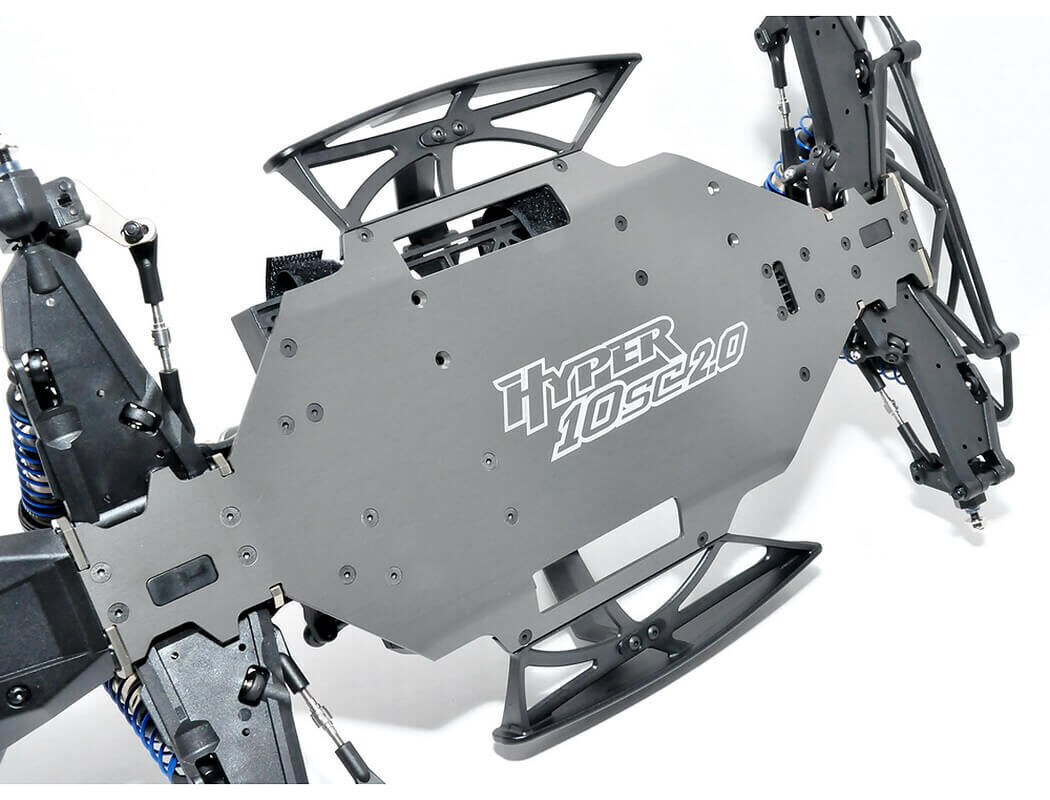

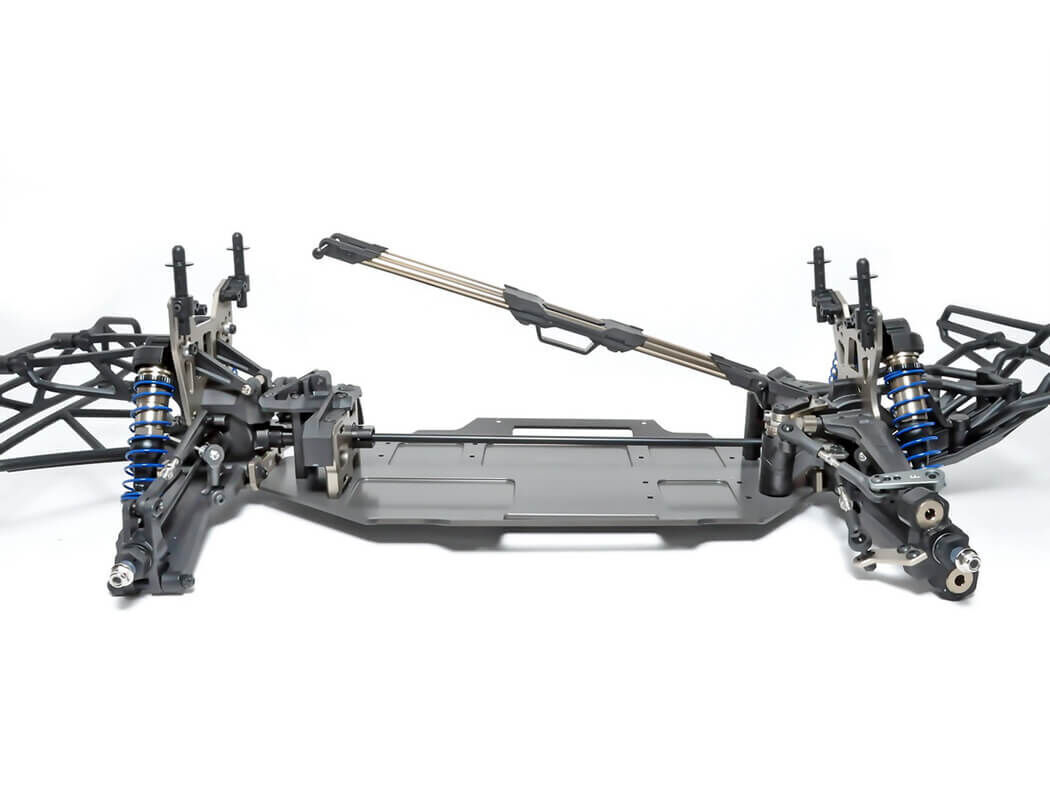

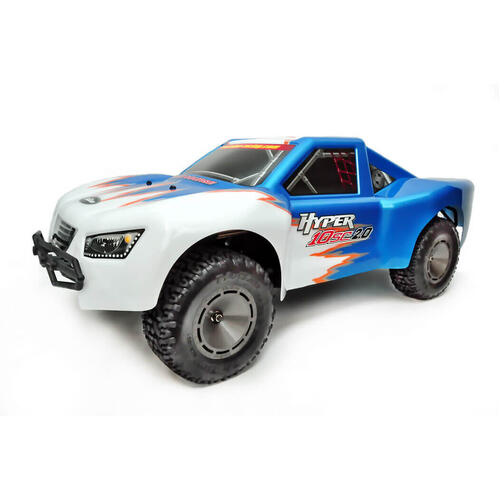

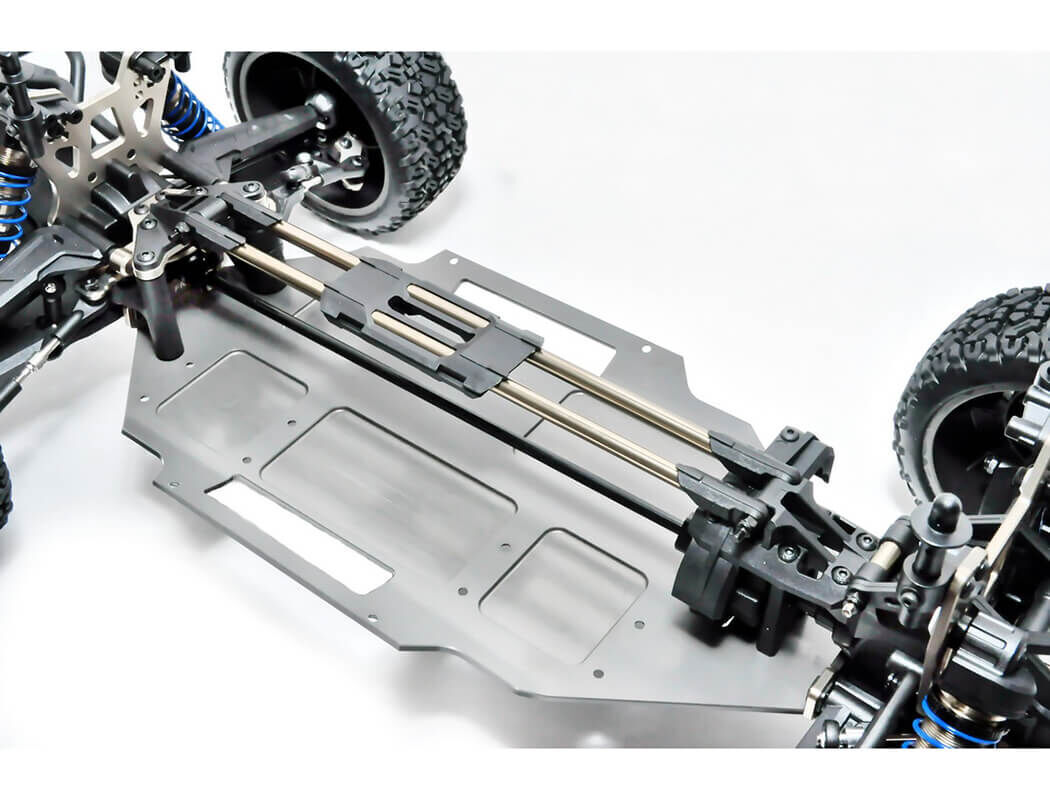

Hobao hyper 10sc 2. 0 electric truck rtr with blue/white body features all metal parts cnc machined. Radio: - 3-channel 2. 4ghz fhss with dual rate steering and throttle. - charge jack on transmitter for optional nicd batteries. Servo: - high output ball bearing. - metal gear. - digital. - 18kg-cm torque. Motor: - 3900kv brushless. - 4 pole. - outer diameter ã˜36mm. - shaft ã˜3mm. Esc: - hobbywing 60a waterproof esc with single deans plug battery connectors. - cooling fan. - program card. Chassis: lightweight, hard anodised cnc aluminium, 3mm thick. Center top brace - wire pass through. - quick release. Drive: - central: single ã˜4mm hardened steel center driveshaft. - optional aluminum center driveshaft hop1-0083. - front wheel: cva axles, ã˜3. 2mm hardened steel. - rear wheel: dogbone axles, ã˜3. 4mm hardened steel. - optional rear wheel cva axles hop1-0082. Differentials: - center differential is directly connected to rear differential. - front, rear and center differential, metal bevel gear, anti-leakage differential housing. - pinion gear: 10t (mod 1)/ ring gear: 39t (mod 1). - center spur gear: 40t (mod 1). - motor gear:13t (mod 1). - front differential filled with 20k silicone oil. - center differential filled with 9k silicone oil. - rear differential filled with 5k silicone oil. Shocks: - filled with front 700 silicone oil and rear 600 silicone oil. - aluminium 12mm big body, 3. 5mm shaft, alum adjustable ring, shock cap protector. Spring: - front: 0. 86kg/cm, l=50mm, blue. - rear: 064kg/cm, l=65mm, blue. - optional front spring hop1-0073: 1kg/cm, l=50mm, grey. - optional rear spring hop1-0074: 0. 73kg/cm, l=65mm, grey. - shock tower: 3mm cnc aluminium. - optional carbon fiber shock tower, front tower hop1-0070 & rear tower hop1-0071. Suspension: - front pbs. - new design steering block with enlarged pivot ball and alum steering arms. - optional alum steering block set hop1-0077; alum rear hub hop1-0079. - new strengthened composite upper arms and lower arms. ( also fitting for older versions of the hyper 10sc). - optional carbon fiber arm inserthop1-0068 and hop1-0069. - front & rear anti-roll bars. - new alum front and rear arm holder. - front and rear cnc alum arm holder with pill inserts h11367, adjustable toe angles and anti-squat angles. Steering: - new steering crank set with strengthen cnc aluminium steering rack and hard spring. - ball bearing equipped with servo saver. Strengthen center body shell frame. Motor mount: - cnc aluminium laydown motor mount. - fitting for motors with size below 38mm. - spur gear cover. Tyres: - 2. 2?/3. 0? short course tyres. Wheel hex hub: - front 12mm wheel hex hubs , plastic. - rear 12mm wheel hex hubs, +1mm , plastic. - optional front wheel hex hubs hop1-0075; rear wheel hex hubs hop1-0076. Wheels: - 2. 2?/3. 0, 12mm h40127. - optional 5-spoke wheels. H11034. Ball bearings: - full set included. Caster: - adjustable. Camber: - adjustable. Specifications length: 550mm width: 306mm height: 195mm wheelbase: 325mm front track: 235mm rear track: 240mm weight: 2870g required to complete lipo batteries with single deans connector. Battery charger. 4 x aa batteries for transmitter. (hb-sc2e-c60buw)

Read More
Specifications
SKU HB-SC2E-C60BUW
Brand HOBAO
