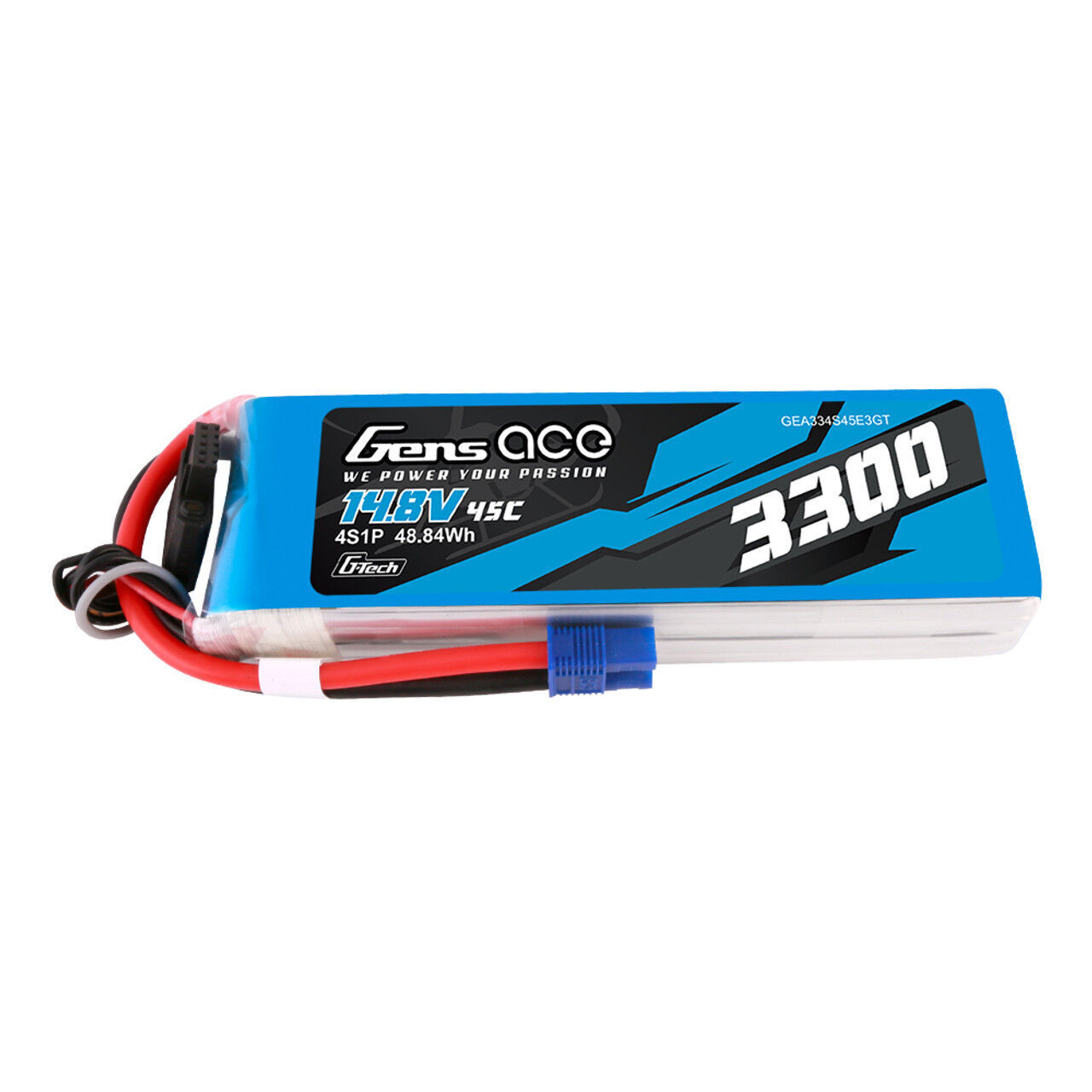

Gens Ace G-Tech 3300mAh 14.8V 4S 45C LiPo Battery with EC3 Connector – GEA334S45E3GT

The Gens Ace G-Tech 3300mAh 14.8V 4S 45C LiPo Battery provides rechargeable power for compatible RC aircraft, helicopters and other models requiring a four-cell LiPo pack. Combining 3300mAh capacity, a 45C discharge rating and G-Tech smart charging technology, it is a practical replacement or spare battery for suitable 4S applications.

Equipped with an EC3 power connector and a separate G-Tech smart balance lead, this pack connects to matching model power systems and supports automatic battery recognition with compatible Gens Ace chargers.

3300mAh Capacity

The 3300mAh capacity provides a useful energy reserve for compatible models. Actual operating time depends on motor load, propeller or gearing, model weight and throttle use.

For aircraft, position the battery according to the model’s instructions to achieve the correct centre of gravity.

45C Discharge Rating

The manufacturer-rated 45C discharge capability supports the electrical demands of suitable RC power systems. Match the pack to your model’s requirements, including the current capacity of its connectors and wiring.

14.8V Four-Cell Configuration

The 4S1P configuration delivers 14.8V nominal voltage and 16.8V when fully charged. Your model’s motor and ESC system must support standard 4S LiPo operation.

Check the recommended battery specifications before changing cell count, as voltage affects motor speed and power-system load.

G-Tech Smart Charging

The G-Tech balance connector communicates battery information to a compatible smart charger. Supported charging parameters can then be recognised and configured automatically, simplifying charging setup.

The smart charging features work through the balance connection, while the EC3 connector supplies power to your model.

Soft-Pack Construction

Measuring approximately 138 × 42 × 27mm and weighing approximately 333g, this battery has a flat soft-pack format for suitable mounting trays and compartments.

Allow clearance for its leads and secure the pack using your model’s battery retention system. Protect the soft case from sharp edges, excessive pressure and moving components.

EC3 Power Connection

The fitted EC3 connector suits a matching model power input. Confirm connector compatibility and polarity before installation.

Key Features

• 3300mAh capacity.

• 14.8V nominal voltage with a 4S1P configuration.

• 45C discharge rating.

• EC3 main power connector.

• G-Tech five-pin smart balance connection.

• Flat soft-pack construction.

• Suitable replacement or spare for compatible 4S-powered models.

Specifications

Compatible Applications

Suitable for RC aircraft, helicopters and other models that specify 4S LiPo power, accept the pack’s dimensions and weight, and use a matching EC3 connection. Confirm your model’s recommended battery requirements before installation.

Package Contents

• 1 × Gens Ace G-Tech 3300mAh 14.8V 4S 45C LiPo battery with fitted EC3 power connector and smart balance lead.

Required for Use

• Compatible 4S-capable RC model.

• Suitable 4S LiPo balance charger and charging connections.

• Compatible G-Tech charger to use automatic battery recognition.

Charging Note: Follow the battery’s supplied instructions. When configuring charging manually, select standard 4S LiPo, with a maximum charge voltage of 16.8V.
