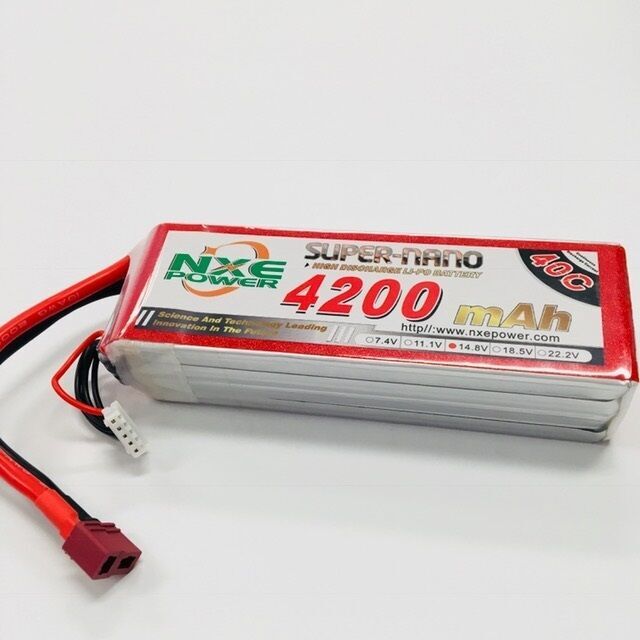

NXE 4200mAh 4S 14.8V 40C Soft Case LiPo Battery with Deans – 4200SC404SDEAN

The NXE 4200mAh 4S 14.8V 40C Soft Case LiPo Battery is a high-capacity power pack designed for RC models requiring reliable 4S LiPo performance. Combining a 4200mAh capacity with a 40C discharge rating, it provides a strong balance of power, runtime and manageable size.

The battery comes factory fitted with a Deans / T-Plug connector and uses a lightweight soft-case construction, making it suitable for a variety of compatible RC aircraft, cars and other electric models.

Powerful 4S Performance

The 4200SC404SDEAN uses a 4S1P LiPo configuration, providing 14.8V nominal voltage and reaching 16.8V when fully charged.

The larger 4200mAh capacity provides increased potential runtime compared with smaller 3300mAh packs, while the 40C discharge rating provides the current delivery required by many higher-powered brushless systems.

Based on its 4200mAh capacity and 40C rating, the battery has a theoretical continuous discharge capability of up to 168A.

Lightweight Soft Case Construction

The battery uses a soft-case construction, reducing unnecessary case weight and making it particularly useful in applications where overall weight is important.

Published dimensions vary slightly between suppliers. One detailed listing gives 138 × 44 × 32.5mm and 414g, while another Australian NXE listing specifies 136 × 43 × 31mm and 407g.

For the website, I'd use approximately 138 × 44 × 33mm and 414g.

Deans / T-Plug Connector

A factory-fitted Deans / T-Plug main connector provides a secure connection to compatible electronic speed controllers.

The battery also features a JST-XH balance connector, allowing each of the four cells to be individually monitored and balanced during charging. Current specifications also list 12AWG main power wiring.

Features

• 4200mAh capacity
• 4S / 14.8V LiPo configuration
• 40C continuous discharge rating
• Lightweight soft-case construction
• Factory-fitted Deans / T-Plug connector
• JST-XH balance connector
• Heavy-duty 12AWG main power wiring
• High-capacity design for increased potential runtime
• Suitable for compatible brushless power systems
• Suitable for RC aircraft, cars and other compatible electric RC models
• Standard LiPo chemistry
• Good combination of capacity, performance and size

Specifications

• Brand: NXE Batteries
• Part Number: 4200SC404SDEAN
• Battery Chemistry: LiPo
• Capacity: 4200mAh
• Voltage: 14.8V
• Fully Charged Voltage: 16.8V
• Cell Count: 4S
• Configuration: 4S1P
• Discharge Rating: 40C
• Case Type: Soft Case
• Main Connector: Deans / T-Plug
• Balance Connector: JST-XH
• Main Wire: 12AWG
• Length: Approx. 138mm
• Width: Approx. 44mm
• Height: Approx. 32.5mm
• Weight: Approx. 414g
• Application: Air / Car / General RC
• Barcode / EAN: 6925780561258

What's Included

• 1 x NXE 4200mAh 4S 14.8V 40C Soft Case LiPo Battery with Deans / T-Plug

Please Note

This is a standard 4S 14.8V LiPo battery, not a LiHV battery. A suitable LiPo balance charger capable of charging 4S LiPo batteries is required.

Always confirm that your model's ESC and motor are rated for 4S LiPo operation before use. Battery compartment dimensions and connector compatibility should also be checked before installation.
