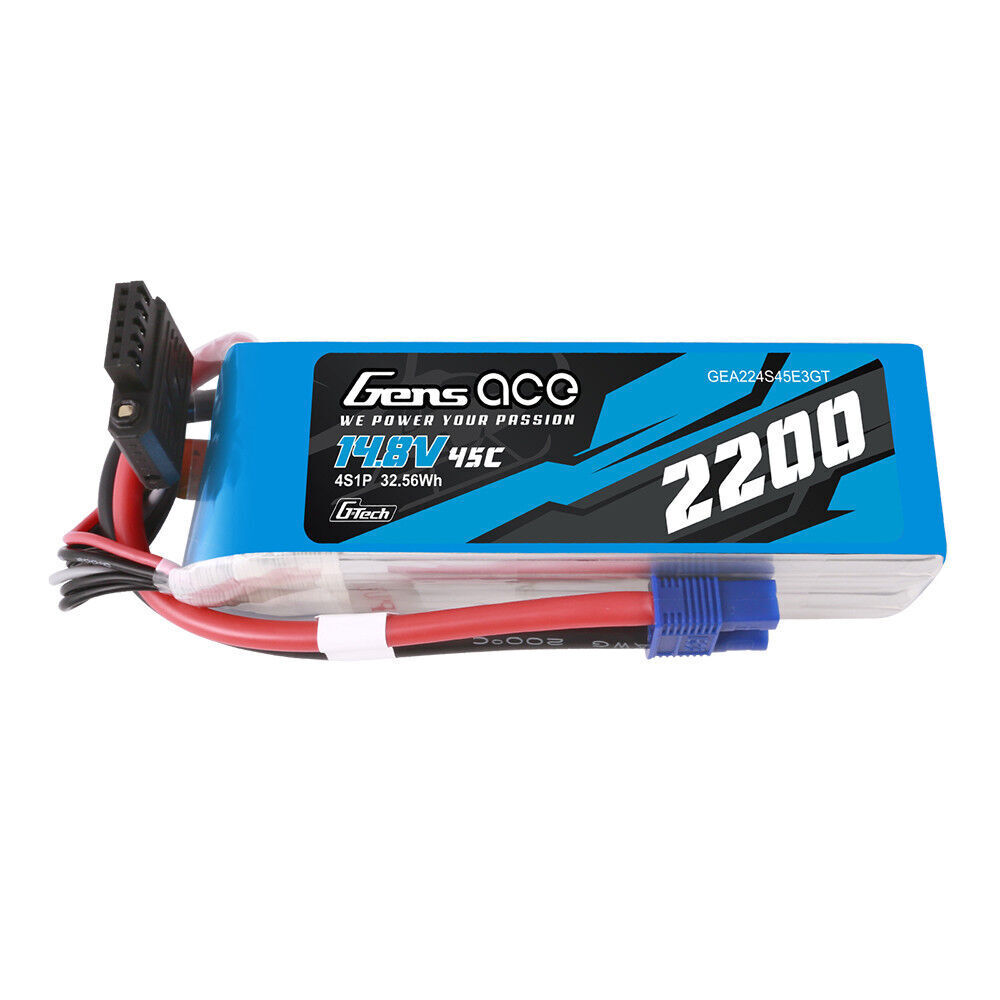

The Gens Ace G-Tech 2200mAh 4S 14.8V 45C LiPo Battery provides strong, consistent power for compatible electric aircraft, EDF jets, FPV models and other RC applications requiring a compact 4S pack.

Its 45C continuous discharge rating and 90C maximum burst rating provide responsive power under demanding loads. Stable automatic cell-stacking technology and carefully matched cells help deliver reliable voltage and consistent performance throughout operation.

The battery features a lightweight soft-case construction, a pre-installed EC3 power connector and a G-Tech five-pin balance connector. Compatible Gens Ace smart chargers can automatically identify the battery and select the appropriate charging parameters. It can also be charged using a conventional LiPo balance charger with the correct lead and manual settings.

Key Features

• 2200mAh capacity

• Standard 4S 14.8V LiPo chemistry

• 45C continuous discharge rating

• 90C maximum burst discharge rating

• Compact soft-case construction

• Pre-installed EC3 power connector

• Compatible with EC3 and IC3 device connections

• G-Tech five-pin balance connector

• Automatic identification with compatible G-Tech chargers

• Reliable power for compatible electric aircraft

Specifications

• Brand: Gens Ace

• Series: Air Classic

• Product code: GEA224S45E3GT

• Manufacturer part number: GA-B-45C-2200-4S1P-EC3-GT

• Barcode: 889551117227

• Battery chemistry: Lithium Polymer

• Capacity: 2200mAh

• Configuration: 4S1P

• Cell count: 4 cells

• Nominal voltage: 14.8V

• Fully charged voltage: 16.8V

• Continuous discharge rating: 45C

• Maximum burst discharge rating: 90C

• Main connector: EC3

• Balance connector: G-Tech 5-pin

• Case type: Soft case

• Dimensions: Approximately 107 × 34 × 32mm

• Weight: Approximately 238g

• Power-wire gauge: 12AWG

• Power-wire length: Approximately 120mm

• Balance-wire length: Approximately 65mm

Suitable Applications

Subject to battery-compartment, connector and power-system compatibility:

• 3D HobbyShop 48-inch foam aircraft

• 64mm EDF jets

• Selected 70mm EDF jets

• Compatible F-16 and F-15 models

• FMS 980mm P-39 Racing

• FMS 980mm P-40B Flying Tiger

• FMS 980mm P-47 Razorback

• Compatible FPV aircraft

• Other RC models requiring a 4S 2200mAh battery with an EC3 connector

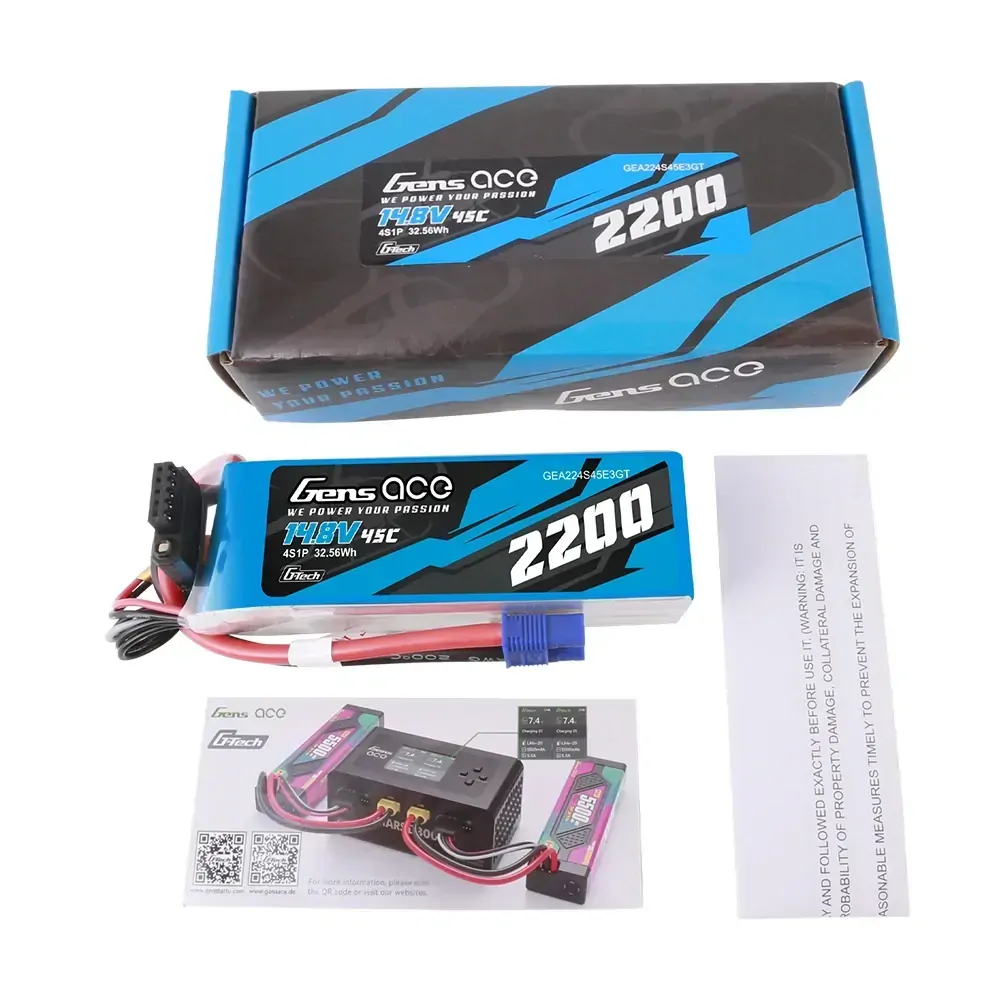

Package Contents

• 1 × Gens Ace G-Tech 2200mAh 4S 14.8V 45C LiPo Battery with EC3 Plug

Important Compatibility Information

This is a standard 4S LiPo battery, not a LiHV battery. Charge only with a suitable LiPo balance charger configured for a standard 4S battery, with a maximum fully charged voltage of 16.8V.

The EC3 battery connector is compatible with EC3 and IC3 device-side connections but does not provide Spektrum Smart telemetry. Confirm that your model’s ESC and motor support 4S power and check the battery-compartment dimensions before purchase.
