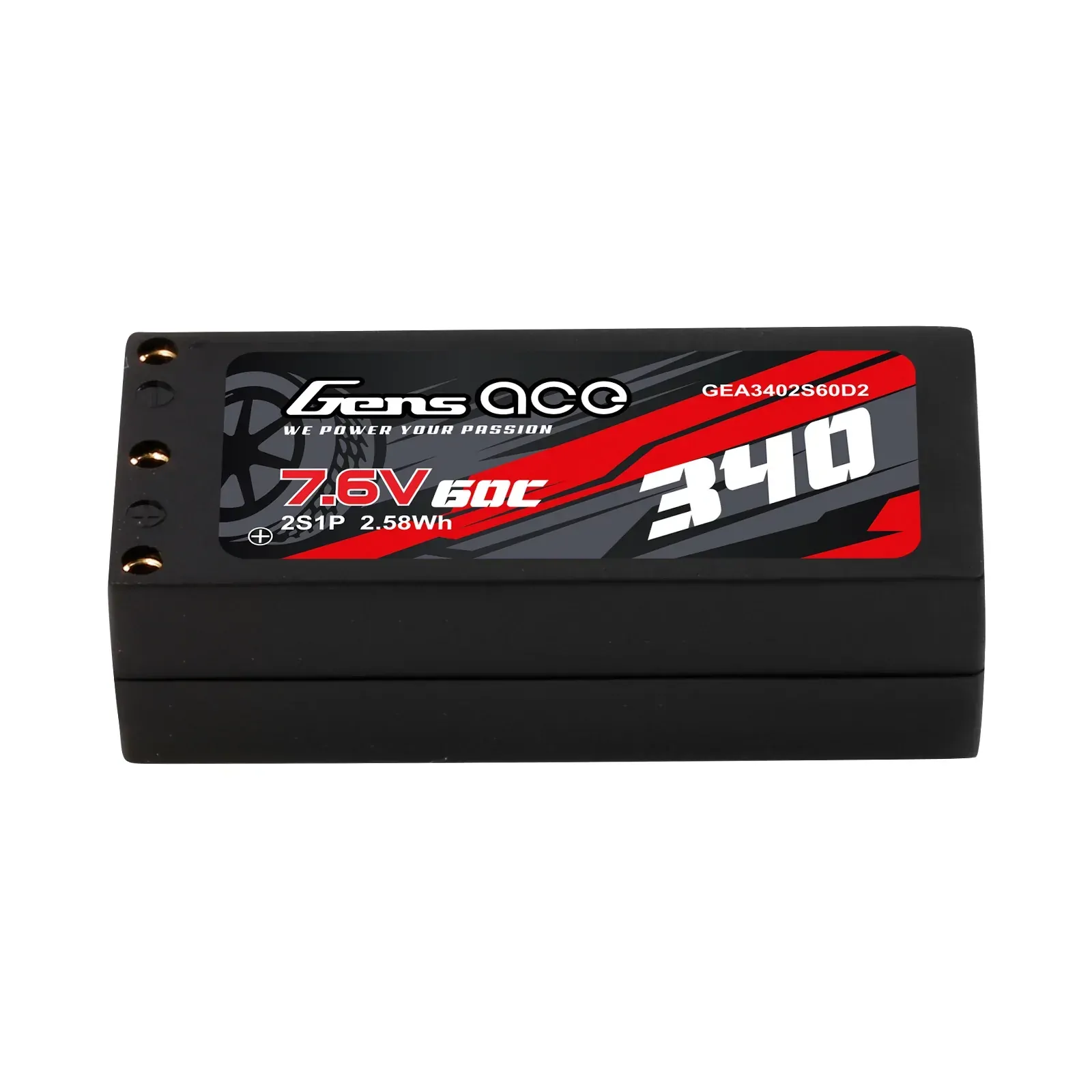

Gens Ace 340mAh 7.6V 2S 60C Hardcase LiHV Battery with 2.0mm Bullet Connections – GEA3402S60D2

The Gens Ace 340mAh 7.6V 2S 60C LiHV Battery is a compact power pack for compatible small-scale RC racing cars. Combining a lightweight design with a protective hardcase, it suits installations where battery size and weight are important to chassis layout and handling.

Featuring 2.0mm bullet power connections and a 2.0mm bullet-to-XT60 adapter, this pack provides a practical connection arrangement for compatible micro racing setups and charging equipment.

Compact 340mAh Racing Pack

The 340mAh capacity suits small RC vehicles designed around compact batteries. Measuring approximately 45 × 20 × 13mm and weighing approximately 17g, the pack fits suitable battery trays without the bulk of a larger battery.

Actual runtime depends on motor load, gearing, electronics and driving style.

7.6V High-Voltage LiPo Chemistry

This battery uses LiHV chemistry with a 7.6V nominal voltage. Its two-cell configuration can reach 8.7V when fully charged to the LiHV limit, so the model’s electronics must support that voltage when using a full high-voltage charge.

Select the charging settings permitted by the battery instructions, your vehicle’s electronics and any applicable race rules.

60C Discharge Rating

The manufacturer-rated 60C discharge capability supports the demands of compatible micro racing power systems. Match the battery to the motor and ESC requirements, including the current capacity of the wiring and connectors.

Protective Hardcase Construction

The hardcase helps protect the cells during handling and normal use in a compatible chassis. Secure the pack using the vehicle’s battery retention system and allow sufficient clearance for the power connections.

2.0mm Bullet Connections and XT60 Adapter

The 2.0mm bullet connections suit matching micro racing installations. The supplied XT60 adapter provides a convenient interface for compatible charging leads.

Check positive and negative polarity carefully whenever connecting bullet plugs.

Balance Charging Connection

A separate JST-XH three-pin balance connection allows individual cell monitoring during balance charging with a suitable charger.

Key Features

• 340mAh capacity for compatible micro RC applications.

• 7.6V nominal voltage with 2S LiHV chemistry.

• 60C discharge rating.

• Compact 45 × 20 × 13mm dimensions.

• Approximately 17g weight.

• Protective hardcase construction.

• 2.0mm bullet power connections.

• XT60 adapter and separate balance connection.

Specifications

Compatible Applications

Intended for compatible 1/24 and 1/28-scale RC racing cars that accept the pack’s dimensions, connections and voltage. Confirm your chassis and electronics requirements before installation.

Package Contents

• 1 × Gens Ace 340mAh 7.6V 2S 60C hardcase LiHV battery.

• 2.0mm bullet-to-XT60 adapter.

Required for Use

• Compatible RC model.

• Suitable lithium balance charger with 2S LiHV support for high-voltage charging.

• Matching main charging and balance connections.

Charging Note: Follow the battery’s supplied instructions and confirm that your electronics support the selected charge voltage before use.
