Description

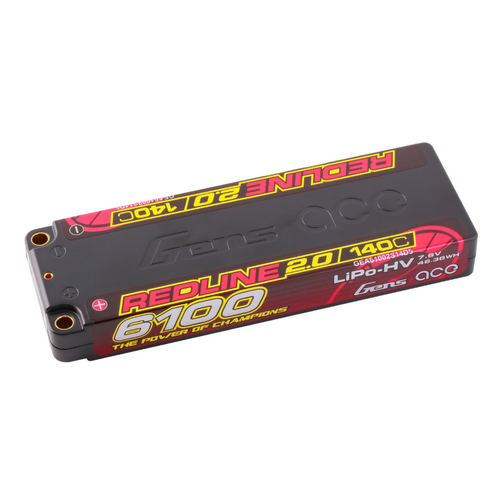

The Gens Ace Redline 2.0 GEA61002S14D5 combines 6100mAh capacity with a hardcase just 18.2 mm high. Its full-length, low-profile design suits compatible 2S electric touring cars and other RC chassis that accept a standard-length pack but have limited clearance under the battery hold-down.

The pack delivers a nominal 7.6V and carries a manufacturer-rated 140C discharge rating. It connects via 5 mm bullet sockets, so use a matching battery lead for your ESC and allow clearance above the case for the plugs and wiring.

Fitment and charging: Check that the battery tray can accommodate the 138.95 × 46.85 × 18.20 mm case. Use a compatible 2S LiHV balance charger and suitable leads. Before charging to the full LiHV voltage of 8.7V, confirm that your ESC supports it and, if racing, check your class’s voltage limit.

Specifications

Specification Details
SKU GEA61002S14D5
Series Gens Ace Redline 2.0
Battery Type Low-profile hardcase LiHV
Capacity 6100mAh
Cell Count 2S
Nominal Voltage 7.6V
Discharge Rating 140C
Main Connection 5 mm bullet sockets
Dimensions (L × W × H) 138.95 × 46.85 × 18.20 mm
Listed Weight Range 225–235 g

Package Contents

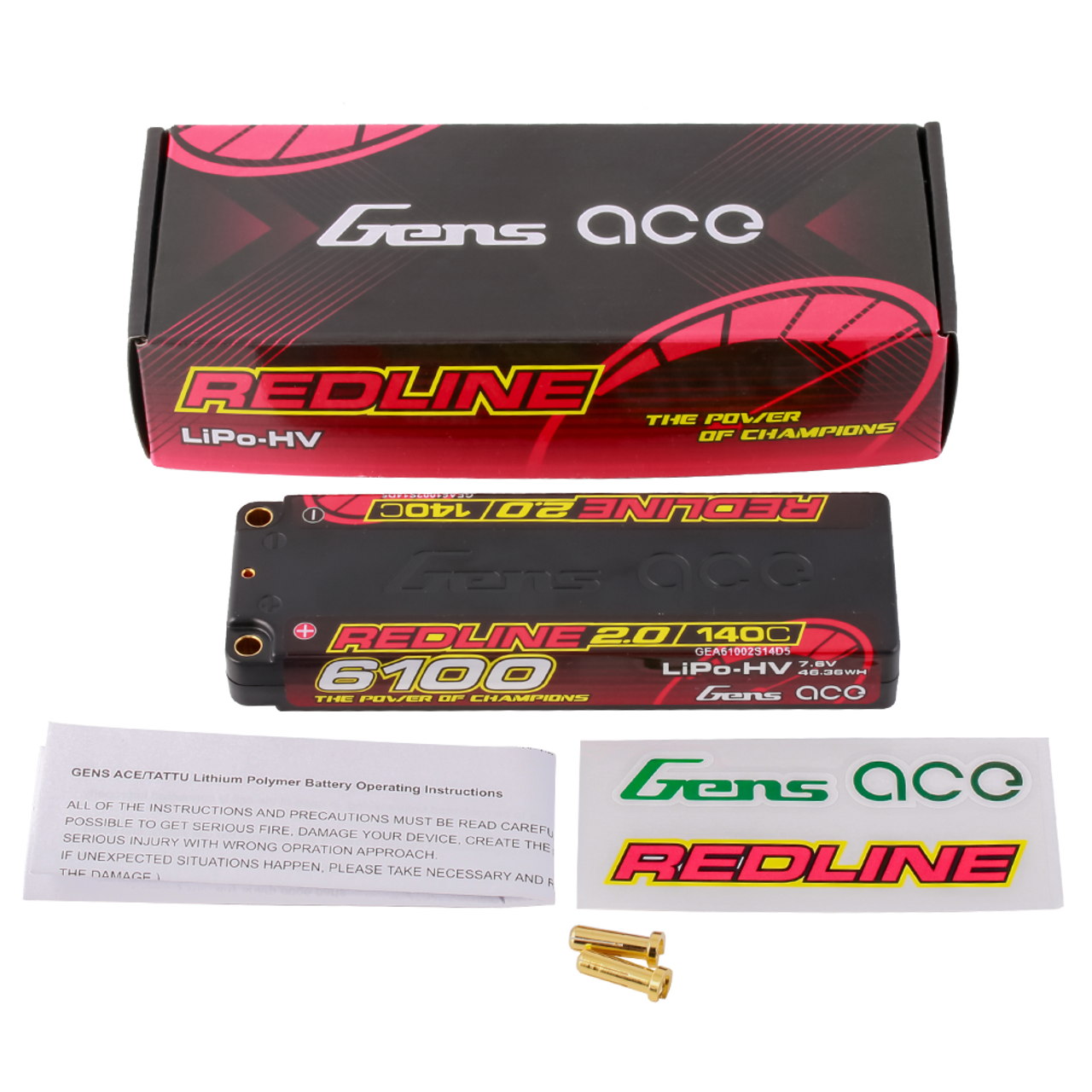

1 × Gens Ace Redline 2.0 6100mAh 2S 140C hardcase LiHV battery.
