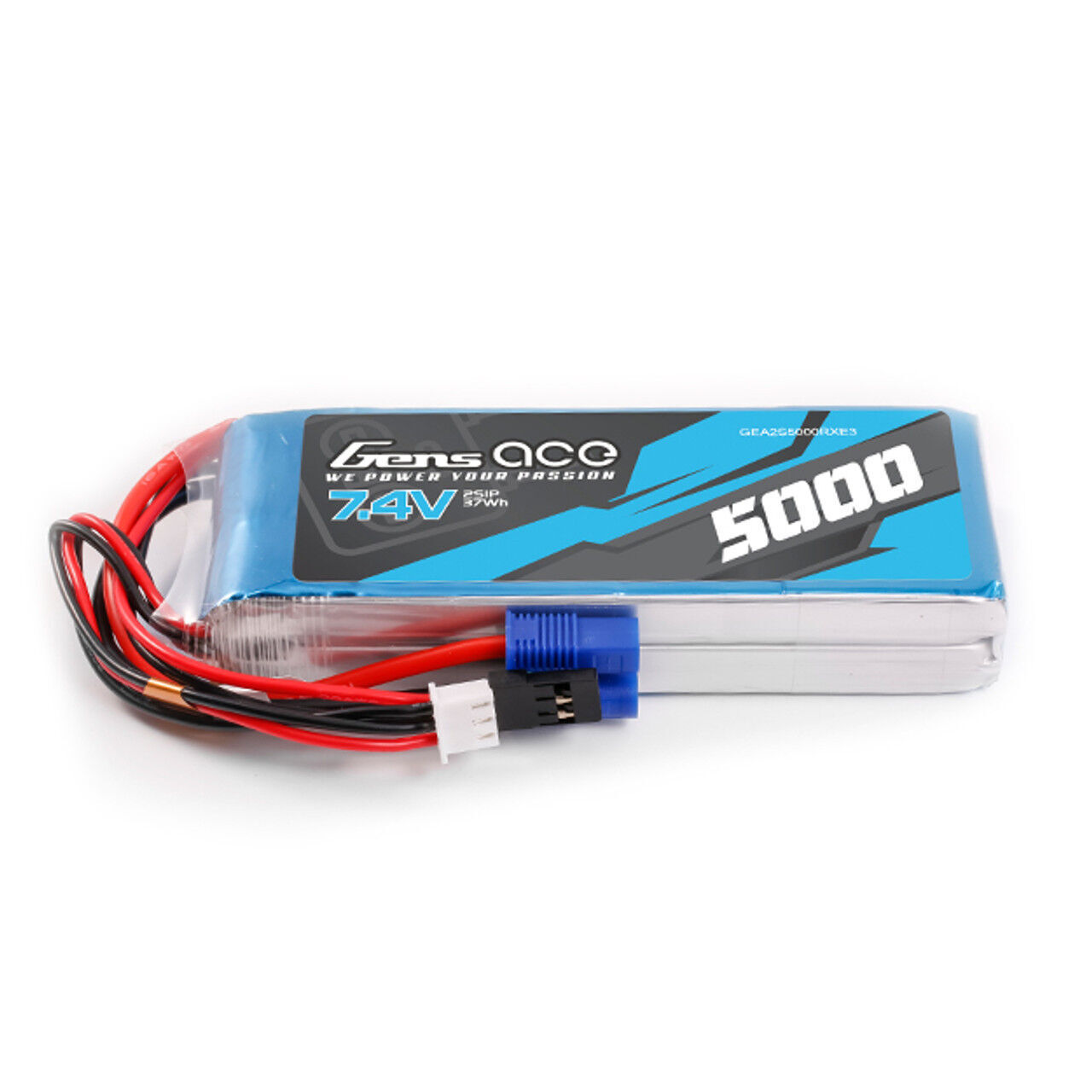

Gens Ace 5000mAh 7.4V 2S LiPo Receiver Battery with EC3 & JR Connectors – GEA2S5000RXE3

The Gens Ace 5000mAh 7.4V 2S LiPo Receiver Battery provides a rechargeable power supply for compatible RC receiver and servo systems. Combining a generous 5000mAh capacity with EC3 and JR connectors, this pack offers practical connection options for models using a separate radio-system battery.

Its flat soft-pack construction suits installations with an appropriately sized battery compartment. Whether you are completing a new model or replacing an existing receiver pack, the GEA2S5000RXE3 is a useful option where voltage, dimensions and electrical requirements match.

5000mAh Capacity

The battery’s 5000mAh capacity provides a substantial power reserve for your receiver, servos and connected electronics. This can support longer operating periods between charges, with actual duration determined by servo quantity, workload and other electrical demands.

Monitor remaining charge during use and establish charging intervals suited to your model’s power consumption.

EC3 and JR Power Connections

The fitted EC3 and JR-3P connectors allow connection to compatible switches, regulators and receiver power systems. The EC3 connection also provides a convenient charging option with a suitable charging lead.

Choose the connection appropriate to your installation and ensure the complete wiring system can handle the current required by your equipment.

7.4V Two-Cell LiPo Configuration

The 2S1P configuration delivers 7.4V nominal voltage and 8.4V when fully charged. Receivers, servos, switches and accessories connected directly to the battery must support the full battery voltage.

For equipment requiring a lower supply voltage, use a suitable regulator with adequate current capacity.

Flat Soft-Pack Design

Measuring approximately 109 × 42 × 19.5mm and weighing approximately 189g, this pack has a flat profile for compatible mounting trays and battery compartments.

Allow additional clearance for leads and connectors. Secure the battery inside a protected compartment to prevent movement and keep the soft case clear of sharp edges.

Separate Balance Lead

The JST-XH three-pin balance connector enables individual cell monitoring during balance charging. Use it alongside the main charging connection with a charger supporting standard 2S LiPo batteries.

Key Features

• 5000mAh capacity for compatible radio power systems.

• 7.4V nominal voltage with a 2S1P configuration.

• EC3 and JR-3P power connectors.

• JST-XH three-pin balance lead.

• Flat soft-pack construction.

• Practical replacement or spare receiver battery.

Specifications

Compatible Applications

Suitable for compatible RC models using a separate receiver battery, including nitro-powered vehicles and aircraft. Confirm battery compartment space, connector polarity, system current requirements and the voltage ratings of every connected component before installation.

Package Contents

• 1 × Gens Ace 5000mAh 7.4V 2S LiPo receiver battery with EC3 and JR connectors and a balance lead.

Required for Use

• Compatible receiver and servo power system.

• Balance charger supporting standard 2S LiPo batteries.

• Suitable main charging lead.

• Voltage regulator where required by your electronics.

Charging Note: Use the charger’s standard 2S LiPo programme and follow the battery’s supplied charging instructions.
