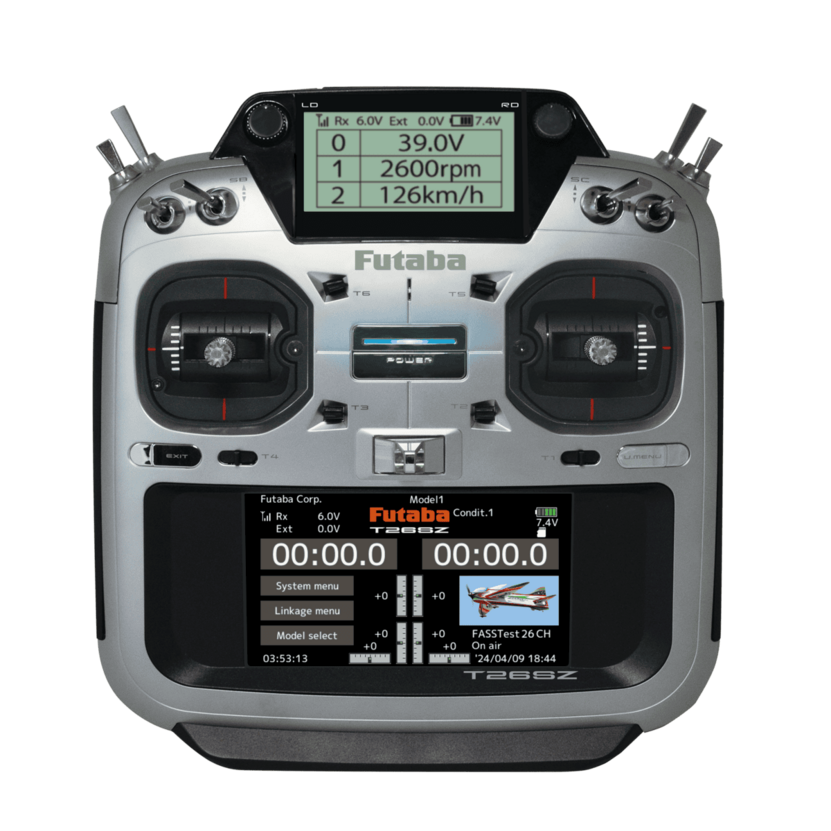

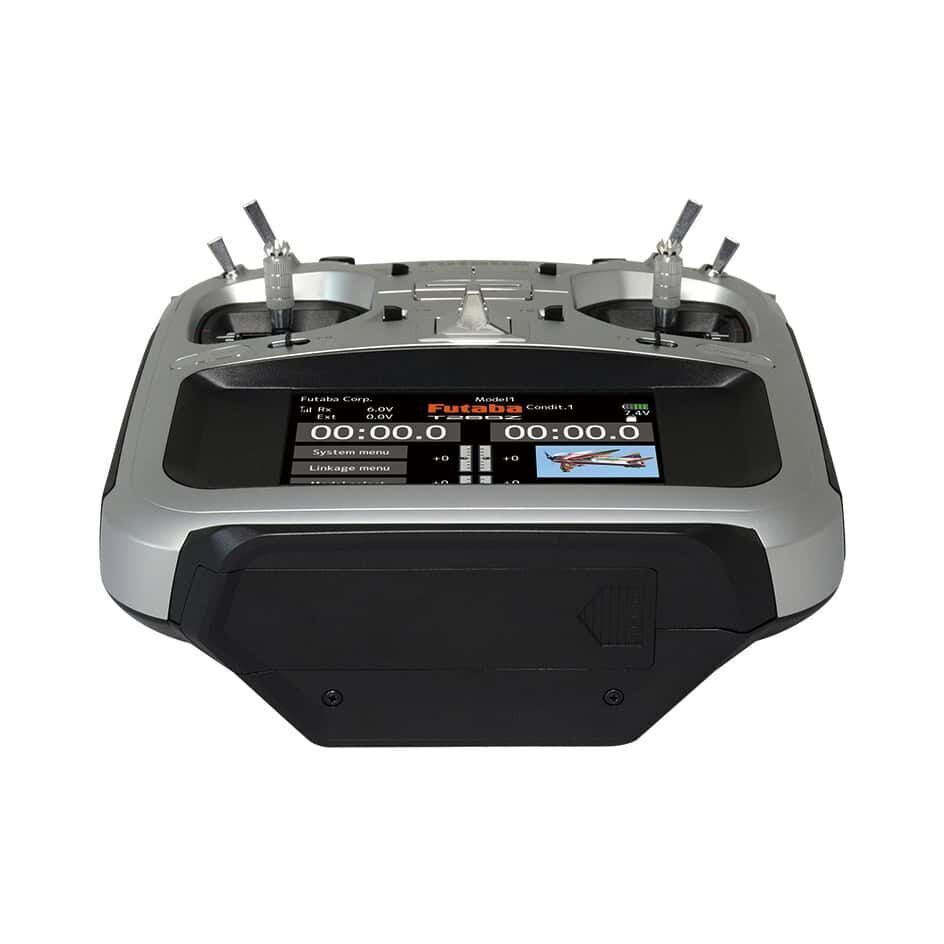

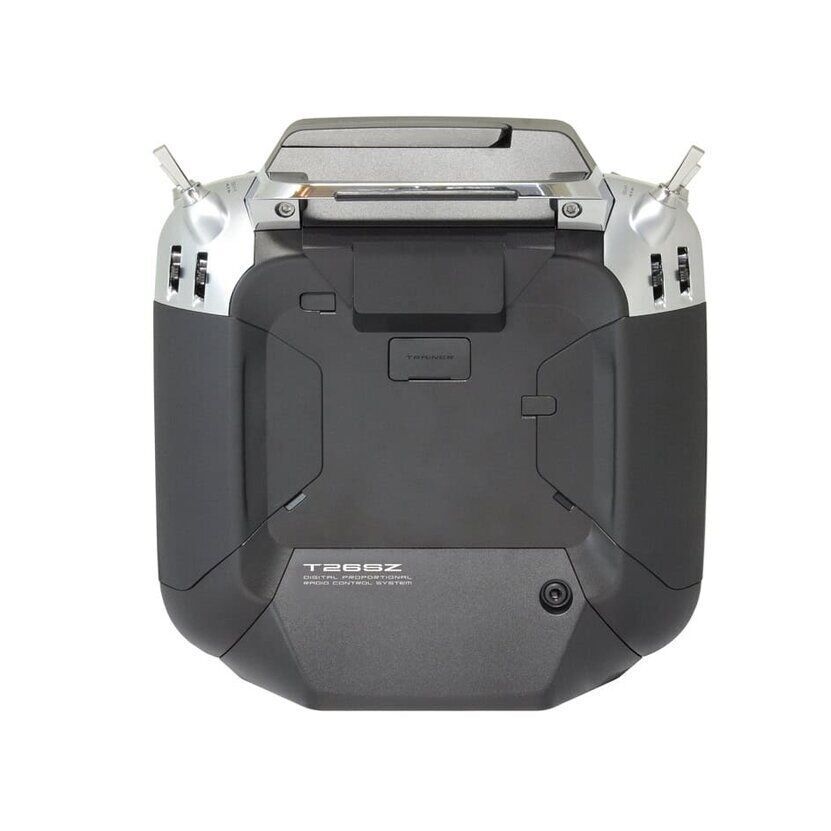

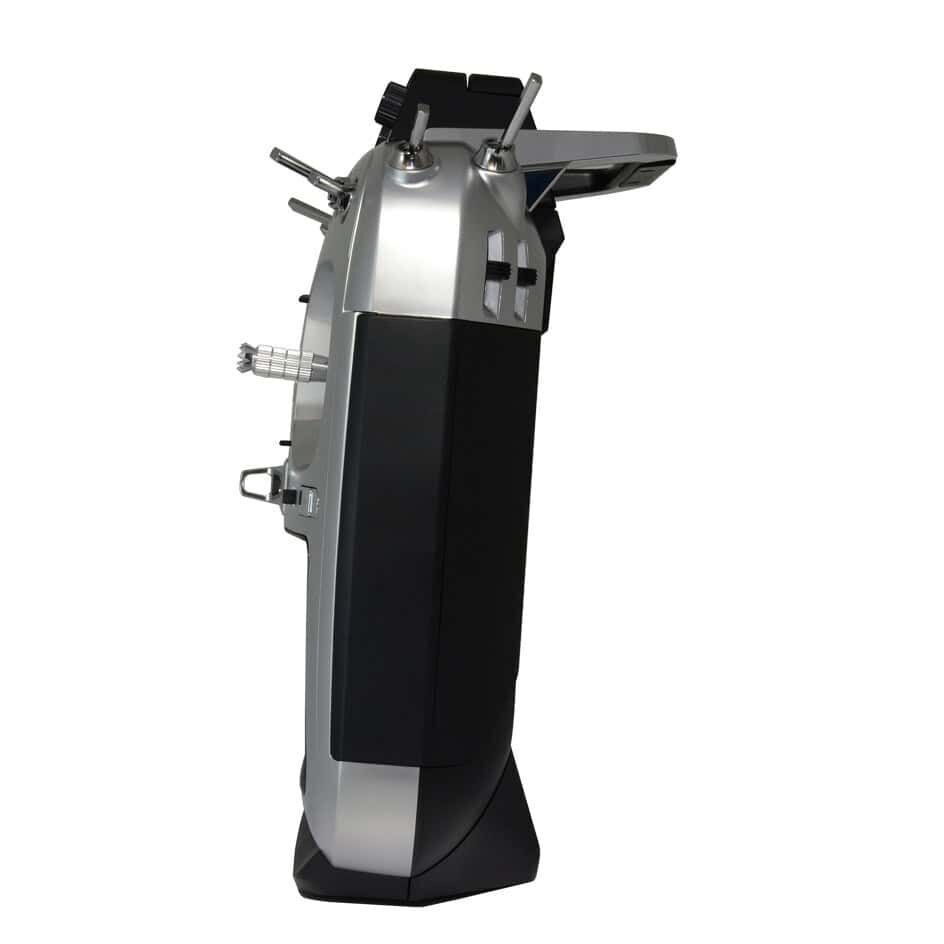

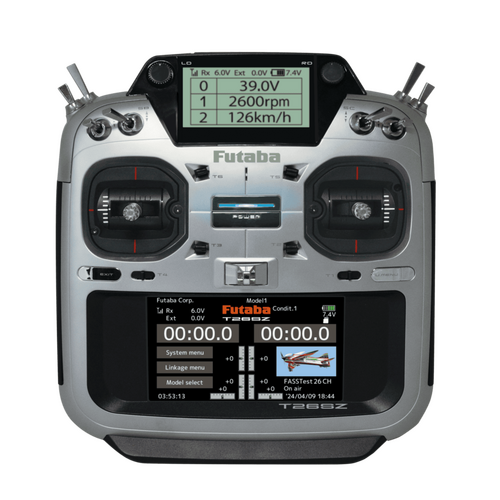

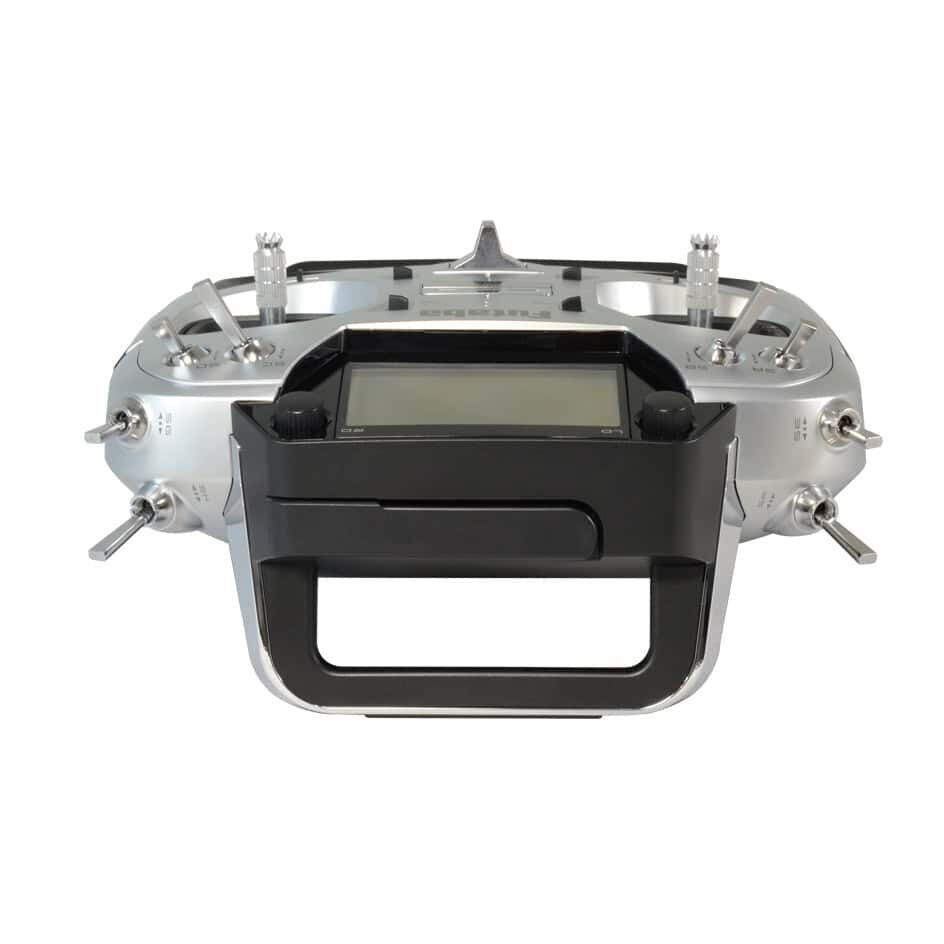

26SZ Transmitter – 26-Channel Digital Proportional RC System

2-Stick, 26-Channel, FASSTest 2.4 GHz System
(01004437-1) (01004438-1) (01004440-1)

FEATURES

FASSTEST SYSTEM:
The 26SZ transmitter has adopted the bidirectional communication system “FASSTest.” Data from the receiver can be checked in your transmitter. FASSTest is a dedicated system with a maximum of 26 channels and 2.4 GHz.

COLOR TOUCH SCREEN LCD:
T26SZ has an HVGA 4.3 inch, full-color backlit LCD touch screen. The screen is transflective which enables both indoor and outdoor visibility.

S.BUS2 SYSTEM:
Using the S.Bus2 system, multiple servos, gyros, and telemetry sensors can be easily installed with a minimum of cables.

MODEL TYPES:
Multicopter. 8 swash types are available for helicopters. 7 types of main wings and 3 types of tail wings are available for airplanes and gliders. Functions and mixing functions necessary for each model type are set in advance at the factory.

LIPO BATTERY:
The 26SZ is operated by a 7.4 V/2,000 mAh Lithium Polymer battery.

SD CARD (SECURE DIGITAL MEMORY CARD) *NOT INCLUDED:
Model data can be saved to an SD card (SD: 32MB – 2GB, SDHC: 4GB-32GB). When T26SZ transmitter software files are released, the software can be updated by using an SD card update.

EDIT BUTTON:
Two edit buttons are provided, and the operating screen can be immediately “Returned” to the HOME screen during operation. Setting operation can be performed easily by combining this button with a touch sensor.

VIBRATION FUNCTION:
Selects a function that alerts the operator to various alarms by vibrating the transmitter in addition to sounding a buzzer.

SPEECH FUNCTION:
A function is equipped to allow the system to provide audible telemetry data. This function can also be utilized with commercially available earphones.

CONTENTS

YOUR T26SZ INCLUDES THE FOLLOWING COMPONENTS:

• T26SZ Transmitter
  – Air Version includes ratcheting throttle
  – Helicopter Version includes smooth throttle
• R7208SB or R7214SB receiver
• LT2F2000 Battery
• Switch Harness
• Mini Driver

*NOTE: The battery in the T26SZ transmitter does not arrive already attached to the battery connector. Please connect the battery connector before use.

TRANSMITTER SPECS

TRANSMITTER FREQUENCY:
2.4 GHz band

SYSTEM:
FASSTest26CH, FASSTest18CH, FASSTest12CH, T-FHSS, S-FHSS, switchable

POWER SUPPLY:
7.5V FT2F2100BV2 LiPo battery

FREQUENCY BAND:
2.4 GHz

RF POWER OUTPUT:
100mW EIRP

RECEIVER SPECS

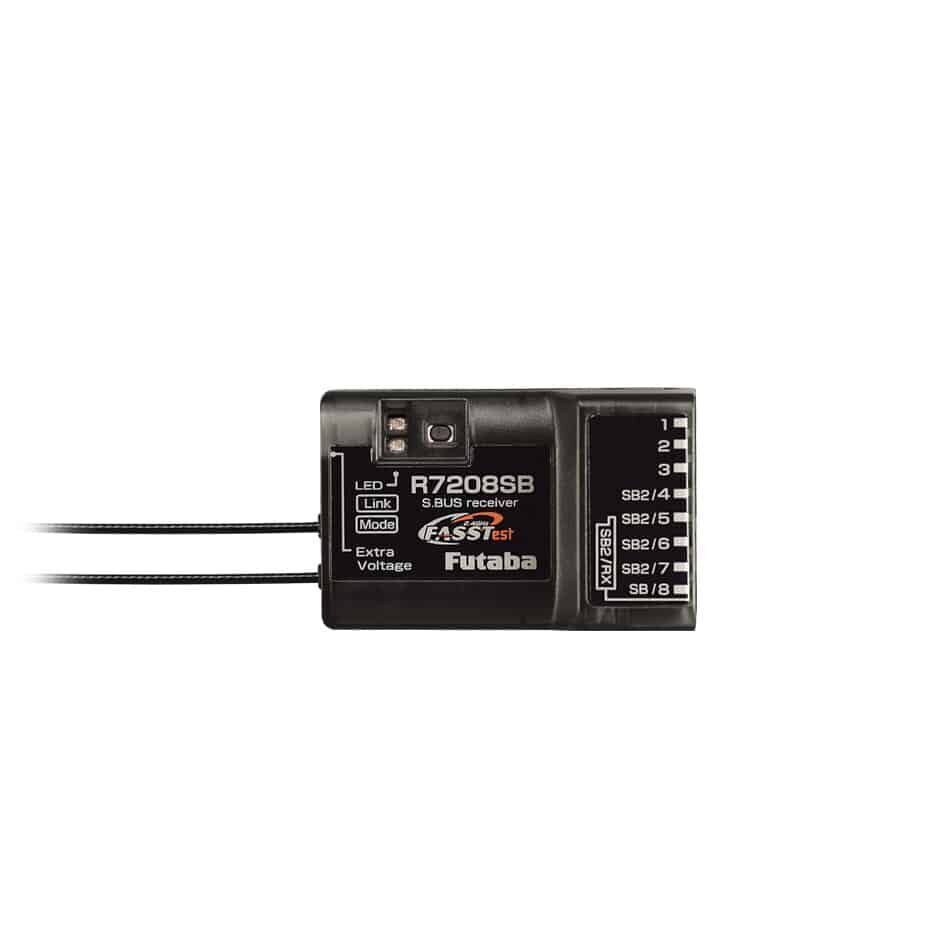

R7208SB

SIZE:
24.9 x 47.3 x 14.3 mm
0.98 x 1.86 x 0.56 in

WEIGHT:
12.0 g
0.42 oz

POWER REQUIREMENTS:
7.4 V LiPo Battery

CURRENT DRAIN:
75 mA

RF POWER OUTPUT:
25 mW EIRP

R7214SB

SIZE:
50.2 x 37.0 x 15.9 mm
1.98 x 1.45 x 0.63 in

WEIGHT:
20.8 g
0.73 oz

POWER REQUIREMENTS:
DC 3.7~7.4V

VOLTAGE RANGE:
DC 3.5~8.4V
