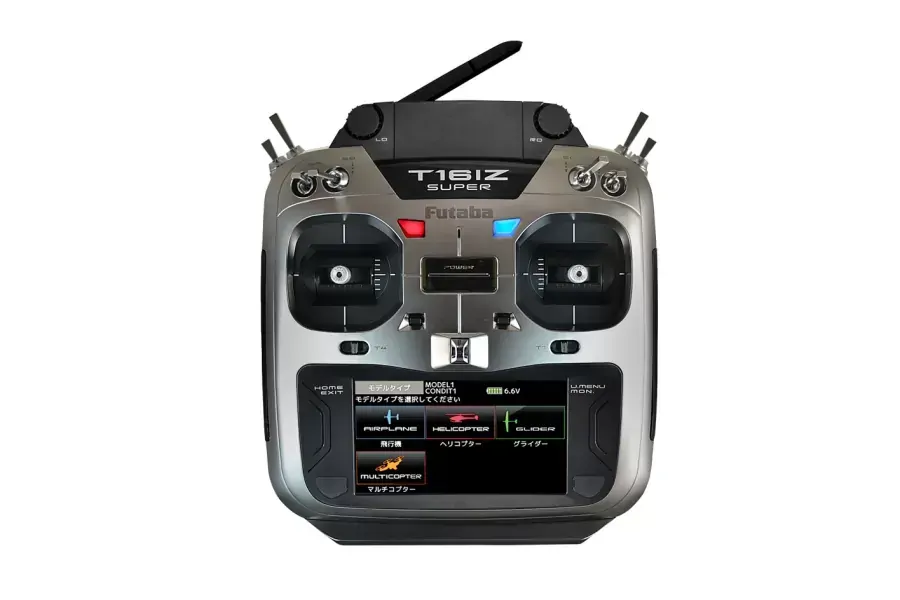

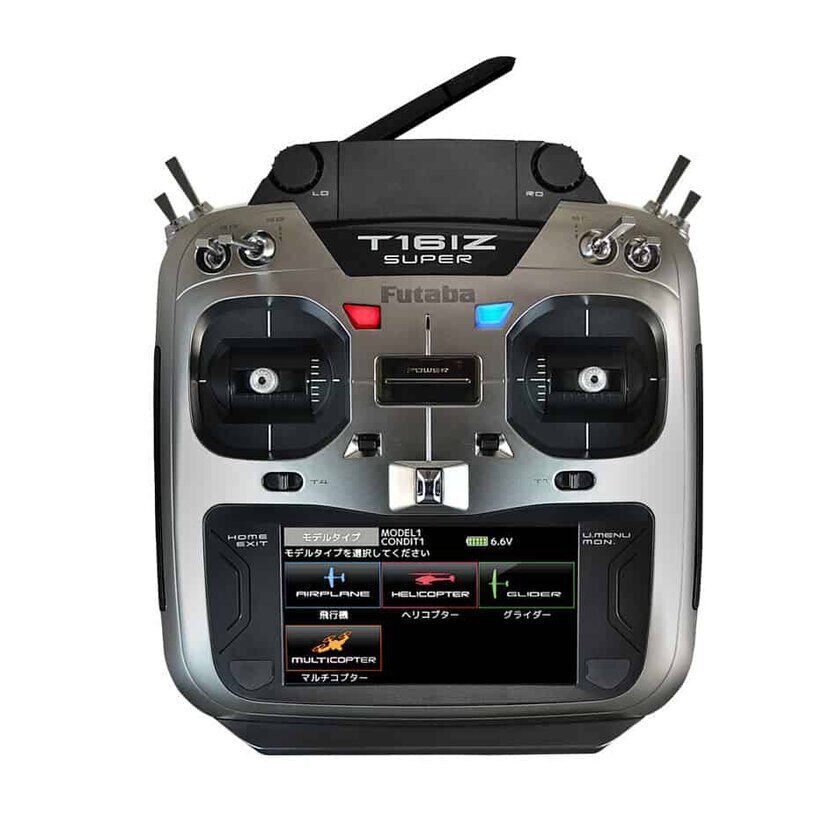

16IZS Transmitter – 18-Channel Computer System

2-Stick, 18-Channel, FASSTest 2.4 GHz System (01004423-1)(01004422-1)(01004420-1)(01004421-1)

FEATURES

FASSTEST SYSTEM:
The Futaba 16IZS transmitter adopted the bidirectional communication system FASSTest. Data from the receiver can be checked in your transmitter. FASSTest is a maximum 18 channels (linear 16 channels + switch 2 channels) 2.4 GHz dedicated system.

S.BUS2 SYSTEM:
By using the S.Bus2 system multiple servos, gyros and telemetry sensors are easily installed with a minimum amount of cables.

USB SIMULATOR CONTROL:
The T16IZS offers USB C compatibility for simulator control when used with Windows OS Joystick function.

COLOR TOUCH SCREEN LCD:
T16IZS has an updated HVGA 4.3 inch, full-color backlit LCD touch screen. The screen is transflective which enables both indoor and outdoor visibility.

MULTI HOLDER:
T16IZS Offers Multi holder near the antenna/charging port. It allows for accessories to be mounted using an M3 style screw.

Voice Telemetry:
The Futaba T16IZS transmitter allows for audible telemetry data to be read aloud for easy understanding of crucial parameters while flying.

SECURE DATA (SD CARD):
Model data files can be stored on optional microSD card. The microSD card is also used when updating the software/features of the T16IZS.

HIGH CAPACITY LITHIUM POLYMER BATTERY (2000 MAH):
The high capacity 2S Lithium Polymer battery gives you extended flight time.

EDITING:
The touch panel and two enter keys allows you to edit your model in the manner that is easiest for you.

FUNCTIONS:
With the powerful internal processor. Most of the mixing functions are operated by curves which give you very precise settings and improved feel.

STICK:
Each stick offers our reliable single ball bearing for each axis. With our high cycle potentiometer this allows for finer and more precise operation.

VIBRATION FUNCTION:
Low voltage and other alarms are generated by a vibration motor. Alarms or vibrations to be used can be selected by the owner.

R7208SB:
The system comes with the R7208SB S.Bus2 Dual Antenna Diversity receiver featuring bi-directional communication.

CONTENTS

YOUR FUTABA 16IZS TRANSMITTER INCLUDES THE FOLLOWING COMPONENTS:

• T16IZS Transmitter
  • Air Version includes ratcheting throttle
  • Helicopter Version includes smooth throttle
• R7208SB Receiver (If Selected)
• LT2F2000B Lithium Polymer Battery and USB cable for charging
• Neck Strap
• Manual (Printed short version.

FUTABA 16IZS TRANSMITTER SPECS

TRANSMITTER FREQUENCY:
2.4 GHz band

OPERATING SYSTEM:
2-Stick, 18-Channels, 2.4 GHz FASSTest/FASST/T-FHSS/S-FHSS System

POWER SUPPLY:
7.4 V LT2F2000B Lithium-polymer battery

RF POWER OUTPUT:
100 mW EIRP

RECEIVER SPECS

R7208SB

SIZE:
24.9 x 47.3 x 14.3 mm
0.98 x 1.86 x 0.56 inWEIGHT:
12.0 g
0.42 ozPOWER REQUIREMENTS:
6.6 V LiFe BatteryCURRENT DRAIN:
75 mARF POWER OUTPUT:
25 mW EIRP

Futaba 16IZS Transmitter Compatible Receivers*

S-FHSS PROTOCOL

• R2008GS
• R2008SB
• R2106SB
• R2001SB
• R2000SBM

T-FHSS TELEMETRY PROTOCOL

• R3001SB
• R3004SB
• R3006SB
• R3008SB

T-FHSS MONO (NON-TELEMETRY)

• R3206SBM
• R3106GF

FASST7 AND FASST MULTI

• R6004FF
• R6008HS
• R6014HS
• R6016HF
• R616FFM
• R617FS
• R6202SBW
• R6203SB
• R6208SB
• R6303SB
• R6303SBE

FASSTest12 and FASSTest18

• R7003SB
• R7006SB
• R7008SB
• R7108SB
• R7014SB
