Highlights

• LCG chassis (new design)
• Servo shock absorption protection device (new design)
• Innovative DIG function with remote-controlled single rear wheel lock (patented)
• Quick-release structure (patented)
• Front and rear portal axles
• High-traction crawling tires
• Remote-controlled full LED light system
• Realistic scale interior with fine details
• Remote-controlled locking front and rear differentials
• Two-speed transmission
• Counter-rotating driveshafts
• Oil-filled, all-metal shock set
• Full-metal gears with plastic spur gear
• Full set of ball bearings
• Independent ESC
• Includes two decal sets for user customization

• ntroduction

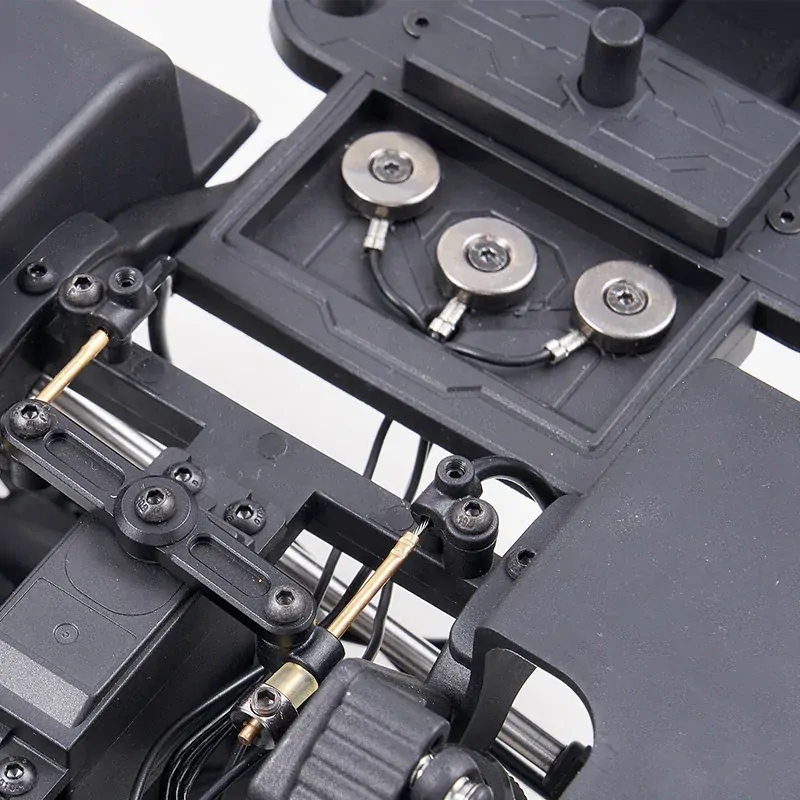

  The FMS CANYON is a rugged off-road machine inspired by Dubai’s futuristic police supercar. Designed for realism and built for performance, it features a high-strength PC body shell with durable nylon roof panels, bumpers, mirrors, and door handles. Clear windows reveal a detailed driver figure and a fully replicated cockpit interior. A synchronized LED lighting system includes functional headlights, turn signals, and tail lights with customizable light buckets for scale accuracy. The body attaches using FMS’s patented magnetic quick-mount system, which automatically connects power and lighting functions for easy setup. Underneath, the reinforced nylon chassis offers outstanding rigidity and impact resistance. Power comes from a two-speed transmission with reverse, metal gears and bearings, and portal axles that deliver maximum ground clearance. Finishing touches include servo-saver protection, rear brake discs and functional DIG mode for ultra-tight, tank-style turns.

  What’s in the Box:

• 1 x FMS 1:10 Canyon RS
• 1 x 2.4GHz MG11 Transmitter
• 1 x FS-R11P-BS Receiver (installed)
• 1 x 550 Brushed Motor 32T (installed)
• 1 x Product Manual

• Needed to Complete:

• 4 x AA Batteries for Transmitter
• Battery & Charger for Kit (Recommended 2S or 3S 5000mAh XT60 plug x1)

• Transmitter	MG11
  Receiver	FS-R11P-BS
  Light Control	DB01
  Recommend Battery	2-3S
  Motor Type	550 Brushed Motor 32T
  Motor Gear Pinion	14T
  Motor Gear Pitch	M0.6
  Spur Gear Pinion	33T
  Spur Gear Pitch	M0.6
  ESC	Hobbywing 1060
  Steering Servo	25KG Steering Servo*1
  Shift/Differential Servo	High/low speed servo*1, Front/Rear Diff Servo*2, DIG servo*1
  Product Size	580*260*256mm
  Wheelbase	325mm
  Tread	208mm
  Approach Angle	38°
  Departure Angle	39.5°
  Breakover Angle	45°
  Ground Clearance	60mm
  Steering Type	2WS
  Maximum Steering Angle	42°
  Maximum Climbing Angle	40°
  Tire Size (Diameter & Width)	116*42mm
  Wheelhub Size (Diameter & Width)	56*32mm
  Wheelhub Adaptor Size	12mm
  Bearing	36pcs
  Drive System	4WD
  Waterproof Class	Splash-proof
  Battery Compartment Size	156*48mm
  Maximum Speed	15KM/h
  Maximum Control Distance	150m
