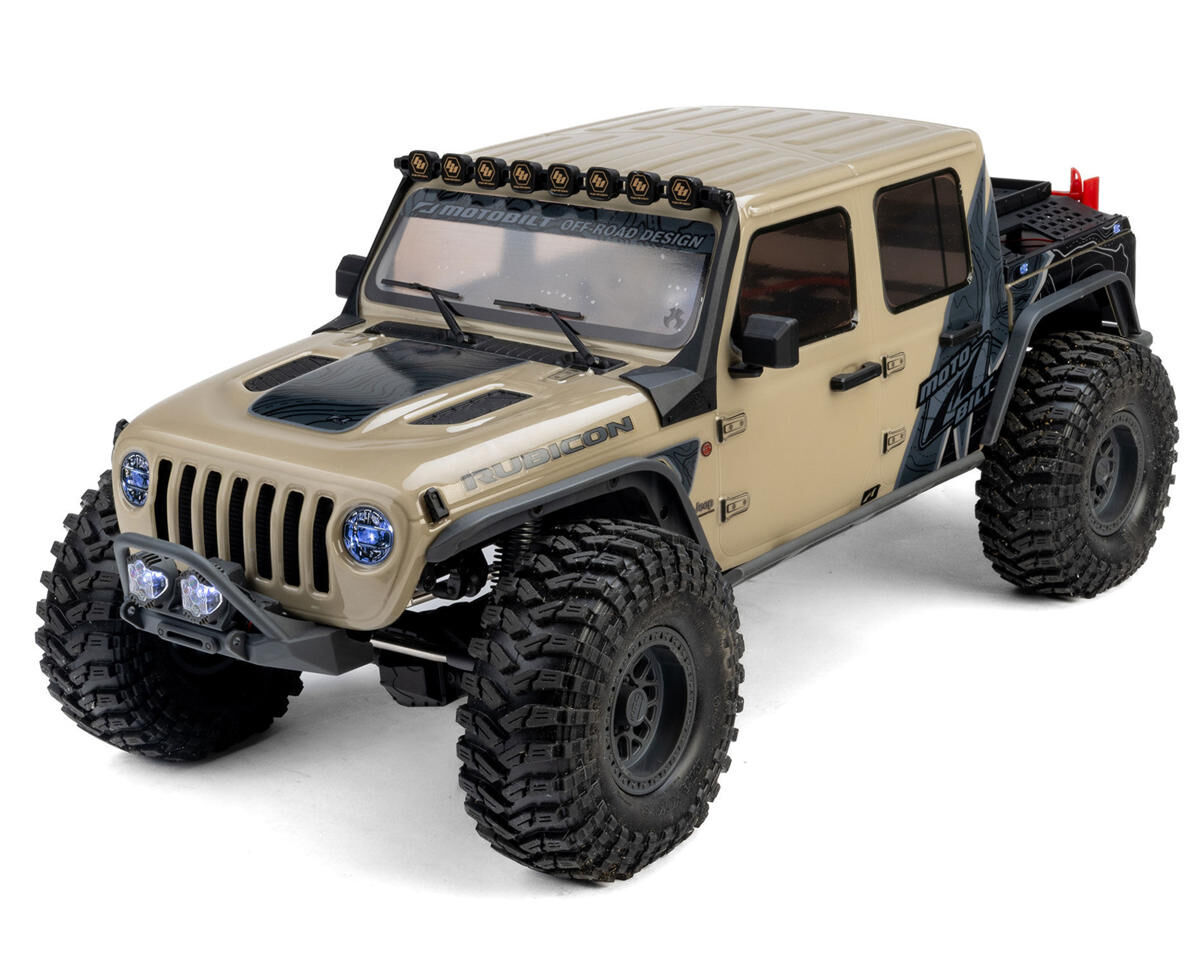

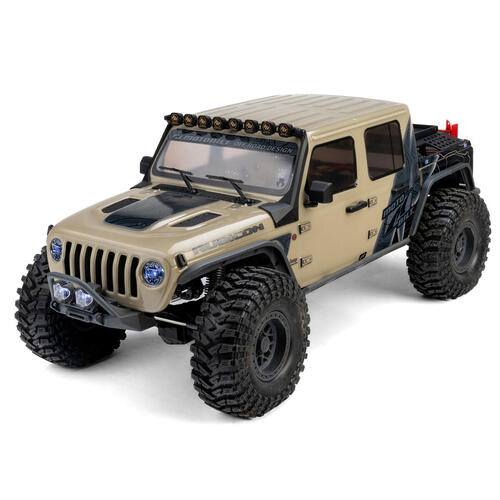

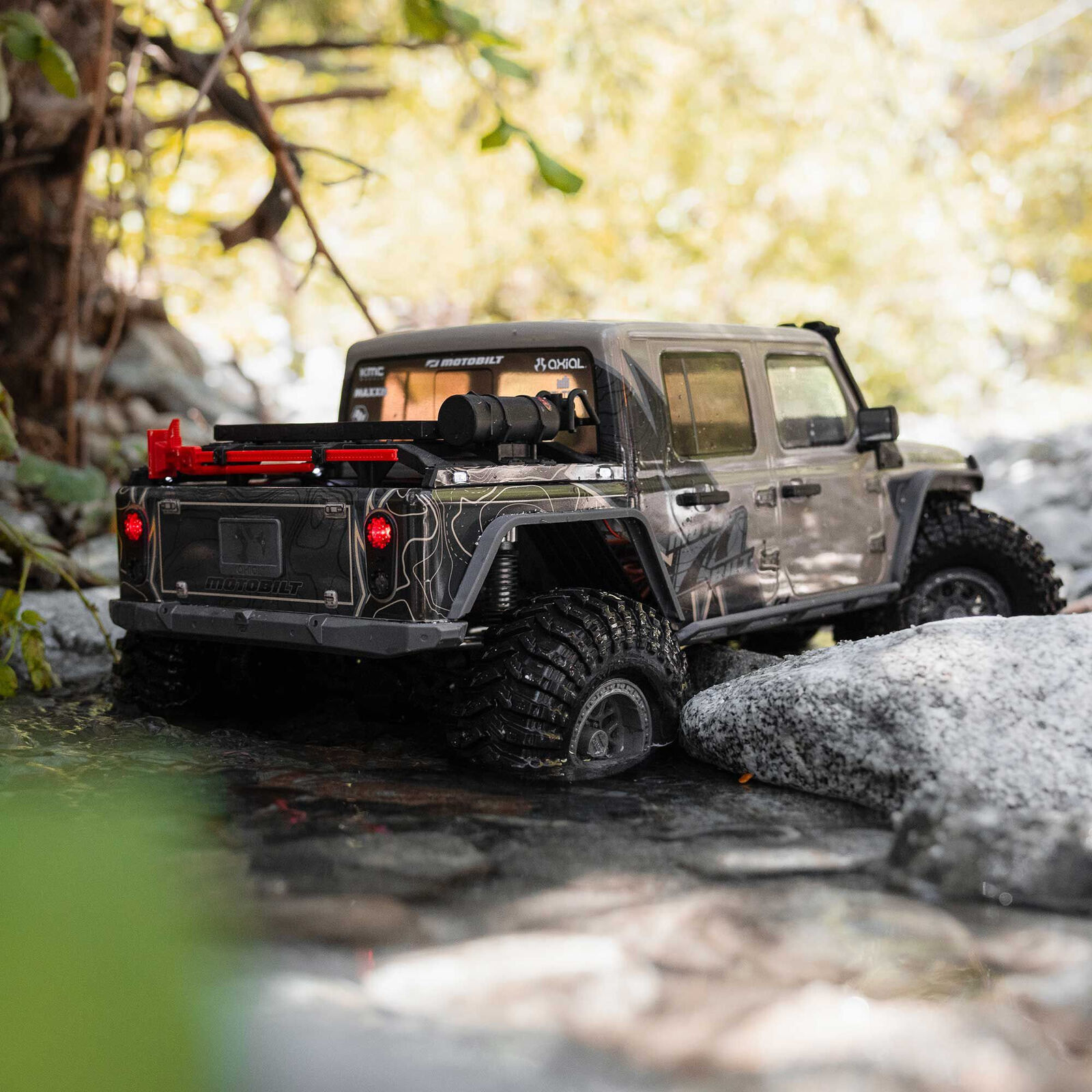

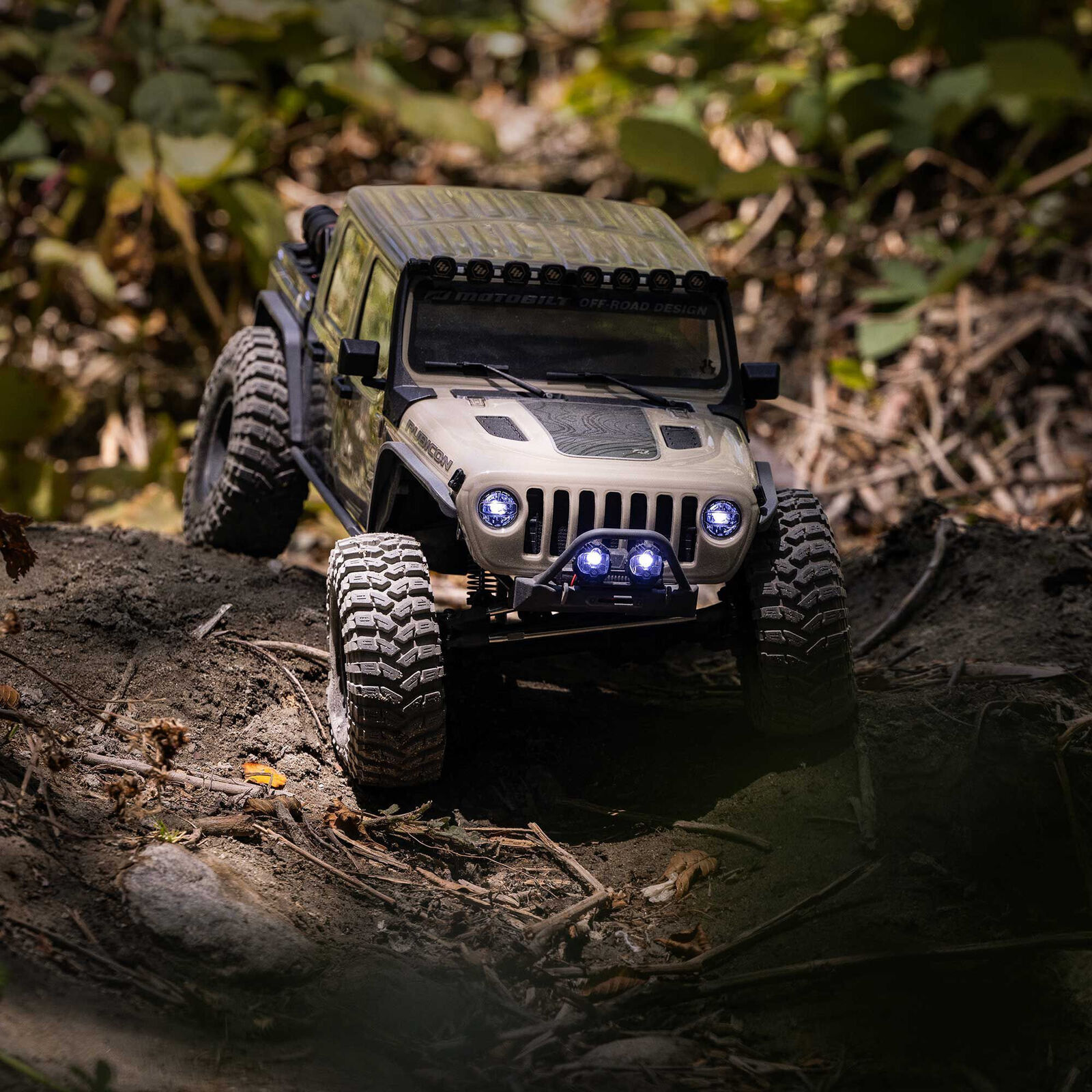

Axial SCX10 III Motobilt Waypoint Jeep JT Gladiator 1/10 4WD RTR Tan - AXI-2443T1

The Axial SCX10 III Motobilt Waypoint Jeep JT Gladiator brings one of the most extreme full-size off-road Jeep builds to life in highly detailed 1/10 scale.

Developed in partnership with Motobilt, this officially licensed crawler recreates the distinctive Waypoint Jeep JT Gladiator with a bobbed bed, Motobilt bumpers, Baja Designs lighting, KMC Grenade beadlock wheels and Maxxis Trepador tyres.

Underneath the highly detailed body is Axial's proven SCX10 III 4WD platform, equipped with a steel C-channel chassis, AR45 straight axles, aluminium oil-filled shocks, all-metal transmission gears and a factory-installed DIG system.

Official Motobilt Waypoint Styling

The durable polycarbonate Jeep JT Gladiator body comes fully painted and assembled with authentic details including the iconic Jeep 7-slot grille, detailed fender flares, moulded door handles, hood vents and side mirrors.

Motobilt Waypoint details include:

• Motobilt front and rear bumpers
• Baja Designs LP6 bumper lights
• Baja Designs S2 bed rail lights
• Scale 15lb CO2 tank
• Hi-Lift jack
• Bobbed rear bed for improved departure clearance
• Detailed inner fender wells

The AXI-2443T1 comes finished in the Tan colour scheme.

Axial Slick Rock 35T Brushed Power

Power comes from an Axial Slick Rock 35-Turn 540-size brushed motor matched to a Spektrum Firma 40A waterproof brushed ESC.

This trail-proven power system provides smooth low-speed control for technical crawling while delivering plenty of torque for tackling steep climbs and difficult terrain.

Factory-Installed DIG Function

The SCX10 III transmission features a factory-installed DIG system, controlled directly from the third channel of the included Spektrum SLT3 transmitter.

Activating DIG locks the rear drivetrain while continuing to power the front wheels. This allows the crawler to make much tighter turns and provides additional control when navigating technical rock sections.

AR45 Straight Axles

The AR45 straight axles provide excellent crawling performance while maintaining realistic scale appearance.

The front axle features a driver-offset differential housing for additional scale realism, and an optional overdrive gear is available for racers wanting to further tune crawling performance.

Aluminium Adjustable Shocks

Oil-filled shocks with threaded aluminium bodies and single coil-over springs provide smooth suspension movement and easy adjustment.

The front 3-link and rear 4-link suspension use heavy-duty 6mm stainless steel links and stainless steel pivot balls, providing excellent durability for demanding trail and rock crawling.

Licensed KMC Wheels & Maxxis Tyres

The SCX10 III Waypoint rolls on officially licensed KMC Grenade true beadlock wheels wrapped in Maxxis Trepador tyres.

The soft-compound tyres feature an aggressive tread pattern and side lugs designed to provide strong grip across rocks, dirt and challenging trail surfaces.

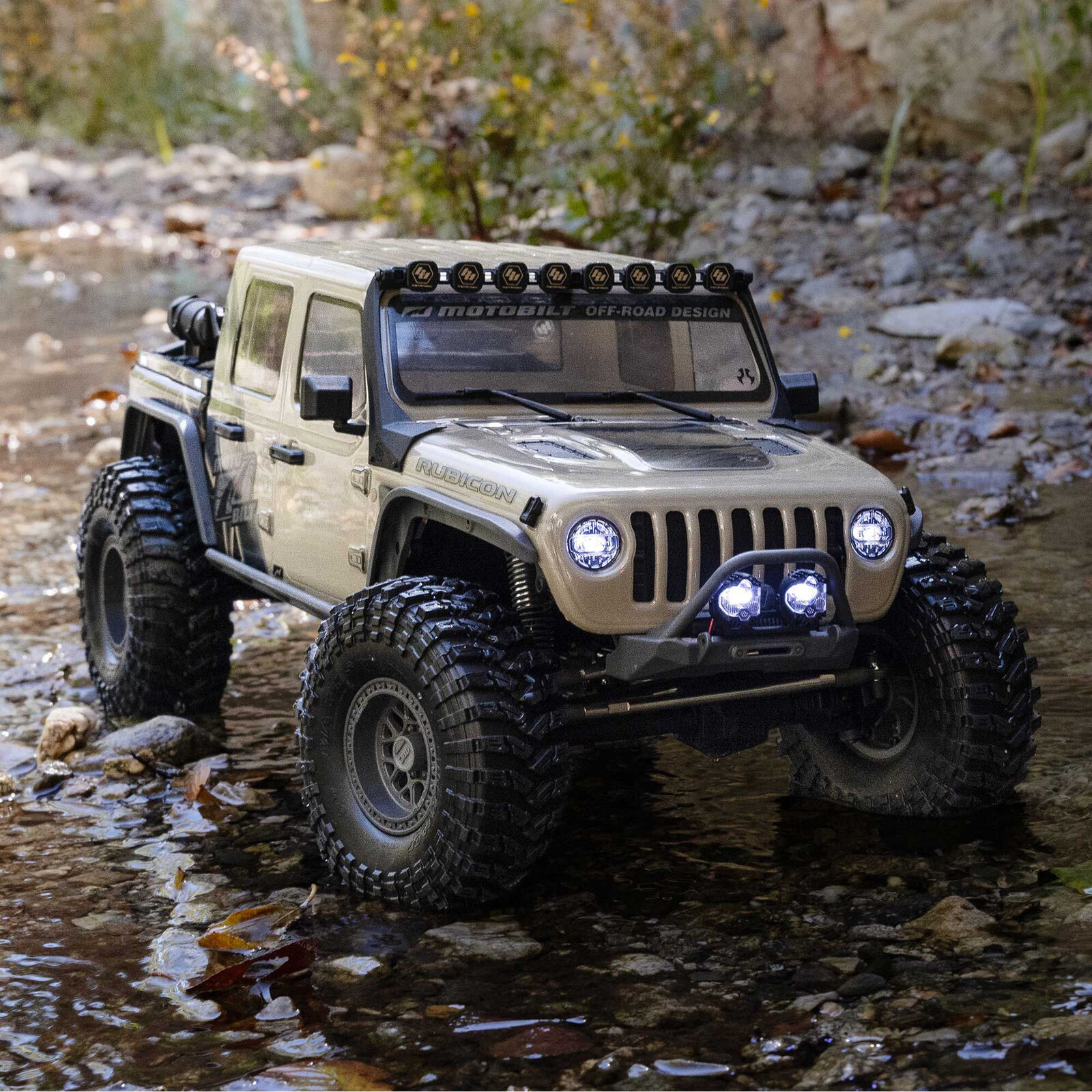

Full LED Lighting

Extensive factory-installed LED lighting adds impressive scale realism and makes night-time trail driving even more enjoyable.

LEDs are fitted to the:

• Front bumper
• Headlights
• Taillights
• Bed rack

The Baja Designs-inspired lighting complements the detailed Motobilt Waypoint body.

Key Features

• Officially licensed Jeep JT Gladiator
• Authentic Motobilt Waypoint build
• 1/10 scale
• Ready-to-Run
• Full-time 4WD
• Tan T1 colour scheme
• Bobbed rear bed
• Motobilt front and rear bumpers
• Baja Designs LED lighting
• KMC Grenade true beadlock wheels
• Maxxis Trepador soft-compound tyres
• AR45 straight axles
• Steel C-channel chassis
• 13.9" extended wheelbase
• Aluminium threaded oil-filled shocks
• Front 3-link suspension
• Rear 4-link suspension
• 6mm stainless steel suspension links
• All-metal transmission gears
• Full ball-bearing transmission
• Factory-installed DIG system
• Axial Slick Rock 35T brushed 540 motor
• Spektrum Firma 40A waterproof ESC
• Spektrum S683 steering servo with steel output gear
• Spektrum SX108 DIG micro servo
• Spektrum SR515 receiver
• Spektrum SLT3 3-channel radio
• Standard and shorty battery compatibility
• Detailed scale accessories

Specifications

Brand: Axial
Model: SCX10 III Motobilt Waypoint Jeep JT Gladiator
Part Number: AXI-2443T1
Scale: 1/10
Vehicle Type: Rock Crawler
Colour: Tan
Drive: 4WD
Power: Electric Brushed
Motor: Axial Slick Rock 35-Turn 540 Brushed
ESC: Spektrum Firma 40A Waterproof Brushed
Radio: Spektrum SLT3 3-Channel
Receiver: Spektrum SR515
Steering Servo: Spektrum S683 with 25T Steel Output Gear
DIG Servo: Spektrum SX108 Micro Servo
Transmission: All-Metal Gears with DIG
Axles: AR45 Straight Axles
Chassis: Steel C-Channel
Wheelbase: 13.9" / 353mm
Suspension: Front 3-Link / Rear 4-Link
Shocks: Oil-Filled Aluminium Threaded Coil-Over
Completion Level: Ready-to-Run

What's Included

• Axial SCX10 III Motobilt Waypoint Jeep JT Gladiator 4WD RTR – Tan
• Spektrum SLT3 3-channel transmitter
• Spektrum SR515 receiver
• Spektrum Firma 40A waterproof brushed ESC
• Axial Slick Rock 35T brushed motor
• Spektrum S683 steering servo
• Spektrum SX108 DIG micro servo
• 4 × AA transmitter batteries
• Product manual

Required to Complete

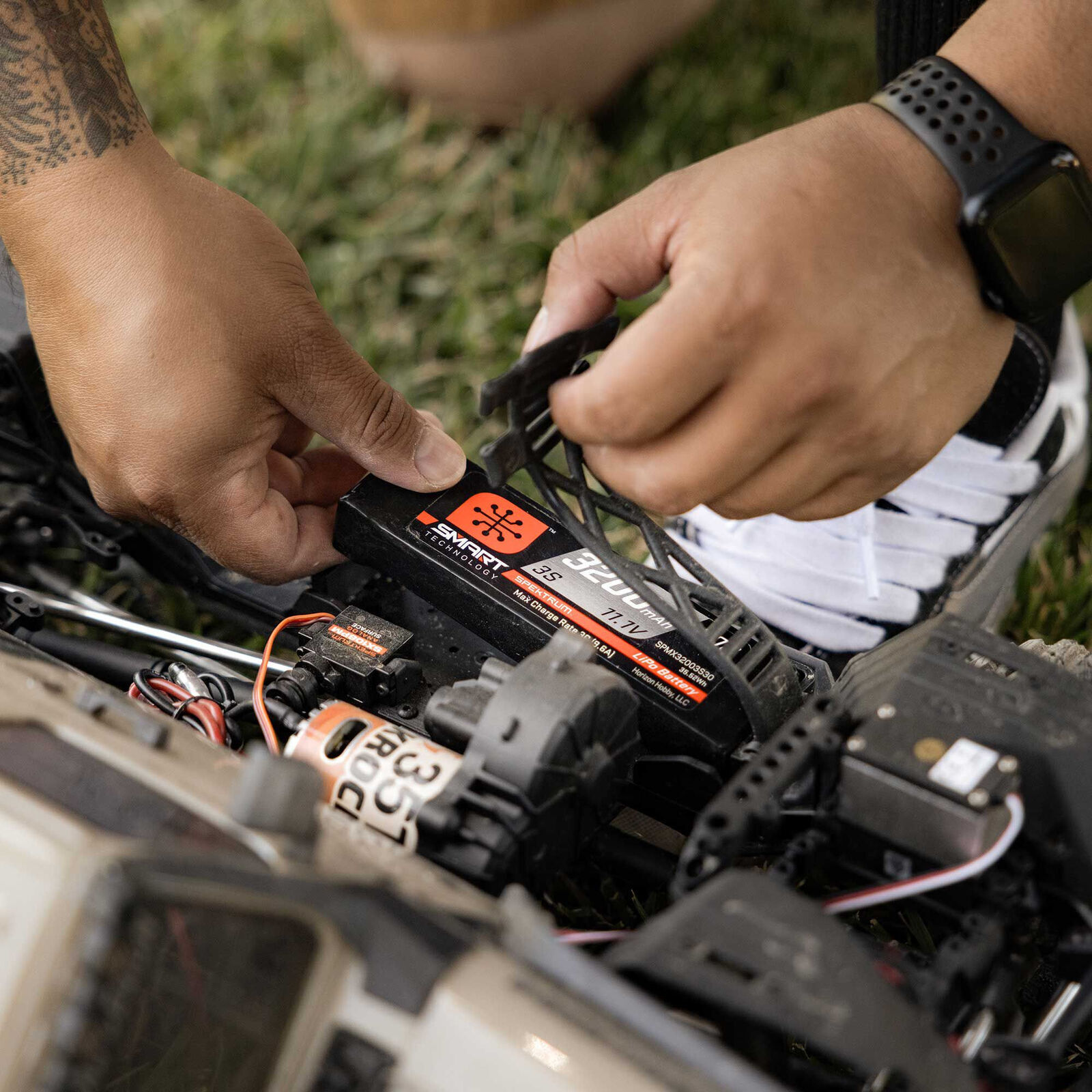

• Suitable 3S LiPo battery with IC3 connector
• Compatible LiPo battery charger

Axial recommends an 11.1V 3200mAh 3S 30C Smart G2 LiPo battery for this model.

Serious Scale Crawling Performance

The Axial SCX10 III Motobilt Waypoint Jeep JT Gladiator combines impressive licensed scale detail with a proven crawler platform that's built to be driven.

With its factory DIG system, AR45 straight axles, aluminium shocks, all-metal transmission, Maxxis tyres and extensive LED lighting, the AXI-2443T1 offers an excellent combination of realistic appearance and genuine trail capability.
