The ARRMA INFRACTION 6S BLX V2 is a high-performance 1/7 scale 4WD all-road street bash truck designed for extreme speed, drifting, high-speed cornering and aggressive driving on both paved and loose surfaces.

The ARA7615V2T2 is the Silver version of the INFRACTION 6S BLX V2 and features a powerful Spektrum brushless system, AVC stability control, Smart telemetry, a mechanical rear handbrake and a purpose-built aerodynamic chassis.

With a claimed top speed of 80+ mph / 128+ km/h using 6S LiPo power and the included speed pinion under optimum conditions, the INFRACTION is designed for experienced RC drivers who want serious high-speed performance straight from the box.

Spektrum 6S Brushless Power

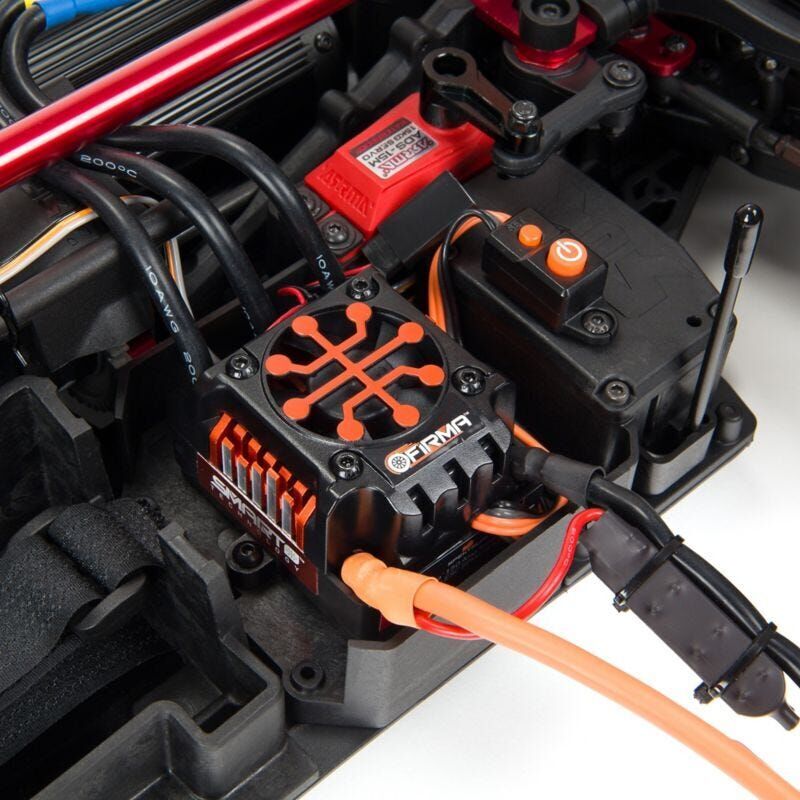

The INFRACTION is powered by a Spektrum FIRMA 4074 2050Kv brushless motor paired with a Spektrum FIRMA 150A Smart ESC.

The system is compatible with 4S and 6S LiPo batteries, providing strong acceleration and high-speed performance.

The Smart ESC provides real-time telemetry when paired with compatible Spektrum Smart equipment, allowing monitoring of information such as ESC temperature, receiver voltage, battery voltage and motor RPM.

The ESC uses an IC5 connector and features integrated cooling and programmable settings.

80+ MPH Performance

The INFRACTION is engineered specifically for high-speed all-road driving.

Using a suitable 6S LiPo battery and the included speed pinion, ARRMA rates the vehicle at 80+ mph / 128+ km/h under optimum conditions.

The low-profile chassis, aerodynamic splitter, rear diffuser, adjustable rear wing and Hoons tyres work together to provide stability and traction during high-speed driving.

Mechanical Handbrake

One of the standout features of the INFRACTION V2 is its mechanical rear handbrake.

The handbrake is operated from a dedicated switch on the included Spektrum DX3 transmitter, allowing the driver to lock the rear brake on demand.

This makes it possible to perform controlled slides, initiate drifts and carry out handbrake turns while maintaining control of the vehicle.

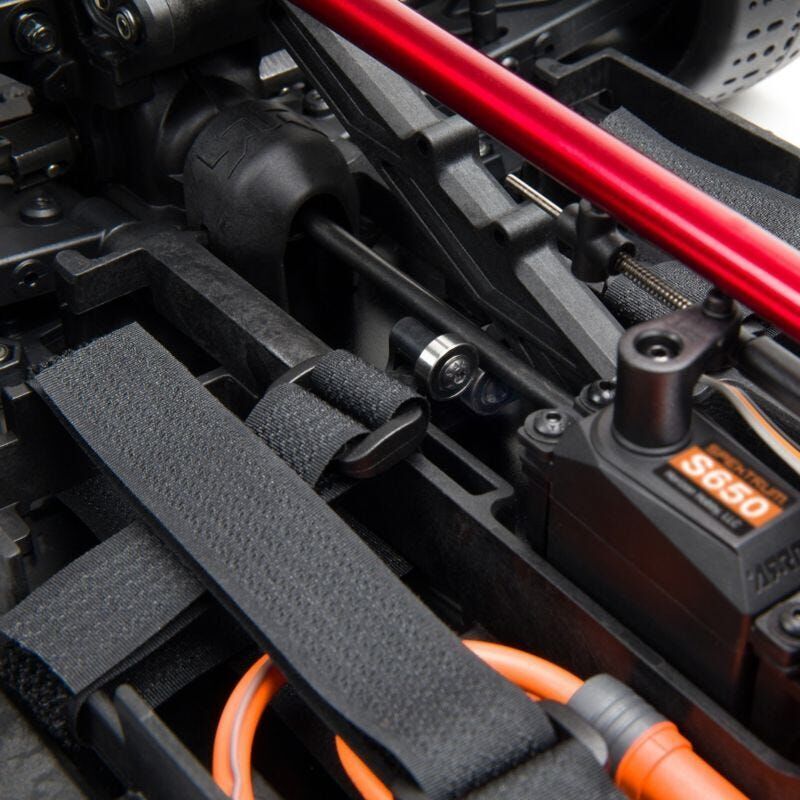

The system uses a dedicated Spektrum SPMS650 waterproof brake servo operating a mechanical rear disc brake.

Spektrum AVC Stability Control

The included Spektrum SR6110AT receiver provides Active Vehicle Control (AVC).

AVC helps maintain stability and traction by making rapid steering corrections when required.

The AVC gain can be adjusted from the DX3 transmitter, allowing the driver to select the desired level of electronic assistance.

AVC can be particularly useful when driving on loose surfaces or when running at high speed.

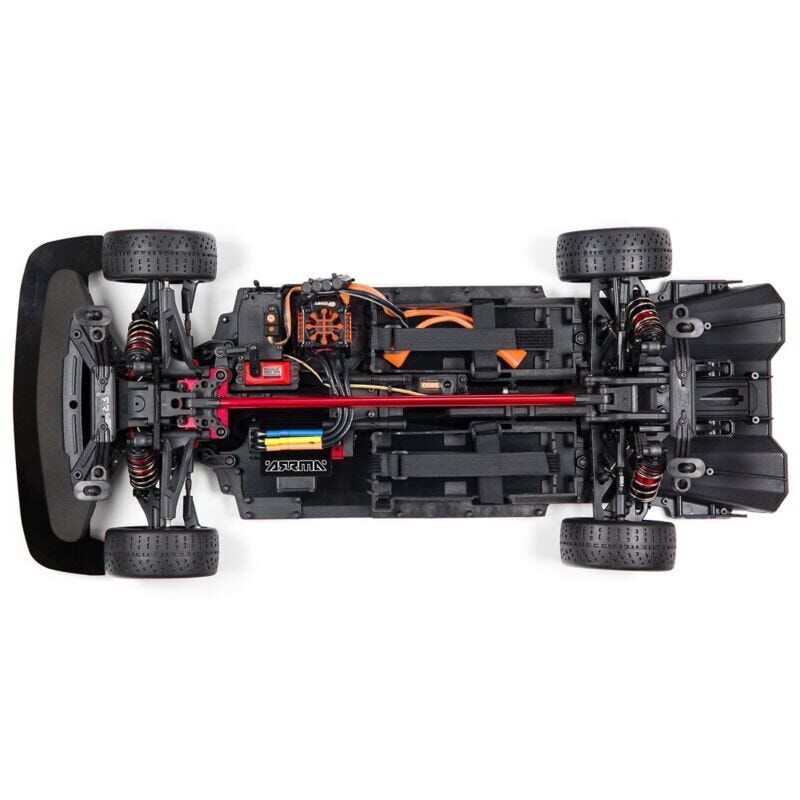

High-Performance 4WD Drivetrain

The INFRACTION uses a mid-motor 4WD drivetrain with a 50/50 torque split.

The drivetrain features three oil-filled metal gear differentials, all-metal differential outdrives and reinforced gearbox internals.

Durable steel driveshafts are used throughout the drivetrain, while a high-speed centre driveshaft support helps reduce vibration and improve durability at high RPM.

Updated internal gears feature a revised tooth profile for increased strength.

A lower internal gear ratio reduces centre driveshaft RPM, helping reduce resonance and improve drivetrain durability.

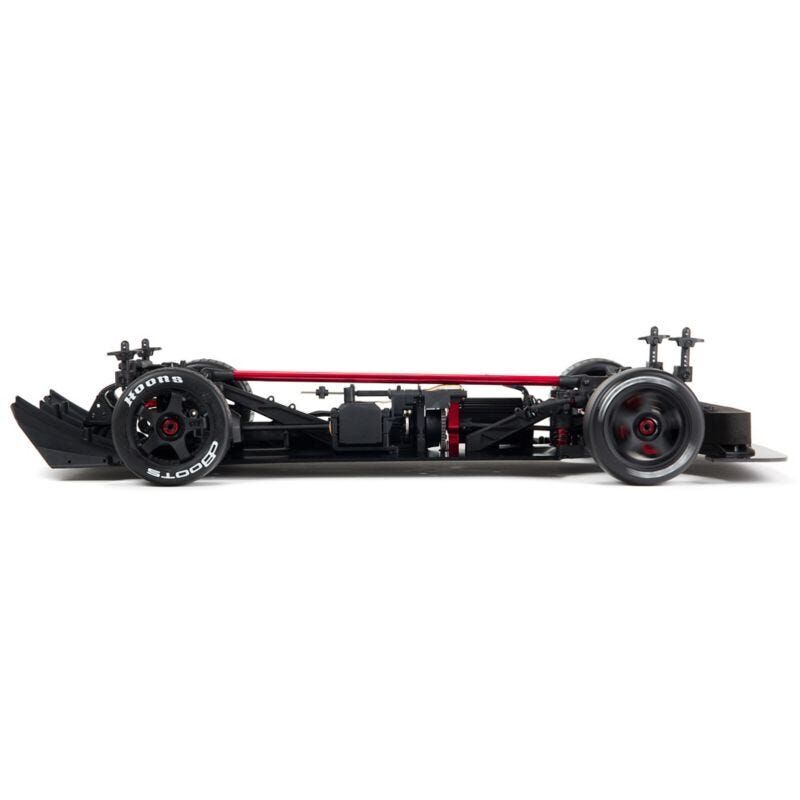

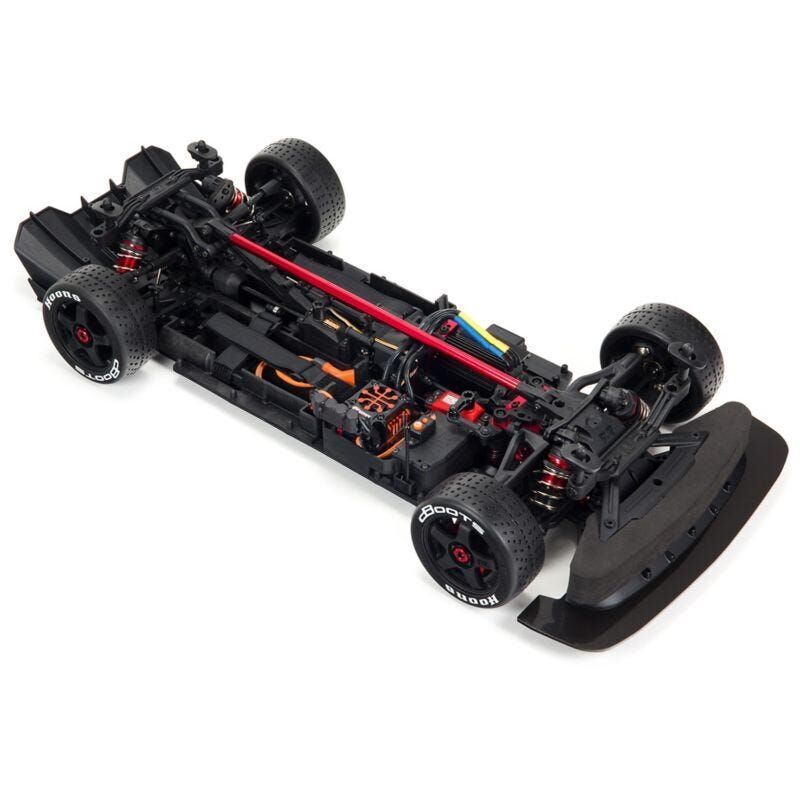

Aluminium Chassis

The INFRACTION is built around a 3 mm 6061-T6 aluminium chassis plate.

The anodised chassis provides a strong and rigid platform for the drivetrain and suspension.

A centre chassis brace adds additional rigidity for high-speed driving and hard impacts.

Aerodynamic Design

The INFRACTION features an integrated aerodynamic package designed specifically for high-speed street bashing.

The front splitter helps balance aerodynamic forces, while the rear diffuser increases downforce and rear grip.

The rear wing can be adjusted to change the vehicle's aerodynamic characteristics and handling.

Adjustable front and rear body mounts allow the body position to be tuned to suit different setups.

The underside of the chassis incorporates integrated airflow management to help provide stable handling at speed.

dBoots Hoons All-Road Tyres

The INFRACTION is equipped with dBoots Hoons all-road tyres mounted on five-spoke wheels.

The tyres are designed specifically for high-speed driving across a combination of paved, dirt and oval surfaces.

The vehicle uses durable 17 mm wheel hexes.

Adjustable Aluminium Shocks

The INFRACTION uses oil-filled, adjustable aluminium shocks with anodised shock bodies.

The front shocks are approximately 77 mm long and the rear shocks approximately 87 mm long.

Black-anodised aluminium front and rear shock towers provide a strong mounting platform for the suspension.

The independent suspension allows the vehicle to maintain traction and control across uneven surfaces.

Spektrum DX3 Radio System

The included Spektrum DX3 3-channel DSMR transmitter provides control of the vehicle's throttle, steering and auxiliary functions.

The DX3 includes:

• Adjustable AVC gain
• Dedicated handbrake control
• Spektrum Smart battery voltage indication
• 3-channel control
• DSMR 2.4GHz technology

The transmitter can also be paired with the optional Spektrum Dashboard app using the separately available Bluetooth module for additional telemetry information.

Key Features

• 1/7 scale ARRMA INFRACTION 6S BLX V2
• ARA7615V2T2 Silver version
• 4WD mid-motor all-road street bash truck
• Ready-to-Run configuration
• Spektrum FIRMA 4074 2050Kv brushless motor
• Spektrum FIRMA 150A Smart ESC
• 4S and 6S LiPo compatible
• 80+ mph / 128+ km/h potential top speed
• Spektrum DX3 3-channel DSMR transmitter
• Spektrum SR6110AT AVC receiver
• Active Vehicle Control
• Mechanical rear handbrake
• Spektrum SPMS650 brake servo
• ARRMA ADS-15M waterproof steering servo
• Three oil-filled metal gear differentials
• Heavy-duty steel driveshafts
• High-speed centre driveshaft support
• All-metal differential outdrives
• Updated internal gear profile
• 3 mm 6061-T6 aluminium chassis
• Centre chassis brace
• Adjustable aluminium oil-filled shocks
• Black-anodised aluminium shock towers
• dBoots Hoons all-road tyres
• 17 mm wheel hexes
• Adjustable rear wing
• Full-width front splitter
• Rear diffuser
• Adjustable front and rear body mounts
• Integrated aerodynamic chassis design
• Waterproof electronics

Specifications

• Brand: ARRMA
• Model: INFRACTION 6S BLX V2
• Part Number: ARA7615V2T2
• Colour: Silver
• Scale: 1/7
• Vehicle Type: All-Road / Street Bash
• Drive: 4WD
• Power Type: Electric Brushless
• Build Status: Ready-to-Run
• Power System: 6S
• Motor: Spektrum FIRMA 4074 2050Kv
• Motor Type: Brushless
• ESC: Spektrum FIRMA 150A Smart
• Radio: Spektrum DX3 3-Channel DSMR
• Receiver: Spektrum SR6110AT AVC
• Steering Servo: ARRMA ADS-15M Waterproof
• Brake Servo: Spektrum SPMS650
• Differentials: 3 Oil-Filled Metal Gear
• Gear Pitch: 1.0 MOD
• Pinion Gear: 15T
• Spur Gear: 46T
• Internal Gear Ratio: 2.8:1
• Final Drive Ratio: 8.58:1
• Chassis: 3 mm 6061-T6 Aluminium
• Suspension: Independent
• Shock Type: Aluminium Oil-Filled
• Front Shock Length: 77 mm
• Rear Shock Length: 87 mm
• Tyres: dBoots Hoons All-Road
• Tyre Diameter: 100 mm
• Wheel Hex: 17 mm
• Front Track: 308 mm
• Rear Track: 305 mm
• Length: 695 mm
• Width: 310 mm
• Height: 200 mm
• Wheelbase: 406 mm
• Ground Clearance: 15 mm
• Weight: Approximately 5 kg without battery
• Top Speed: 80+ mph / 128+ km/h
• Battery Compatibility: 4S or 6S LiPo
• Maximum Battery Dimensions: approximately 140 × 47 × 38 mm
• Connector: IC5
• Water Resistant: Yes
• Surface: All-Road

Battery & Charger Required

The INFRACTION is supplied Ready-to-Run, but batteries and charger are sold separately.

For operation you will require:

• 2 × 2S LiPo batteries, or
• 2 × 3S LiPo batteries
• Compatible LiPo charger
• LiPo charging bag
• 4 × AA batteries for the transmitter

The vehicle is designed for 4S or 6S operation. For maximum performance and 80+ mph speeds, a suitable 6S setup is required.

What's Included

• ARRMA INFRACTION 6S BLX V2 1/7 4WD RTR
• Spektrum FIRMA 4074 2050Kv Brushless Motor
• Spektrum FIRMA 150A Smart ESC
• Spektrum DX3 3-Channel DSMR Transmitter
• Spektrum SR6110AT AVC Receiver
• ARRMA ADS-15M Waterproof Steering Servo
• Spektrum SPMS650 Brake Servo
• dBoots Hoons All-Road Tyres
• Mechanical rear handbrake system
• Silver factory-finished body
• Speed pinion gear
• Instruction manual

Built for High-Speed Street Bashing

The ARRMA INFRACTION 6S BLX V2 combines the speed of a high-performance brushless RC vehicle with the versatility of an all-road platform.

Its 4WD drivetrain, AVC stability control, mechanical handbrake, aerodynamic package, Hoons tyres and 6S brushless power system make it capable of high-speed runs, controlled drifting, aggressive cornering and spectacular street-bashing action.

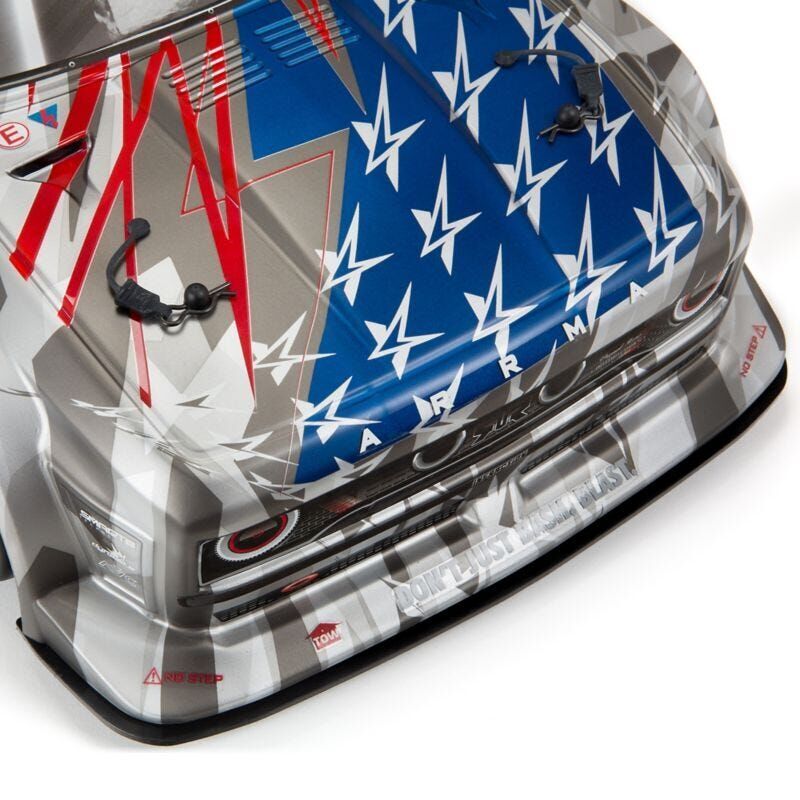

The ARA7615V2T2 Silver version provides the latest INFRACTION V2 platform with the updated electronics and distinctive silver Resto-Mod styling.

Please note: This is a high-performance 6S brushless RC vehicle. Always operate in a large, open and suitable area away from people, traffic and obstacles. Follow all manufacturer instructions regarding LiPo batteries, charging and safe operation.
