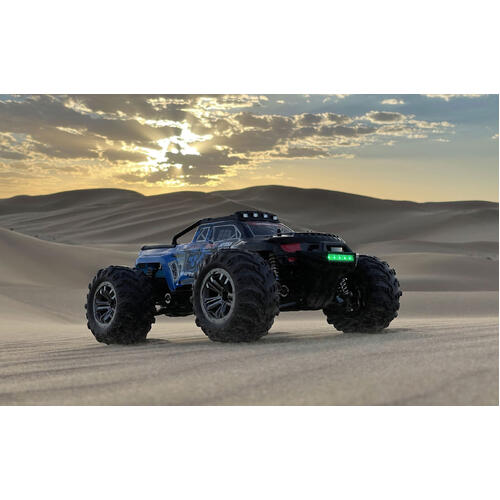

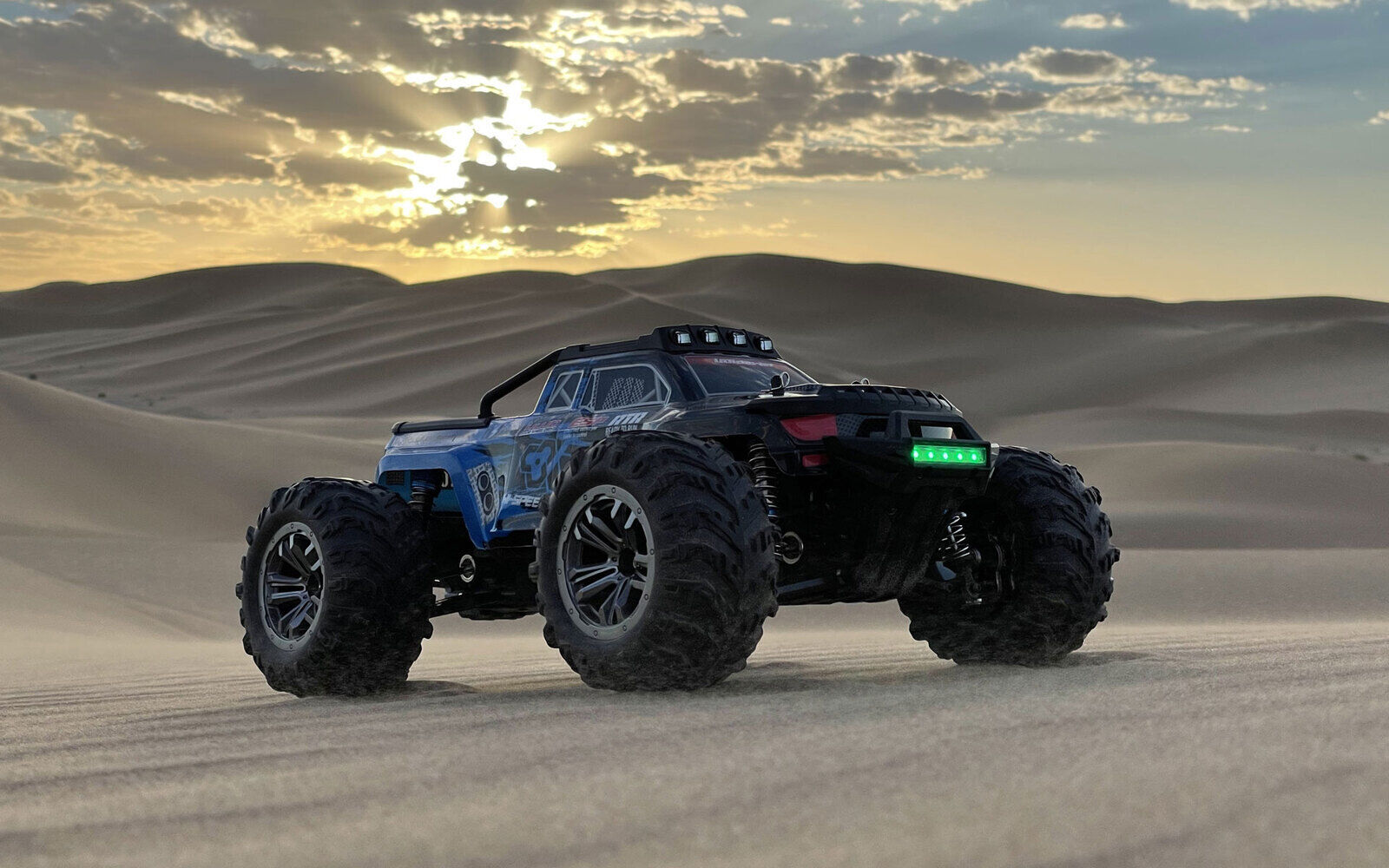

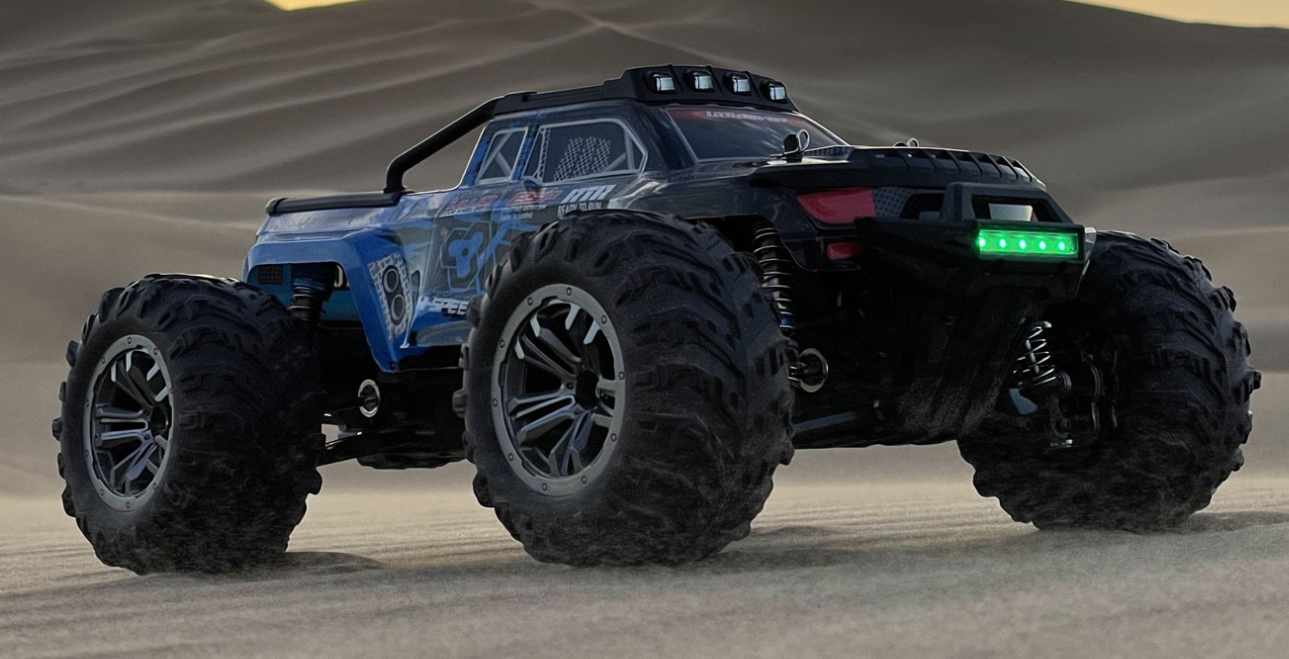

UDIRC UD1201PRO 1/12 4WD Brushless High Speed Monster Truck RTR

The UDIRC UD1201PRO is a high-performance 1/12 scale 4WD brushless monster truck designed for high-speed off-road driving, bashing, jumps and stunt-style driving.

Powered by a 3660 3000KV brushless motor and a 60A waterproof brushless ESC, the UD1201PRO delivers strong acceleration and impressive performance on both 2S and 3S LiPo batteries.

The truck features electronic stability control, four-wheel drive, metal drivetrain components, oil-filled differentials, independent suspension and adjustable oil-filled shocks, making it a capable and exciting RC truck for both experienced drivers and enthusiasts looking for serious speed in a compact package.

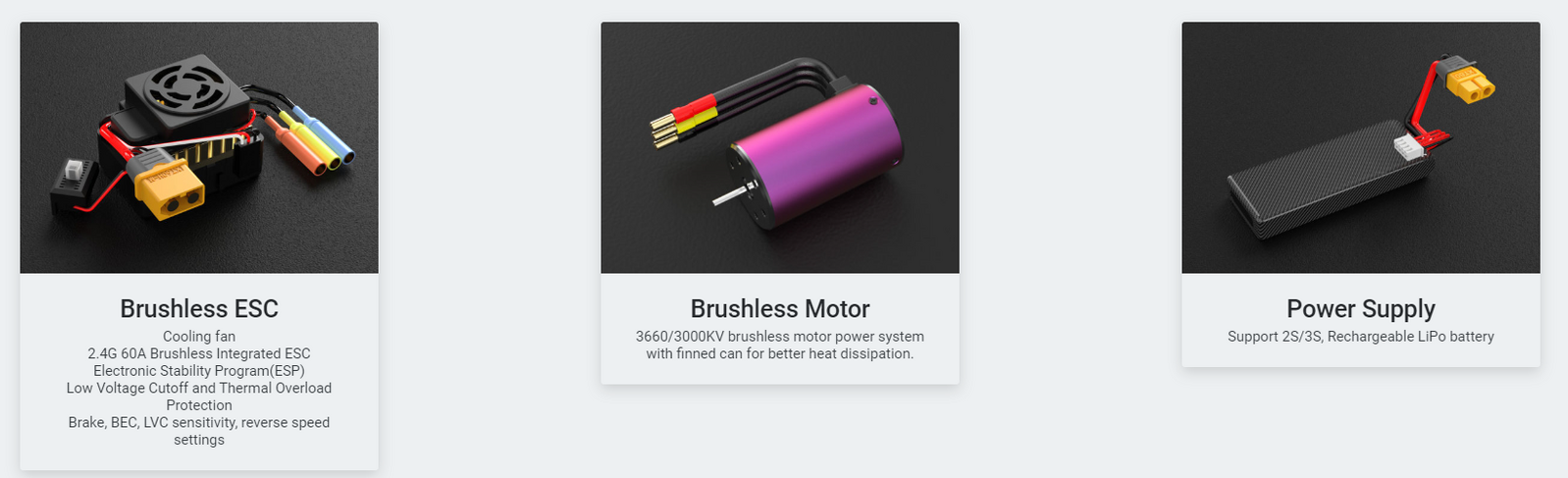

Powerful 3660 3000KV Brushless Motor

The UD1201PRO is equipped with a SURPASS HOBBY 3660 3000KV sensorless brushless motor.

The high-output motor provides strong acceleration and plenty of power for high-speed driving, jumps and off-road bashing.

The motor is paired with a 60A waterproof brushless ESC featuring low-voltage protection and thermal protection.

2S–3S LiPo Compatible

The UD1201PRO supports both 2S and 3S LiPo batteries.

On 2S LiPo power, the truck can reach approximately 55km/h, while 3S LiPo power can increase the top speed to approximately 80km/h+, depending on battery, gearing, surface and driving conditions.

The battery compartment can accommodate batteries up to approximately:

105 × 34 × 25mm

Always check your battery dimensions before purchasing.

Full-Time 4WD

The UD1201PRO features a 4WD drivetrain designed to provide maximum traction during acceleration and off-road driving.

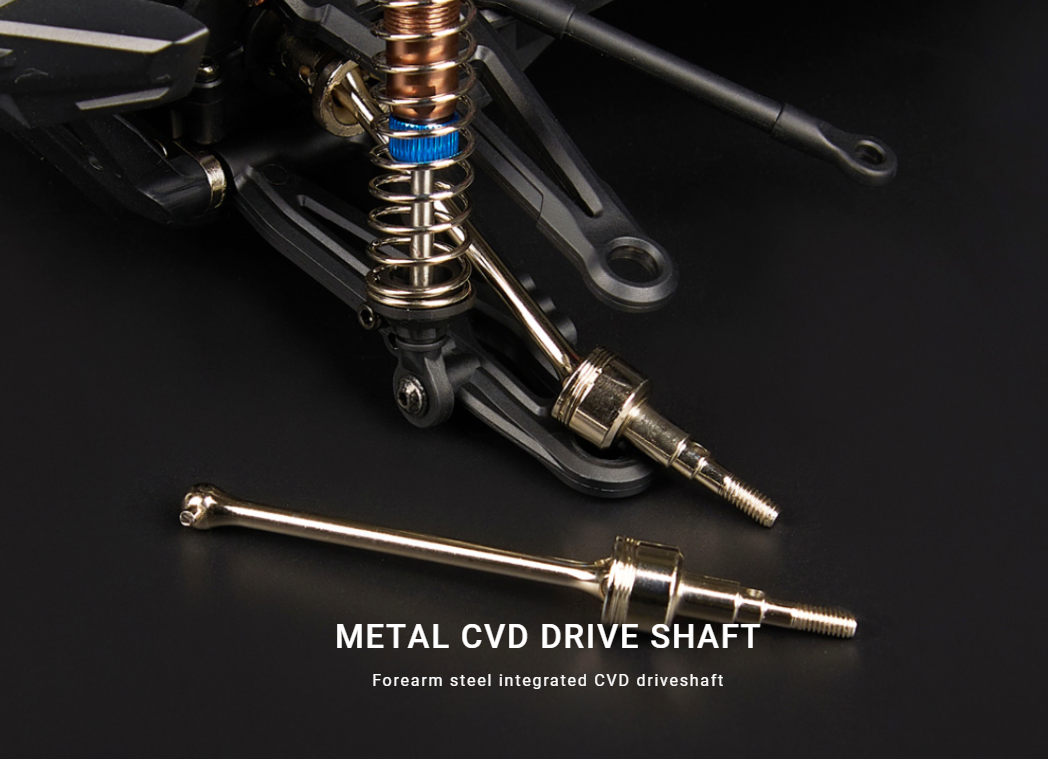

The drivetrain uses metal gears and a carbon-steel/metal driveshaft system to handle the torque produced by the brushless power system.

Four-wheel drive also helps the truck maintain control when accelerating over loose or uneven surfaces.

Metal Gear Drivetrain

The UD1201PRO features a durable metal drivetrain designed for high-performance brushless operation.

Key drivetrain features include:

• Metal differential gears
• Metal transmission gears
• Metal driveshaft components
• Carbon-steel drive shaft
• Metal front steering components
• Metal wheel hex adapters
• High-strength drivetrain construction

The drivetrain is designed to withstand repeated acceleration, jumps and off-road driving.

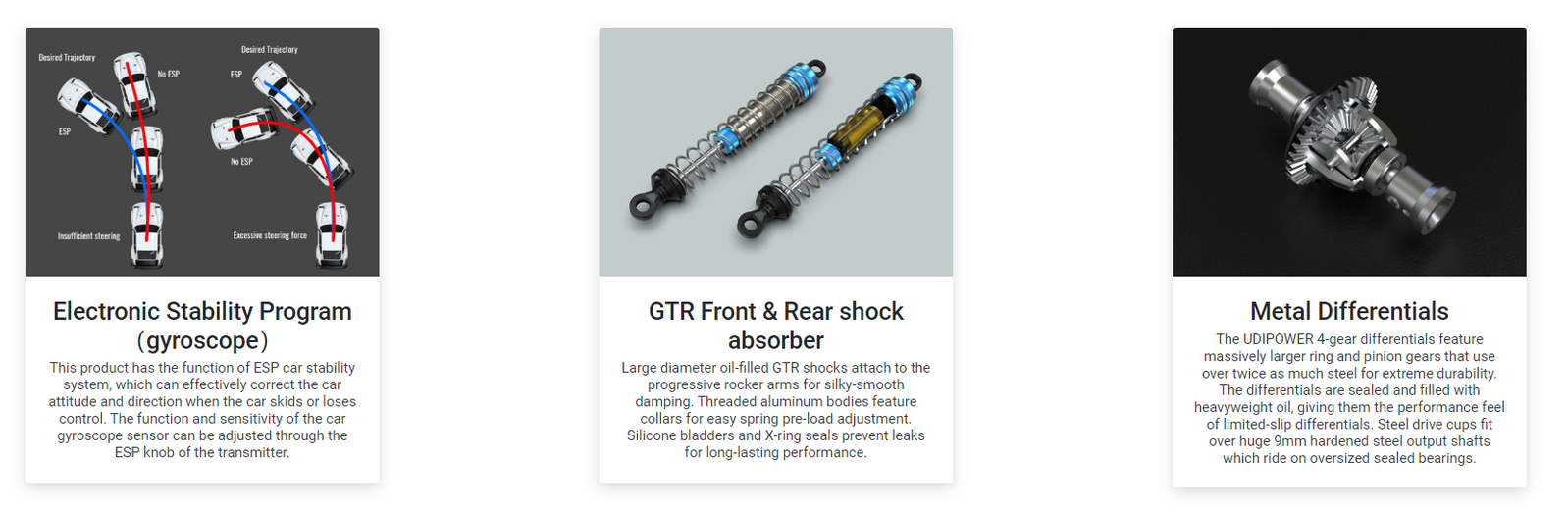

Electronic Stability Control

A built-in electronic stability program (ESP) helps keep the truck stable during high-speed driving.

The gyro system automatically makes small steering corrections to help maintain the intended direction, particularly when accelerating hard or driving over uneven terrain.

The stability assistance can be adjusted to suit different driving conditions and driver preferences.

Adjustable Oil-Filled Shocks

The UD1201PRO features four independent oil-filled shock absorbers.

The shocks provide controlled suspension movement and help the truck absorb bumps, jumps and rough terrain.

The shock absorbers are adjustable, allowing the suspension setup to be tuned to suit different surfaces and driving styles.

Independent Suspension

The UD1201PRO uses independent front and rear suspension.

This allows each wheel to react independently to bumps and uneven terrain, helping maintain traction and stability during high-speed driving.

The suspension system is designed to provide a good balance between handling and off-road capability.

15KG Metal Gear Steering Servo

A 15KG waterproof metal gear steering servo provides strong steering control.

The high-torque servo is designed to cope with the large tyres and high-speed performance of the UD1201PRO.

The steering system incorporates metal components for improved durability.

Large All-Terrain Tyres

The UD1201PRO uses large reinforced all-terrain tyres designed for high-speed off-road driving.

The tyres provide traction across:

• Dirt
• Grass
• Gravel
• Hard-packed surfaces
• Sand
• Rough terrain

The large tyres also provide approximately 56mm of ground clearance, allowing the truck to clear larger obstacles.

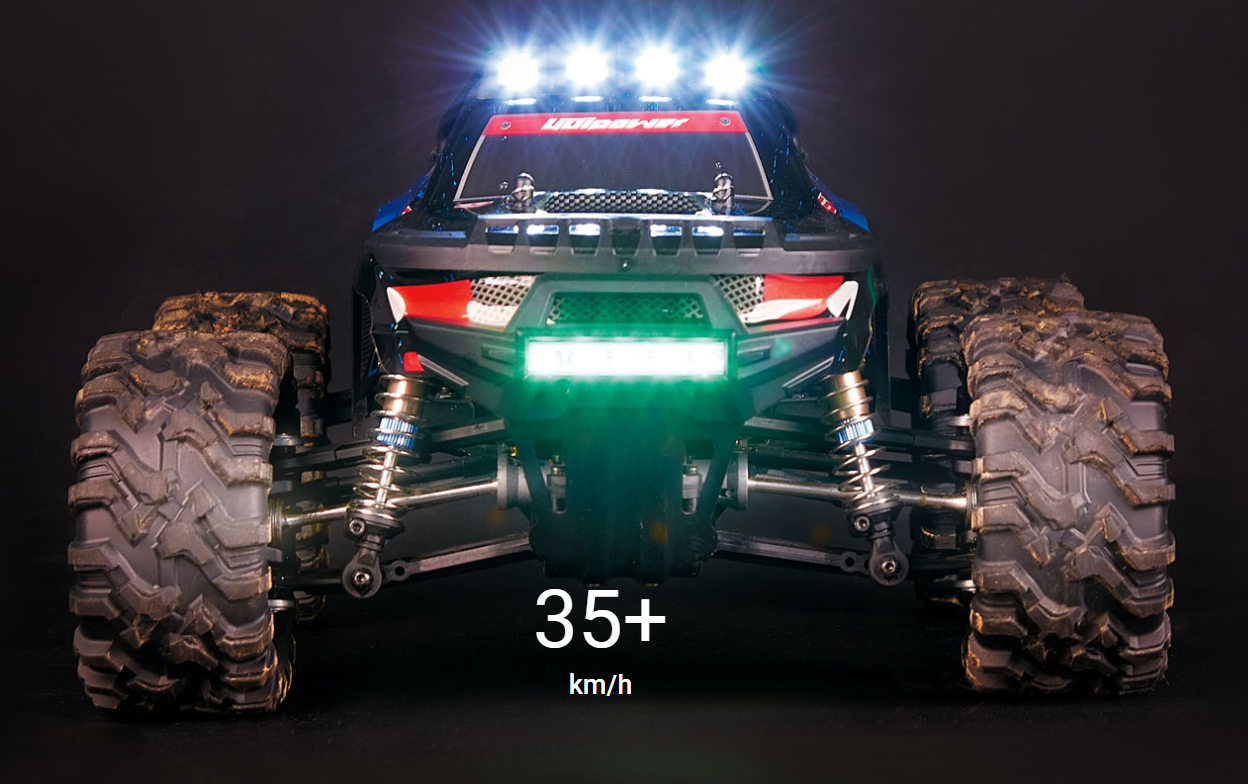

LED Lighting

The UD1201PRO features bright LED lighting integrated into the body.

Lighting includes:

• Front bumper lights
• Roof/search lights
• Rear tail lights

The lighting adds scale appearance and allows the truck to be enjoyed in lower-light conditions.

Full-Size Spare Tyre

A full-size spare tyre is mounted at the rear of the vehicle, adding to the realistic off-road truck appearance.

The spare wheel also contributes to the aggressive desert-truck styling of the UD1201PRO.

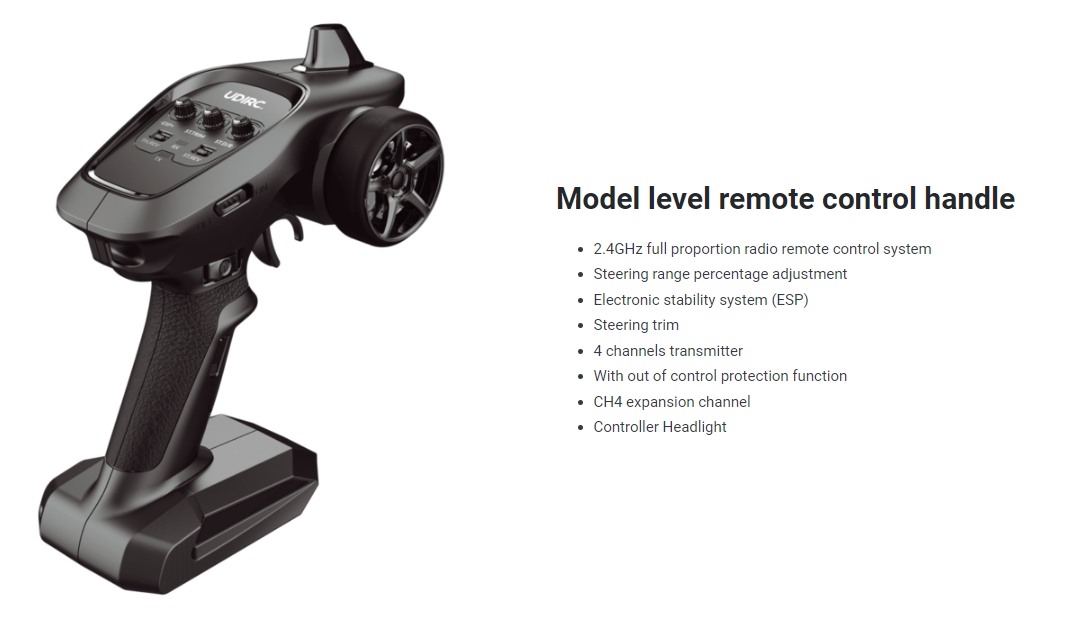

2.4GHz Radio System

The UD1201PRO includes a 2.4GHz DumboRC radio system.

The transmitter provides reliable control with an advertised range of approximately 100 metres.

The radio system provides proportional control of steering and throttle along with additional vehicle functions.

Key Features

• UDIRC UD1201PRO
• 1/12 scale
• 4WD high-speed monster truck
• Brushless power system
• 3660 3000KV brushless motor
• 60A waterproof brushless ESC
• 2S–3S LiPo compatible
• Up to approximately 80km/h+ on 3S
• Electronic stability control / gyro
• 15KG waterproof metal gear steering servo
• Metal drivetrain
• Metal differential gears
• Carbon-steel driveshaft
• Four-wheel independent suspension
• Adjustable oil-filled shocks
• Large all-terrain tyres
• Approximately 56mm ground clearance
• LED front bumper lights
• LED roof/search lights
• Rear LED tail lights
• Full-size spare tyre
• 2.4GHz DumboRC radio
• Approximately 100m control range
• Ready-to-Run

Specifications

• Brand: UDIRC
• Model: UD1201PRO
• Product Code: UDI-UD1201PRO
• Vehicle Type: High-Speed Monster Truck
• Scale: 1/12
• Drive: 4WD
• Motor: SURPASS HOBBY 3660 3000KV Brushless
• ESC: SURPASS HOBBY 60A Waterproof Brushless
• Battery: 2S–3S LiPo
• Motor Type: Sensorless Brushless
• Steering Servo: 15KG Waterproof Metal Gear
• Differentials: Oil-Filled
• Suspension: Independent Front & Rear
• Shocks: Oil-Filled Adjustable
• Ground Clearance: Approximately 56mm
• Wheelbase: Approximately 245mm
• Length: Approximately 408mm
• Width: Approximately 283mm
• Height: Approximately 175mm
• Weight: Approximately 2.03kg
• Radio: 2.4GHz DumboRC
• Control Range: Approximately 100m
• Battery Compartment: Up to approximately 105 × 34 × 25mm
• Top Speed: Approximately 55km/h on 2S / 80km/h+ on 3S

What's Included

• UDIRC UD1201PRO 1/12 4WD Monster Truck
• 3660 3000KV brushless motor
• 60A waterproof brushless ESC
• 15KG metal gear steering servo
• 2.4GHz DumboRC transmitter
• Receiver
• Electronic stability control system
• LED lighting system
• Oil-filled shocks
• All-terrain tyres
• Full-size spare tyre
• Maintenance tools
• User manual

Battery and charger inclusion can vary between UD1201PRO package versions. Please check the specific carton/package supplied with your stock before stating these are included. Some Australian listings specifically sell the version with 3S battery and charger, while other UD1201PRO versions are supplied without them.

Battery Required

The UD1201PRO is compatible with 2S–3S LiPo batteries.

For maximum advertised performance, use a suitable 3S LiPo battery.

Maximum recommended battery dimensions are approximately:

105 × 34 × 25mm

Always ensure the battery is securely mounted and compatible with the ESC before operation.

Ready-to-Run High-Speed Performance

The UDIRC UD1201PRO packs serious brushless performance into a 1/12 scale monster truck.

With its 3000KV brushless motor, 60A waterproof ESC, 4WD drivetrain, electronic stability control, metal gears, oil-filled shocks and 15KG steering servo, the UD1201PRO is built for high-speed bashing, jumps and off-road driving.

Please note: Actual speed will vary depending on battery voltage and capacity, gearing, surface, tyre condition and driving conditions.
