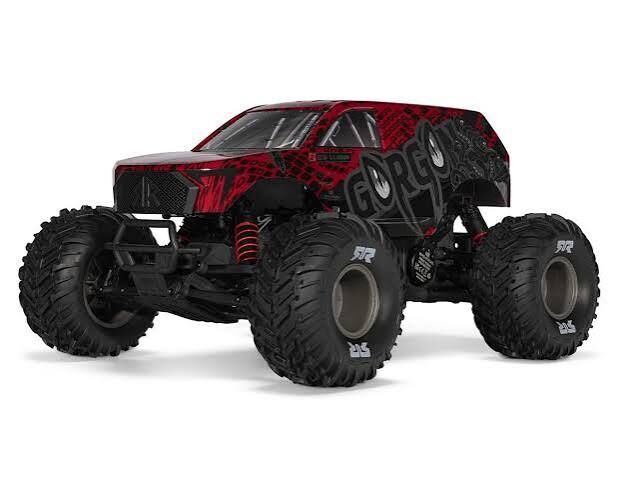

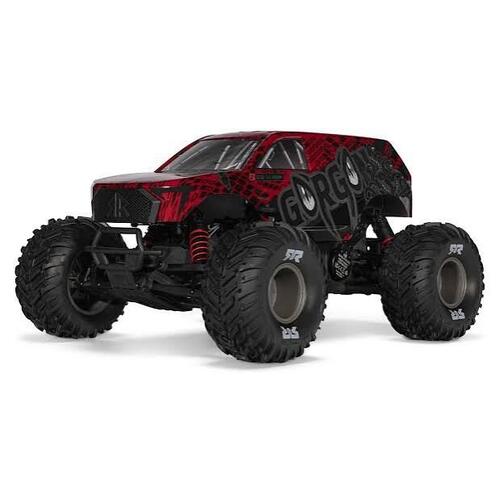

ARRMA GORGON 223S BLX 1/10 2WD Brushless Monster Truck RTR Red/Black - ARA3530T2

The ARRMA GORGON 223S BLX takes the popular GORGON monster truck platform and adds serious 2S/3S brushless performance.

Built around a tough 1/10 scale 2WD chassis, the GORGON 223S combines a powerful Spektrum Firma 3660 4000Kv brushless motor, metal gear drivetrain, huge dBoots monster truck tyres, waterproof electronics and Spektrum Dynamic Stability Control.

Run it on 2S LiPo for strong, manageable brushless performance, then step up to 3S LiPo when you're ready to unleash speeds exceeding 50mph / 80km/h — without needing to upgrade the motor, ESC or drivetrain.

The ARA3530T2 comes Ready-to-Run in the aggressive Metallic Red/Black colour scheme.

2S or 3S – Grow Into the Performance

ARRMA's 223S platform is designed to give drivers room to develop their skills without quickly outgrowing their RC truck.

Start with a suitable 2S LiPo battery for easier-to-control performance. When you're ready for more speed and acceleration, install a compatible 3S LiPo and unlock the GORGON's full 50+ mph potential.

There's no need to replace the motor, ESC or drivetrain when stepping up to 3S — the truck is designed for both power levels straight from the factory.

Spektrum 4000Kv Brushless Power

At the heart of the GORGON 223S is a Spektrum Firma 3660 4000Kv brushless motor.

It's paired with the Spektrum 4510RX 45A waterproof 2-in-1 brushless ESC and receiver, providing fast throttle response and compatibility with both 2S and 3S LiPo batteries.

An ARRMA 40mm cooling fan helps manage motor temperatures during hard bashing.

Dynamic Stability Control

The GORGON features Spektrum Dynamic Stability Control (DSC) to help make its powerful rear-wheel-drive performance easier to manage.

DSC automatically applies steering corrections when the rear of the truck begins to step out, helping make slides smoother and more controllable.

The system offers multiple assistance levels, so newer drivers can use more stability assistance before progressively reducing it as their skills improve.

Heavy-Duty Metal Gear Drivetrain

ARRMA has equipped the brushless GORGON with a metal gear drivetrain designed to cope with the additional speed and torque of the 3S brushless power system.

The tough 2WD configuration delivers power directly to the rear wheels for classic monster truck handling, power slides and plenty of wheelie action.

Spektrum S681 Metal Gear Servo

Steering is handled by a Spektrum S681 waterproof digital servo.

Metal gearing provides additional durability, while waterproof construction makes the electronics suitable for the dirt, mud and wet conditions often encountered during off-road bashing.

Tough Composite Chassis

The GORGON uses a strong moulded composite chassis with a high centre-of-gravity design that provides generous ground clearance.

The chassis and all-terrain suspension are designed for everyday bashing across dirt, grass, gravel and other rough surfaces.

dBoots Cut Chevron Monster Truck Tyres

Huge dBoots Cut Chevron MT tyres give the GORGON its unmistakable monster truck stance.

The aggressive chevron tread provides excellent all-terrain traction, while the large tyre diameter helps the truck tackle rough surfaces and obstacles.

Built for Wheelies

With 3S brushless power driving the rear wheels, the GORGON has plenty of power to lift the front end.

A factory-installed integrated wheelie bar helps control the truck under hard acceleration and makes big wheelies easier and more predictable.

Clipless Body Mounting

ARRMA's hidden body retention system eliminates traditional body clips.

It keeps the body securely mounted during hard bashing while providing fast, tool-free access for battery changes and maintenance.

The hidden mounting system also gives the GORGON's Metallic Red/Black body a clean appearance without exposed body clips.

Bottom-Loading Battery Tray

The bottom-loading battery tray means there's no need to remove the body when changing batteries.

Simply access the battery compartment from underneath the chassis, swap the battery and get straight back to driving.

The tray accommodates compatible hardcase LiPo batteries up to 140 x 50 x 35mm.

Key Features

• 1/10 scale monster truck
• Product Code: ARA3530T2
• Metallic Red/Black colour scheme
• Ready-to-Run
• Rear-wheel drive 2WD
• ARRMA 223S brushless power system
• 2S and 3S LiPo compatible
• 50+ mph / 80+ km/h capable
• Spektrum Firma 3660 4000Kv brushless motor
• ARRMA 40mm motor cooling fan
• Spektrum 4510RX 45A waterproof 2-in-1 brushless ESC/receiver
• Spektrum Dynamic Stability Control – DSC
• Spektrum SLT2 2.4GHz transmitter
• Spektrum S681 waterproof metal-geared digital servo
• Heavy-duty metal gear drivetrain
• Tough moulded composite chassis
• High ground clearance
• All-terrain suspension
• dBoots Cut Chevron MT tyres
• Integrated wheelie bar
• Hidden clipless body retention system
• Bottom-loading battery tray
• Mesh-safe motor plate
• IC5 battery connector
• EC5 compatible
• Waterproof electronics

Specifications

Brand: ARRMA
Model: GORGON 223S BLX
Part Number: ARA3530T2
Scale: 1/10
Vehicle Type: Monster Truck
Colour: Metallic Red/Black
Drive: 2WD
Motor Position: Mid-Motor
Power: Electric Brushless
Power System: 223S
Motor: Spektrum Firma 3660 4000Kv Brushless
ESC/Receiver: Spektrum 4510RX Brushless 2-in-1 with Gyro
Servo: Spektrum S681
Radio: Spektrum SLT2 2.4GHz
Battery Compatibility: 2S or 3S Hardcase LiPo
Battery Connector: IC5
Maximum Speed: 50+ mph / 80+ km/h
Differentials: 1
Chassis: Moulded Composite
Body: Pre-Painted Polycarbonate
Body Mounting: Clipless
Tyres: dBoots Cut Chevron MT
Length: 465mm
Width: 345mm
Height: 230mm
Wheelbase: 295mm
Ride Height: 50mm
Weight: 2.73kg without battery
Maximum Battery Size: 140 x 50 x 35mm
Completion Level: Ready-to-Run

What's Included

• ARRMA GORGON 223S BLX 1/10 2WD Monster Truck RTR – Red/Black
• Spektrum Firma 3660 4000Kv brushless motor
• Spektrum 4510RX 45A waterproof 2-in-1 brushless ESC/receiver with DSC
• Spektrum S681 waterproof metal-geared digital steering servo
• Spektrum SLT2 2.4GHz transmitter
• Instruction manual

Required to Complete

• 1 × 2S or 3S hardcase LiPo battery
• Compatible LiPo battery charger
• LiPo charging/safety bag

Maximum battery dimensions are 140 x 50 x 35mm.

Serious Brushless Monster Truck Performance

The ARRMA GORGON 223S BLX is a great choice for anyone who likes the rugged simplicity of the GORGON platform but wants significantly more performance than a conventional brushed monster truck.

Start on 2S with DSC assistance for more manageable performance, then move to 3S when you're ready to experience the GORGON's full 50+ mph brushless capability.

With its 4000Kv brushless motor, metal drivetrain, massive dBoots tyres, integrated wheelie bar and tough ARRMA construction, the GORGON 223S is built for wheelies, jumps and serious off-road bashing.
