Description

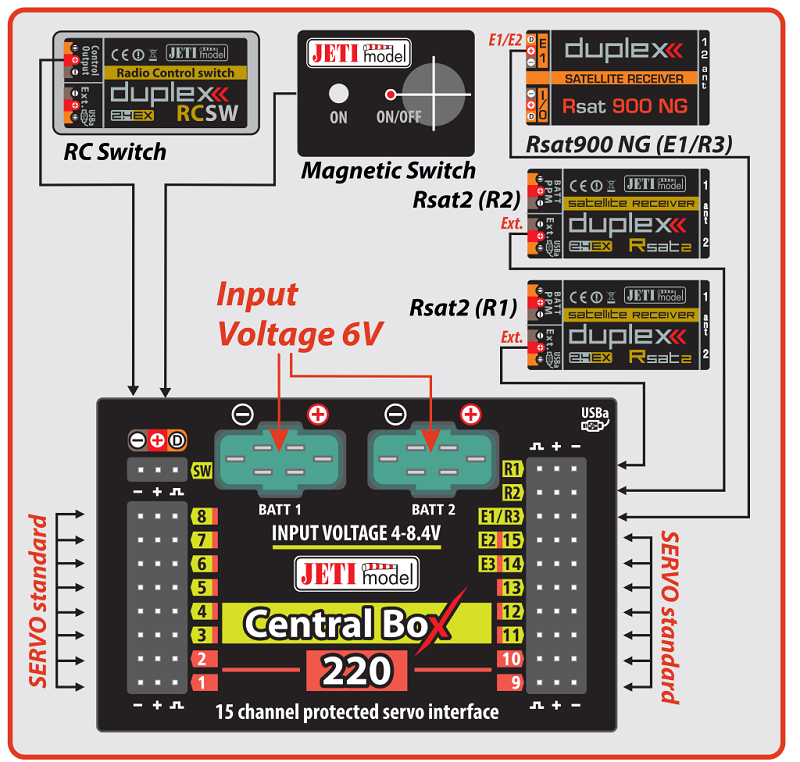

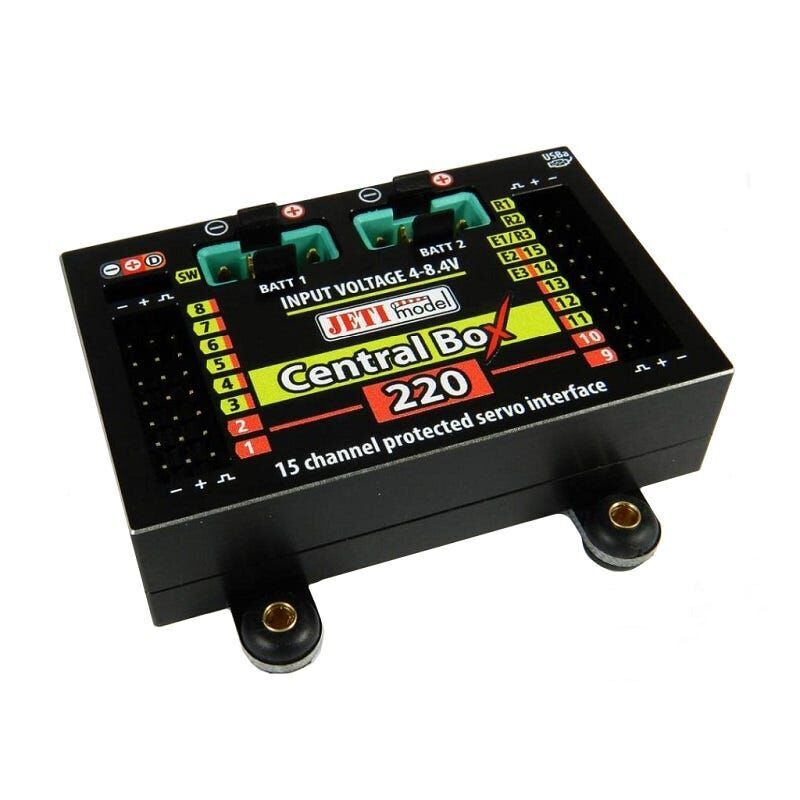

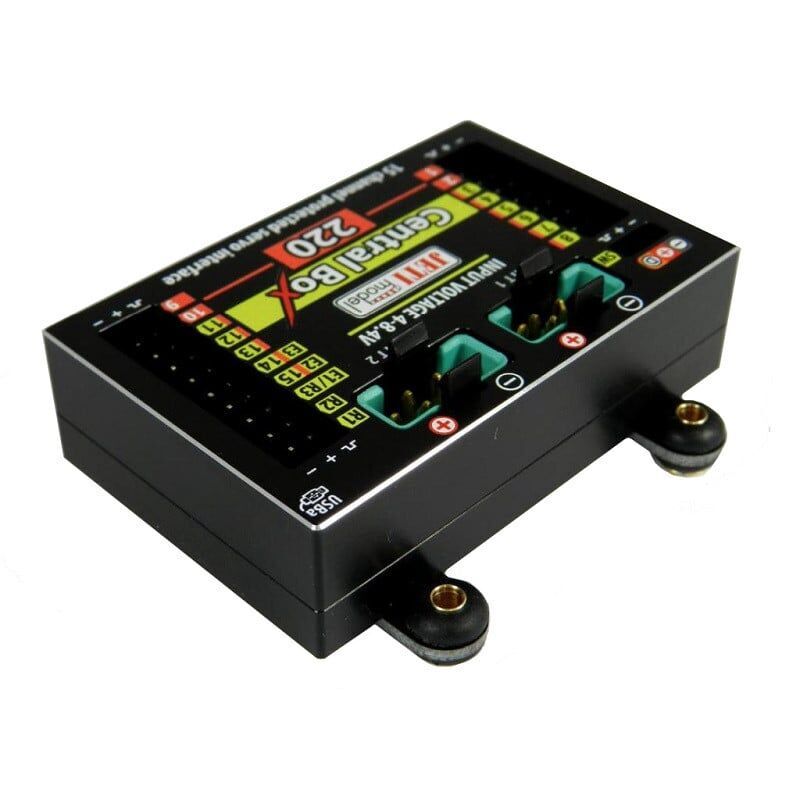

The Central Box 220 has a unique design that provides overload protection at each servo output. The Central Box can manage up to two batteries and fully supports the JETI EX telemetry system. Up to three receivers with serial (PPM, EX Bus, S.BUS, UDI) output can be connected to the Central Box 220. With JETI DC/DS transmitter, the full potential of the Central Box can be used, such as an easy way to configure the Central Box, EX telemetry, and very fast servo response.
- Central Box 220 has overload protection on each channel
- Channels 1, 2, 9 and 10 have protection for high-torque servo up to 60 Kg.cm.
- Channels 3 - 8 and 11 - 15 have protection for standard servo up to 30 Kg.cm.
- Support of DITEX telemetry servos
- Possibility to connect up to 3 receivers with serial interface
- Built-in Expander function for up to 3 sensors
- Input for magnetic switch or RC switch
- 2x MPX battery input connectors
- 100Hz mode of servo outputs (10ms period)
- Supports EX telemetry (voltage, current, capacity, temperature measurement, )
Read More
Specifications
| SKU | J-CB-220 |
| Barcode # | 8595245914455 |
| Brand | IWATA |
Reviews
Be The First To Review This Product!
Help other RC Hobbyland users shop smarter by writing reviews for products you have purchased.
Write A Review
In Stock
View Stock Location
Warehouse Stock:
In Stock
Stock Located at Warehouse may require an additional 1-3 business days processing time before being dispatched. We aim to ensure that you receive your orders as quickly as possible.
Store Stock
Out of Stock
View Stock Location
Shipping Calculator
CASTLE HILL INSTORE PICKUP - FREE - CLICK AND COLLECT
Free Instore pickup from - UNIT 37, No.9 HOYLE AVE CASTLE HILL 2154 Monday = Friday 1pm - 4.00pm PICKUP AVAILABLE BETWEEN 3-5 BUSINESS DAYS. We will contact via text message when ready for pickup.
Free Instore pickup from - UNIT 37, No.9 HOYLE AVE CASTLE HILL 2154 Monday = Friday 1pm - 4.00pm PICKUP AVAILABLE BETWEEN 3-5 BUSINESS DAYS. We will contact via text message when ready for pickup.
Notify me when back in stock
Please tick this box to proceed.
Description
The Central Box 220 has a unique design that provides overload protection at each servo output. The Central Box can manage up to two batteries and fully supports the JETI EX telemetry system. Up to three receivers with serial (PPM, EX Bus, S.BUS, UDI) output can be connected to the Central Box 220. With JETI DC/DS transmitter, the full potential of the Central Box can be used, such as an easy way to configure the Central Box, EX telemetry, and very fast servo response.
- Central Box 220 has overload protection on each channel
- Channels 1, 2, 9 and 10 have protection for high-torque servo up to 60 Kg.cm.
- Channels 3 - 8 and 11 - 15 have protection for standard servo up to 30 Kg.cm.
- Support of DITEX telemetry servos
- Possibility to connect up to 3 receivers with serial interface
- Built-in Expander function for up to 3 sensors
- Input for magnetic switch or RC switch
- 2x MPX battery input connectors
- 100Hz mode of servo outputs (10ms period)
- Supports EX telemetry (voltage, current, capacity, temperature measurement, )
Read More
Specifications
| SKU | J-CB-220 |
| Barcode # | 8595245914455 |
| Brand | IWATA |
