UDIRC Suzuki Jimny UCX2402 1/18 4WD RC Rock Crawler RTR

The UDIRC UCX2402 Suzuki Jimny is a highly detailed 1/18 scale 4WD RC crawler combining realistic scale styling with a capable off-road chassis.

Featuring a detailed moulded ABS Suzuki Jimny body, KF130WH brushed motor, selectable High/Neutral/Low transmission, full-time 4WD, metal ladder-frame chassis and functional LED lighting, the UCX2402 is designed for scale trail driving and crawling.

The compact size makes it ideal for indoor courses and backyard trails, while the included 7.4V 350mAh 2S LiPo battery and USB charger provide everything needed to get started apart from transmitter batteries.

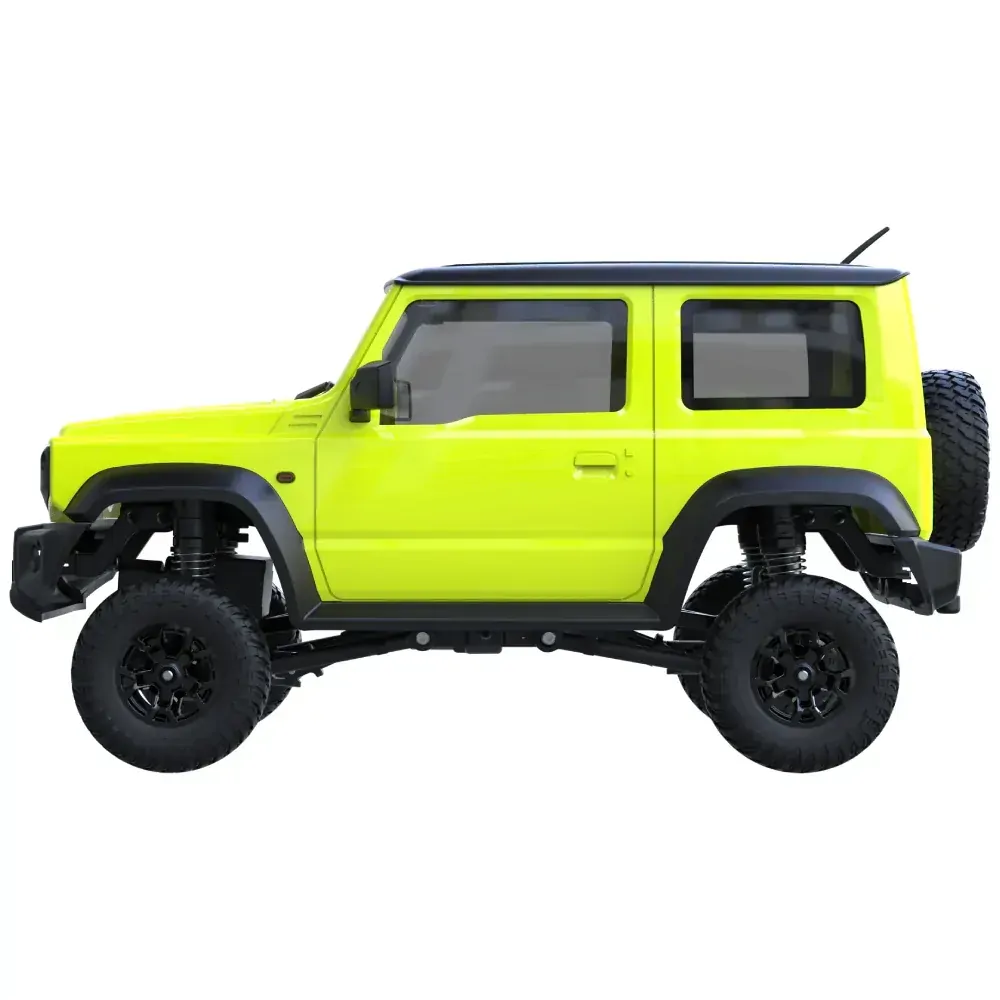

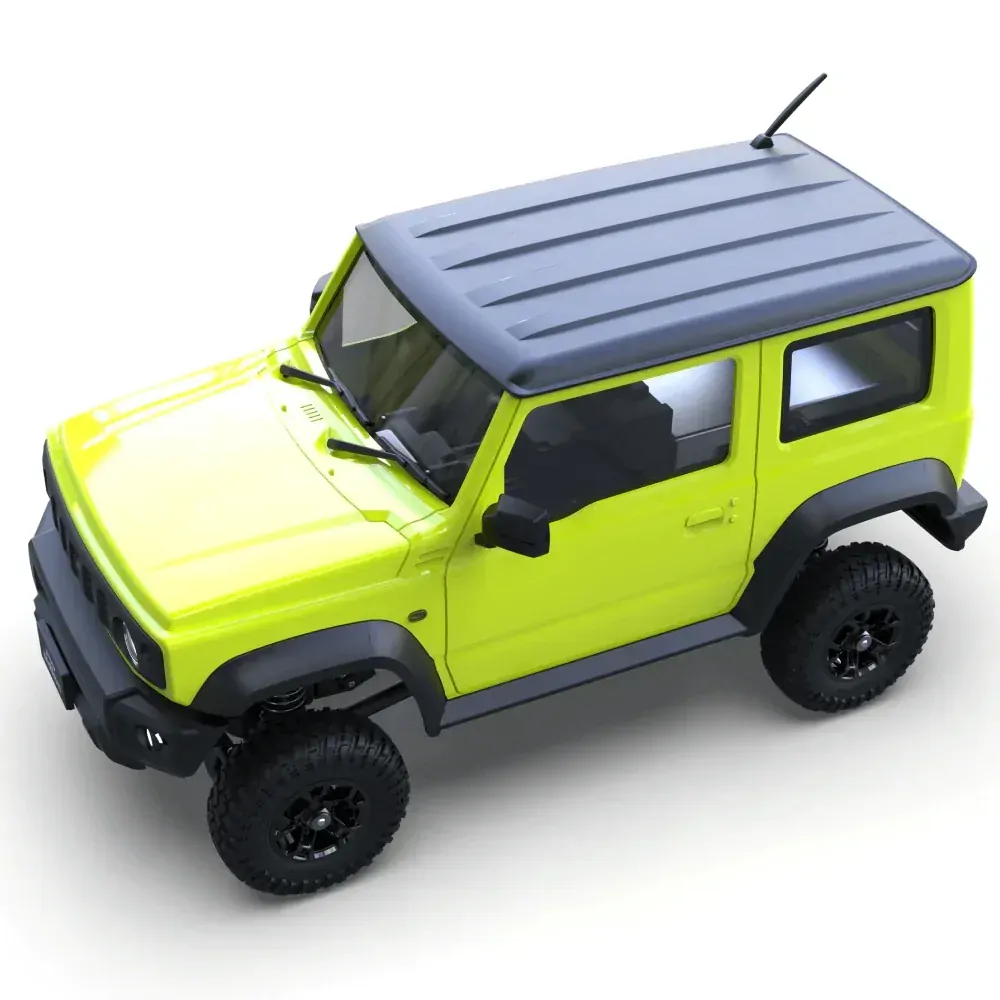

Detailed Suzuki Jimny Body

The UCX2402 recreates the distinctive compact styling of the Suzuki Jimny with a detailed moulded ABS hard body.

Scale details include:

• Moulded ABS body
• Front bumper
• Rear-mounted spare tyre
• Exterior mirrors
• Windscreen wipers
• Trailer hook
• Detailed front grille
• Scale body trim

The hard body gives the UCX2402 a much more realistic appearance than a conventional lightweight polycarbonate RC body.

KF130WH Brushed Motor

Power comes from a KF130WH brushed motor designed to provide smooth and controllable performance.

Rather than focusing purely on top speed, the power system is geared towards the low-speed control and torque required for trail driving and crawling.

The brushed motor also provides simple and reliable operation, making the UCX2402 suitable for drivers new to scale RC crawling.

Selectable High / Neutral / Low Transmission

One of the standout features of the UCX2402 is its multi-position mechanical transmission.

The transmitter allows you to select:

• Low Gear – increased torque and precise low-speed control for crawling
• Neutral – disconnects drive through the transmission
• High Gear – increased speed for trail driving and open terrain

The official manual confirms Low, Neutral and High transmission selection directly from the transmitter.

Full-Time 4WD

The UCX2402 uses a four-wheel-drive drivetrain, sending power to both the front and rear axles.

4WD provides the traction required when climbing and helps maintain forward momentum over loose or uneven terrain.

The Jimny is well suited to:

• Rocks
• Dirt
• Gravel
• Indoor crawler courses
• Backyard trails
• Uneven terrain
• Scale trail driving

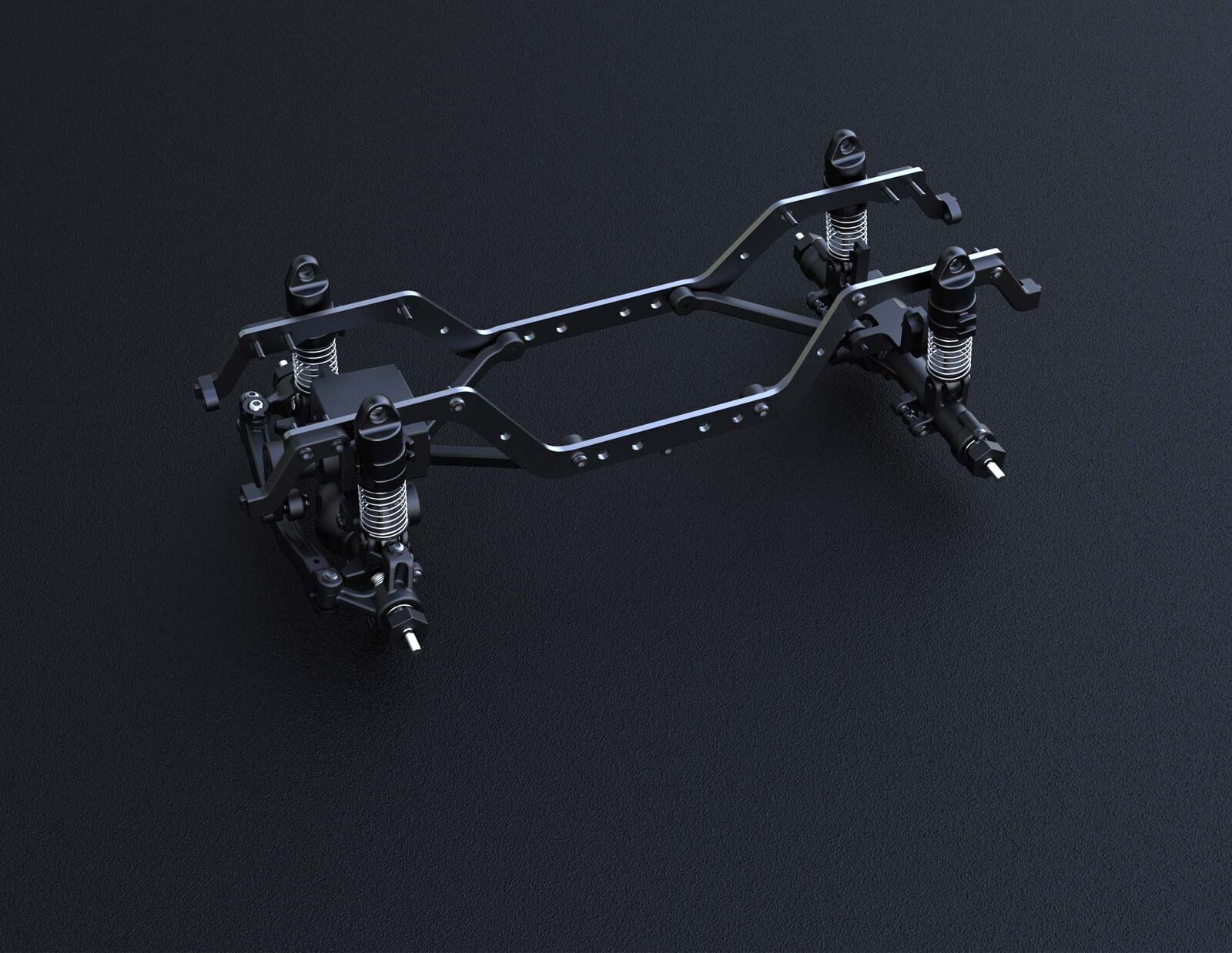

Metal Ladder-Frame Chassis

Underneath the scale Jimny body is a trapezoidal metal ladder-frame chassis with a corrosion-resistant oxidised coating.

The metal chassis provides a strong and rigid foundation while closely resembling the construction used by full-size 4WD vehicles.

Solid Axle 4WD Drivetrain

The crawler-style drivetrain is designed to provide good articulation and traction across uneven terrain.

The front and rear drivetrain works with the suspension to keep the tyres in contact with the ground when climbing over obstacles.

High & Low Gear Ratios

The UCX2402 provides very different gearing depending on the selected transmission setting.

• High Gear Ratio: 1:9.3
• Low Gear Ratio: 1:58.6

Low range provides the reduction required for controlled crawling, while high range gives the Jimny more speed for general driving.

20mm Ground Clearance

Despite its compact dimensions, the UCX2402 provides approximately 20mm of ground clearance.

Combined with the short 120mm wheelbase and crawler-style tyres, this allows the Jimny to negotiate surprisingly challenging obstacles.

Excellent Approach & Departure Angles

The compact Jimny body and short overhangs provide impressive crawler geometry.

• Approach Angle: 51°
• Departure Angle: 58°

These generous angles help prevent the front and rear bodywork from catching on obstacles during steep climbs and descents.

32.5mm Off-Road Tyres

The UCX2402 rides on 32.5mm off-road tyres designed to provide grip across a variety of surfaces.

The compact tyres complement the realistic Jimny appearance while still providing enough traction for trail driving and light crawling.

Functional LED Lighting

The UCX2402 comes with high-brightness LED headlights as standard.

The electronics are also designed to support additional lighting functions, including compatible:

• Tail lights
• Turn indicators
• Reverse lights
• Fog lights
• High-mounted lights

The transmitter provides direct control of supported lighting functions.

2-in-1 ESC & Receiver

A compact 2-in-1 electronic speed controller and receiver keeps the electronics installation neat and lightweight.

The system controls the motor, steering, transmission and lighting functions from a single integrated unit.

2.4GHz Radio System

The supplied UA37D 2.4GHz transmitter provides proportional steering and throttle control.

The transmitter also provides access to the transmission and lighting functions.

The advertised operating range is approximately 60 metres under suitable conditions.

7.4V 350mAh 2S LiPo Included

The UCX2402 is supplied with a 7.4V 350mAh 2S LiPo battery.

A USB charging cable is also included, so the vehicle is supplied with the main equipment required to get running.

Simply add transmitter batteries, charge the supplied LiPo and you're ready to go.

Key Features

• UDIRC UCX2402
• Suzuki Jimny scale crawler
• 1/18 scale
• RTR – Ready to Run
• Detailed moulded ABS hard body
• Full-time 4WD
• KF130WH brushed motor
• High / Neutral / Low transmission
• Low gear ratio of 1:58.6
• High gear ratio of 1:9.3
• Metal ladder-frame chassis
• Corrosion-resistant chassis coating
• High-speed sealed ball bearings
• 32.5mm off-road tyres
• 20mm ground clearance
• 51° approach angle
• 58° departure angle
• High-brightness LED headlights
• Additional lighting upgrade capability
• 2-in-1 ESC / receiver
• UA37D 2.4GHz transmitter
• Approximately 60m radio range
• 7.4V 350mAh 2S LiPo included
• USB charger included
• Rear-mounted spare tyre
• Trailer hook
• Detailed mirrors and wipers

Specifications

• Brand: UDIRC / UDI RC
• Model: UCX2402
• Product Code: UDI-UCX2402
• Vehicle: Suzuki Jimny
• Scale: 1/18
• Vehicle Type: Scale RC Crawler / Off-Road
• Drive: 4WD
• Motor: KF130WH Brushed
• Transmission: High / Neutral / Low
• High Gear Ratio: 1:9.3
• Low Gear Ratio: 1:58.6
• Differential: None – Upgradeable
• Battery: 7.4V 350mAh 2S LiPo
• Length: 198mm
• Width: 98mm
• Height: 99mm excluding antenna
• Wheelbase: 120mm
• Front Track: 76.8mm
• Rear Track: 76.8mm
• Ground Clearance: 20mm
• Tyre Diameter: 32.5mm
• Wheel Hub Diameter: 19.8mm
• Approach Angle: 51°
• Departure Angle: 58°
• Weight: Approximately 258.2g including battery
• Radio: UA37D 2.4GHz
• Radio Range: Approximately 60m
• Body: Moulded ABS
• Chassis: Metal Ladder Frame
• Bearings: High-Speed Sealed Ball Bearings
• Completion Level: RTR

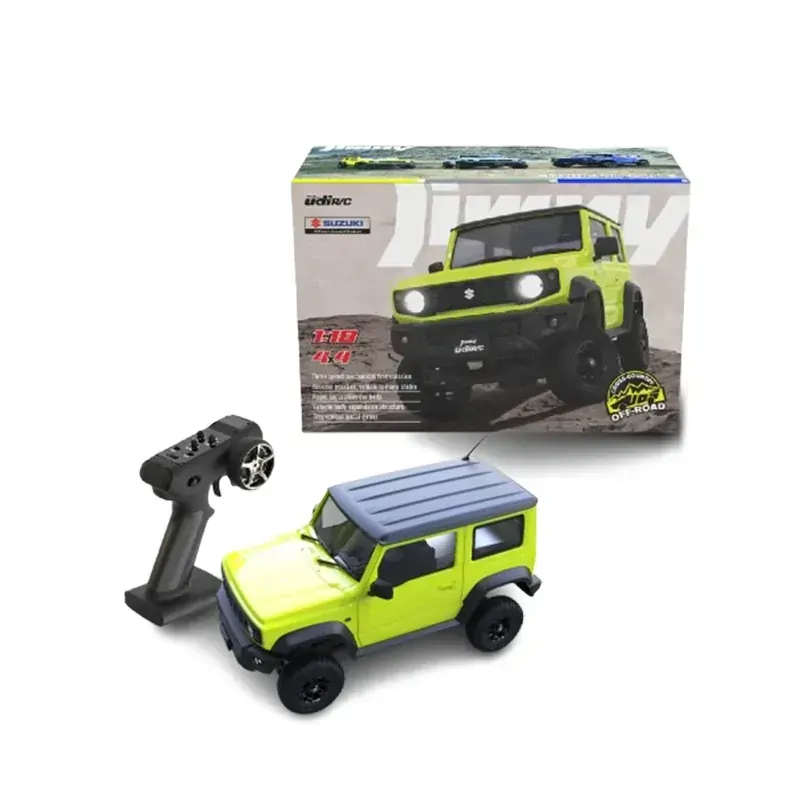

What's Included

• UDIRC UCX2402 Suzuki Jimny
• KF130WH brushed motor
• ESC / receiver
• Steering servo
• Transmission shift system
• UA37D 2.4GHz transmitter
• 7.4V 350mAh 2S LiPo battery
• USB charger
• High-brightness LED headlights
• Detailed ABS Jimny body
• Rear spare tyre
• Instruction manual

Required to Run

You will need:

• 4 × AAA batteries for the transmitter

The main vehicle battery and USB charger are included.

Scale Jimny Styling with Real Crawler Features

The UDIRC UCX2402 Suzuki Jimny is much more than a small-scale display model.

Its combination of full-time 4WD, selectable High/Neutral/Low transmission, metal ladder-frame chassis and crawler-friendly gearing gives it genuine off-road capability, while the moulded ABS Jimny body delivers excellent scale realism.

With a 7.4V 350mAh LiPo and USB charger included, the UCX2402 is a great choice for anyone looking for a compact Ready-to-Run scale crawler for indoor courses, backyard trails and general off-road fun.
