The Traxxas Mini XRT VXL-3S combines extreme brushless power, race-inspired handling and proven Maxx durability in a compact monster truck that is easy to transport and ready for serious high-speed action.

Its low, ultra-wide stance and WideMaxx suspension provide outstanding stability and cornering confidence. With the included 3500mAh 2S LiPo battery, the Mini XRT can reach speeds exceeding 64km/h. Install a compatible optional 3S LiPo battery to unlock its full 88km/h-plus performance.

The Velineon VXL-3S brushless power system pairs a 3500Kv motor with a waterproof electronic speed controller. Integrated cooling equipment helps maintain performance during demanding runs, while three programmable drive profiles allow the vehicle’s operation to be matched to the driver.

Traxxas Stability Management assists with acceleration, braking and steering control on loose or slippery surfaces. The amount of assistance is adjustable directly from the TQi transmitter, from fully off to maximum assistance, without limiting throttle response.

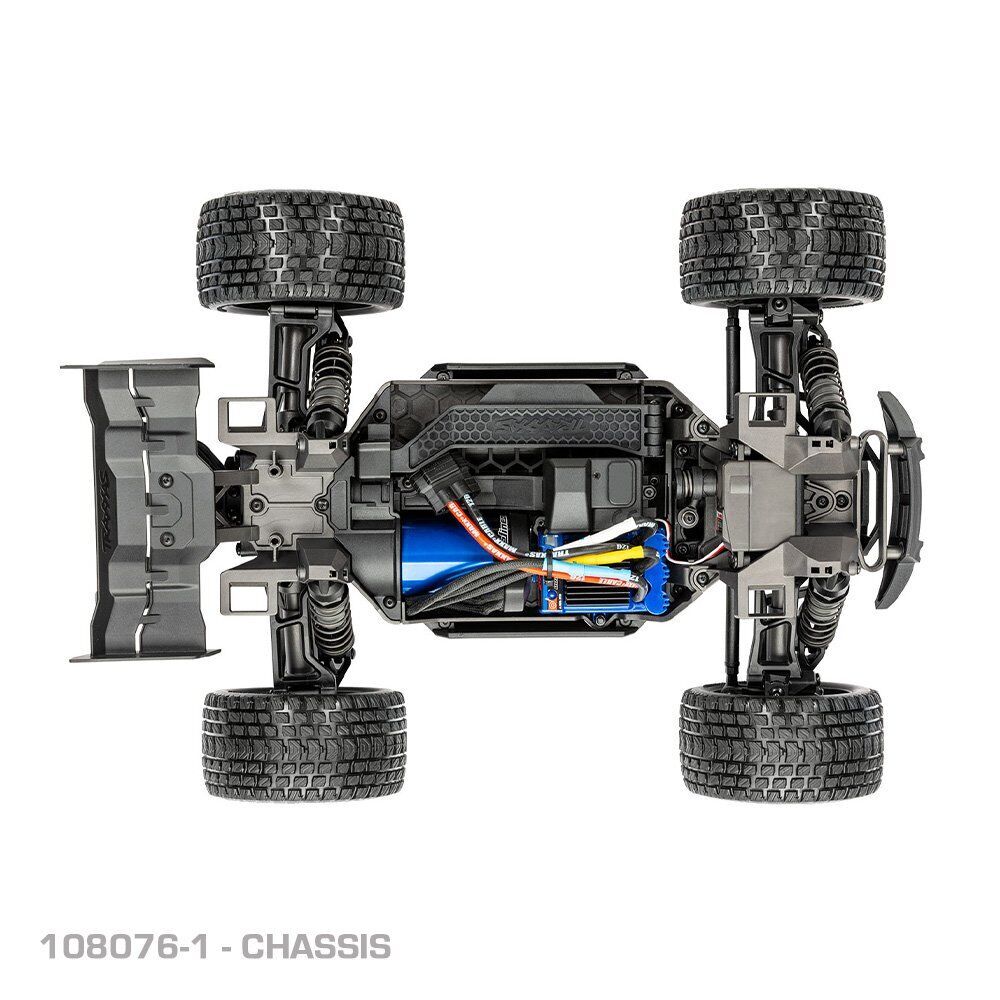

Although similar in size to a traditional 1/16 scale vehicle, the Mini XRT incorporates drivetrain, suspension and steering components based on Traxxas 1/10 scale platforms.

Key Features

• Compact Mini XRT high-performance design

• More than 64km/h with the included 2S battery

• More than 88km/h with a compatible optional 3S battery

• Velineon VXL-3S waterproof brushless power system

• 3500Kv brushless motor

• ESC and motor cooling fans

• Traxxas Stability Management

• TQi 2.4GHz radio system

• Full-time shaft-driven four-wheel drive

• Sealed centre differential

• Sealed steel-gear front and rear differentials

• Extreme Heavy Duty telescoping driveshafts

• WideMaxx ultra-wide suspension

• Double-wishbone independent suspension

• Full-size oil-filled Ultra Shocks

• Waterproof 2075X metal-geared steering servo

• Modular composite chassis

• Reinforced front bumper and skid plates

• Low, aerodynamic clipless body

• Functional cooling channels and air intakes

• Functional rear wing

• Gravix tyres with reduced ballooning

• 3500mAh 2S iD LiPo battery included

• Two-amp USB-C iD charger included

• Orange painted body

• Fully assembled and Ready-to-Race

Velineon VXL-3S Power

The Velineon VXL-3S power system delivers rapid acceleration and high-speed performance on either 2S or 3S LiPo power.

The waterproof ESC includes three programmable drive profiles:

• Sport Mode – Forward, brake and reverse

• Race Mode – Forward and brake only

• Training Mode – Reduces forward and reverse power to approximately 50%

The 3500Kv motor uses high-temperature neodymium magnets, precision bearings and an efficiently balanced rotor for strong performance and low maintenance.

Traxxas Stability Management

Traxxas Stability Management makes automatic steering corrections to improve directional control during acceleration, braking and cornering on slippery surfaces.

The level of assistance is adjustable from the transmitter’s multifunction knob and can be switched off completely for unrestricted driver control.

WideMaxx Suspension

The ultra-wide suspension layout provides a broad, stable footprint for high-speed running and aggressive cornering. Heavy-duty double-shear arms and durable outer suspension components withstand the demands of jumps and off-road use.

Full-size oil-filled Ultra Shocks provide smooth damping and can be tuned using different oils, pistons and preload settings.

Clipless High-Downforce Body

The low-profile body uses functional air intakes and cooling channels to direct airflow toward the motor and ESC. An internal support structure and reinforced mounting areas provide strength without conventional body clips.

The functional rear wing helps improve stability during high-speed running.

Specifications

• Brand: Traxxas

• Model: Mini XRT VXL-3S

• Product code: 108076-1ORNG

• Barcode: 020334068996

• Colour: Orange

• Vehicle type: High-performance monster truck

• Approximate scale: 1/16

• Completion level: Ready-to-Race

• Drivetrain: Full-time shaft-driven four-wheel drive

• Power system: Velineon VXL-3S brushless

• Motor: Velineon 3500Kv brushless

• ESC: VXL-3S waterproof electronic speed controller

• Steering servo: Traxxas 2075X waterproof metal-geared servo

• Radio system: Traxxas TQi 2.4GHz

• Stability control: Traxxas Stability Management

• Included battery: Traxxas 3500mAh 7.4V 2S iD LiPo

• Included charger: Two-amp USB-C iD balance charger

• 2S maximum speed: More than 64km/h

• 3S maximum speed: More than 88km/h

• Body mounting: Clipless

• Overall length: Approximately 376mm

• Overall width: Approximately 279mm

• Overall height: Approximately 127mm

• Wheelbase: Approximately 220mm

• Ground clearance: Approximately 27mm

• Weight: Approximately 1.81kg

• Battery compartment: Approximately 113 × 41 × 22mm

Package Contents

• 1 × Traxxas Mini XRT VXL-3S 4WD Monster Truck in Orange

• 1 × Traxxas TQi 2.4GHz transmitter

• 1 × Traxxas 3500mAh 7.4V 2S iD LiPo battery

• 1 × Traxxas two-amp USB-C iD balance charger

• Shock-tuning components

• Vehicle maintenance tools

• Instruction manual

Required for Completion

• 4 × AA alkaline batteries for the transmitter

• Compatible USB-C power adaptor

• Suitable USB-C charging cable, if not included

• LiPo charging and safety bag

Optional for Maximum Performance

To achieve the advertised 88km/h-plus maximum performance, a compatible 3S LiPo battery is required separately. Confirm that the battery fits within the available compartment and uses the appropriate Traxxas connector.

Important Usage Information

This is an extremely fast RC vehicle. Operate it only in a large, clear area away from pedestrians, animals, parked vehicles and public traffic.

Always use appropriate LiPo charging, handling and storage procedures. Never leave a charging battery unattended.
