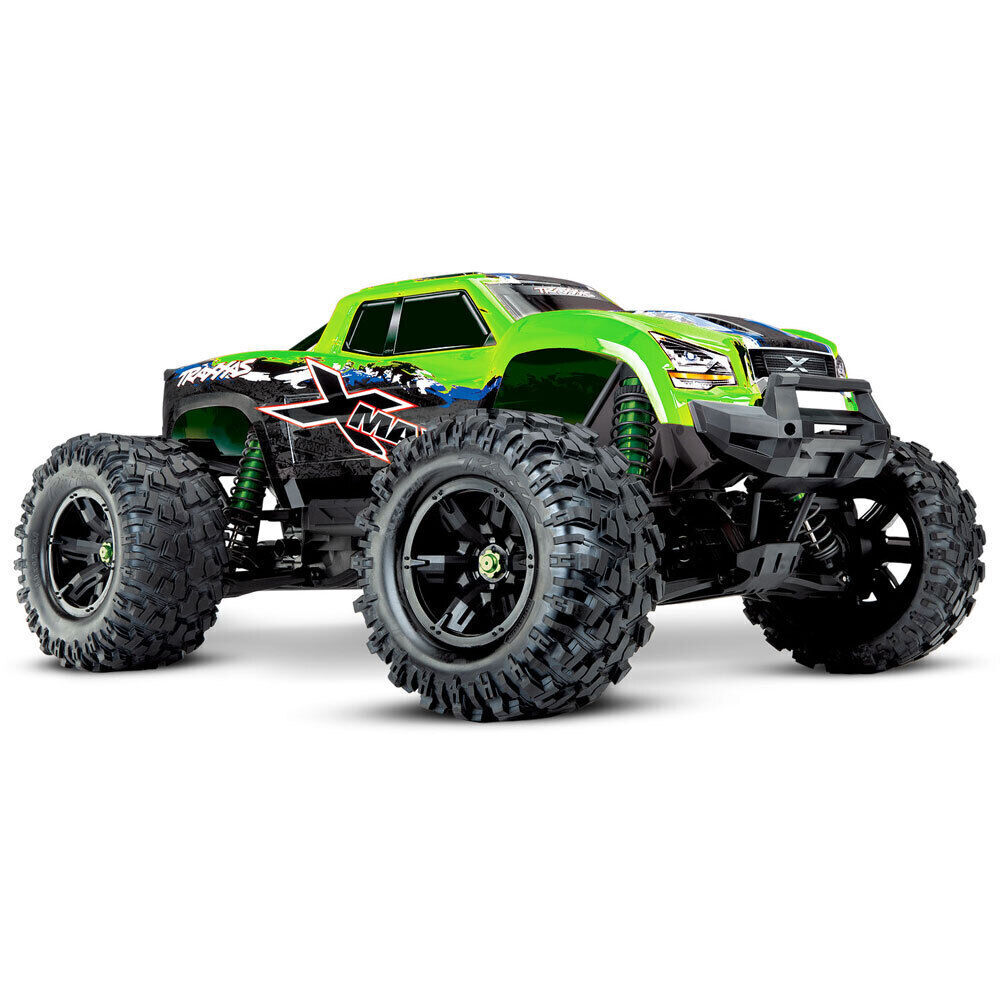

X-Maxx

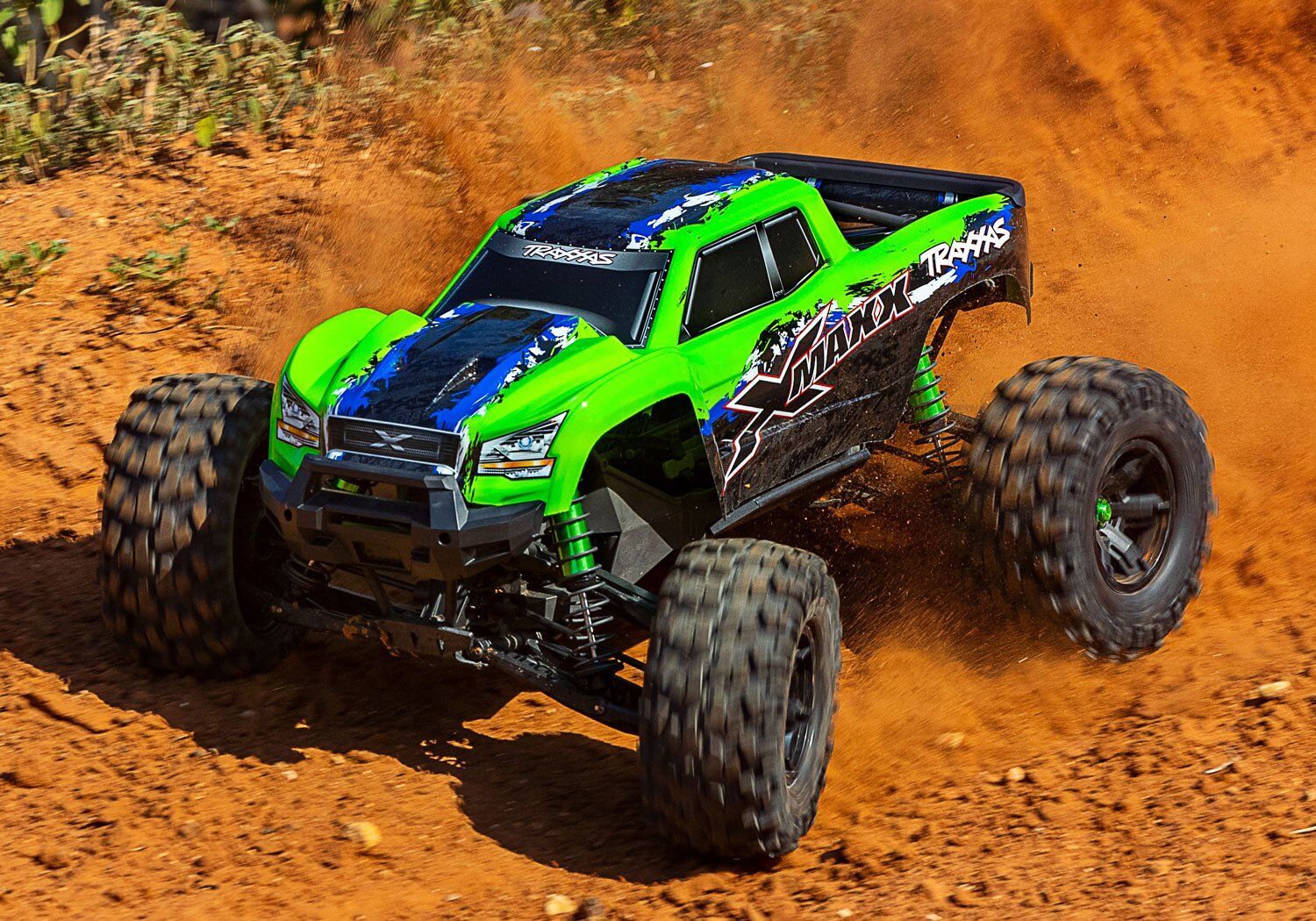

Unrelenting 4X4 power, mammoth size, and award-winning innovation make X-Maxx^® the ultimate monster truck. With 30+ volts of extreme 8S power, X-Maxx defies physics, unleashing jaw-dropping acceleration and 50+ mph speed. Belted Sledgehammer^® tires conquer the most extreme terrain while providing unrivaled high-speed stability. Built to take brutal punishment in stride, X-Maxx is the definition of Traxxas Tough™.

• VXL-8s™ Waterproof Electronic Speed Control
  • 8S LiPo compatible
  • Built-in cooling fan
  • Real-time telemetry via Traxxas Link
  • Machined heat sinks
  • 10-gauge silicone wire
  • Integrated protection circuits
  • LED status lights
• Velineon^® 1200XL Brushless Motor
  • “Big Block” brushless motor
  • 4-pole 1275 Kv
  • 5 mm output shaft
  • Aluminum slip-on heat sink
  • Dual motor cooling fans
• 50+ mph with Two 4S LiPo Batteries and Included Optional Spur Gear
• Traxxas Stability Management^® (TSM)
  • Helps prevents spinouts and loss of control
  • Adjusts from off to 100% assistance from the transmitter
• TQi™ 2.4 GHz High Output Radio System
  • Traxxas Link™ enabled
  • 2.4 GHz 5-channel micro receiver (6533) with fail-safe security and integrated telemetry ports
  • Automatically stores and loads settings for up to 30 Traxxas Link-enabled models—just switch on and drive, “model selection” is not required
  • Multi-Function knob
  • Adjustable steering and throttle percentage (dual rates)
  • Adjustable steering and throttle sensitivity (exponential)
  • BEC Voltage and Motor Temperature Sensor installed
• Clipless Body Mount System
  • Quick one-hand installation and removal
  • Uses pivoting rear latch mechanism
  • Eliminates body posts and clips

• Driveline
  • Full-time shaft-driven 4-wheel drive
  • Heavy-duty Cush Drive™ with steel spur gear
  • Torque-Biasing Center Drive™ absorbs shocks and distributes power
  • Sealed, silicone fluid-filled diffs with large module ring and pinion gears
    • Splined outdrives attached with external thru-bolt method
  • Overdrive gearing pre-installed
  • Splined aluminum center driveshaft
  • Fully machined aluminum stub axles
  • 24 mm splined wheel hexes
• Heavy-Duty Fixed Motor Mount
  • Precision, preset gear mesh adjustments
  • No manual gear mesh adjustments are required
  • Motor retention separate from gear mesh

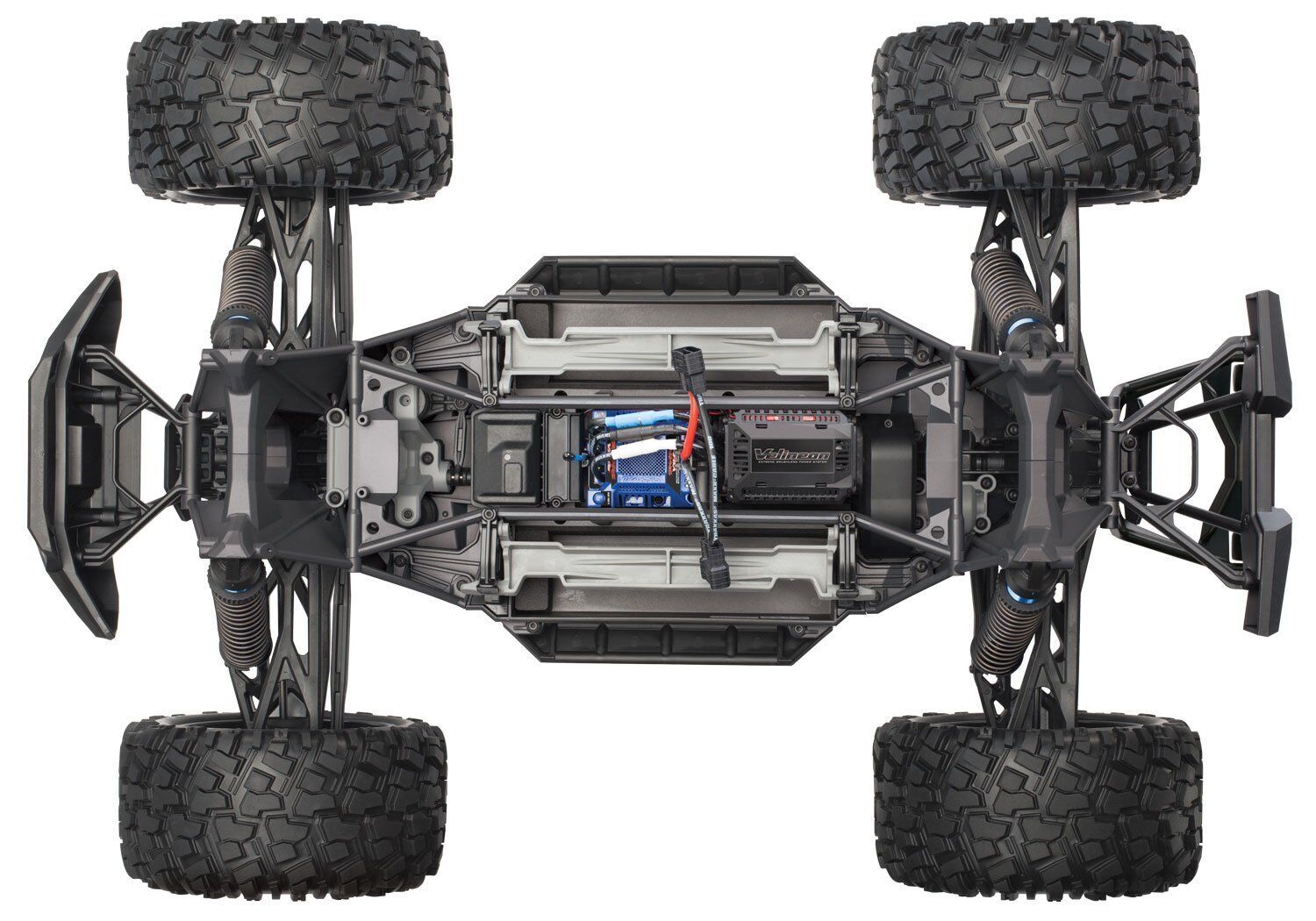

• Heavy-Duty Modular Composite Chassis
  • Interlocking front and rear bulkheads
  • Motor mounts to rear bulkhead to eliminate gear crunching flex
  • Easy to service and access components
  • Driveline is sealed in the chassis to keep out dirt and grit
• Clipless Battery Retention System
  • No body clips or hook and loop straps
  • Battery hold-downs pivot for easy access
  • Adjustable for battery size
  • More secure than conventional retention systems
  • Integrated into chassis top brace for improved battery tray and chassis stiffness
• Bumpers
  • Front energy absorbing rubber impact bumper
  • Lower front and rear skids for impact and abrasion resistance
  • Integrated nerf bars for side impact resistance

• Heavy-Duty Steering Bell Cranks and Servo Saver
  • High-output steering servo
  • Wired directly into the RX box, no external wires seen on chassis
  • New mounting system to fully support case
  • Double-shear, bearing supported servo horn
• Suspension
  • All critical suspension points have double shear strength
  • High strength steel suspension pins used throughout
  • Suspension pins retainers won’t come loose or “back-out”
  • 4 mm machined pivot balls
  • Fixed, high-strength camber and toe links
  • Steel upper and lower tie bars
  • Full contact sealed bearings used in exposed locations
• Large-Scale GTX Shocks
  • Machined aluminum threaded body
  • Extra-large bore and capacity
  • 5.2 mm damper shaft
  • Lower seal cartridge includes integrated wiper seal combination
  • Adjustable upper spring retainer
  • Plastic shock caps with pivot balls
  • Fixed shock locations
  • Lower spring perches bolted on

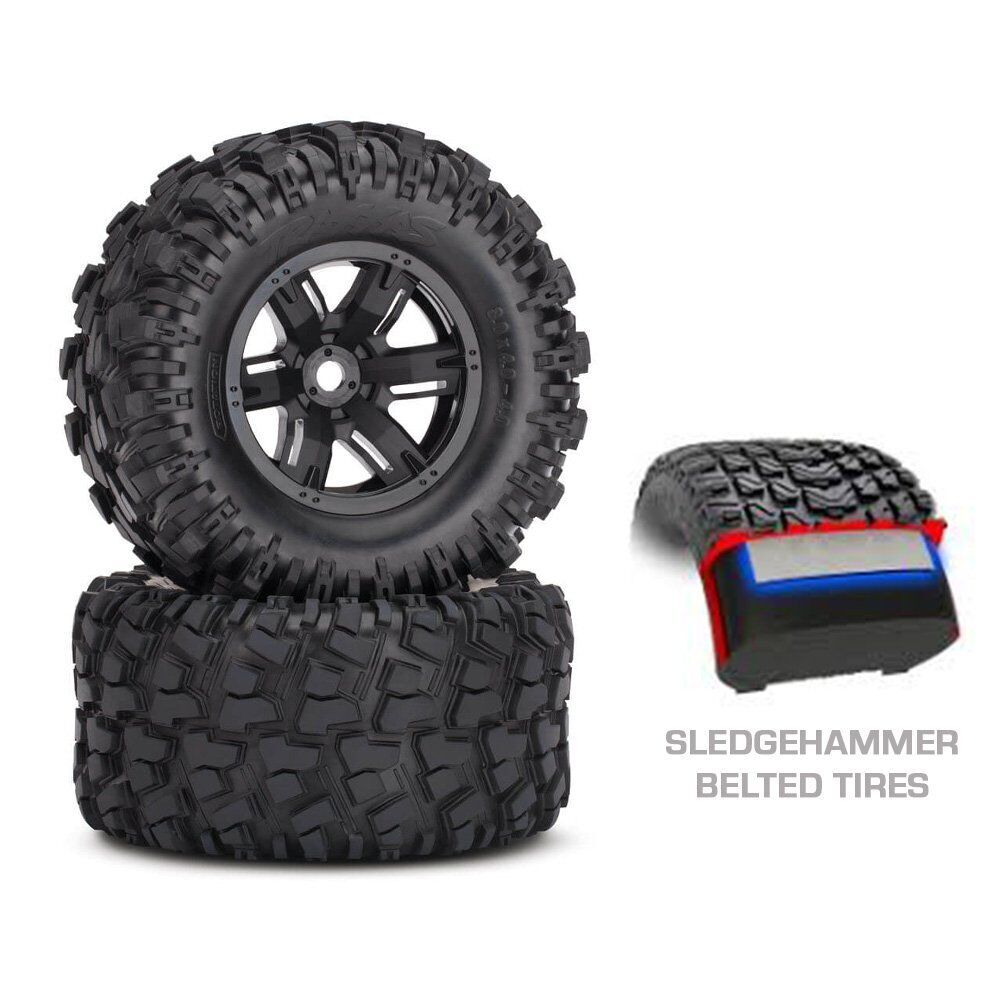

• Wheels/Tires
  • Massive 8.4″ Sledgehammer^® belted tires
    • Virtually eliminates ballooning at high speeds
    • Open tread block design
    • 2-piece foam insert
    • High-strength glue and bead design
  • Large, dual-diameter wheels

MODEL 77096-4: X-Maxx^® 8S monster truck, fully assembled, Ready-To-Race^®, with TQi™ 2.4 GHz Radio System, VXL-8s Brushless Power System, belted Sledgehammer^® tires, and clipless painted body.

What’s In The Box:

• X-Maxx 8S monster truck with Traxxas Big Block brushless motor
• VXL-8s waterproof electronic speed control with integrated telemetry
• Quick Start Guide
• TQi 2.4 GHz radio system
• High quality maintenance tools

What You’ll Need:

• Batteries

  Traxxas recommends dual 4-Cell, 6700 mAh Power Cell LiPo batteries 2890X or the Dual 4S Completer Pack 2997.

• Chargers

  Traxxas EZ-Peak^® Live Dual 4S-capable charger 2973 is recommended for easy and fast charging performance.

• AA Alkaline Batteries

  Four AA alkaline batteries for the transmitter.
