Traxxas TRX-4M Chevrolet K10 High Trail Edition 1/18 4WD RTR Rock Crawler – Red

Take on small-scale off-road adventures with the Traxxas TRX-4M Chevrolet K10 High Trail Edition in Red. This fully assembled 1/18 scale crawler combines classic American pickup styling with a lifted chassis, oversized tyres and controlled four-wheel-drive performance.

Whether you are exploring backyard trails, climbing garden rocks or building an indoor obstacle course, the K10 makes everyday surroundings a rewarding driving challenge. Its compact dimensions make it easy to transport, while its detailed body gives it plenty of appeal on display.

Classic 1979 Chevrolet K10 Styling

The officially licensed Chevrolet K10 ABS hard body captures the distinctive shape of the classic 1979 pickup. A red finish, chrome trim, detailed grille, mirrors, door handles and roll bar complete its authentic appearance.

The clipless body mounting system keeps the exterior tidy and allows quick removal for battery access. Hidden latches secure the body without loose retaining clips.

Factory-Fitted High Trail Lift

The High Trail Edition features a factory-installed Long Arm Lift Kit and oversized Mickey Thompson Baja Pro XS tyres, giving it approximately 35% more ground clearance than the standard TRX-4M.

With 40mm of centre ground clearance, the raised chassis provides additional space to negotiate rocks, roots and uneven surfaces. The extended 162mm wheelbase suits the pickup’s proportions and helps provide a more settled ride over rough ground.

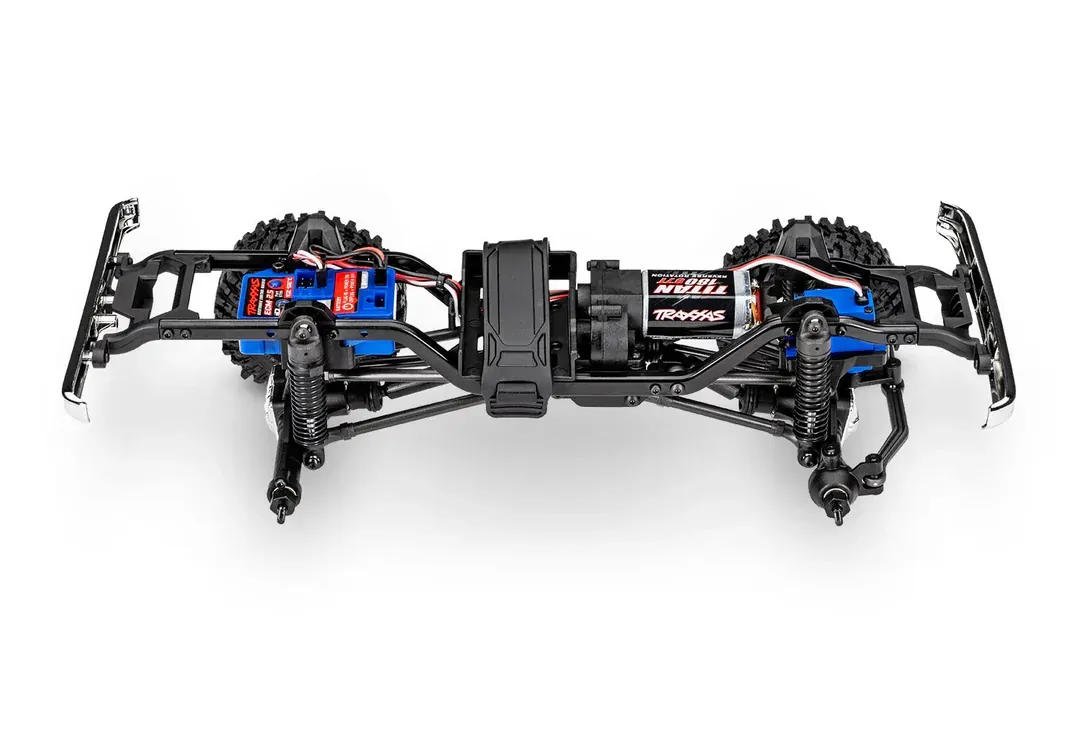

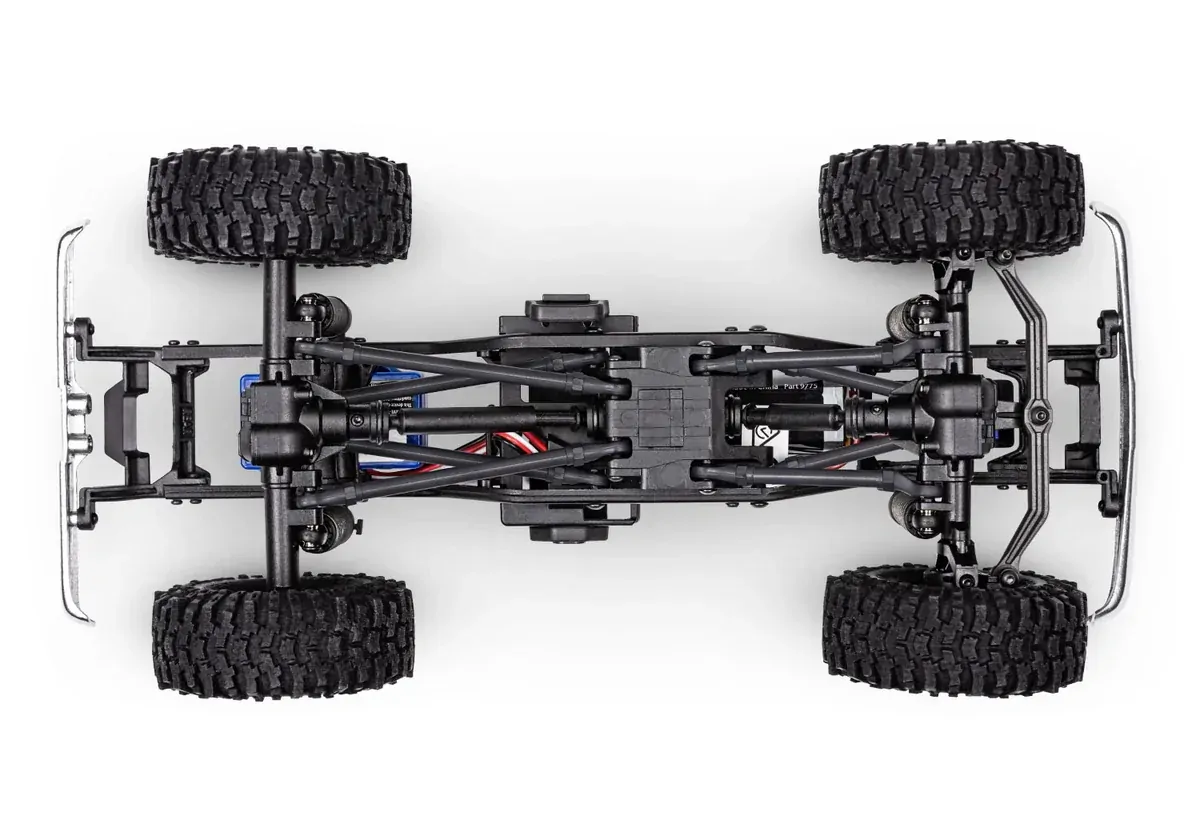

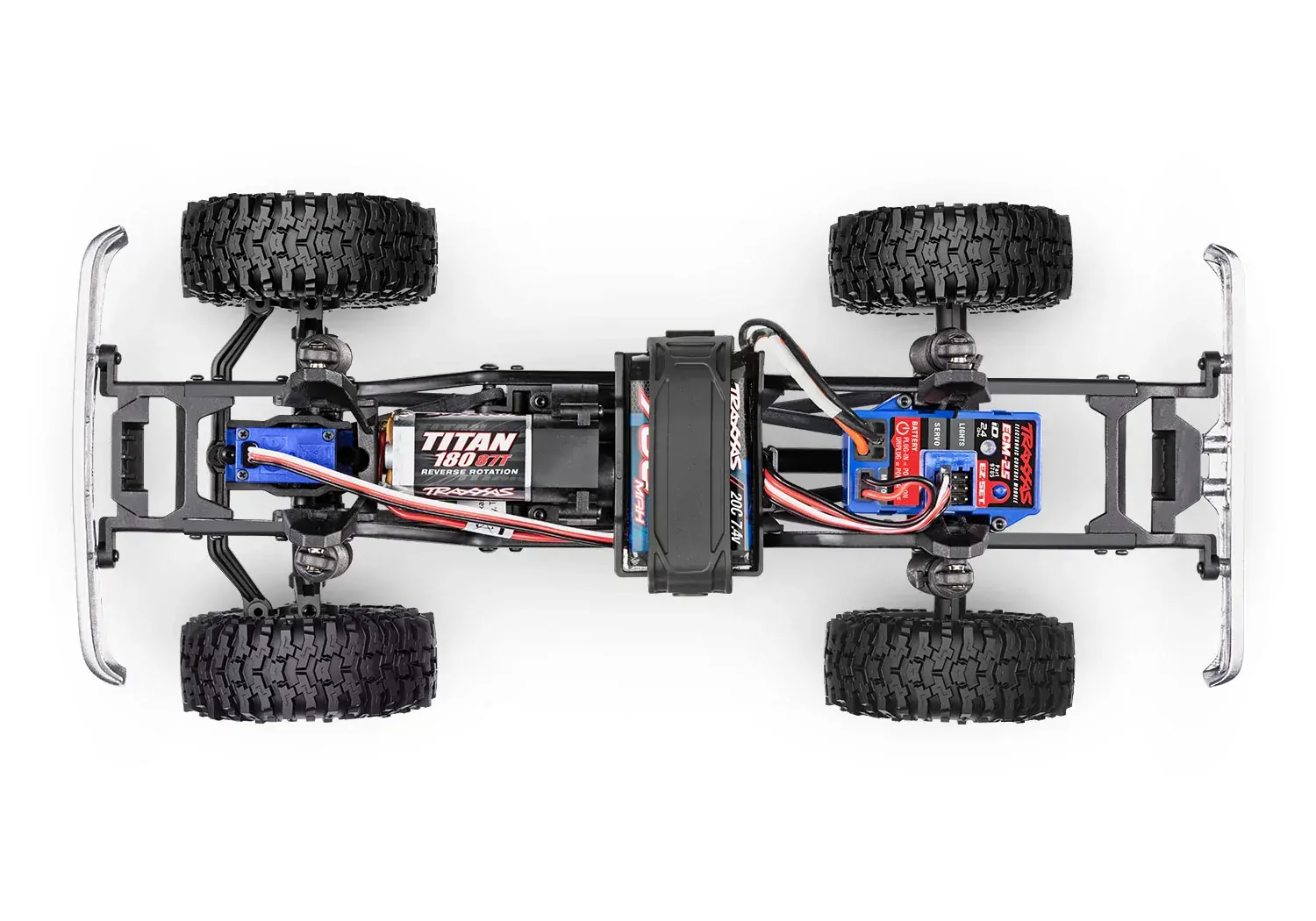

Steel Chassis and Locked Four-Wheel Drive

A steel ladder frame provides a rigid foundation, while the shaft-driven 4WD system and locked front and rear axles maintain drive to all four wheels as the suspension moves over obstacles.

The Titan 180 87-turn brushed motor delivers controlled low-speed power for crawling. Its forward mounting position supports climbing performance, while fixed gear mesh simplifies maintenance by removing the need for gear-mesh adjustment.

Articulating Suspension and Trail Tyres

Four-link suspension and oil-filled GTM shocks allow the axles to articulate while controlling bounce over uneven terrain. This helps the tyres follow the ground and gives the truck realistic suspension movement.

The Mickey Thompson Baja Pro XS tyres use a soft compound and aggressive tread for trail traction. They are mounted on 1-inch chrome mag wheels, complementing the K10’s lifted pickup appearance.

A 2065T steering servo and 45-degree steering angle help manoeuvre through tight sections of your course.

Three Selectable Driving Modes

The waterproof ECM-2.5 electronic control module combines the speed controller, receiver and lighting controller:

• Sport Mode: Forward, brake and reverse for general driving.
• Trail Mode: Adds drag braking at neutral to help control descents.
• Crawl Mode: Provides instant reverse and full braking when the throttle is released for technical crawling.

The system includes low-voltage detection and motor overload protection. Additional scale lighting can be added with a compatible optional Pro Scale LED light kit, sold separately.

Specifications

Package Contents

• Fully assembled TRX-4M Chevrolet K10 High Trail Edition in Red
• Installed motor, steering servo and ECM-2.5 electronics
• TQ 2.4GHz transmitter
• 7.4V 750mAh 2S LiPo battery
• USB-powered 2A iD charger
• Maintenance tools

Required to Complete

• Four AA alkaline batteries for the transmitter
• Suitable USB power source for the included charger
