Extreme 4s Power

Jato 4X4 packs the same Velineon 540XL brushless motor found in the Maxx ® extreme monster truck. It € s the largest motor Traxxas has ever offered in a buggy, and it € s backed by a new VXL-4s „ ¢ speed control with built-in telemetry and selectable 6.0 or 7.4-volt BEC. With 4s LiPo power on tap, Jato 4X4 VXL defies the laws of physics as it rockets its way to 60 mph and beyond with unrelenting acceleration.

Track-Ready Handling

Jato 4X4 VXL sits low and wide, concentrating its weight below the driveshafts for razor-sharp handling and perfect weight distribution. Aluminum XX-long GTR shocks in the front and rear maximize traction by keeping Jato 4X4 VXL € s ultra-soft Response Pro tires in constant contact with the ground. Add the optional sway bar kit (sold separately) for flat cornering and game-changing track performance.

Extreme Strength

Factory-installed Extreme Heavy Duty driveline and suspension components give Jato 4X4 VXL all the durability of Traxxas € toughest offroad trucks. An aluminum T-Bar reinforces the chassis with Extreme HD shock towers to support the suspension. Huge Maxx-Duty ® driveshafts transform the 540XL motor € s brutal torque into massive 4-wheel roost without breaking a sweat.

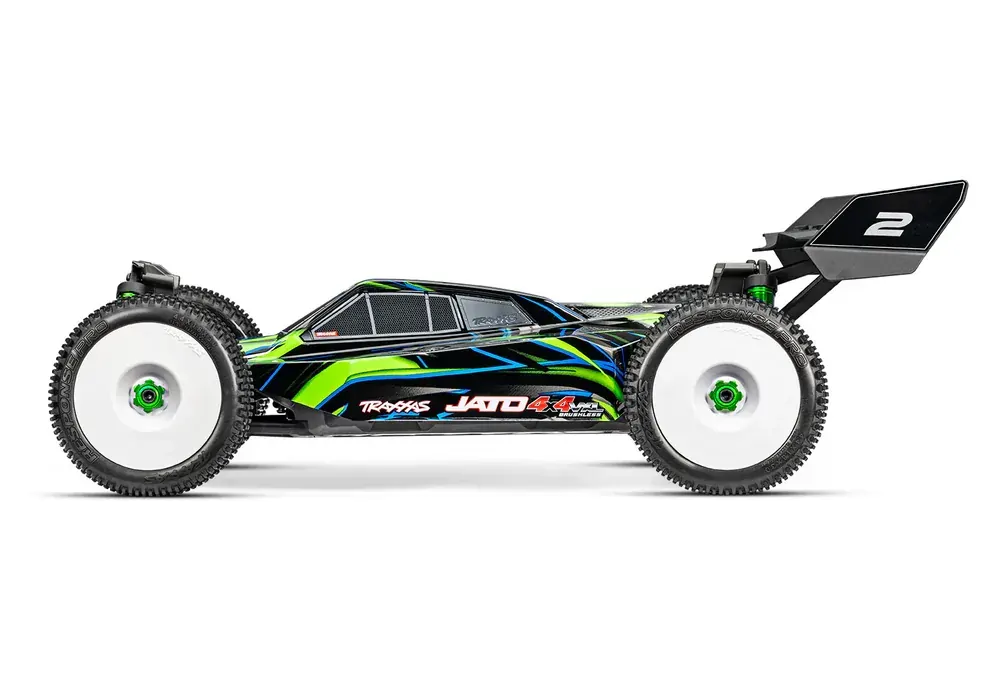

Clipless Buggy Body

Jato 4X4 VXL € s form-fitted clipless body cuts through the wind and eliminates the parachuting effect for stable performance at speed. Tough clipless side latches hold the body securely in place but release in just seconds for fast battery swaps. Jato 4X4 VXL incorporates the high-downforce wing from Sledge ® to keep its chassis planted with rugged rollover protection as an added benefit.

Features

Clipless Body

• Holds tight for intense action
• Quick and easy removal
• High-downforce wing

Extreme Heavy Duty Upgrade Kit Installed

• Strengthened C-hubs, axle carriers, and steering blocks
• Heavy duty one-piece camber AND; toe links
• Maxx-duty driveshafts
• Oversize diameter
• 6 mm axles
• 17 mm aluminum hex hubs
• Aluminum wheel nuts

TQi „ ¢ 2.4 GHz High-Output Radio System

• TQi 2-channel transmitter
• Automatically stores and loads settings for up to 30 Traxxas Link-enabled models
• Programmable multi-function knob
• Adjustable steering and throttle percentage (dual rates)
• Adjustable steering and throttle sensitivity (exponential)
• Adjustable steering and throttle end points
• 5-channel micro receiver (6533) with fail-safe security
• Patented waterproof receiver box with easy-access plug

VXL-4s „ ¢ Waterproof Electronic Speed Control

• 2s € “4s LiPo compatible
• Real-time telemetry via Traxxas Link „ ¢
• Selectable 7.4-volt high-voltage BEC
• Large Heat sink accepts accessory cooling fan (3340)
• Three Programmable Drive Profiles
• Sport Mode - Forward / Brake / Reverse
• Race Mode - Forward / Brake
• Training Mode „ ¢ - 50% Forward / Brake / 50% Reverse (patented)
• Traxxas EZ-Set ® one-button setup
• Integrated protection circuits
• LED status lights

Velineon ® 540XL Brushless Motor

• Long format brushless motor
• 4-pole 2400 Kv
• 5 mm output shaft
• Low-maintenance design

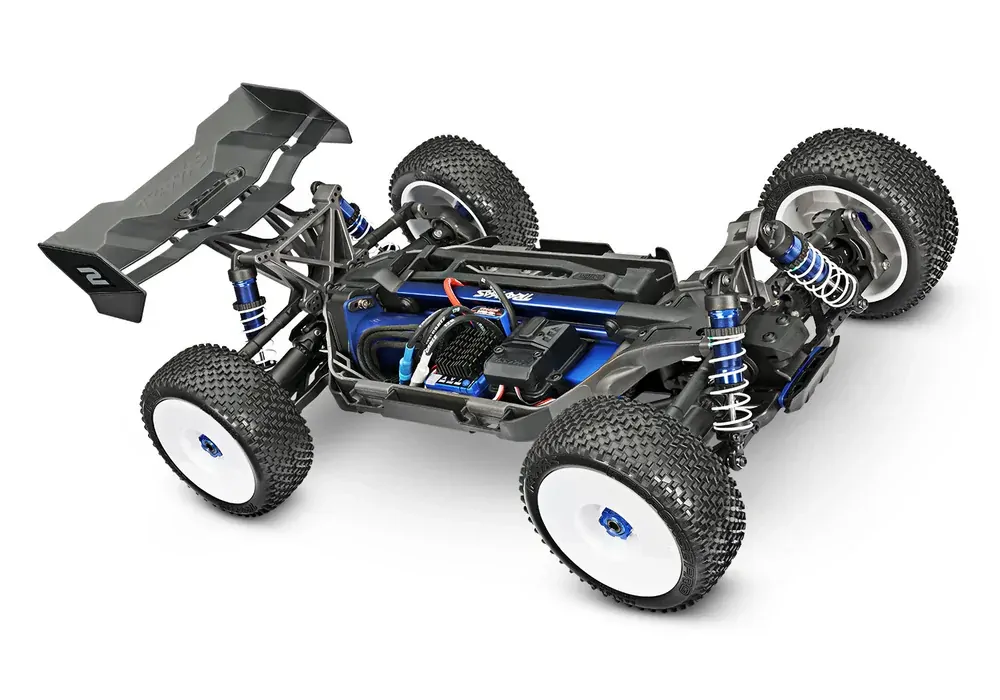

Chassis

• Aluminum T-Bar chassis stiffener
• Modular composite tub design
• Secure battery hold-down latch
• Low-CG design
• High-clearance skid plate

Steering

• Chassis-mounted 2075 servo
• Dual bellcrank design with integrated servo saver

Suspension

• Heavy duty shock towers
• Reinforced shock mounts
• Double-shear camber link connections
• Heavy duty suspension arms
• Aluminum oil-filled GTR shocks
• Threaded shock collars for precise ride height adjustment
• Large oil capacity for consistent damping
• White powder-coated springs

Driveline

• Full-time shaft-driven 4-wheel drive
• Torque-Biasing Center Drive
• Sealed steel gear front and rear differentials
• Steel 32-pitch gears

Wheels and Tires

• 3 € ³ dished wheels
• S1-compound Response Pro tires

Sealed Ball Bearings

Hex hardware with Rust-Resistant Black Oxide Coating

Contents

• Jato 4X4 with VXL-4s ESC and 540XL motor
• Quick Start Guide
• TQi 2.4 GHz radio system
• High quality maintenance tools

Requires

Batteries

Jato 4X4 VXL requires a 2, 3, or 4-cell LiPo battery. See full list of batteries.

Charger

Traxxas EZ-Peak ® Live charger (2971) is recommended for easy and fast charging performance.

AA Alkaline Batteries

Four AA alkaline batteries for the transmitter.

Specifications:

• Length: : 20.4 inches (517 mm)
• Front Track: : 12 inches (305 mm)
• Rear Track: : 12 inches (305 mm)
• Ground Clearance: : 1.02 inches (26 mm) (center)
• Weight (no battery): : 5.6 pounds (2.54 kg)
• Height (overall): : 7 inches (179 mm)
• Wheelbase: : 12.6 inches (320 mm)
• Shock Length (front): : 3.98 inches (101 mm) - XX-long
• Shock Length (rear): : 3.98 inches (101 mm) - XX-long
• Speed Control: : Velineon ® VXL-4s „ ¢ electronic speed control
• Motor (electric): : Velineon ® 540XL brushless
• Overall Drive Ratio: : 10.16:1
• Differential Type: : Hardened steel bevel, sealed, limited slip
• Gear Pitch: : 32
• Chassis Structure/Material: : Composite tub
• Drive System: : Shaft-driven 4X4 with Torque-Biasing Center Drive
• Steering: : Dual-bellcrank with integrated servo saver
• Tires: : Response Pro S1-compound with foam inserts
• Tire Diameter: : 4.5 inches (114 mm) (front and rear)
• Wheels (front/rear): : 3 € ³ dished wheels
• Wheel Diameter: : 3 € ³ inches (78 mm)
• Radio System: : TQi „ ¢ 2.4 GHz (2-channel)
• Servo: : Waterproof digital 2075 servo (125 oz-in torque)
• Skill Level: : 1
• Battery Compartment (L/W/H): : 165 mm x 50 mm x 35 mm
• Required Batteries: : 4 € œAA €  (transmitter), Vehicle
