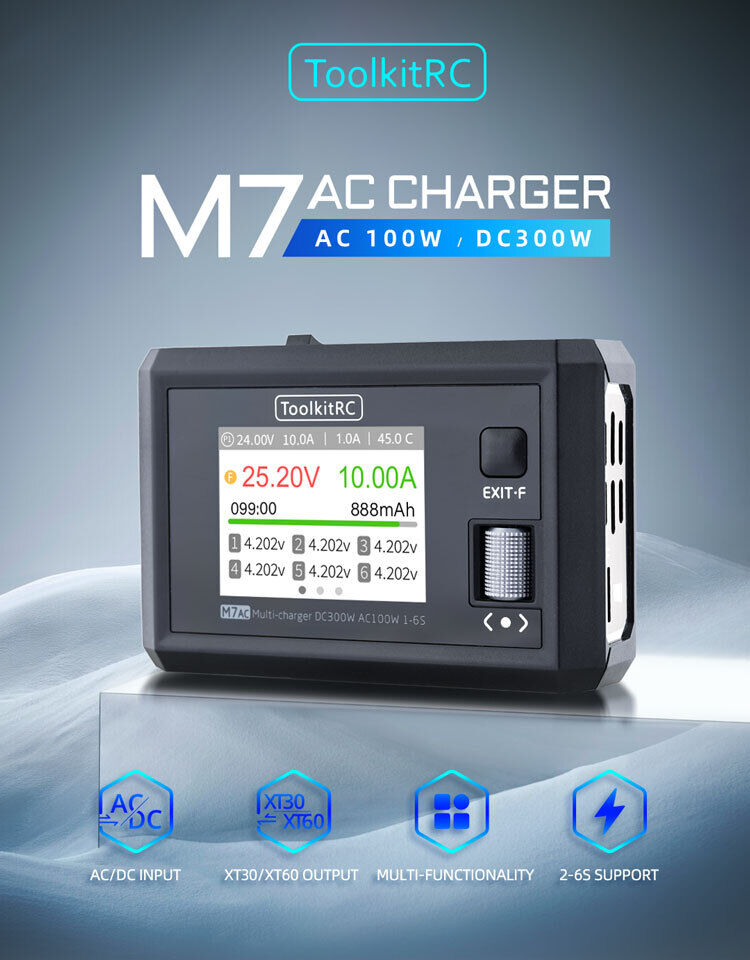

Toolkitrc m7ac ac 100w / dc 300w input xt60 xt30 output 2-6s lipo battery balance charger

specification:

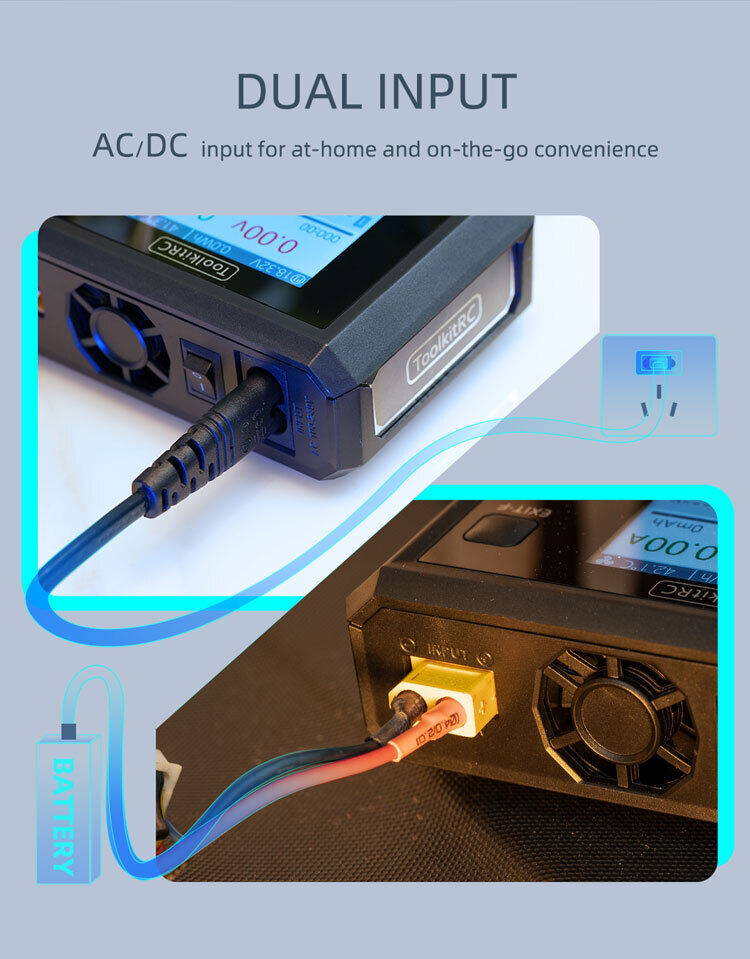

• input voltage: ac 100-240v max 100w 1. 5a / dc 7. 0-28. 0v @max 20a
• battery type: lipo lihv life lion lto@1-6s nimh @1-16s pb @1-10s
• balance current: 800ma @ 4. 2v
• charging power: 300w @max 15a
• discharge power: 300w @max 15a recycle mode / 15w@3a normal mode
• usba: 10w@5. 0v or upgrade

measurer:

• pwm: 880-2200us @ 20-400hz
• ppm: 880-2200us * 8ch @ 20-50hz
• sbus: 880-2200us * 16ch @ 20-100hz
• voltage: 1. 0-5. 0v @ 1-6s
• internal resistance: 0. 1 mr-99mr @ 1-6s
• esc: 300w @ 15a

general:

• product size: 112*73*38mm
• product weight: 245g
• packing size: 144*125*43mm
• packaging weight: 380g
• lcd: ips 2. 4 inch lcd 320*240 resolution
• tf card: 128mb-16gb

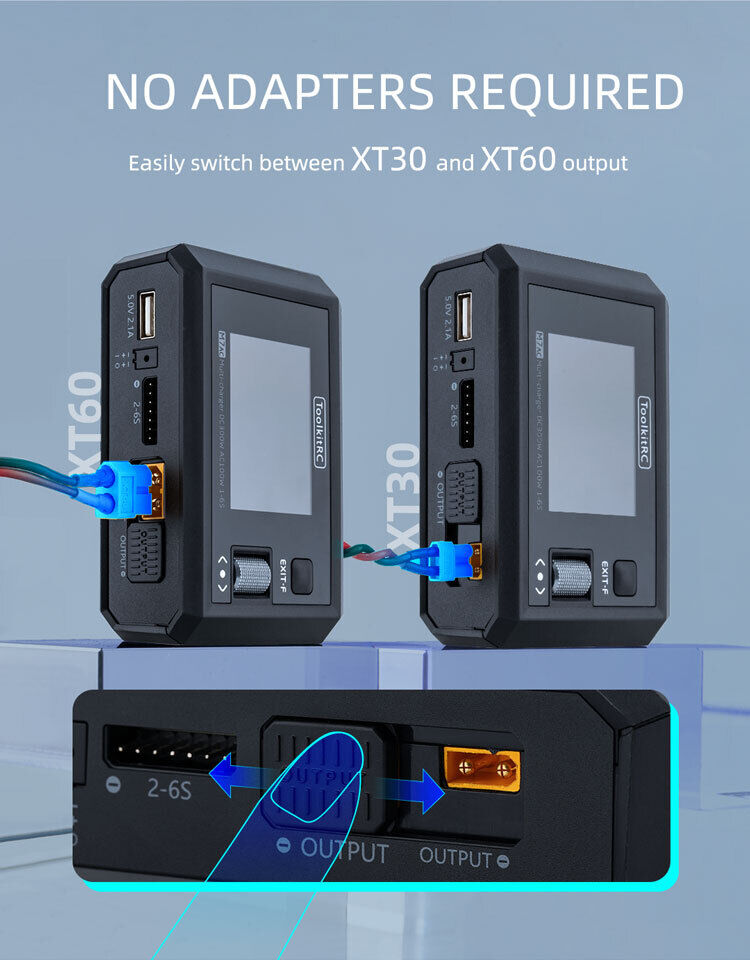

output:

• pwm: 500-2500us @ 20-1000hz
• ppm: 880-2200us * 8ch @ 20-50hz
• sbus: 880-2200us * 16ch @ 20-100hz
• power supply: 1. 0-28. 0v @0. 5-15a mode:cc cv
• overcurrent response: <5ms

packaging included:

• 1x toolkitrc m7ac charger au plug
