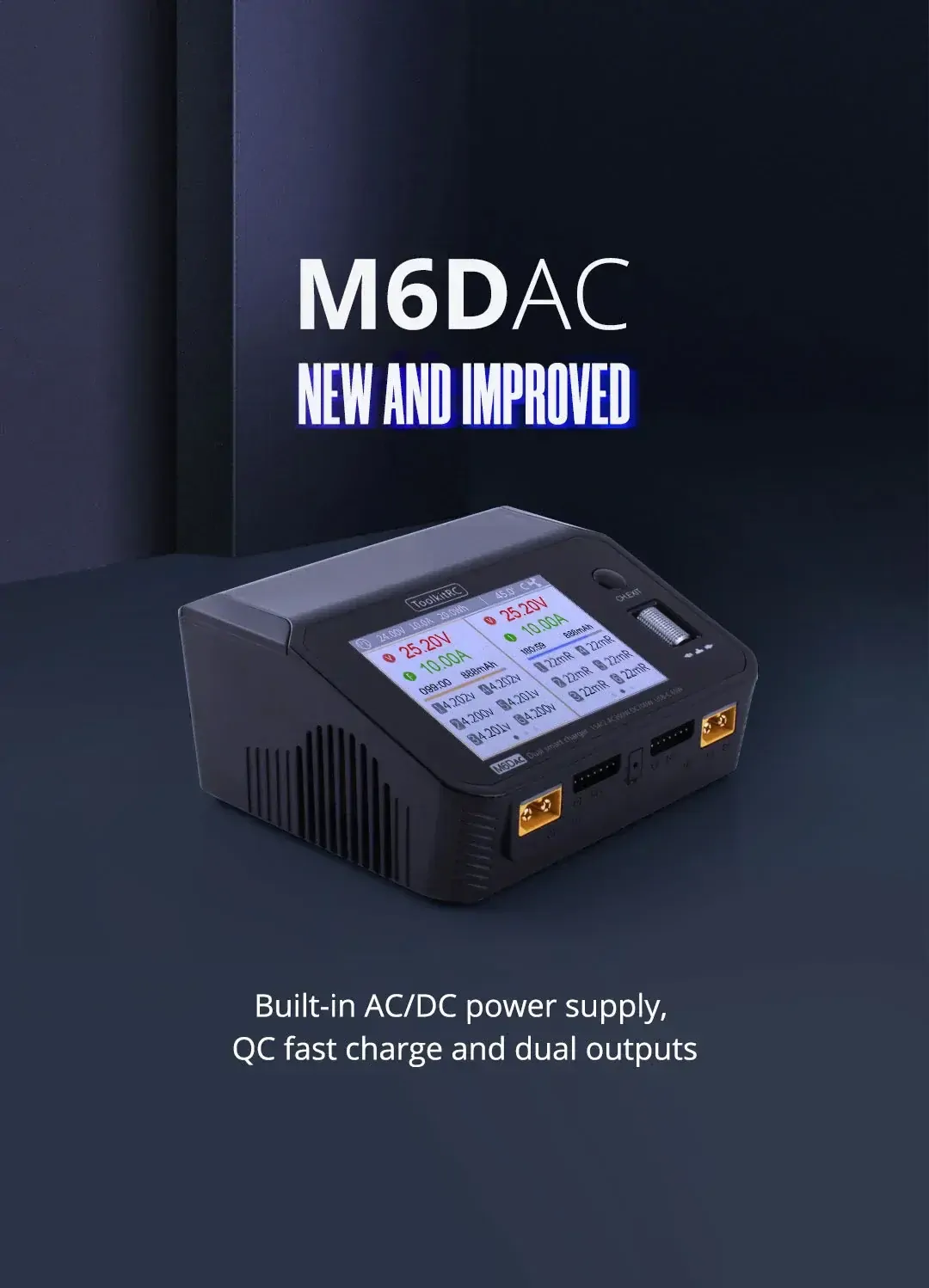

Toolkitrc m6dac dual channel smart lipo battery charger discharger ac 200w

specification:

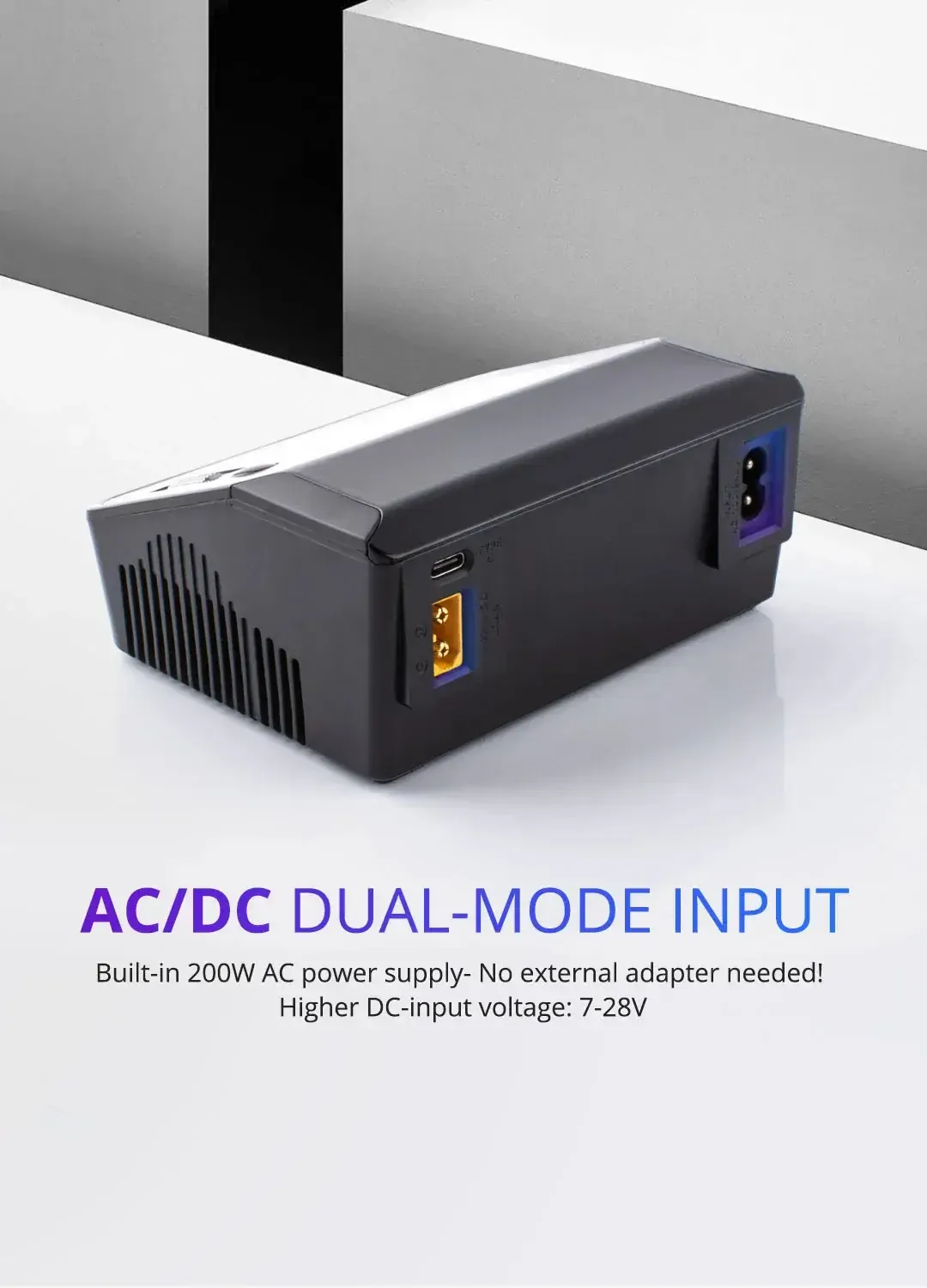

• input voltage: dc 7. 0-28. 0v  @max 30a | ac 100-240v @ max 2. 5a

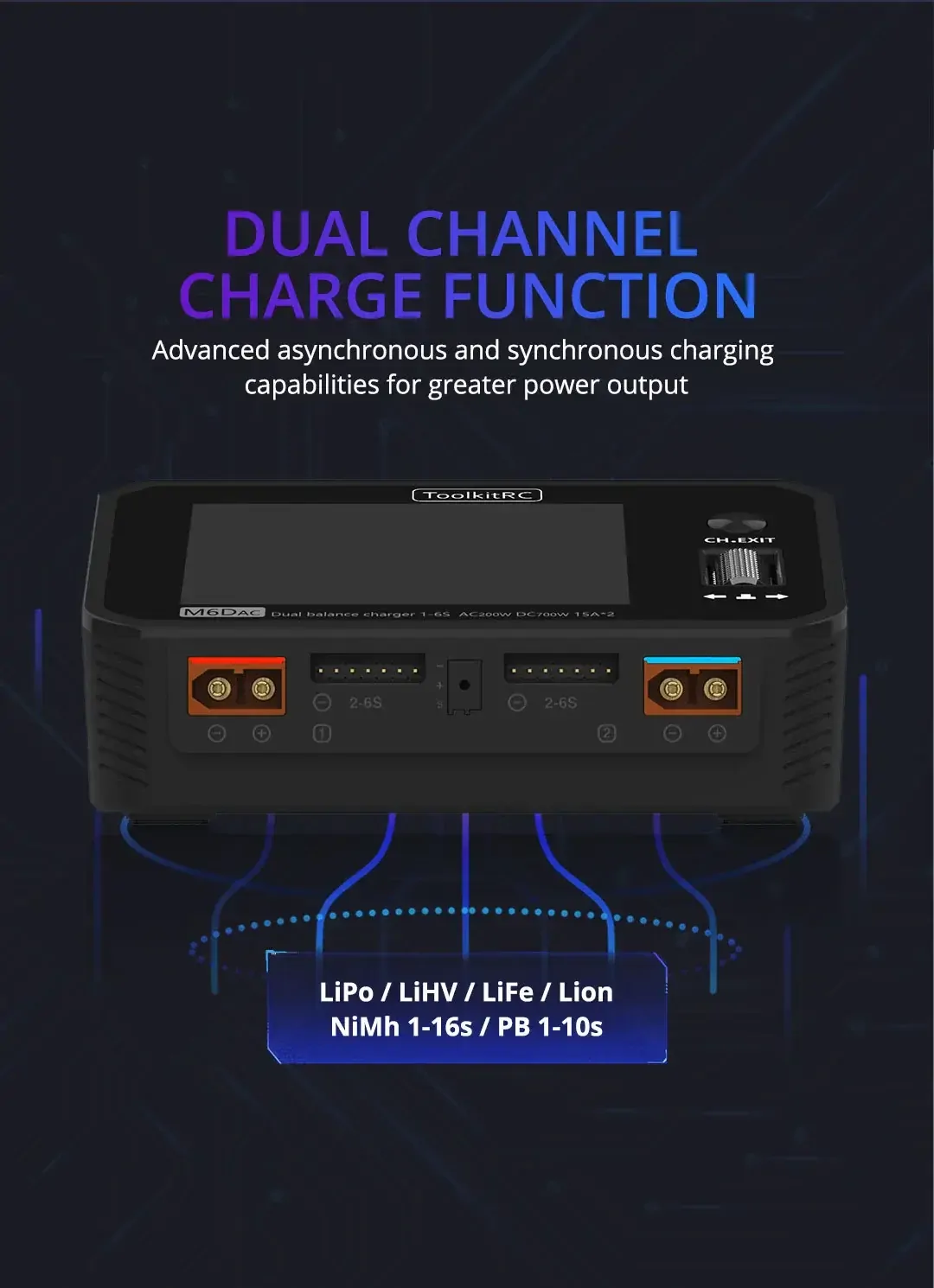

• type of battery: lipo  lihv  life lion@1-6s | nimh @1-16s   pb @1-10s
• balance current: 1000ma @2-6s
• balance accuracy: <0. 005v
• charger power: 0. 1-15a @350w *2  (asynchronous mode) | 0. 1-25a @700w  (synchronous mode)
• discharge power: 350w  @max 15a *2 â¼ recycle mode) | 15w@3a *2 (normal mode)

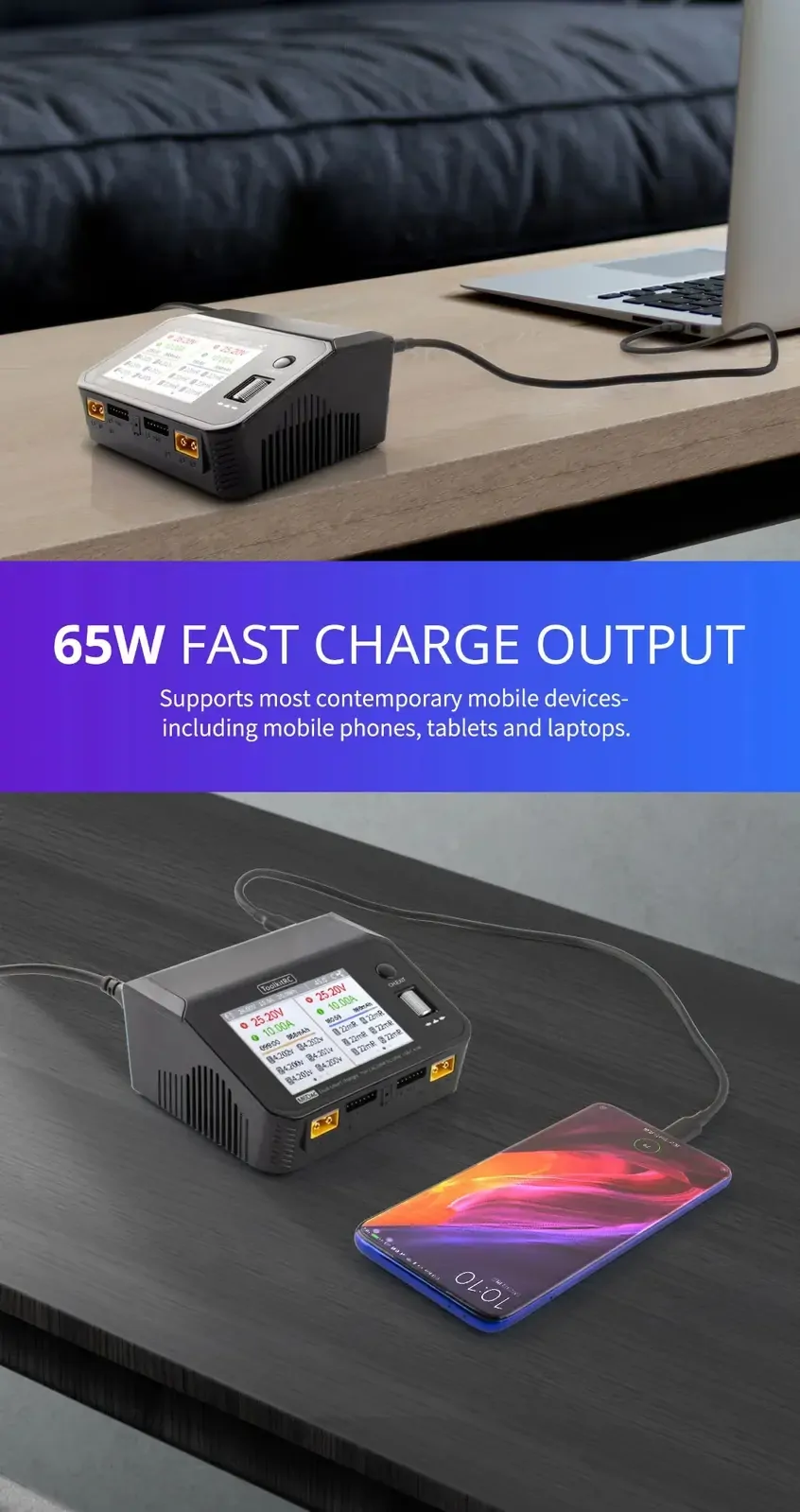

• usbc power: max 65w 3. 25a @20. 0v  or upgraded
• usbc protocol: pd,qc,afc,fcp,scp,pe,sfcp,voc
• battery voltage: 1. 0v-5. 0v@1-6s
• internal resistance: 1-100mr@1-6s
• product size: 127*106*57 mm
• product weight:520g
• pack size: 158*134*63 mm
• pack weight: 700g

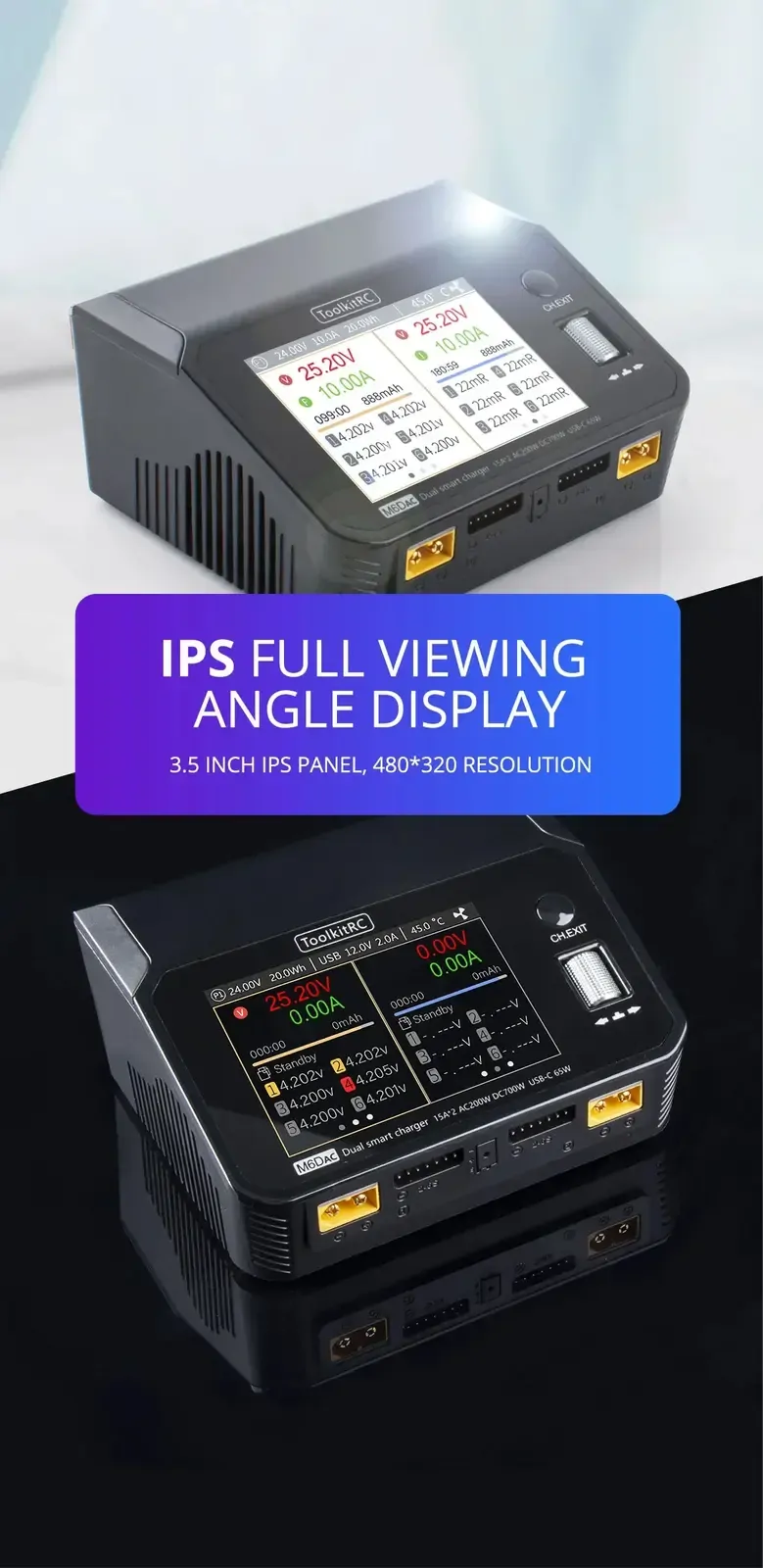

• lcd: ips  3. 5 inch lcd 480*320 pixel
