** includes 240v aus compatible transformer

This is a power unit for tomix n gauge and is the successor to pu-n-1.

features

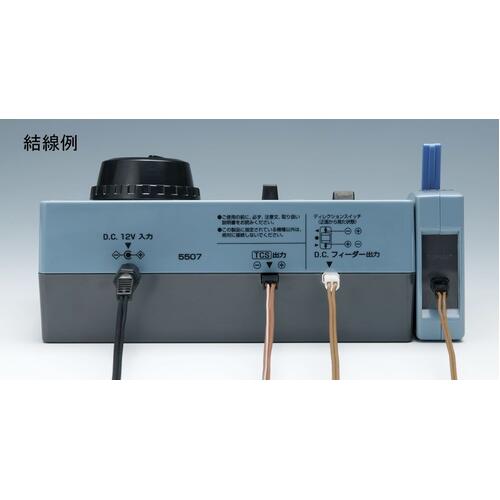

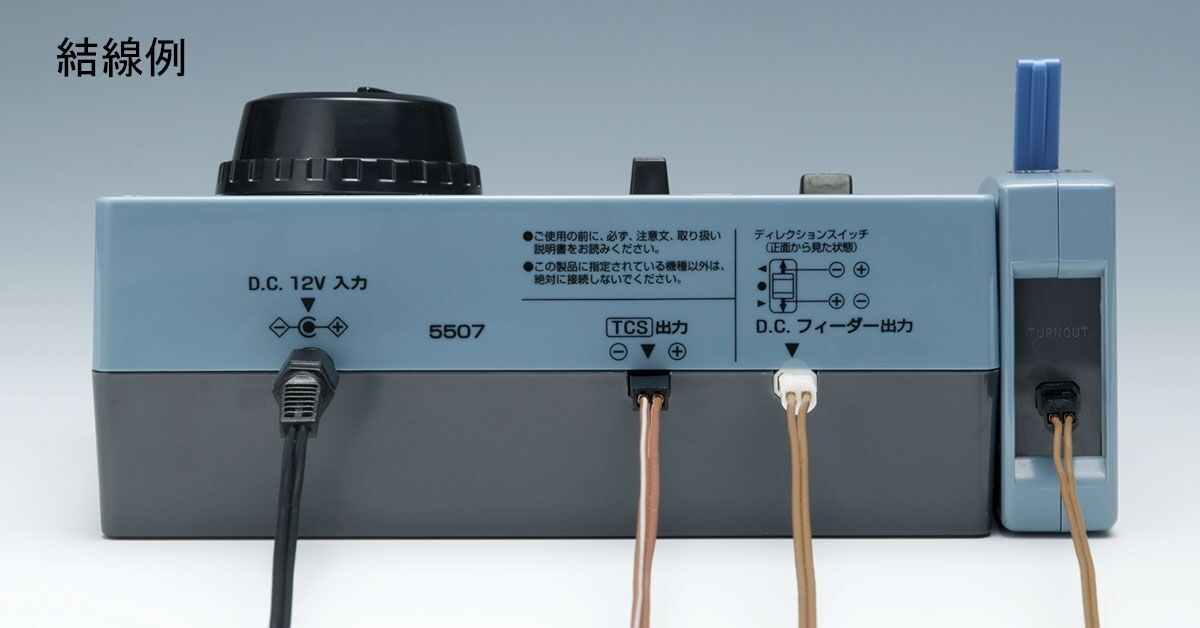

• equipped with an output terminal for tcs and a side connector for points
• forward/forward switching using a direction switch
• each output uses a next neo connector method
• built-in protection circuit
• includes main switch and pilot lamp
• power supply is a separate adapter type

Main specifications

• output: dc 1a (0 to 12v for vehicle running/12v tcs/12v electric point n drive)
• dc feeder n output: 1 system
• tcs connector terminal: yes
• side connector: yes (point control box) (connector for n)
• always on function: none
• power supply: adapter method
• size (main unit): 153 x 89 x 71mm

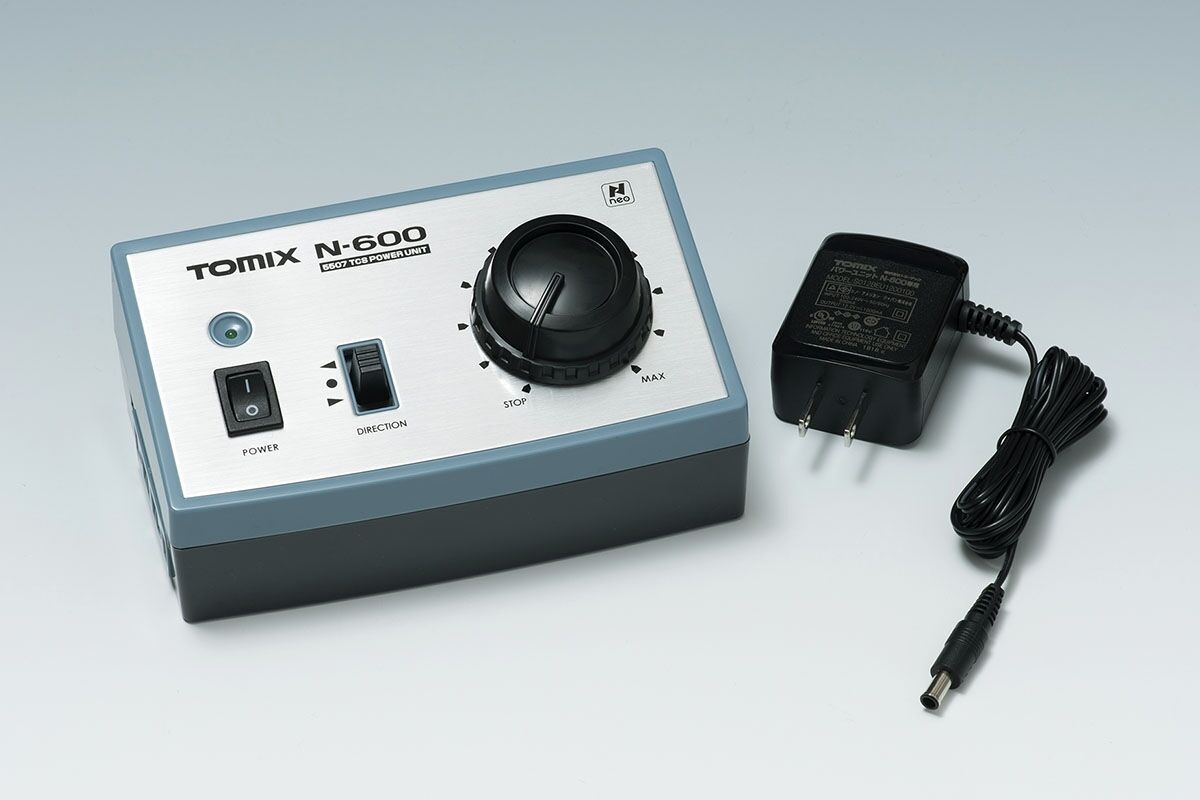

• tcs power unit n-600
• ac adapter
