On the inside of a curve with a radius of 317 mm and 45 degrees, n-cpr317/280-45 (f) is an electric curve point that branches to the right and n-cpl317/280-45 (f) to the left with a radius of 280 mm and 45 degrees. Adopts a complete selection type and can also be used as a spring point.

features

• connection compatible with conventional tomix rails
• rails are connected by snapping together with claws
• an improved joiner is used for the joiner
• works in combination with point control box n and power unit n this is a fully selective system that completely switches between two directions using two built-in contacts, so you can enjoy reverse operation and complex point installation with simple electrical wiring. Existing curve rail c317-45 x 2 , or in combination with c280-45 x 2, branch at a double track interval of 37 mm at a curve section of 90 degrees
• in combination with 1 each of n-cpr317/280-45 (f) and n-cpl317/280-45 (f), realizes a one-way line with double track spacing of 37 mm in a 90 degree curve section
• gap is achieved by replacing with an insulated joiner (sold separately)
• dummy point motor, spring point sign, manual switching device, sign sticker, etc. Are included

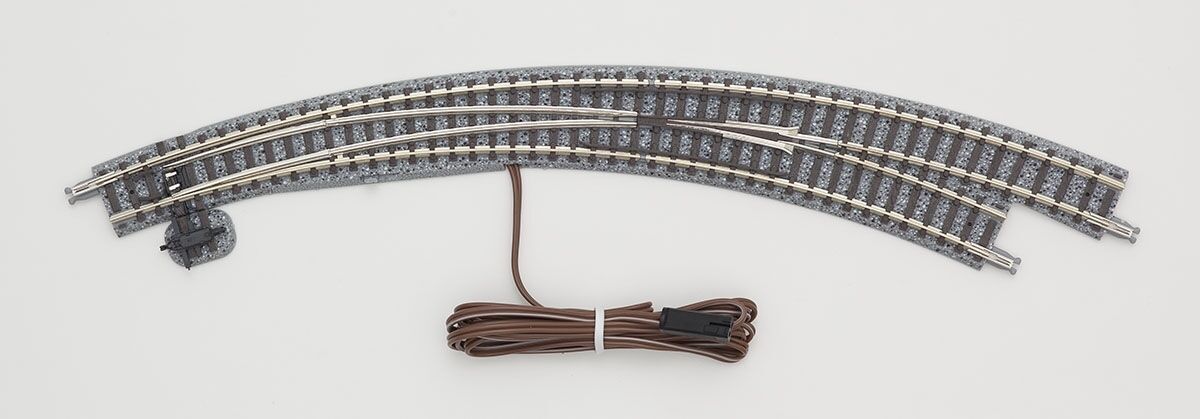

• electric point n-cpr317/280-45(f) (complete selection type)

Accessories

• dummy point motor runner
• dummy point switching machine runner
• dummy point switching machine stand
• dummy point switching machine seal
