This is a wide curve cant introduction rail with a radius of 391mm, a curve angle of 22. 5 °, and a width of 37mm. A canted rail where the rail on the outside of the curve is higher than the inside, and the rail is introduced from flat without cant to canted rail gradually.

features

• ballast and sleepers are painted for a beautiful appearance
• pc sleepers are expressed
• rails are joined together with nails for easy and reliable connection
• connection compatible with conventional tomix rails
• handrails, side walls, and fences (sold separately) can be attached to the side of the rail
• compatible with single-track piers by attaching the separately sold single-track pier base to the bottom
• can be used as a double-track rail by connecting cr (l) 354-22. 5-wp (sold separately) inside
• wide rail when used as a double-track rail compatible with double-track elevated piers by attaching a coupling for the cant section (coupling for wide rails and slab rails on the flat lead-in section) to the underside. - power supply by attaching a feeder for wide rails and slab rails to the underside (feeder for slab rails). Can also be installed, but conventional feeders cannot be installed)
• sensors for wide rails and slab rails can be installed with additional machining by the user (sensors for slab rails and one-touch mounting sensors cannot be installed)
• supports mounting on various overhead line poles gradually changes from 0 degrees to about 4 degrees with a curve angle of 22. 5 degrees

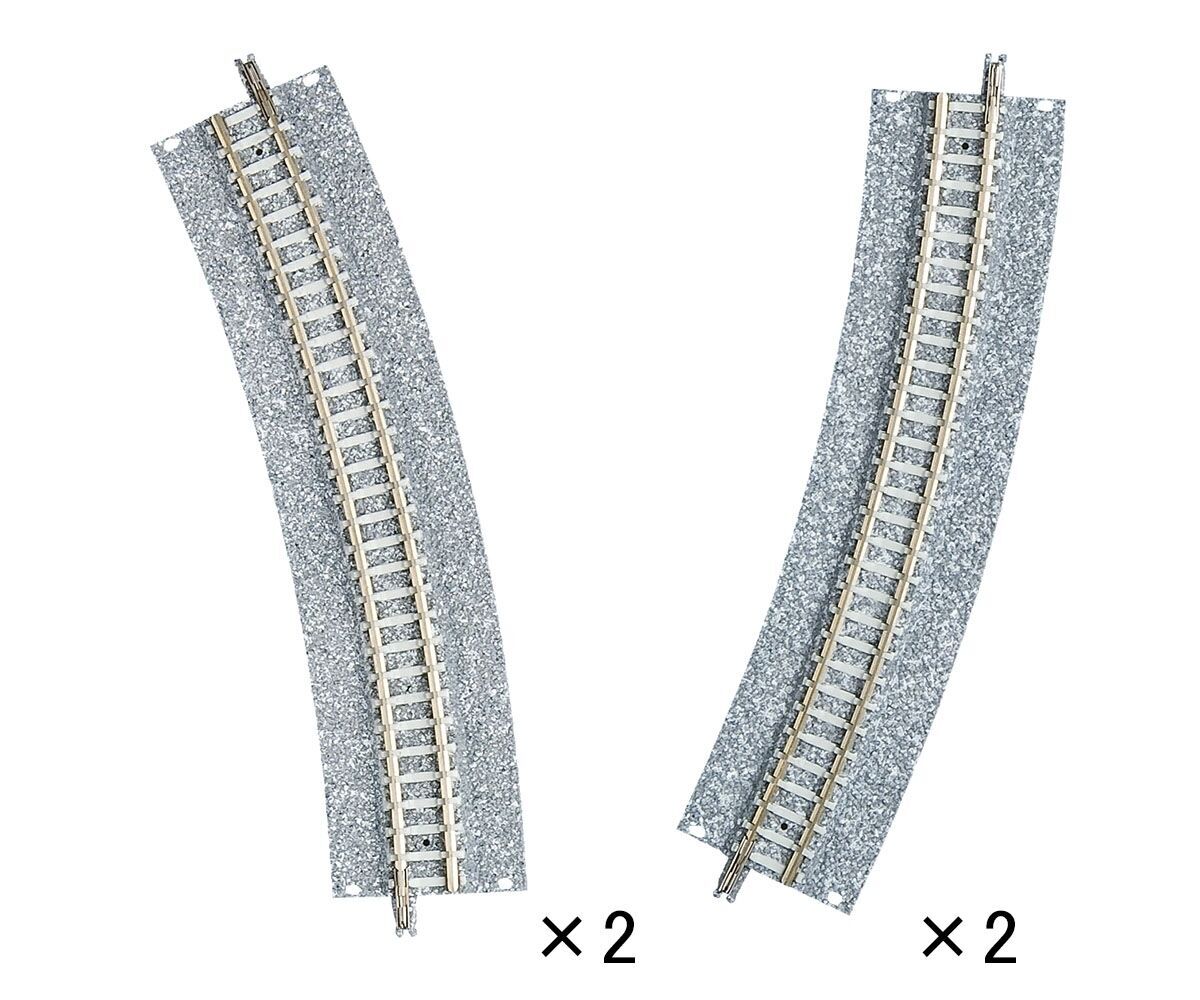

• one set of each 2 pieces: cr, which gradually cant while curving to the right, and cl, which gradually cant while curving to the left

• wide pc approach rail cr391-22. 5-wp(f)
• wide pc approach rail cl391-22. 5-wp(f)
• runner parts: wide rail joint
