This is a wide curve cant introduction rail with a radius of 317mm, a curve angle of 22. 5 °, and a width of 37mm. A canted rail where the rail on the outside of the curve is higher than the inside, and the rail is introduced into the canted rail by gradually adding cant from a flat without cant.

features

• ballast and sleepers are painted for a beautiful appearance
• pc sleepers are expressed
• rails are joined together with nails for easy and reliable connection
• connection compatible with conventional tomix rails
• handrails, side walls, and fences (sold separately) can be attached to the side of the rail
• attach the separately sold single wire pier base to the bottom to support single wire piers. Can be connected to the outside and used as a double-track rail
• when used as a double-track rail, attach the coupling for the wide rail cant section (coupling for wide rail/slab rail to the flat introduction section) to the bottom surface to support double-track elevated piers
• power is supplied by attaching a wide rail/slab rail feeder to the bottom surface (slab rail feeder can also be attached, conventional feeder cannot be attached)
• wide rail/slab rail sensor can be attached by user additional machining (one-touch with slab rail sensor) (mounted sensors cannot be installed)
• compatible with various overhead line pole installations
• cant inclination angle gradually changes from 0 degrees to approximately 4 degrees with a curve angle of 22. 5 degrees

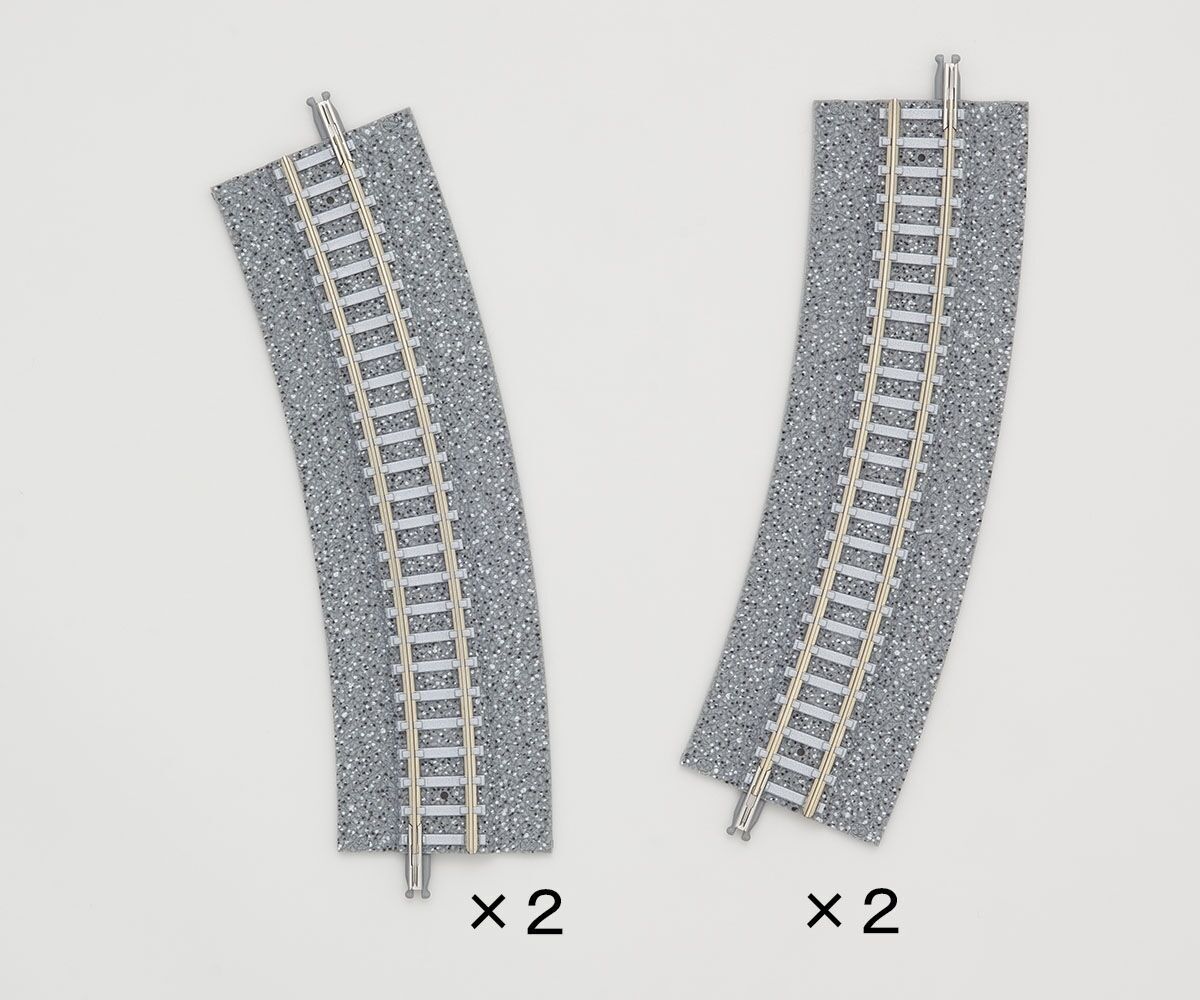

• cr gradually inclines cant while curving to the right, and left 2 sets of 2 each of cl that gradually cants while curving.

• wide pc approach rail cr317-22. 5-wp(f)
• wide pc approach rail cl317-22. 5-wp(f)
• runner parts: wide rail joint
