This is a wide curve cant introduction rail with a radius of 280mm, a curve angle of 22. 5 °, and a width of 37mm. A canted rail where the rail on the outside of the curve is higher than the inside, and the rail is introduced from flat without cant to canted rail gradually.

features

• ballast and sleepers are painted for a beautiful appearance
• pc sleepers are expressed
• rails are joined together with nails for easy and reliable connection
• connection compatible with conventional tomix rails
• handrails, side walls, and fences (sold separately) can be attached to the side of the rail
• compatible with single-track piers by attaching the separately sold single-track pier base to the bottom
• can be used as a double-track rail by connecting cr (l) 317-22. 5-wp (sold separately) to the outside
• wide rail when used as a double-track rail compatible with double-track elevated piers by attaching a coupling for the cant section (coupling for wide rails and slab rails on the flat lead-in section) to the underside. - power supply by attaching a feeder for wide rails and slab rails to the underside (feeder for slab rails). Can also be installed, conventional feeders cannot be installed)
• compatible with various overhead line pole installations
• cant inclination angle gradually changes from 0 degrees to approximately 4 degrees with a curve angle of 22. 5 degrees

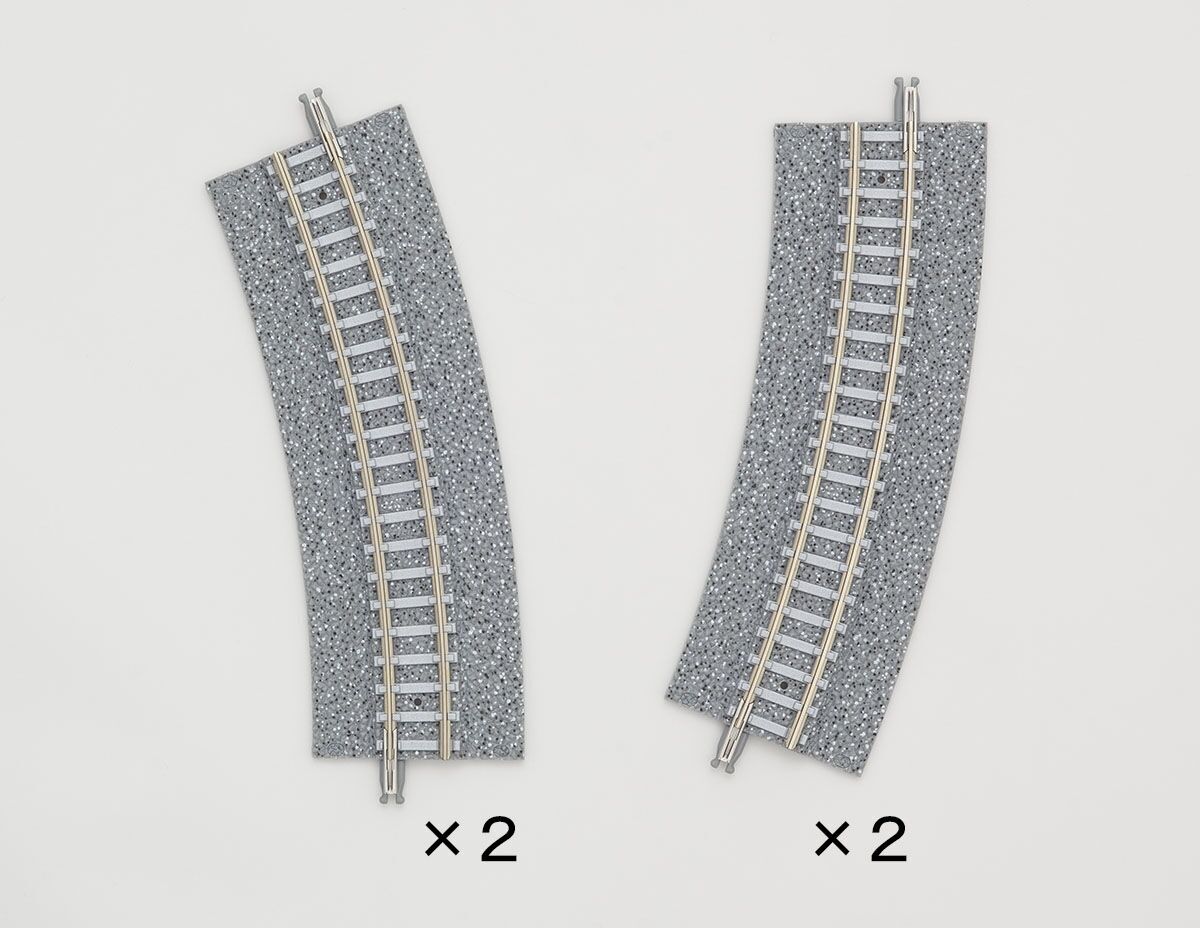

• cant inclines gradually while curving to the right 2 sets each of cr and cl that gradually cant while curving to the left
• structurally not compatible with mounting sensors

• wide pc approach rail cr280-22. 5-wp(f)
• wide pc approach rail cl280-22. 5-wp(f)
• runner parts: wide rail joint
