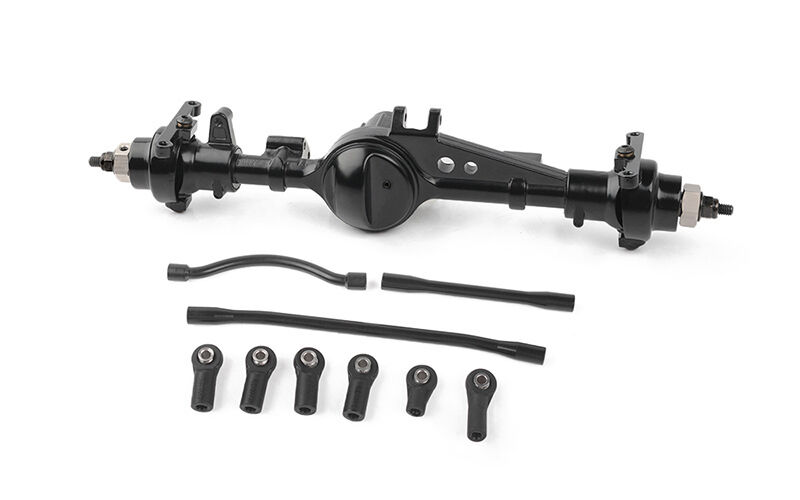

Teq ultimate scale cast axle (front) with improved steering and durability, the teq ultimate scale axles are a modern version of the yota ii axles designed as an upgrade for axial scx10 ii and element enduro line of rc trucks. These scale axles are cast from a high grade aluminum alloy and come with integrated suspension link mounts that construct a single, hardened unit. Solid and maneuverable, this set features universal style xvd shafts that deliver a tighter turning radius and high strength driveline. The ring and pinion gears are a cnc machined, hypoid tooth design and are linked to a 6 bolt hardened steel locker. The c-hubs feature interlocking grooves on the front axle which enables caster customization and the front pumpkin is offset providing more ground clearance. All of this is packed into a high strength cast aluminum case with a long lasting powder-coated finish. These rc axles will look awesome on your custom axial sc10 ii or element enduro. Specifications: die cast light weight metal housing hardened steel spool gears 5mm axle output shaft full ball bearings powder-coated in black width: 189. 6mm / 7. 46in gear ratio: 8t/30t 12mm steel wheel hex weight: 6. 24oz / 177g shown installed on axial scx10 ii for example (not included) shown installed on element rc enduro sendero rtr 1/10 rock crawler for example (not included) images provided by rc4wd team driver daniel siegl what's included: 1x teq ultimate scale cast axle (front) 1x 115. 8mm link 1x 63mm link 1x 66mm bent link 1x m3 plastic bent rod end 1x m3 mini plastic rod end 4x rc4wd m3/m4 plastic short rod ends 2x m3 x 10mm set screws 4x m4 x 20mm set screws other teq axles: teq ultimate scale cast axle (rear) (z-a0133) replacement hardware: m4 flanged lock nut (black) (z-s0620) m2 x 3mm set screws steel socket head cap screws m2 x 5mm steel socket head cap screws m2 x 10mm (z-s0849) steel socket head cap screws m2 x 14mm steel button head cap screws m3 x 8mm (z-s0652) m3 plastic bent rod ends (z-s0074) m3 mini plastic rod end (z-s0398) rc4wd m3/m4 plastic short rod ends (z-s1378) m3 x 10mm set screw (z-s0308) m4 20mm long threaded shaft (set screws) (z-s0030) replacement parts: teq ultimate scale cast axle steering knuckles and c-hubs (z-s1975) teq ultimate scale cast axle diff cover and third member (z-s1980) teq ultimate scale cast axle housing (front) (z-s1976) replacement steering knuckles and c-hubs for teq ultimate scale axles (z-s1975) steering and panhar. To retain a centered front axle the stock panhard link and drag link will need to the lengthened by loosening the rod ends 1-2 revolutions. Please do routine maintenance. Check the grease around the gears and also oil the bearings. Do not over tighten screws as you can strip the holes. Use locktite but do not use too much or you can damage the casing. (z-a0127)
