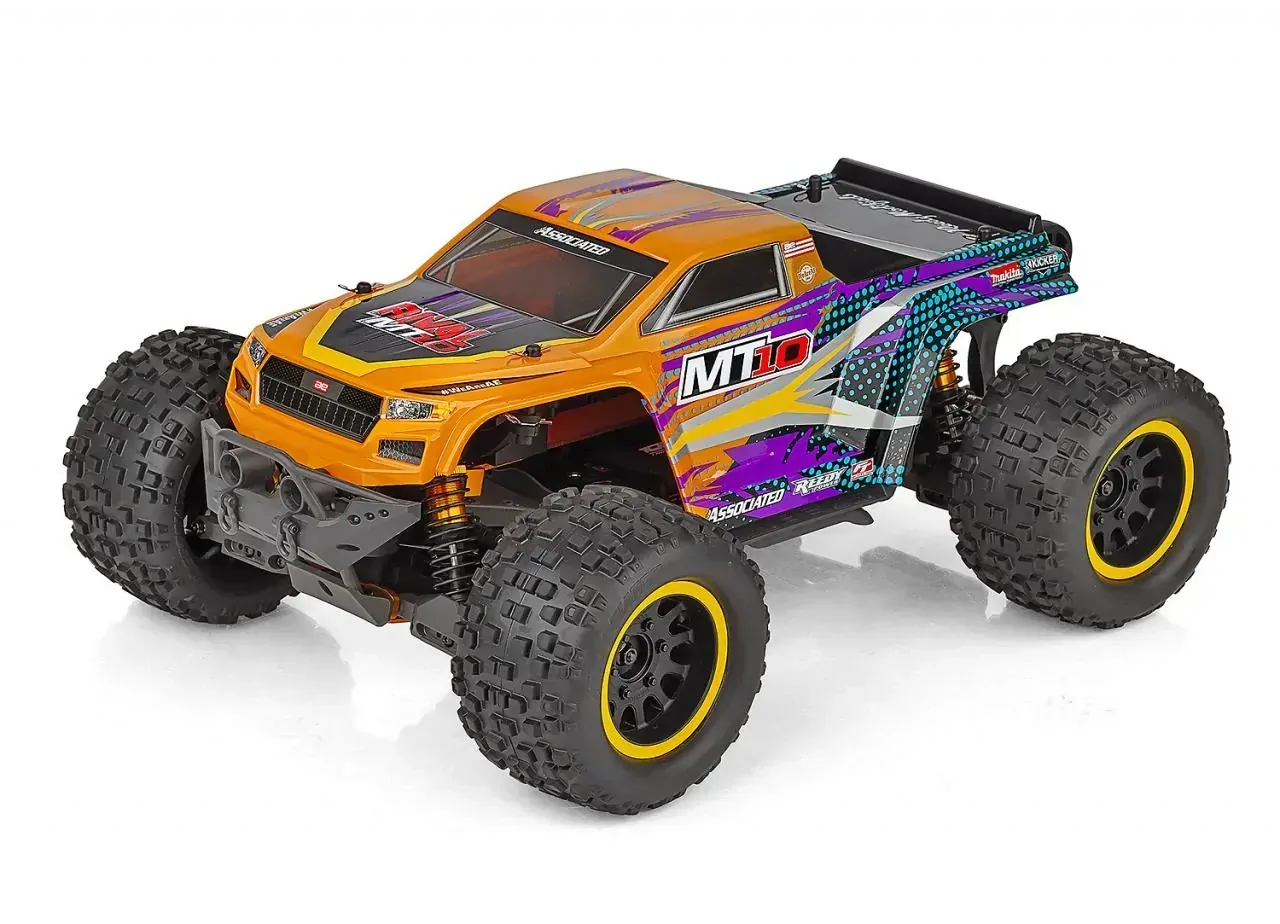

Team Associated RIVAL MT10 Factory Team 1/10 4WD Monster Truck Kit – ASS20524

The Team Associated RIVAL MT10 Factory Team Kit (ASS20524) takes the popular MT10 platform and gives it the full Factory Team treatment. Designed as a tough, high-performance 1/10 scale 4WD monster truck kit, it combines the proven MT10 drivetrain and long-travel suspension with a selection of premium aluminium components and Factory Team upgrades.

Unlike the RTR MT10, this version is supplied as a kit, allowing you to build the truck yourself and select your preferred motor, ESC, servo, radio system and battery setup.

Factory Team Upgrades

The Factory Team version features a distinctive combination of gold anodised aluminium components and grey composite parts.

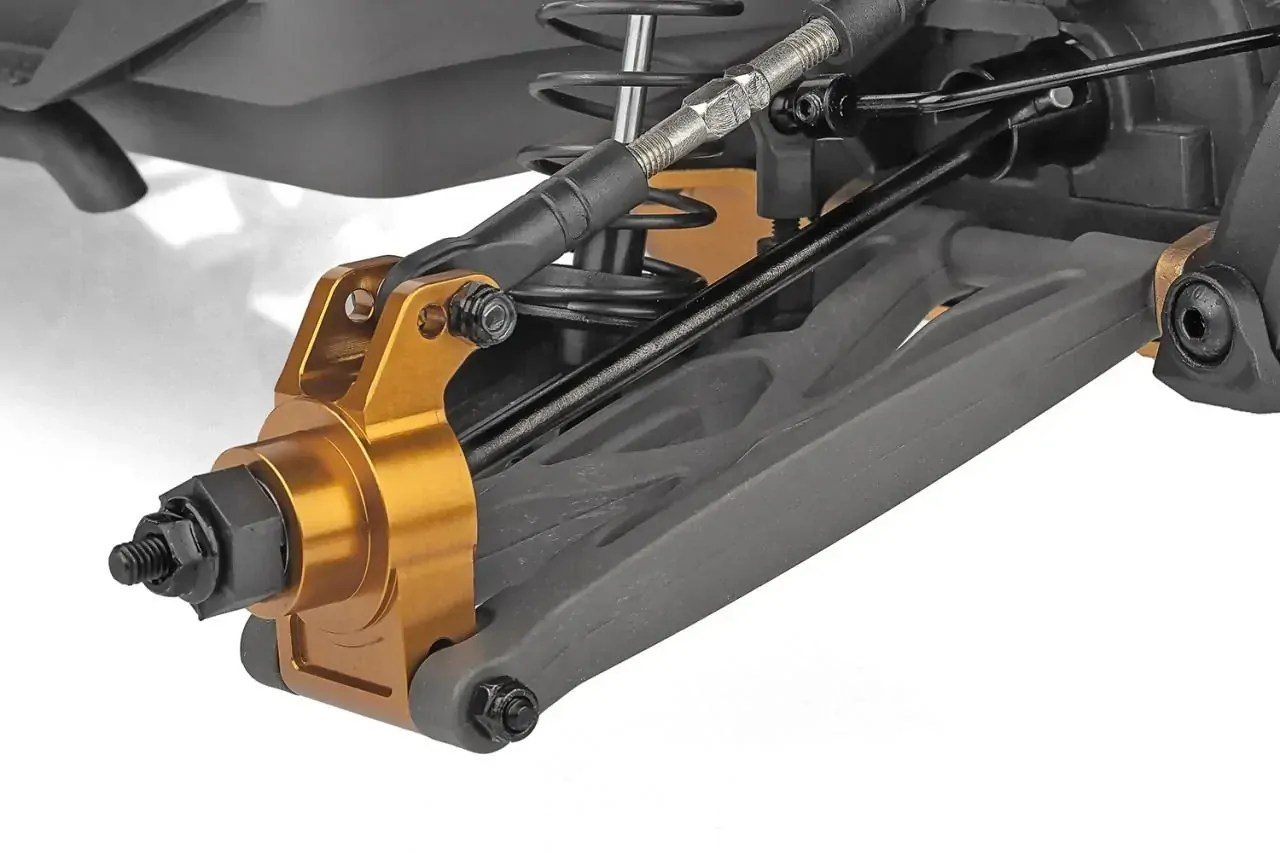

Upgrades include CNC-machined gold aluminium caster blocks and steering spindles, aluminium upper and lower chassis supports, and gold aluminium oil-filled coil-over shock absorbers.

These components don't just give the MT10 a premium Factory Team appearance – they also provide additional rigidity and durability in key areas of the truck.

Tough 4WD Drivetrain

Power is delivered through a robust shaft-driven 4WD system featuring front, centre and rear sealed gear differentials.

Front and rear CVA driveshafts and a steel centre driveshaft help handle the demands of powerful brushless systems, while the three-differential drivetrain provides predictable power delivery across a wide variety of surfaces.

Long-Travel Independent Suspension

The RIVAL MT10 Factory Team uses four-wheel independent suspension combined with threaded aluminium, oil-filled coil-over shocks.

Its long suspension travel helps the truck soak up rough terrain and hard landings, making the MT10 equally at home running across dirt, grass and other off-road surfaces. Heavy-duty 4mm adjustable steel turnbuckles provide additional strength and allow suspension adjustments to suit your setup.

Clear Body – Create Your Own Look

Rather than supplying a factory-painted shell, the Factory Team kit includes a clear body with a new livery decal sheet.

This gives builders the opportunity to create their own paint scheme while retaining the distinctive MT10 monster truck styling.

Features

• 1/10 scale 4WD monster truck kit
• Factory Team edition of the popular RIVAL MT10
• Clear body with new livery decal sheet
• Shaft-driven four-wheel drive
• Three sealed gear differentials
• Front and rear CVA driveshafts
• Steel centre driveshaft
• Gold anodised aluminium components

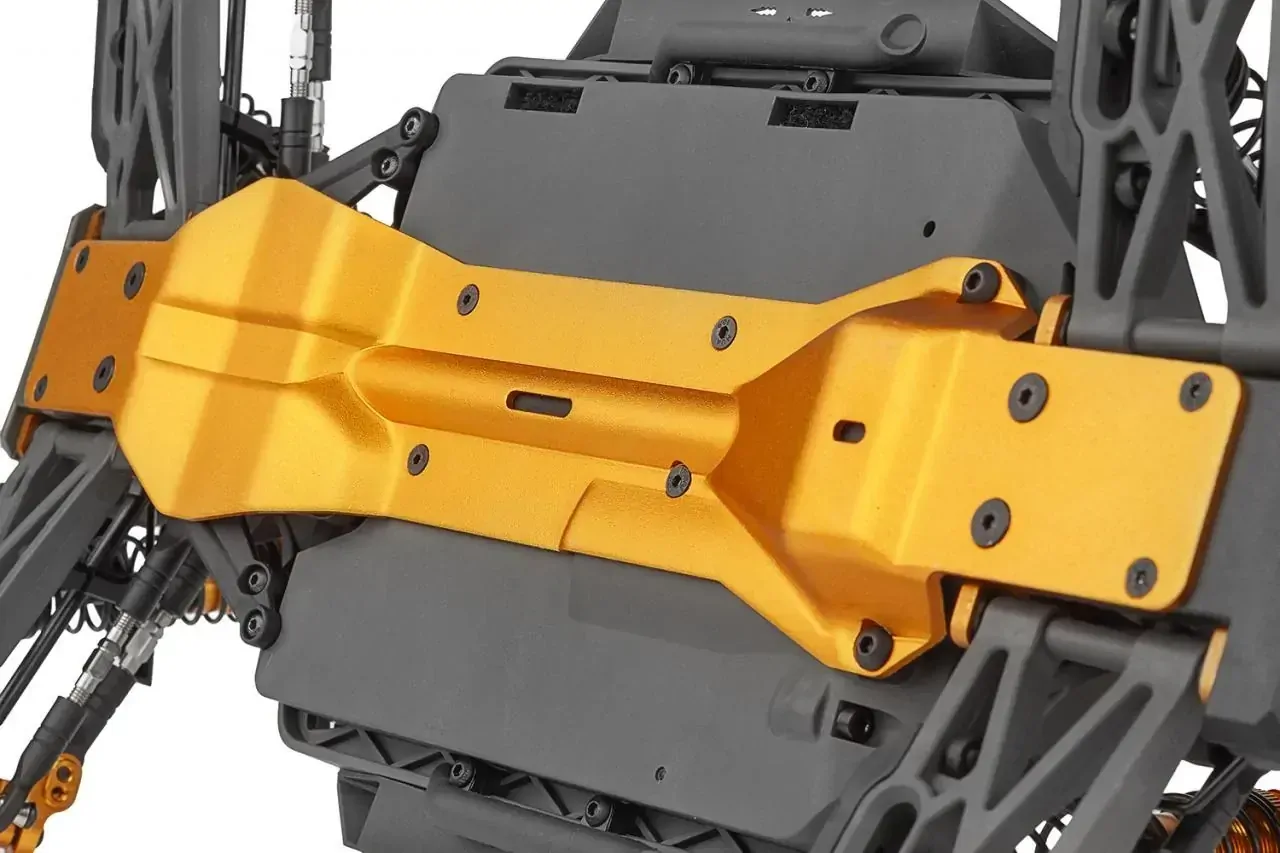

• Gold aluminium upper chassis support
• Gold aluminium lower chassis support

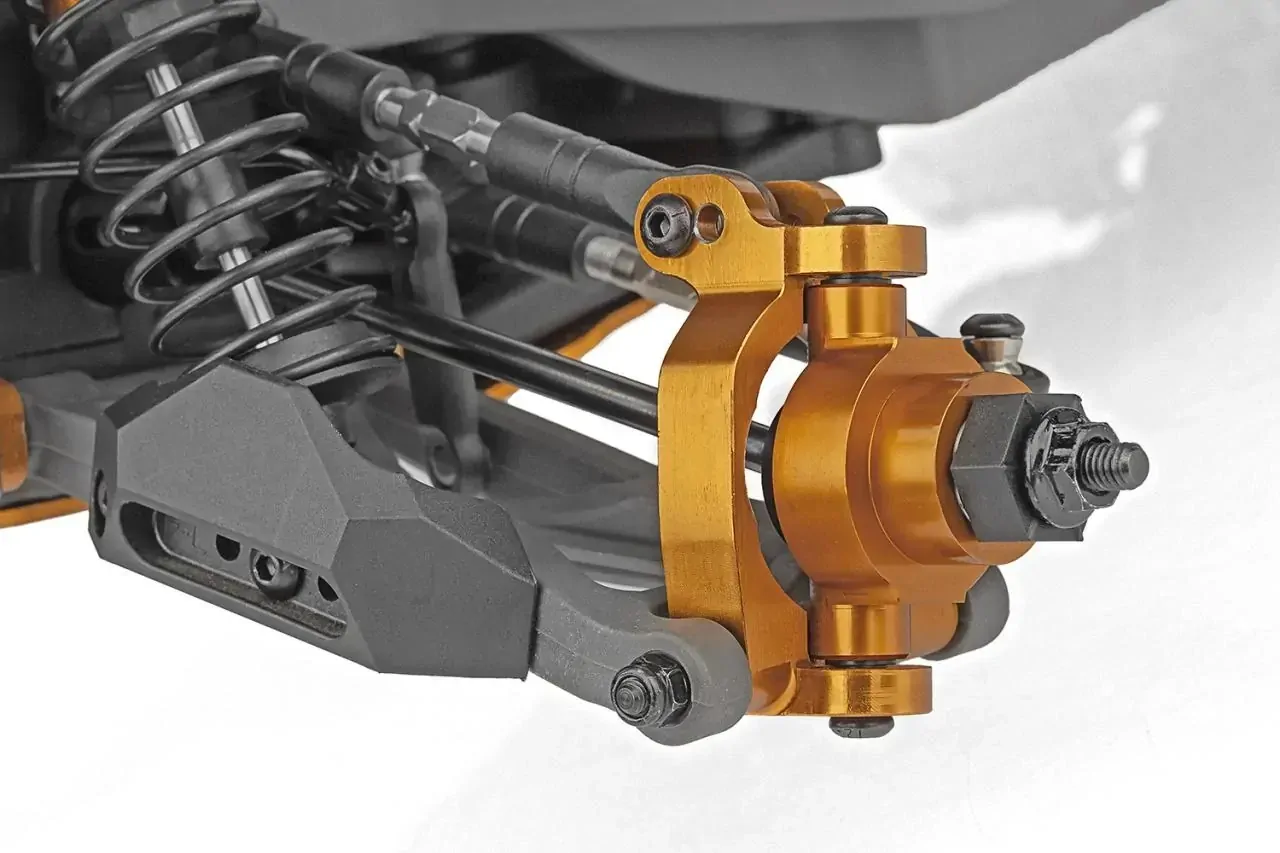

• CNC-machined gold aluminium caster blocks
• CNC-machined gold aluminium steering spindles
• Four-wheel independent suspension
• Threaded gold aluminium oil-filled coil-over shocks
• 4mm heavy-duty adjustable steel turnbuckles
• 12mm wheel hexes
• Method Race Wheels-inspired wheels
• High-traction monster truck tyres

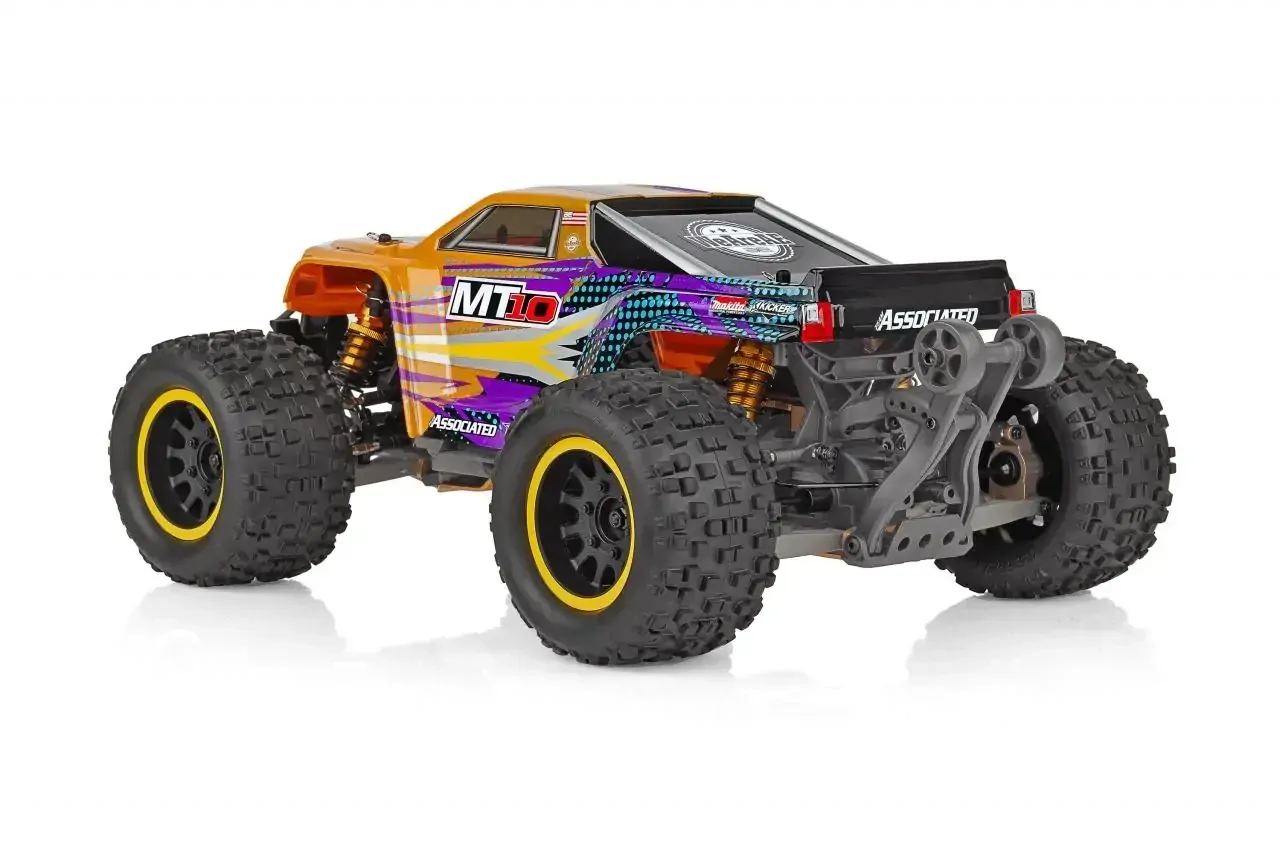

• Adjustable wheelie bar

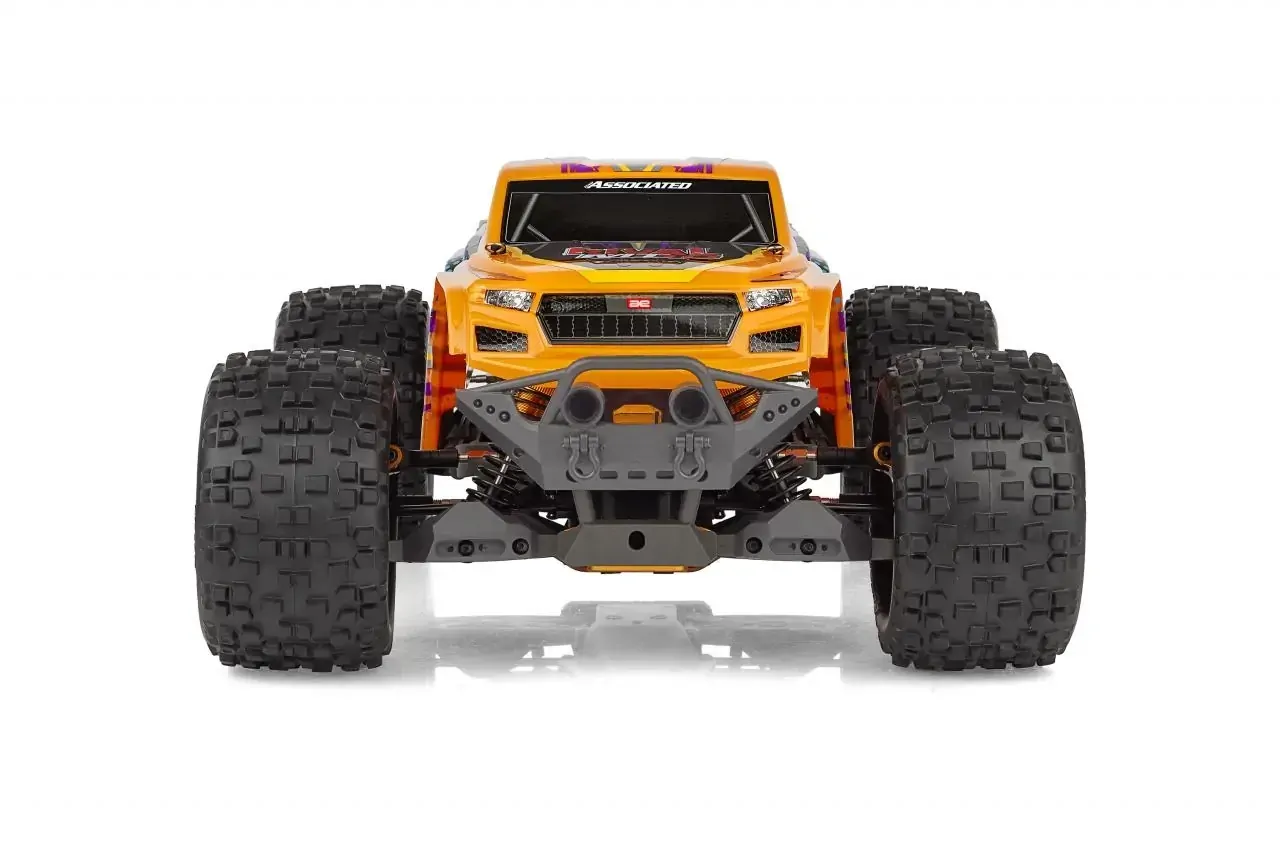

• Impact-absorbing front bumper
• Front bumper includes LED mounting provisions
• Build-it-yourself kit allows your choice of electronics

Specifications

• Brand: Team Associated
• Part Number: ASS20524 / ASC20524 / 20524
• Model: RIVAL MT10 Factory Team
• Scale: 1/10
• Vehicle Type: Monster Truck
• Power: Electric
• Drive: 4WD
• Assembly Level: Kit
• Length: 507mm
• Width: 325mm
• Wheelbase: 285mm
• Weight: Approx. 2800g
• Internal Gear Ratio: 2.85:1
• Wheel Hex: 12mm

Requires to Complete

• Brushless motor
• Brushless ESC
• Steering servo
• Receiver
• Transmitter
• Suitable NiMH or 2S/3S LiPo battery
• Compatible battery charger
• Polycarbonate body paint
• General RC assembly tools

Team Associated recommends components such as its Reedy 540-SL4 brushless motor, SC600-BL2 ESC and RT2007HD steering servo, although you can select electronics to suit your preferred performance level.

What's Included

• Team Associated RIVAL MT10 Factory Team 1/10 4WD Monster Truck Kit
• Clear MT10 body
• Factory Team livery decal sheet
• Wheels and tyres
• Factory Team aluminium upgrade components
• Assembly hardware
• Instruction manual

Please Note

This is a build-it-yourself kit and is not Ready-to-Run. Motor, ESC, radio system, steering servo, battery and charger are required separately. The vehicle may also be pictured by Team Associated with electronics or accessories that are not supplied with the kit.
