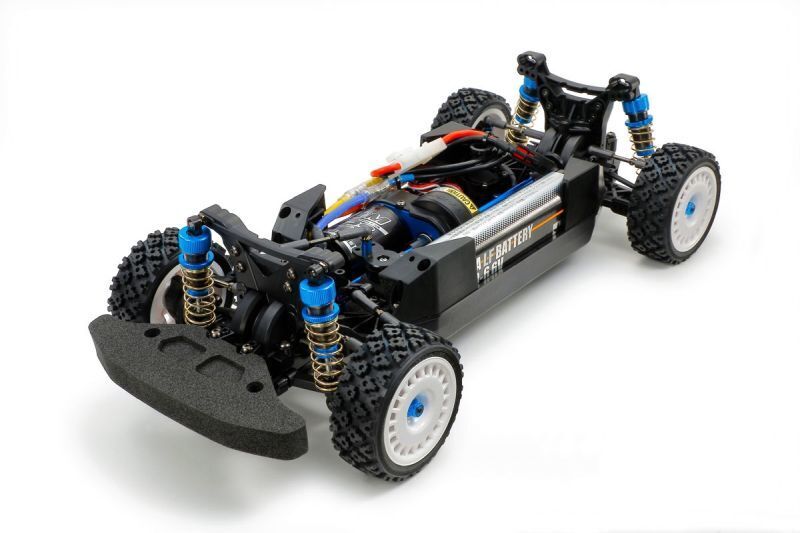

The all-new xv-02 pro chassis kit is tamiyas second modern era, purpose built, 4wd rally machine! The xv-01 pro incorporated a 4wd belt drive system with clever positioning of the rc electronic components with debris protection compartments. The all-new xv-02 pro takes its 4wd drivetrain into a different direction by using a shaft-driven system with front mid-ship motor placement that incorporates equal length front and rear propeller shafts!

xv-02 chassis at a glance:

• comes with two 39t differential gears and one 40t differential gear for adjustment of front and rear drive balance. (over-drive and under-drive adjustment)
• use 39t gear (w/15t gear) on the front and 40t gear (w/15t gear) on the rear for drive balance bias to front and vice-versa for drive balance bias to rear.
• features newly-designed parts such as gears, bathtub frame chassis, chassis cover, caster blocks featuring 6-degree caster angle (xv-01 chassis: 10-degree caster angle), and bumpers with skid angles to reduce surface contact.
• the motor mount, propeller shafts, input and center shafts, and urethane bumpers have new metal parts.
• features a longitudinal battery pack position in the center-left for optimum balance.
• long aluminum dampers are employed at front and rear.
• a polycarbonate chassis cover with wheel well liners help prevent dirt and dust from getting inside.
• suspension arms and front uprights are based upon the xv-01 chassis kit.
• comes with rally block tires and wheels.
• requires: tamiya rally body, 2-channel radio, servo, esc, 540-type motor, and 7. 2-7. 4volt battery with compatible charger.

specifications:

• adjustable gear ratio: yes
• bearings: includes full ball bearings
• chassis material: frp fiberglass reinforced plastic
• chassis type: xv-02
• construction type: assembly kit
• differential type: gear-type (oil-filled)
• drive type: 4wd
• required to complete: 2-channel radio, steering servo, esc, 540-size motor, 7. 2-7. 4volt battery and; battery charger, rally body, and tamiya ps paint.
• scale: 1/10
• shock damper: cva oil filled
• suspension: fully independent double wishbone
• terrain use: multi-purpose
