TAMIYA TOYOTA HILUX EXTRA CAB (CC-01) - 76-T58663

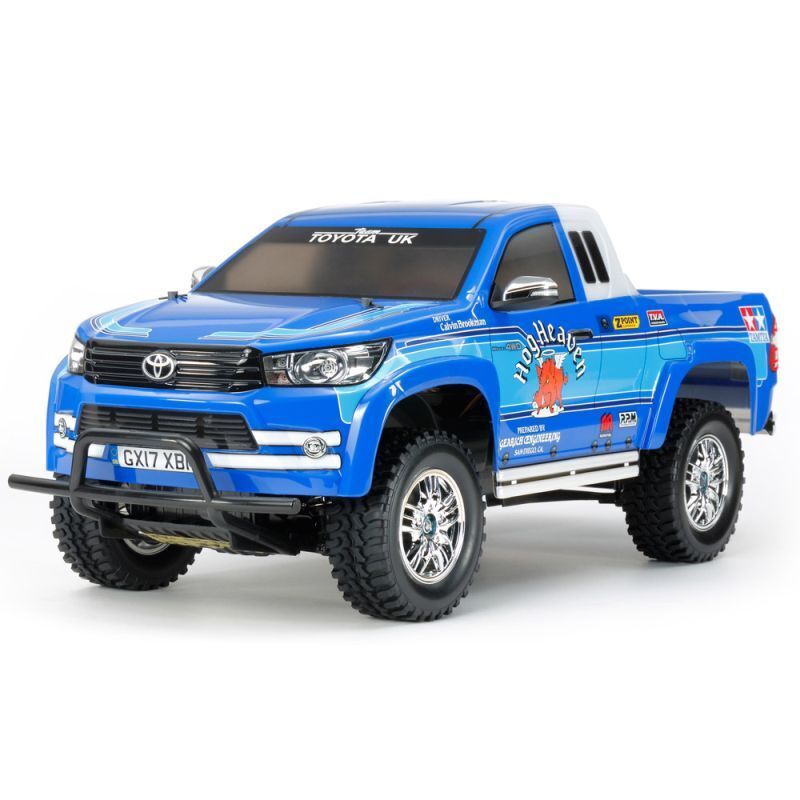

Length: 465mm. Image shows painted and assembled kit.

A Familiar Face

This R/C model assembly kit recreates a one-off Hilux Extra Cab created by Toyota (GB) PLC, capturing the form of the elongated 2-door extra cab in lightweight and durable polycarbonate. Plated front and rear light cases, plus side mirrors give an extra touch of class, while stickers are included to recreate the markings inspired by a Tamiya original. The CC-01 chassis provides highly capable off-road performance that'll have you taking this special kit for many a drive over terrain both rough and smooth!

The All-Terrain CC-01 Chassis

The CC-01's highly reliable and efficient full-time 4WD system features a longitudinally-positioned motor, which transmits power to the front wheels via the gearbox and to the rear wheels via propeller shaft with universal joints. Front and rear differentials enable smooth cornering, and for even greater off-road performance on rough terrain, the rear differential may be locked. The chassis suspension employs double-wishbone front upper single links and lower H-shaped arms plus rear rigid suspension. With CVA oil dampers front and rear, there's enough cushion to take on even the roughest surfaces, and the stylish chrome wheels with block pattern tires give a realistic look.

Specifications

Length: 465mm, Width: 200mm, Height: 180mm

Wheelbase: 267mm

Tread (F/R): 160mm

Tire Width/Diameter (Front AND; Rear): 33/88mm

Ladder Frame Bathtub Type Chassis

Longitudinally-Placed Motor AND; Shaft-Driven Full-Time 4WD

Front and Rear 3-Bevel Differential Gears

Front Suspension: Double Wishbone

Rear Suspension: 4-Link Rigid

Front and Rear CVA Oil Dampers

Gear Ratio = 1:14.67

Requires an Electronic Speed Controller (sold separately)

Type 540 Motor included

Separately Required Items

2-Channel R/C System w/ESC

R6/AA/UM3 batteries for transmitter

Battery Pack AND; Charger
