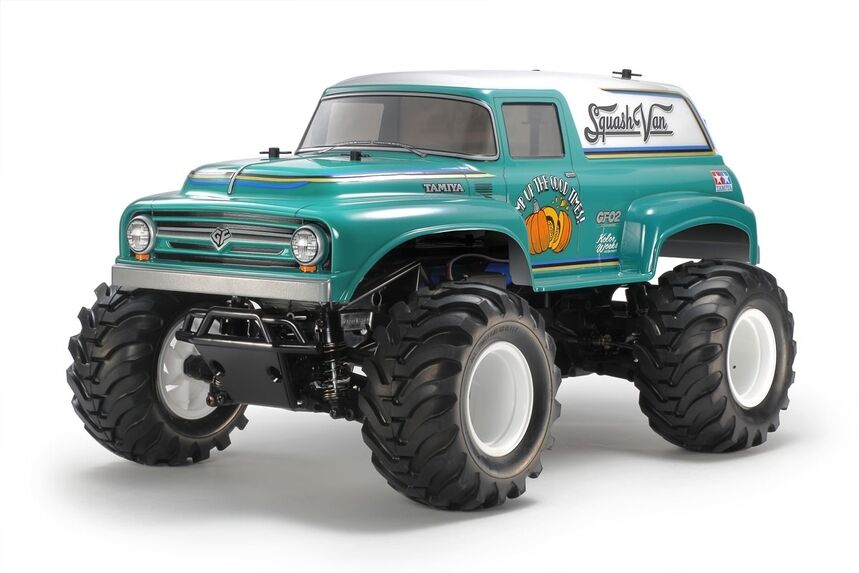

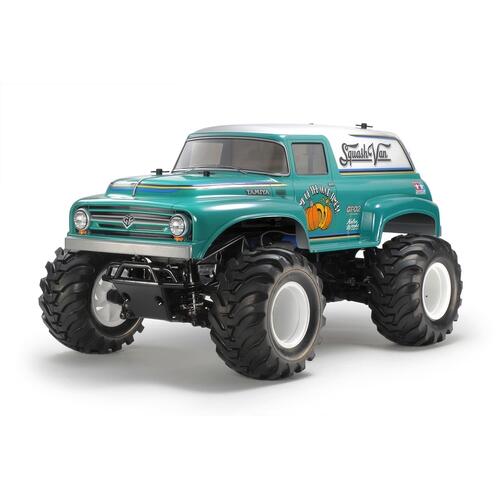

The squash van is our latest fun-to-drive big tire vehicle that is inspired by 1950s american panel vans. The polycarbonate body shell sits on top of the new gear-driven 4wd gf-02 chassis, which is a variant of the comical gf-01. While the gf-01 chassis features a comical design, the gf- 02 chassis employs a more realistic wheelbase and a frame with ladder and pipe motifs.

gf-02 chassis

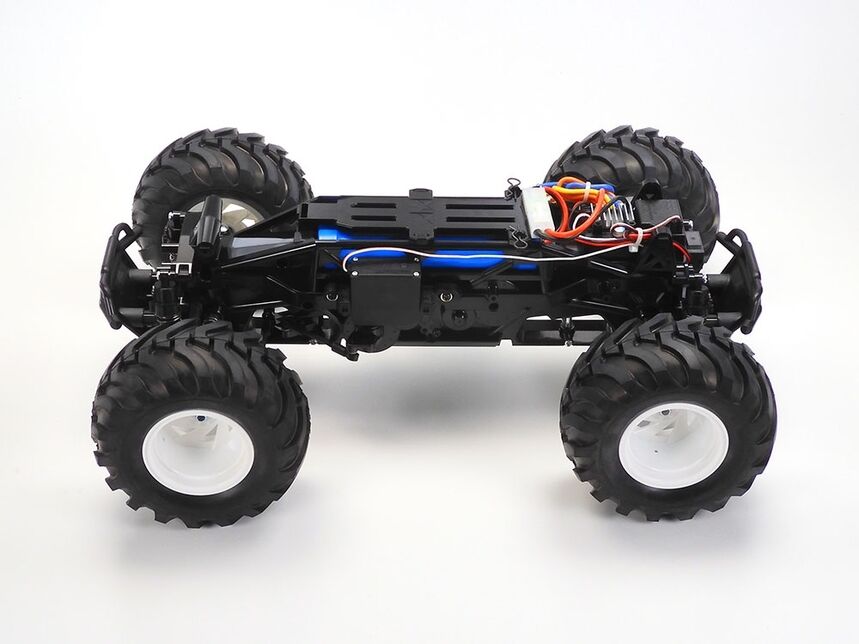

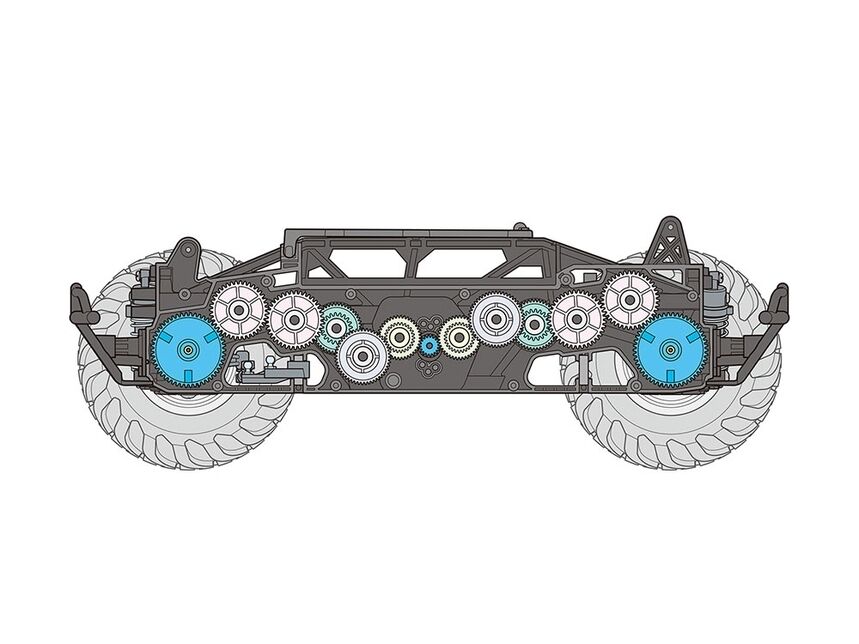

the gear-driven 4wd gf-02 chassis features its motor in a low, central position in the lightweight, durable monocoque frame, and transmits power to front and rear via gears. The long wheelbase and wide tread setup ensure stable off-road performance. The slim frame features ladder/pipe motifs and features integrated sealed gearboxes which help keep stones out. Front and rear gear differentials allow smooth cornering, while separately sold pinion gears offer a choice from three types of gear ratios, and a motor guard enhances reliability off-road. The 4-wheel double wishbone suspension employs four friction dampers, and the steering servo is positioned on the left with identical-length tie-rods.

1/10 r/c assembly kit. Wheelbase: 267 mm
front/rear tread: f: 223mm / r: 221mm.
v-block pattern block tires 122. 8mm diameter.
gear ratios: 18t (18. 03:1), 20t (16. 23:1), 17t (19. 09:1) kit is supplied with 18 tooth pinion gear.
4ws-four-wheel steering compatible with separately sold third-party 4ws function radio.
body post position same as long wheelbase cc-02 chassis.
includes 540 brushed type motor.

required to complete: 2-channel radio, esc, steering servo, 7. 2-7. 4volt battery with compatible charger, and tamiya ps paint.

specifications

• adjustable gear ratio yes
• bearings plastic bushing
• body material polycarbonate
• body stickers included
• chassis material abs plastic
• chassis type gf-02
• construction type assembly kit
• differential type gear
• drive type 4wd
• motor 540-brushed type
• required to complete 2-channel radio, esc, steering servo, 7. 2-7. 4volt battery and; battery charger, and tamiya ps paint.
• scale 1/10
• shock damper friction type
• suspension fully independent double wishbone
• terrain use multi-purpose
