The tamiya m-08 chassis platform gets a performance boost with this limited-edition release. The m-08r chassis kit employs various kinds of option parts such as a ball differential, for the rear gearbox, and trf (tamiya racing factory) precision oil dampers to get ready for club races!

about the m-08 standard edition:
this assembly kit creates the m-08 concept high performance r/c chassis, which employs a midship motor, rear-wheel drive layout for superior rear traction, plus a main frame split into front and rear sections that allow 3 different wheelbase selections. Smooth 4-wheel double wishbone suspension utilizes cva oil dampers and long suspension arms for ground hugging performance, and front caster with a pairing of 0-degree suspension mount and 2-degree hub carrier. An oil-filled gear differential provides smooth drive, while motor and gearbox are positioned to ensure powerful drive under acceleration

option parts included in the m-08r kit:
42143: 4mm aluminum serrated wheel nut (4pcs. -blue)
42357: cross joints for low friction assembly universal shafts
51000: hi-torque servo saver (black)
53509: hard fluorine coated 0. 6 aluminum pinion gear (20t/f201)
53642: 5mm aluminum ball connector (blue)
53823: clamp type aluminum wheel hub (5mm thick)
53851: 46mm titanium coated suspension shafts 2pcs.
53917: 2. 6mm titanium coated suspension shaft set for reversible suspension
53968: 5x5mm hard hex head ball head connector (5pcs. )
54183: m-chassis reinforced freewheel axle set
54868: open face 5mm reinforced adjusters (medium/8pcs. )
54869: open face 5mm reinforced adjusters (long/8pcs. )
54906: m-08 concept aluminum shaft set
54969: 33mm lightweight aluminum swing shafts (2pcs. )

special features:

• the ta06 rear ball differential set utilizes twelve 3/32-inch balls to give superb stability.
• m-08 concept reinforced k parts (gearbox) give sturdier gearbox and steering setups, for more efficient drive and improved steering feel.
• features hex head screws.
• m-07 concept reinforced d parts (suspension arms) featuring carbon fiber-reinforced resin allow superior cornering ability.
• durable, lightweight aluminum turnbuckle shafts (3x18mm; 3x23mm and 3x32mm) allow adjustment of length without removing adjusters.
• the 1. 3mm diameter damper pistons (x3) give smooth oil flow and facilitate more flexible suspension.
  requires: 2-channel radio, steering servo, esc, 540-motor, 7. 2-7. 4volt battery pack with compatible charger, m-chassis 60d tires, and m-chassis body set.

what's in the box:

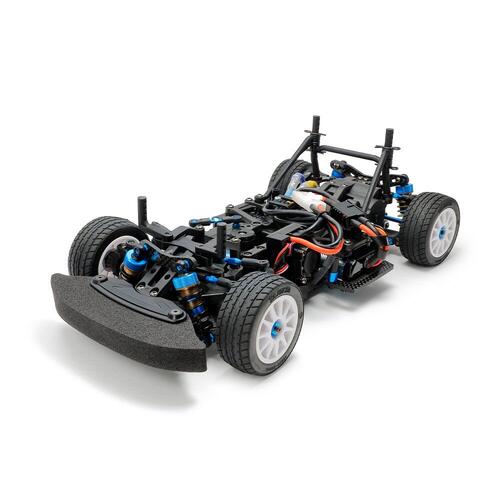

• 1/10 scale r/c chassis assembly kit.
• comes with the dedicated chassis weight (20g).
• includes a blue anodized finish version of the trf super short big bore dampers+ (4pcs. )
• includes carbon fiber components such as battery holders and body mount base.

what you'll need:

• 2-channel radio
• steering servo
• ecs
• type 540 motor
• 7. 2-7. 4 volt battery with compatible charger.
• m-chassis 60d tyres
• m-chassis body set.

specifications:

• adjustable gear ratio: yes
• bearings: includes full ball bearings
• chassis material: frp fiberglass reinforced plastic
• chassis type: m-08
• construction type: assembly kit
• differential type: ball pressure plate
• discontinued: true
• drive type: 2wd
• electronic speed control (esc): sold separately
• motor :sold separately
• scale 1/10
• shock damper: aluminum oil filled
• suspension: fully independent double wishbone
• terrain use: on-road
