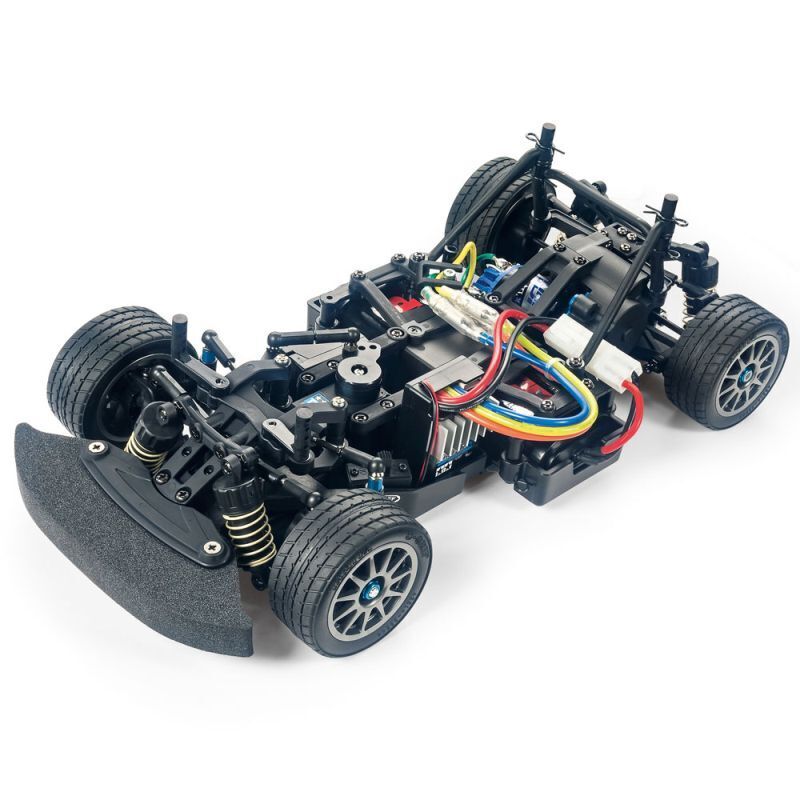

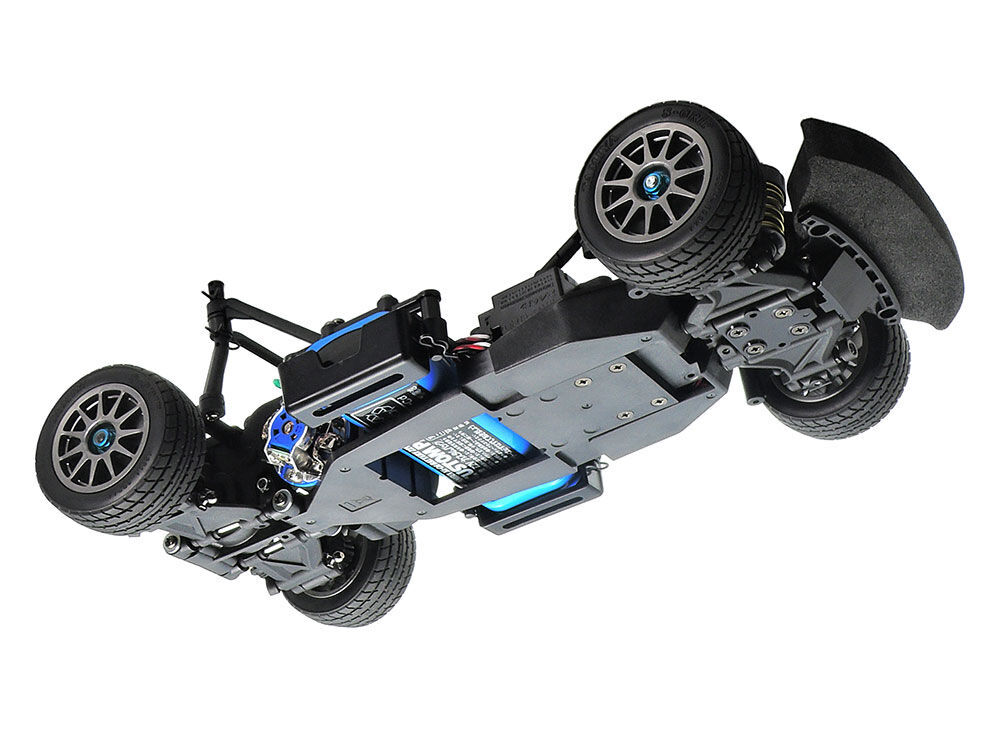

Tamiya m-08 chassis kit - 76-t58669

This tamiya high-performance rear-wheel drive r/c chassis assembly kit is constructed around a rigid monocoque with the main frame split into front and rear sections. It offers superior rear high traction drive characteristics and fuss-free maintenance of parts such as the easy-access differential. C. V. A. (constant volume adjustable) oil shock-damped 4-wheel double wishbone suspension features dedicated long arms and steering linkage components for a range of setup options. A silky-smooth drivetrain utilizes full ball bearings, oil-filled gear differential unit and universal drive shafts. It can be assembled with a 210mm (s), 225mm (m) or 239mm (l) wheelbase, making it compatible with appropriately-sized existing tamiya m-chassis body parts sets

specifications:

• adjustable gear ratio: yes
• bearings: includes full ball bearings
• body material: not included
• chassis material: frp fiberglass reinforced plastic
• chassis type: m-08
• construction type: assembly kit
• differential type: gear-type (oil-filled)
• drive type: 2wd
• required to complete: 2-channel radio gear, steering servo, electronic speed control, 7. 2-7. 4volt battery & compatible charger, m-chassis body, and tires
• scale: 1/10
• shock damper: cva oil filled
• suspension: 4-wheel fully independent double wishbone
• terrain use: on-road

a gr8 m-chassis addition

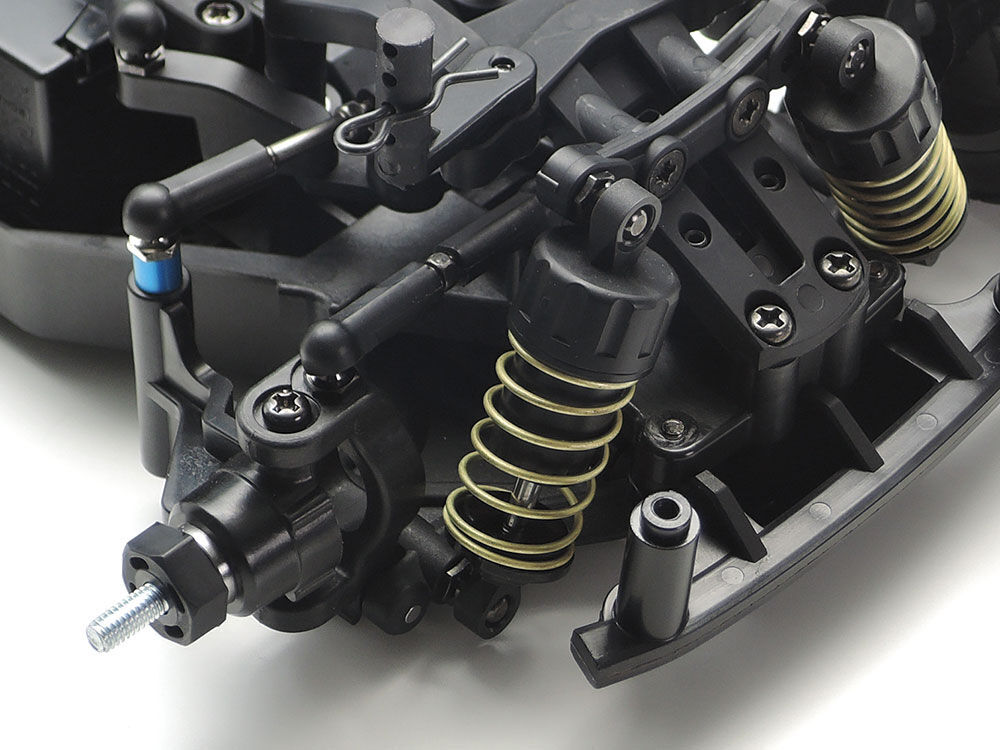

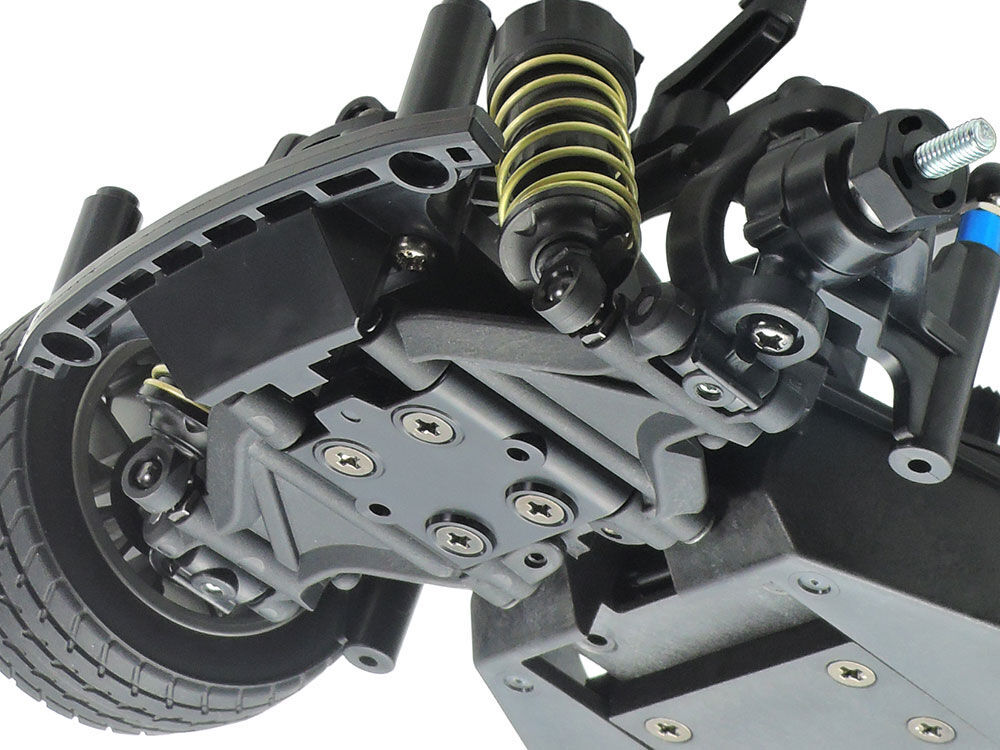

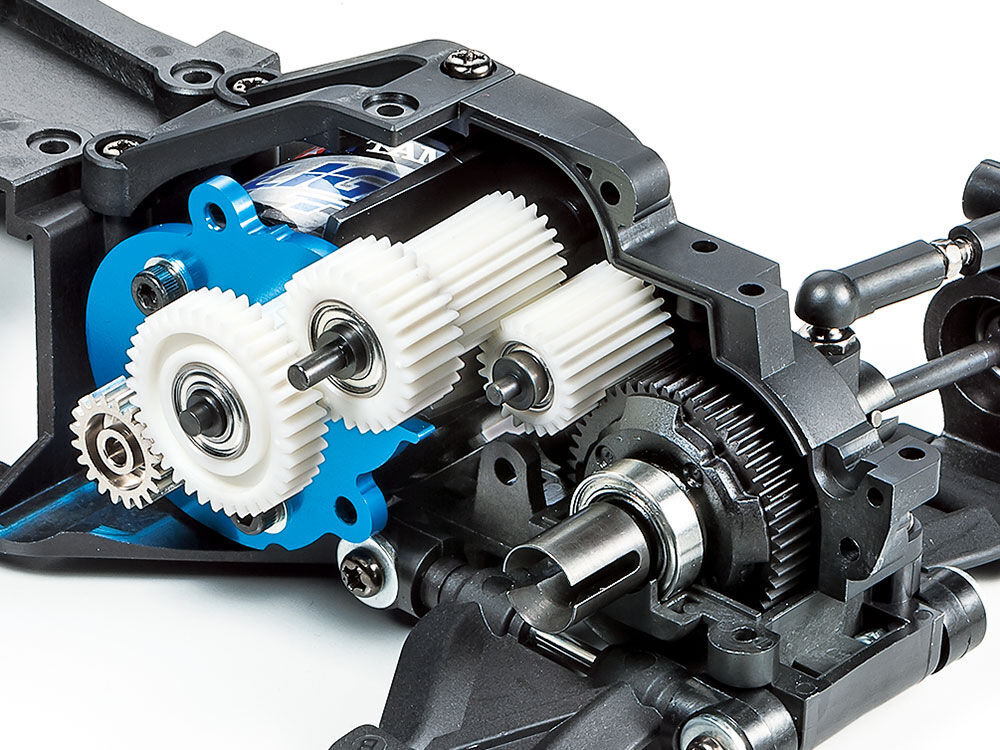

this assembly kit creates the m-08 concept high performance r/c chassis, which employs a midship motor, rear-wheel drive layout for superior rear traction, plus a main frame split into front and rear sections that allow 3 different wheelbases. Smooth 4-wheel double wishbone suspension utilizes cva oil dampers and long suspension arms for a ground hugging drive, and the front caster with a pairing of 0-degree suspension mount and 2-degree hub carrier. An oil-filled gear differential provides smooth drive, while motor and gearbox are positioned to ensure powerful drive under acceleration.

featured components

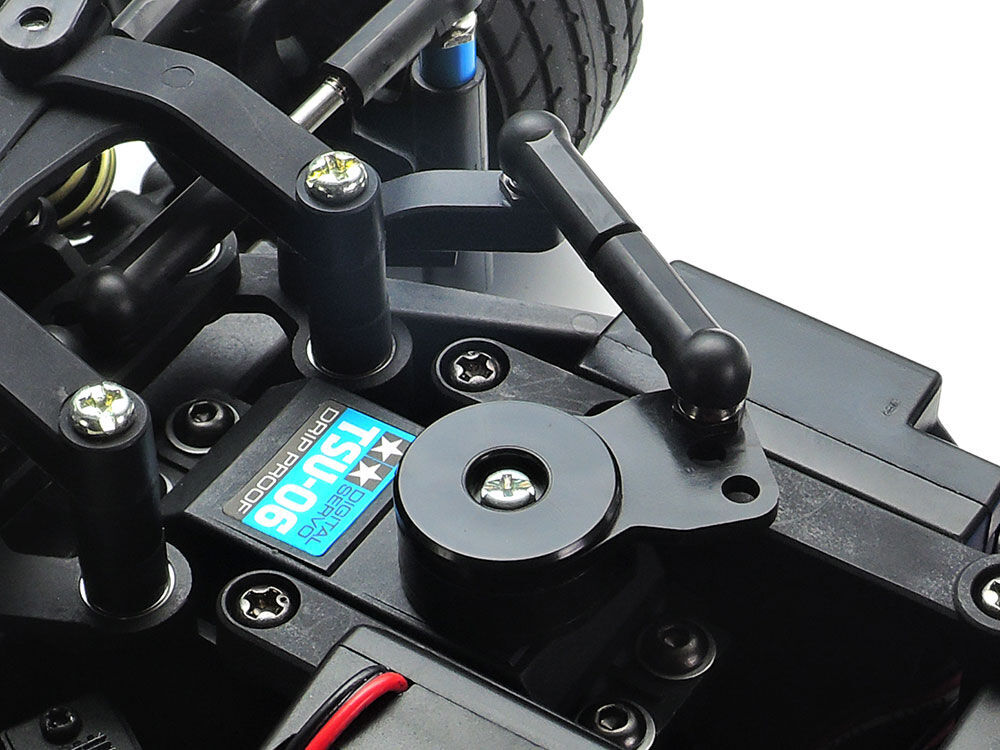

˜…m-07 concept design long suspension arms ˜…oil-filled gear differential ˜…universal drive shafts ˜…turnbuckle upper arms ˜…full ball bearings ˜…hi-torque servo saver (black)

specifications
˜…length: 319mm (in m wheelbase), width: 165mm, ˜…choose between 210mm (s), 225mm (m) and 239mm (l) wheelbases ˜…monocoque frame ˜…midship motor, rear-wheel drive ˜…oil-filled gear differential ˜…3-piece steering tie-rod ˜…4-wheel double wishbone suspension ˜…cva oil dampers ˜…8 potential gear ratios between 4. 813:1 and 6. 795:1 (kit-standard 20t pinion gear gives 5. 776:1) ˜…electronic speed controller (esc) is sold separately.

separately required items
˜…m-chassis-compatible body ˜…type 540 motor ˜…tires ˜…2-channel r/c system w/esc ˜…r6/aa/um3 batteries for transmitter ˜…battery pack & charger
