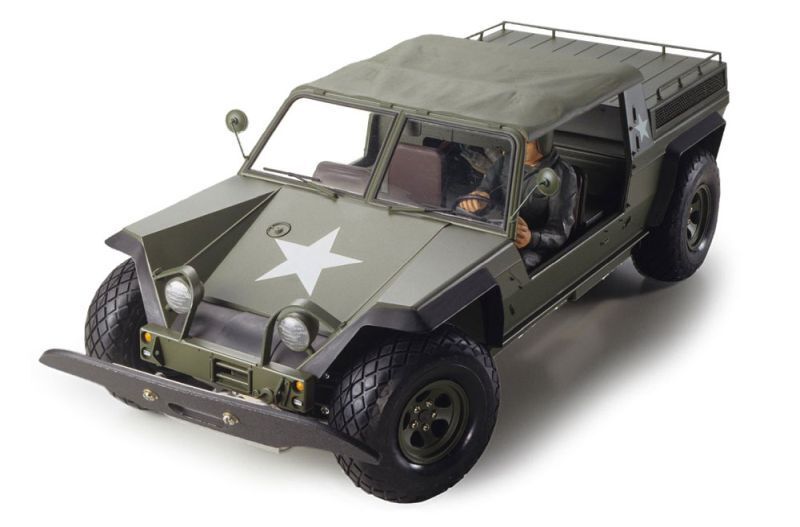

Tamiya 1/12 XR311 Combat Support Vehicle 2WD RC Kit

Recreate a milestone from Tamiya’s RC history with the Tamiya 1/12 XR311 Combat Support Vehicle. Originally released in 1977, the XR311 was Tamiya’s first radio-controlled model equipped with a suspension system. This re-release retains the distinctive construction and purposeful military-inspired styling of the original while incorporating selected modern improvements.

The detailed injection-moulded hard body includes interior components and a driver figure for an authentic scale appearance. Underneath, the XR311 features a durable duralumin chassis frame, rear-mounted motor and rear-wheel-drive transmission.

Key Features

• Re-release of the classic 1977 Tamiya XR311
• Tamiya’s first suspension-equipped RC model
• Detailed 1/12 scale assembly kit
• Injection-moulded hard-plastic body
• Detailed cockpit interior
• Driver figure included
• Durable duralumin chassis frame
• Rear-mounted motor and rear-wheel drive
• Centrally positioned battery for balanced weight distribution
• Four-wheel double-wishbone suspension
• Adjustable metal torsion-bar springs
• Fully enclosed gearbox
• Three selectable gear ratios
• Three-bevel differential
• Two-piece steering tie-rod
• Front and rear off-road tyres
• Type 540 brushed motor included
• Authentic markings and decal sheet included

Duralumin 2WD Chassis

The XR311 uses a durable duralumin frame chassis with a classic rear-motor, rear-wheel-drive configuration. The drive battery mounts lengthwise along the centre of the chassis, while the receiver and electronic speed controller are positioned on either side to provide balanced weight distribution.

A fully enclosed gearbox protects the internal gears from dirt and debris. During assembly, the transmission can be configured with one of three available gear ratios to suit different running conditions.

Double-Wishbone Suspension

Four-wheel double-wishbone suspension uses upper and lower H-shaped arms with adjustable metal torsion-bar springs. This distinctive arrangement provides independent wheel movement while preserving the mechanical design of the original XR311.

The chassis also features a three-bevel differential and two-piece steering tie-rod system for predictable handling and steering response.

Detailed Hard-Plastic Body

The injection-moulded body accurately captures the rugged, functional appearance of the XR311 Combat Support Vehicle. Separate interior components and a driver figure add scale detail to the open cockpit.

As the body is manufactured from hard plastic rather than polycarbonate, use suitable Tamiya TS spray paint or modelling paint when finishing the body.

Specifications

• Brand: Tamiya
• Model: XR311 Combat Support Vehicle
• Product Number: 58004-600
• Tamiya Item Number: 58004
• Product Type: Electric RC assembly kit
• Scale: 1/12
• Drive System: Rear-wheel drive
• Motor Position: Rear
• Length: 400mm
• Width: 168mm
• Height: 139mm
• Wheelbase: 256mm
• Front Track: 138mm
• Rear Track: 138mm
• Front Tyre Width: 29mm
• Rear Tyre Width: 29mm
• Front Tyre Diameter: 77mm
• Rear Tyre Diameter: 77mm
• Approximate Weight: 1,800g
• Chassis Material: Duralumin
• Suspension: Four-wheel double wishbone
• Spring System: Adjustable metal torsion bars
• Differential: Three-bevel gear differential
• Available Gear Ratios: 9.3:1, 16:1 or 21:1
• Motor: Type 540 brushed motor
• Body Material: Injection-moulded hard plastic
• Assembly Required: Yes
• Painting Required: Yes

Package Includes

• Tamiya XR311 Combat Support Vehicle assembly kit
• Duralumin chassis components
• Injection-moulded body
• Cockpit interior components
• Driver figure
• Front and rear wheels
• Front and rear tyres
• Type 540 brushed motor
• Decal sheet
• Assembly hardware
• Assembly instructions

Required for Completion

• 2-channel radio transmitter
• Compatible receiver
• Steering servo
• Brushed electronic speed controller
• Suitable 7.2V drive battery
• Compatible battery charger
• Transmitter batteries
• Tamiya TS spray paint or suitable hard-plastic modelling paint
• Modelling tools for assembly

Important Note: This is an unassembled RC kit and is not ready to run. The radio equipment, steering servo, electronic speed controller, drive battery, charger, transmitter batteries, paint and assembly tools are required separately.
