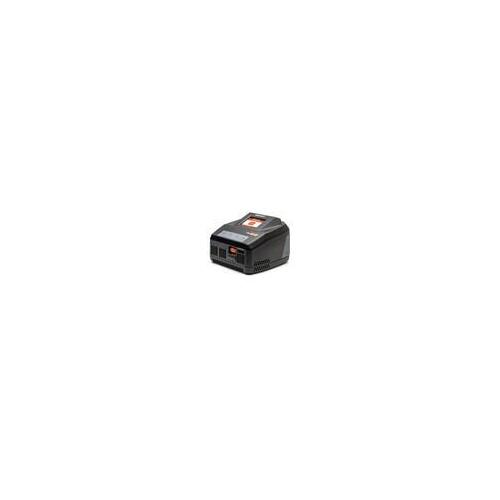

Spektrum Smart S1100 G2 1x100W 240V AC Charger – SPMXC2080AU

The Spektrum S1100 G2 Smart AC Charger (SPMXC2080AU) is a compact and powerful 100W single-channel charger designed to make charging RC batteries simple, fast and convenient. The AU version is the 240V Australian-market model, making it ideal for the workshop, racetrack or flying field.

The S1100 G2 works especially well with Spektrum Smart and Smart G2 batteries, automatically recognising compatible battery information and configuring the appropriate charging parameters. It can also charge a broad range of conventional RC batteries, making it a versatile charger for cars, aircraft, boats and other RC applications.

Spektrum Smart G2 Technology

When a compatible Spektrum Smart G2 battery is connected, the S1100 can charge and balance the battery through a single IC3 or IC5 connection. Smart G2 batteries don't require a separate balance lead connection to the charger.

The charger's Auto Charge function recognises compatible Smart battery parameters such as chemistry and charge settings, helping make everyday charging considerably easier.

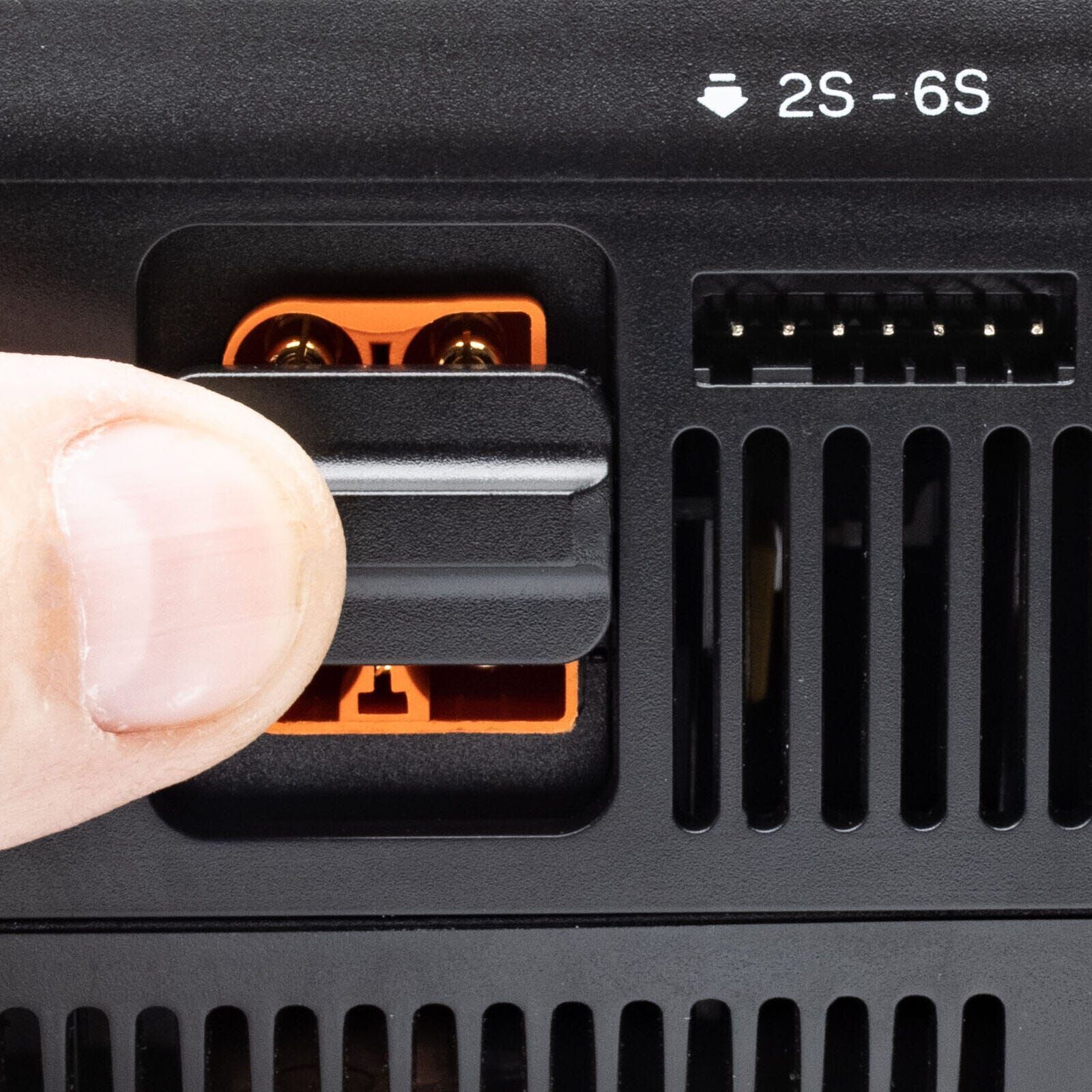

IC3 & IC5 Connections

Both IC3 and IC5 output connections are incorporated into the charger, eliminating the need to constantly swap between separate IC3 and IC5 charge leads.

IC3 and IC5 are also backwards compatible with EC3 and EC5 connectors, respectively, adding further versatility when charging older battery packs.

100W Charging Power

With up to 100W of charging power and a maximum 10A charge current, the S1100 G2 has plenty of capability for many popular RC battery packs.

Charge current can be adjusted from 0.1A to 10.0A, subject to the charger's 100W maximum output.

Large Colour Display

A 2.4-inch 320 x 240 IPS LCD screen provides clear access to charging information, menus and battery data.

When charging compatible Smart batteries, an on-screen countdown provides an estimate of the remaining time before the battery is fully charged.

Charges More Than Just Smart Batteries

Although designed to take full advantage of Spektrum Smart technology, the S1100 isn't limited to Smart batteries.

It supports LiPo, LiHV, LiFe, Li-Ion, NiMH, NiCd and Pb batteries, making it suitable as an everyday charger for a wide range of RC applications. Conventional lithium batteries can be balanced using the charger's JST-XH balance connection.

Features

• Spektrum Smart G2 charging technology
• Single-channel AC battery charger
• Up to 100W charging power
• Maximum 10A charge current
• Smart Auto Charge functionality
• One-connection charging and balancing for compatible Smart G2 batteries
• Integrated IC3 and IC5 outputs
• IC3 backwards compatible with EC3
• IC5 backwards compatible with EC5
• Supports conventional non-Smart RC batteries
• JST-XH balance connection
• 2.4" 320 x 240 IPS LCD display
• Remaining charge-time countdown with compatible Smart batteries
• Adjustable charging parameters
• Integrated battery balancing
• Up to 15W discharge capability
• USB input/output ports
• Firmware update capability
• Built-in ON/OFF switch
• Low-noise cooling fan
• Detachable AC power cord
• Reverse polarity protection
• Thermal protection
• Over-current protection
• Short-circuit protection

Specifications

• Brand: Spektrum
• Part Number: SPMXC2080AU
• Model: S1100 G2 Smart AC Charger
• Channels: 1
• Maximum Charge Power: 100W
• Charge Current: 0.1–10.0A
• Maximum Discharge: 15W
• Discharge Current: 0.1–1.5A
• AC Input: 100–240V AC, 50–60Hz
• Lithium Battery Support: 1–6S LiPo / LiHV / Li-Ion / LiFe
• NiMH/NiCd Support: 1–16 cells
• Pb Support: 1–12 cells
• Main Output: IC3 / IC5
• Balance Connector: JST-XH
• Display: 2.4" 320 x 240 IPS LCD
• Length: 145mm
• Width: 145mm
• Height: 104mm
• Weight: Approx. 795g
• Technology: Spektrum Smart
• Barcode: 605482164754

What's Included

• 1 x Spektrum S1100 G2 Smart AC Charger
• 1 x AC Power Cord
• 1 x Instruction Manual

Please Note

The SPMXC2080AU is the Australian version of the Spektrum S1100 G2 charger.

For Smart G2 batteries, charging and balancing can be performed through the single IC3 or IC5 connection. When charging conventional lithium batteries, the appropriate main charge connection and JST-XH balance connection may be required.
