product features list:

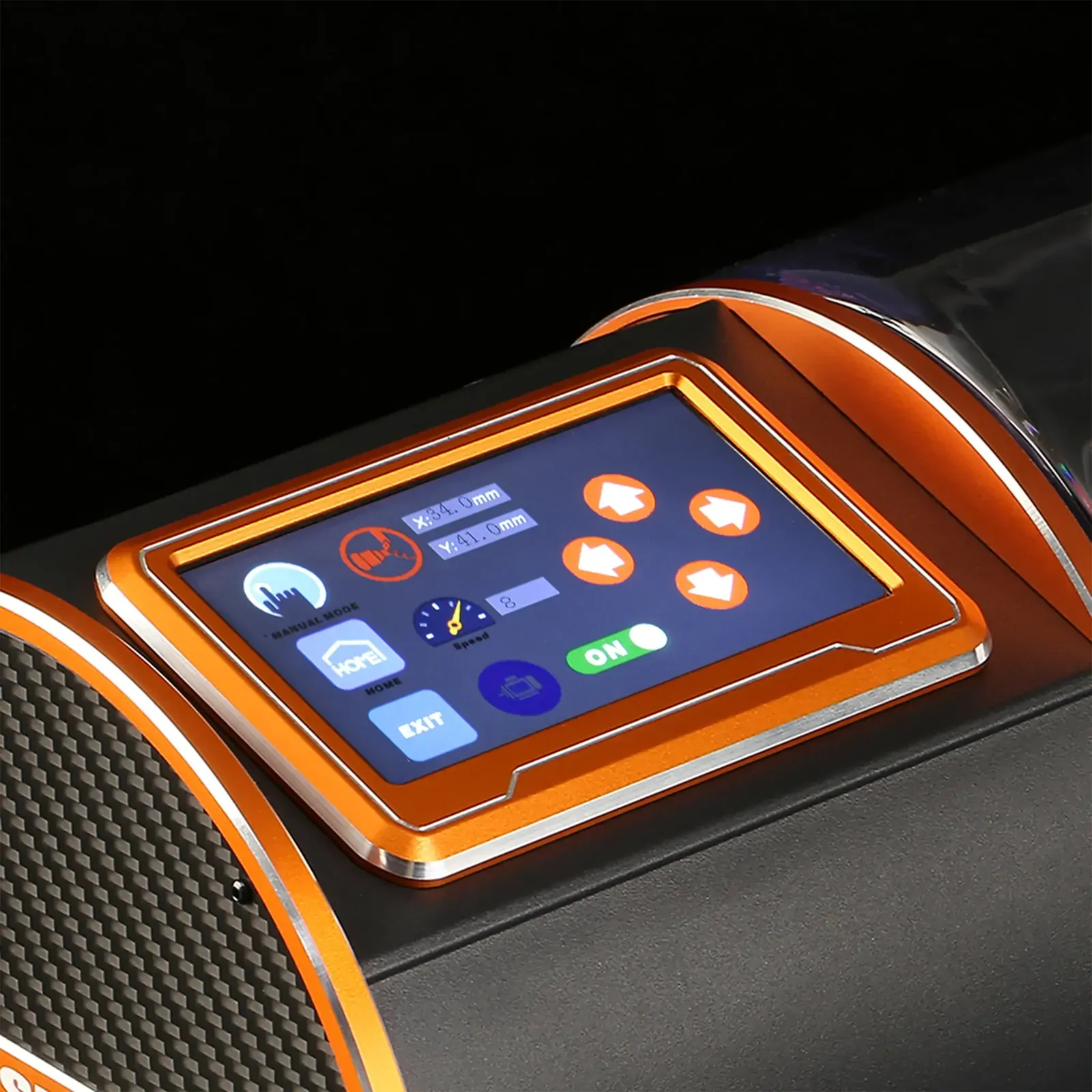

1. Intuitive color touchscreen interface: easily control and program all functions with a user-friendly 4. 3³ color touch panel

2. Six programmable memory profiles: save and instantly recall custom parameter sets for different tires, allowing quick changeovers without recalibration

3. One-touch fully automatic operation: initiate the entire truing process”including diameter and edge profiling”automatically with a single button press

4. Comprehensive parameter range: precisely machine tires within a diameter range of 35-86mm, a camber angle of 0°“2. 5°, and an edge radius of 0. 5-10mm

5. Heavy-duty regulated truing motor: a powerful, consistent motor maintains controlled speed under load for flawless automatic finishing

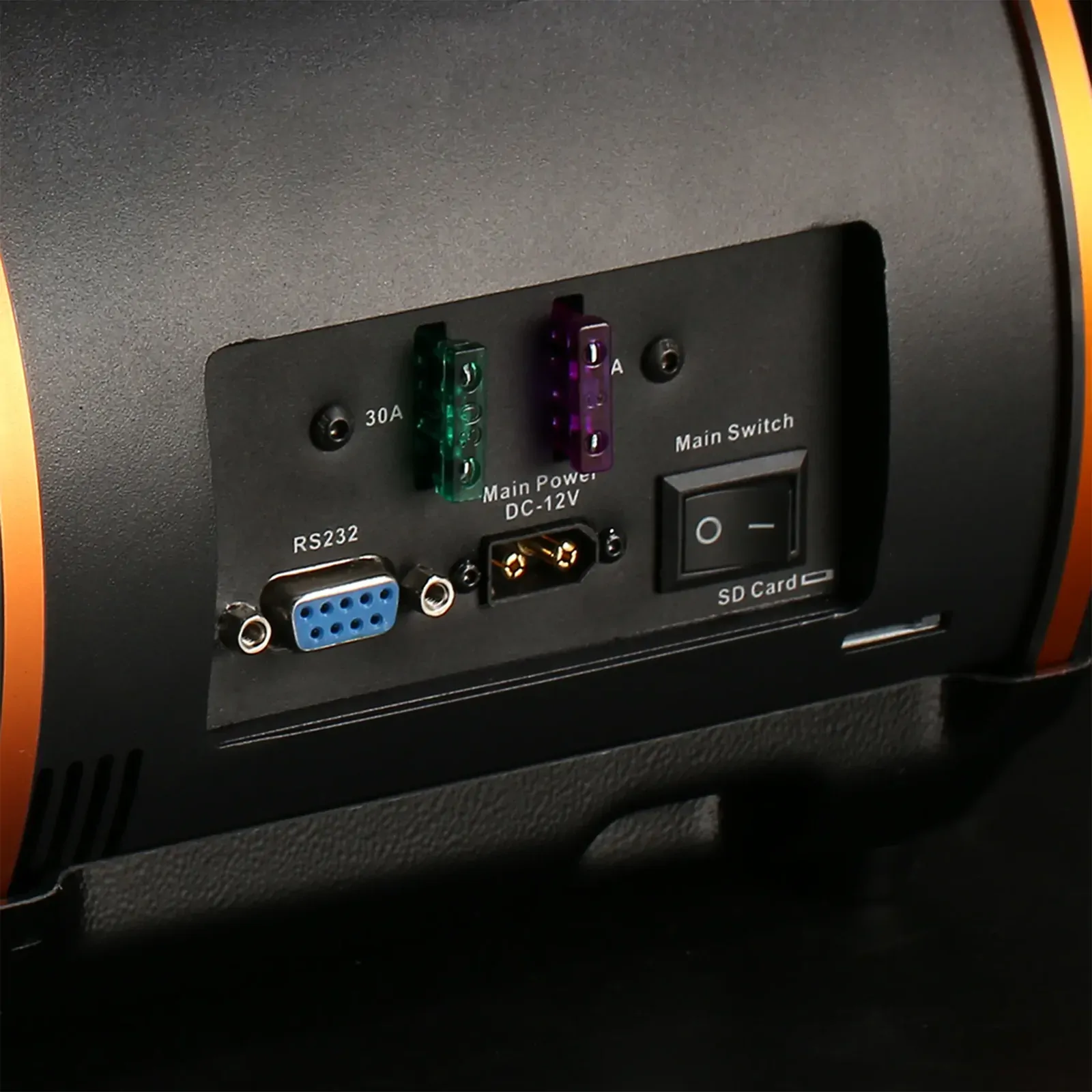

6. Dual fuse protection system: independent overload fuses safeguard the truing motor and cpu controller for enhanced reliability and safety

7. Quick-change universal adapter system: (adapters sold separately). Effortlessly switch between 1/8, 1/10, and 1/12 scale wheels without tools or realignment

8. High-capacity debris container: a large-volume collection bin captures ground rubber for easy cleanup and a cleaner workspace

9. Professional carbide cutting tools (included): features specially coated, long-lasting carbide cutter blades for superior cut quality and durability

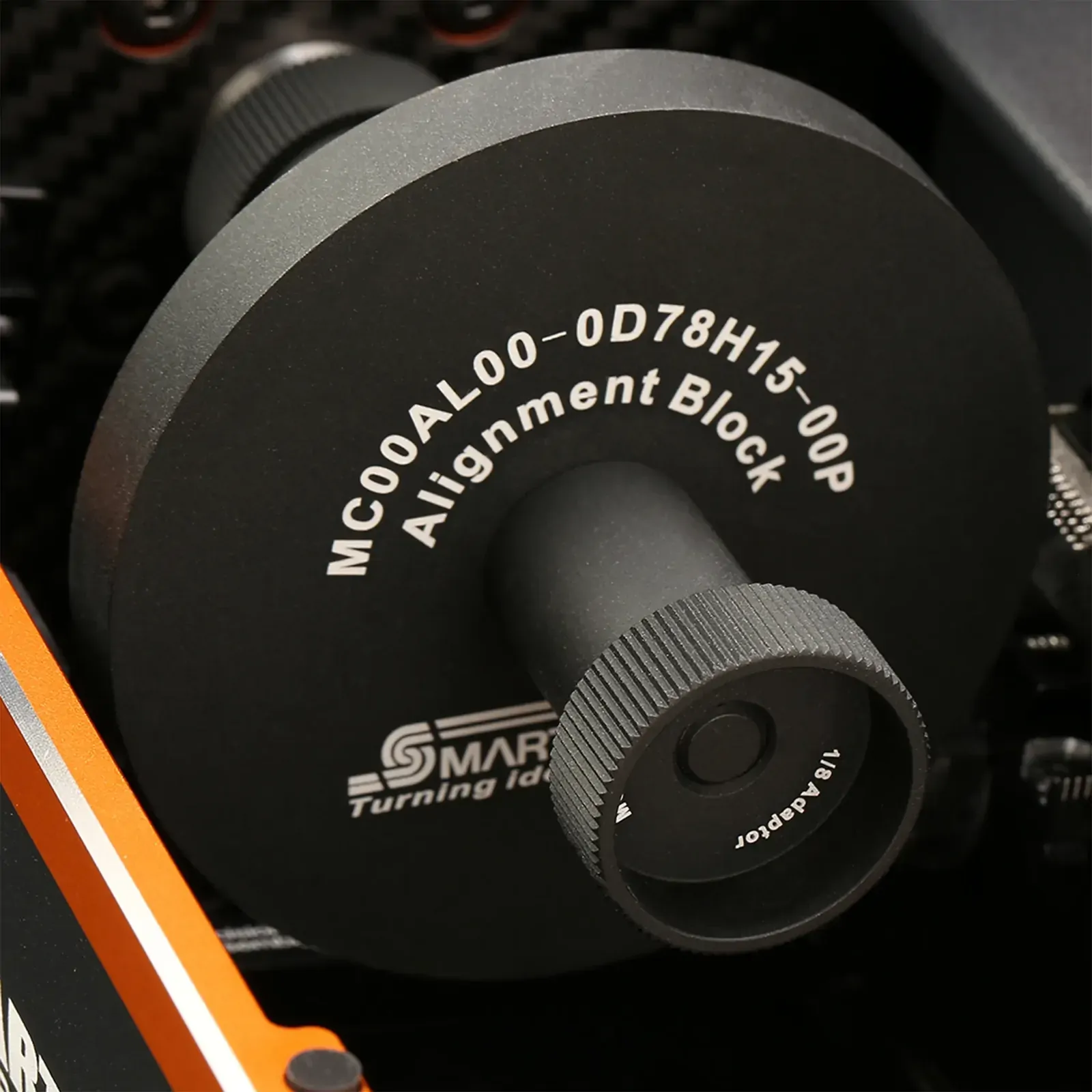

10. Precision alignment block (included): quickly and accurately calibrate the cutter blade and infrared sensor for guaranteed optimal performance

11. Full-coverage trans safety shield: a clear plexiglass cover protects the user from moving parts while providing full visibility of the truing process

12. Instant emergency stop switch: a prominently located safety button cuts all power immediately in case of an emergency

13. Premium packaging: shipped in a protective, exclusive aluminum case. An optional carrying bag is available for portability

14. 12v dc operation: standard low-voltage operation ensures safe and flexible power sourcing.

package contains the following items:

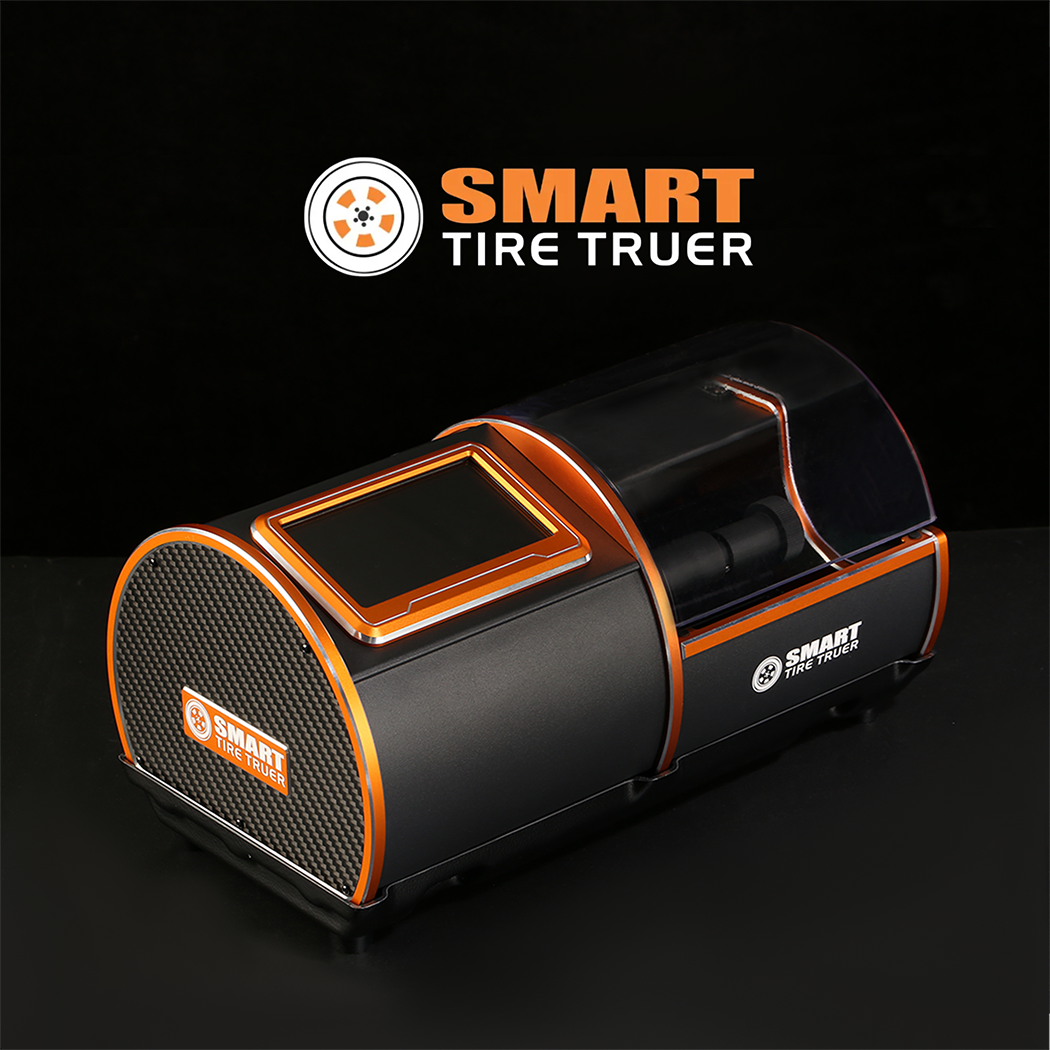

• 1 x smart tire truer main unit with dust container
• 1 x alignment block (for calibration)
• 1 x thickness gauge 0. 5mm (for calibration)

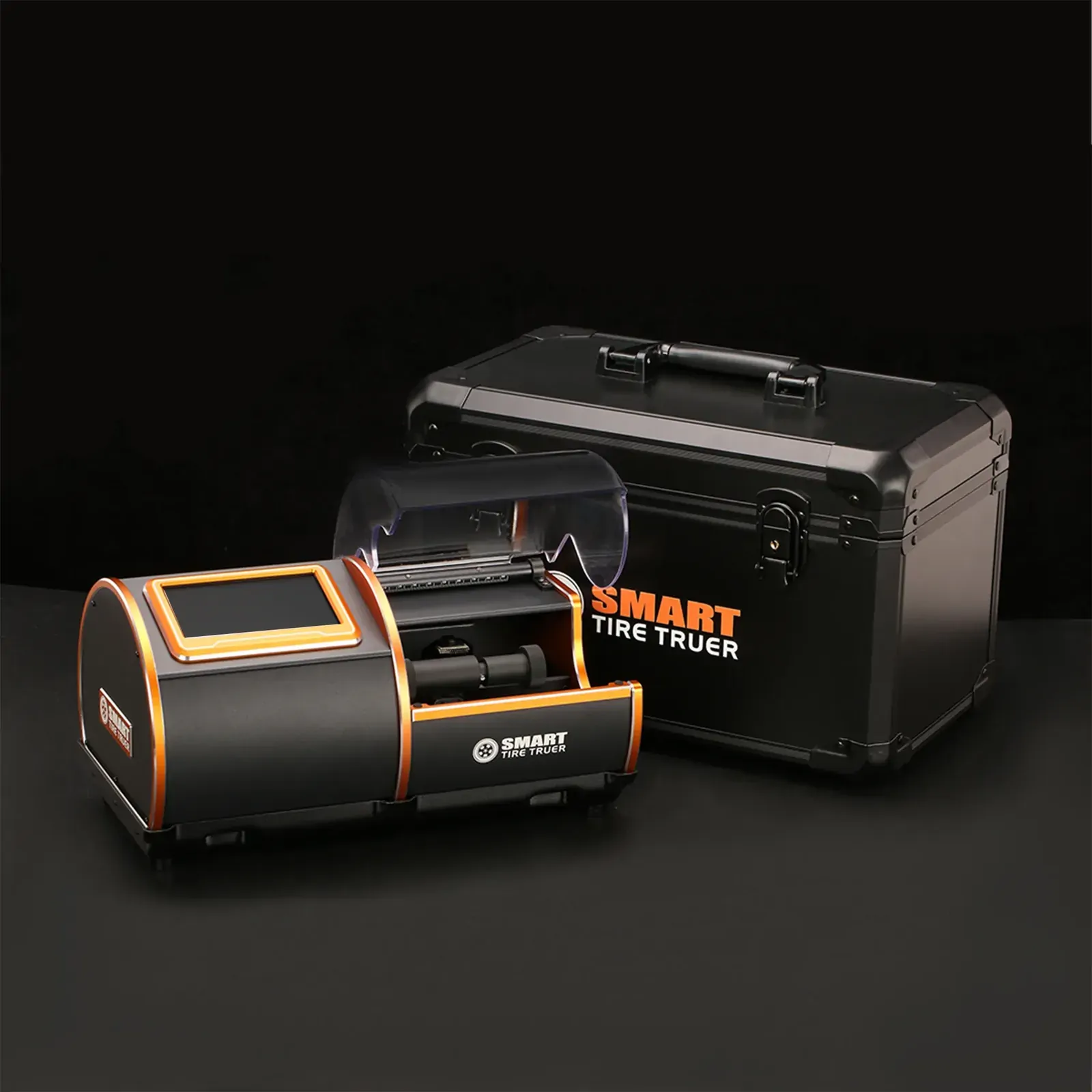

• 1 x exclusive aluminum carrying case
• 1 x quick setup guide
• 1 x comprehensive operating manual
• 1 x service manual (for advanced calibration)
• 2 x spare fuses (20a x1, 3a x1)
• (wheel adapter not included)

smart tire truer 3. 0 enhanced features overview

The smart tire truer 3. 0 represents a significant upgrade, achieving a breakthrough in precision, efficiency, reliability, and user convenience through six core enhancements, delivering a professional tire truing experience like never before.

1. high-precision transmission system
2. fully-sealed x-axis rail

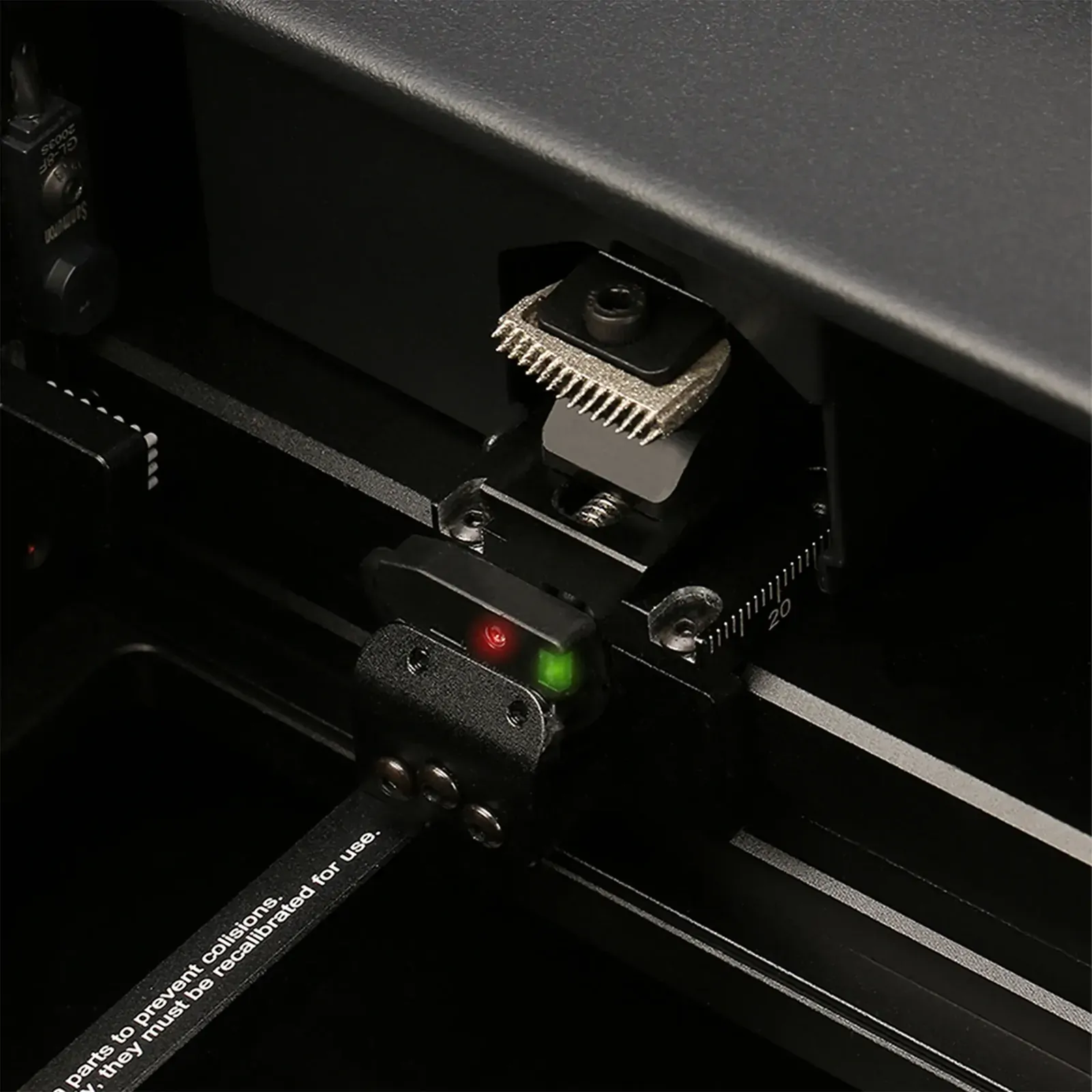

3. through-beam infrared measurement system
4. optimized cutting algorithm
5. one-touch repeat cutting function
6. dual offset smart calibration system

summary:

the smart tire truer 3. 0 is more than just a hardware upgrade; its a leap forward in intelligence and user-friendliness. Through a more robust structure, smarter algorithms, and more convenient operation, it is designed to be your most reliable and efficient workshop partner.
