description

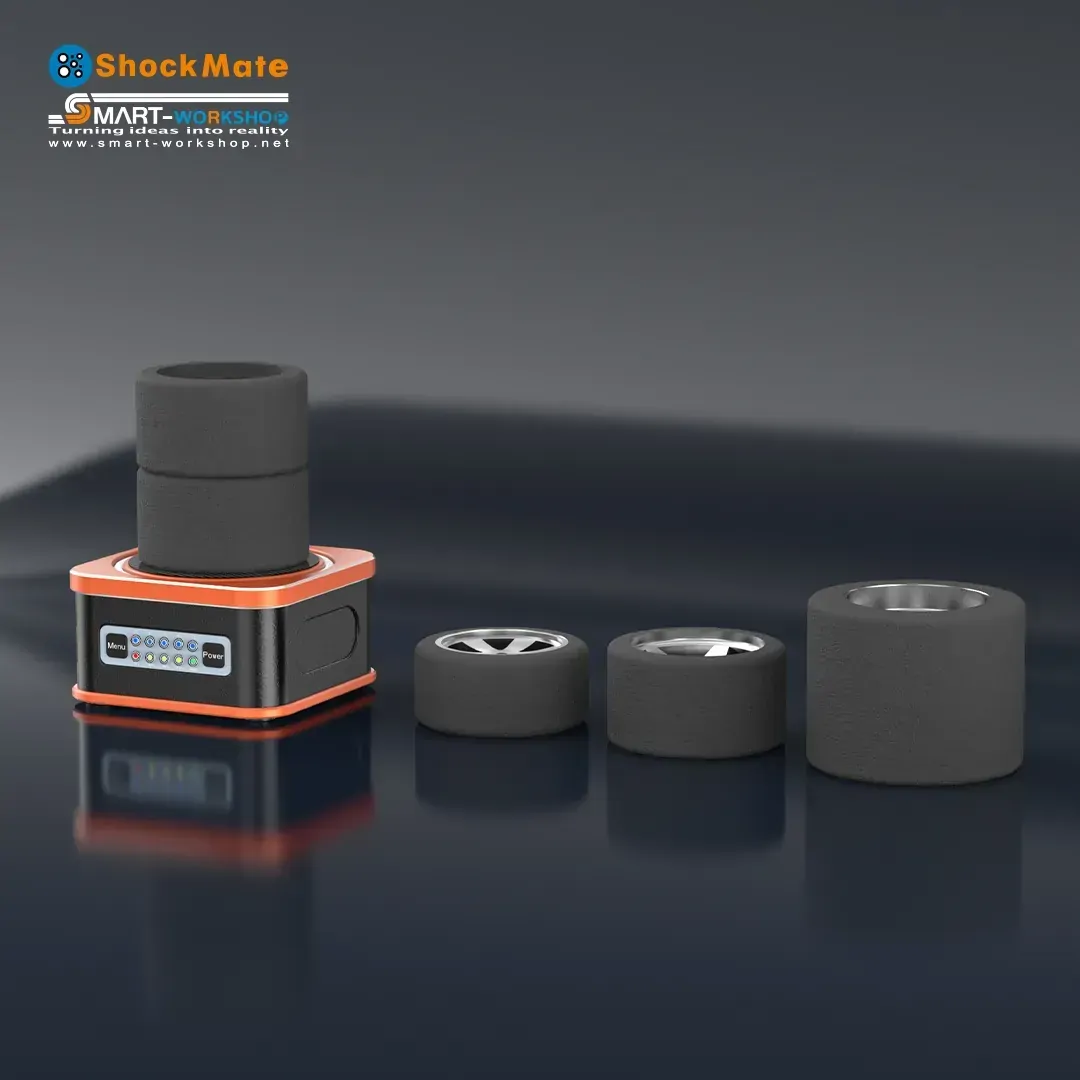

shock mate is a handy, compact electric-powered vacuum pump for shock absorbers and differential, developed to quickly and; easily bleed unwanted air bubbles from oil-filled shock absorbers and differentials. Electrically operated with automatic suction level and timing control, simple operation by build-in battery or dc 5v type c power cord. May also be used as 1/8,1/10 and1/12 tire additive penetrator to help penetrate additive in the small pores of the foam tire. A well penetrated tire works better and lasts longer. The shock holder plate features 19mm (differentials), 20mm (1/8 off road) ,15. 6mm (1/10 on/off road) holes for the shock absorbers and 14. 8mm hole for differentials. The three different heights vacuum pump post can be combined into five different support heights for those holder plate.

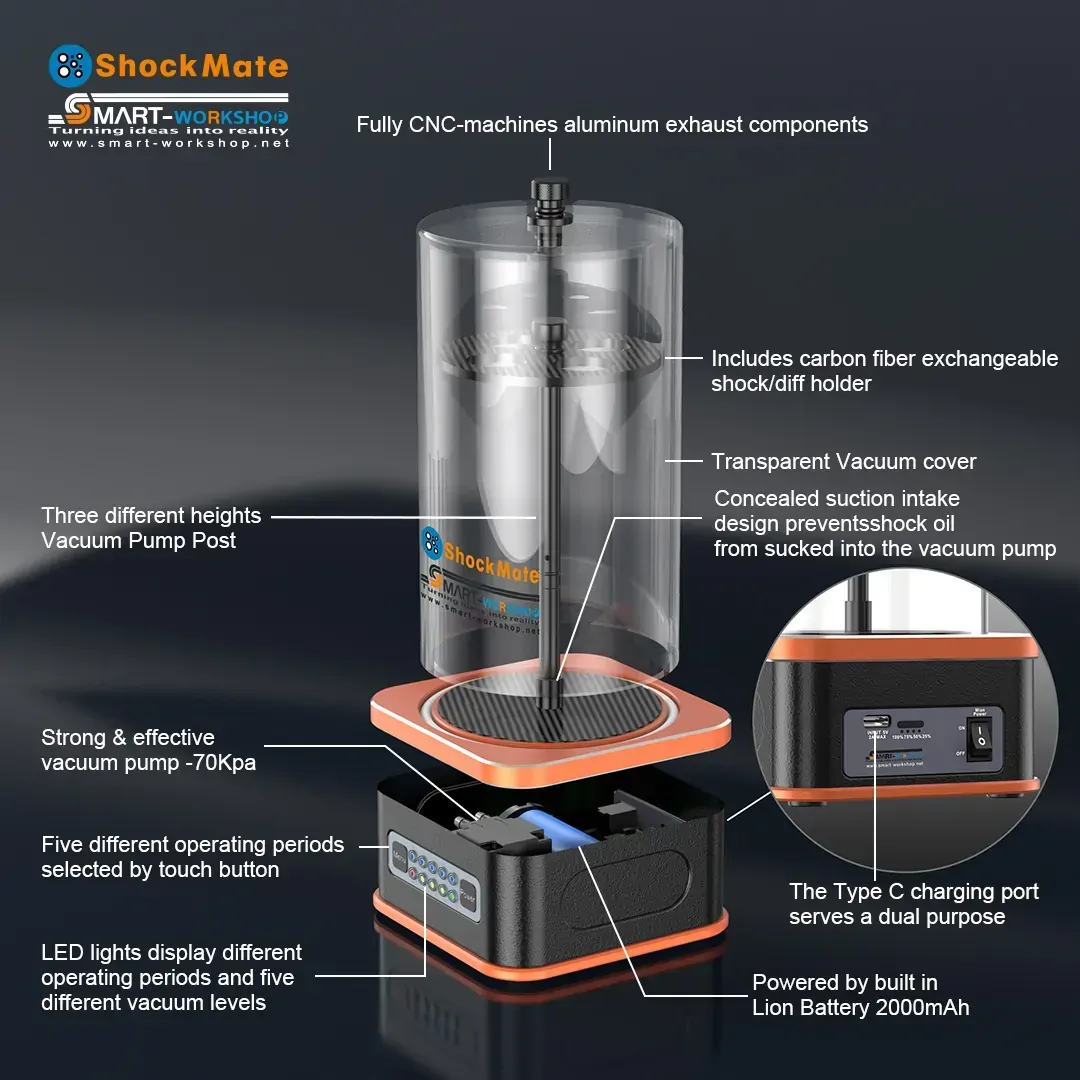

The main platform is cnc-machined from aluminum with abs body and includes carbon fiber exchangeable shock/diff holder and transparent vacuum cover

Shock mate includes a strong and; effective vacuum pump -70kpa that is powered by built in lion battery 2000mah or dc 5v type c power supply

The type c charging port serves a dual purpose †ⓠit can be utilized for recharging the battery and directly powers the device when connected to a dc5v adapter, ensuring uninterrupted operation

Five different operating periods selected by touch button, led lights display different operating periods and five different vacuum levels

Concealed suction intake design prevents shock oil from sucked into the vacuum pump, fully cnc-machines aluminum exhaust components to reduce ware of vacuum tubes and increase lifetime and stability

Packing details

1. main unit x 1
2. vacuum tube with silicon protector x 1
3. soft case x 1 (with eva protector)
4. service manual x 1
5. post 40mm x 1,60mm x 1 and 80mm x 1
6. m3 lock nut x 1
7. carbon fiber shock/diff holder x 3

    spare part kit

1. silicon seal 86mm x 1 pc (vacuum unit) rubber
2. ring 9mm x 1 pc (exhaust lock screw)
3. runner ring 8mm x 1 pc (vacuum tube outlet)
4. rubber seal 7mm x 3 pcs (post)
5. fuse (3a) x 1 pc
