Skyrc new motor analyzer - sk-500020-02

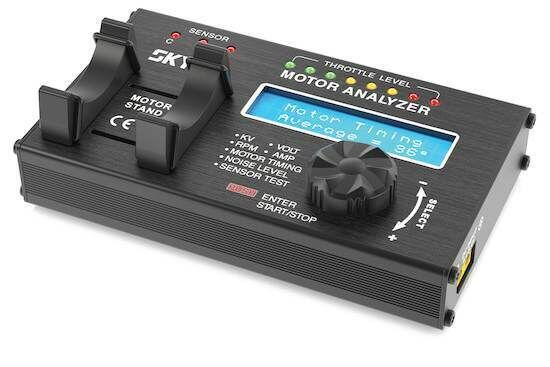

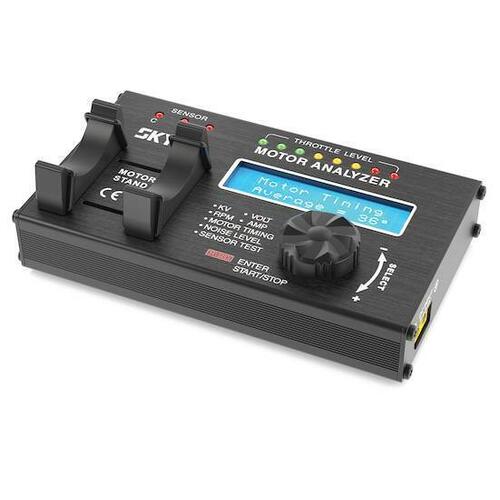

Skyrc motor analyzer bma-01 is a precision electronic device that is especially designed for measuring the kv value, rmp, current drawn, motor timing, vibration noise level and checking the function of hall effect sensors of a brushless motor. It comes with a 2x16 characters lcd that is able to display real time measuring value of either sensor or sensor-less brushless motor

specification

• kv value accuracy: +/- 3%
• motor timing accuracy: +/- 4%
• motor timing range:0-70 â°
• noise level measurement range : 60db - 120db

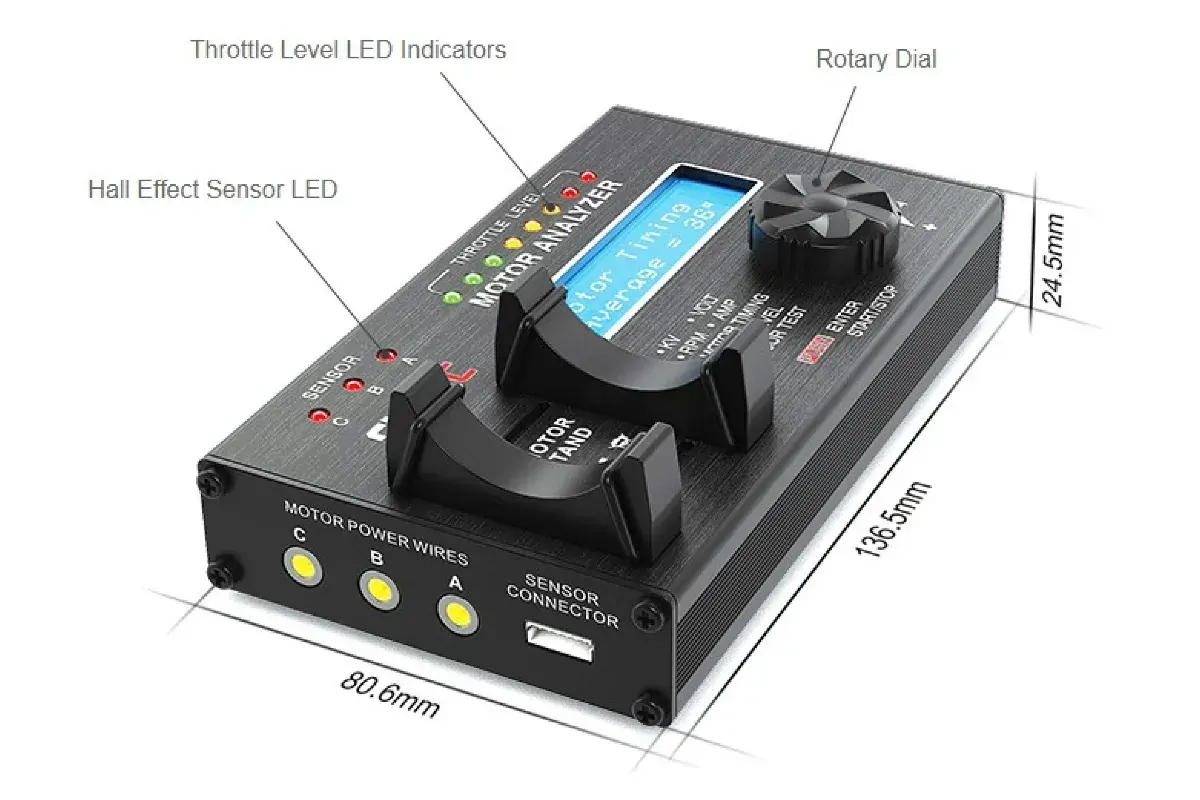

• dimension: 136. 5mm x 80. 6mm x 24. 5mm
• net weight: 282gram (without cable)
• supported motor: sensor or sensor-less brushless motor (2 poles to 36 poles)
• current drawn less than 30a at 8. 4v without loading
• input voltage 7. 4-8. 4v (suggested to use 7. 4v 2s 1p lipo battery)
• lcd display screen: blue backlight background, white text,16 characters x 2 lines

functions

• kv measurement
• rpm measurement
• voltage measurement
• ampere measurement
• motor timing checking
• noise level
• hall effect sensor test
