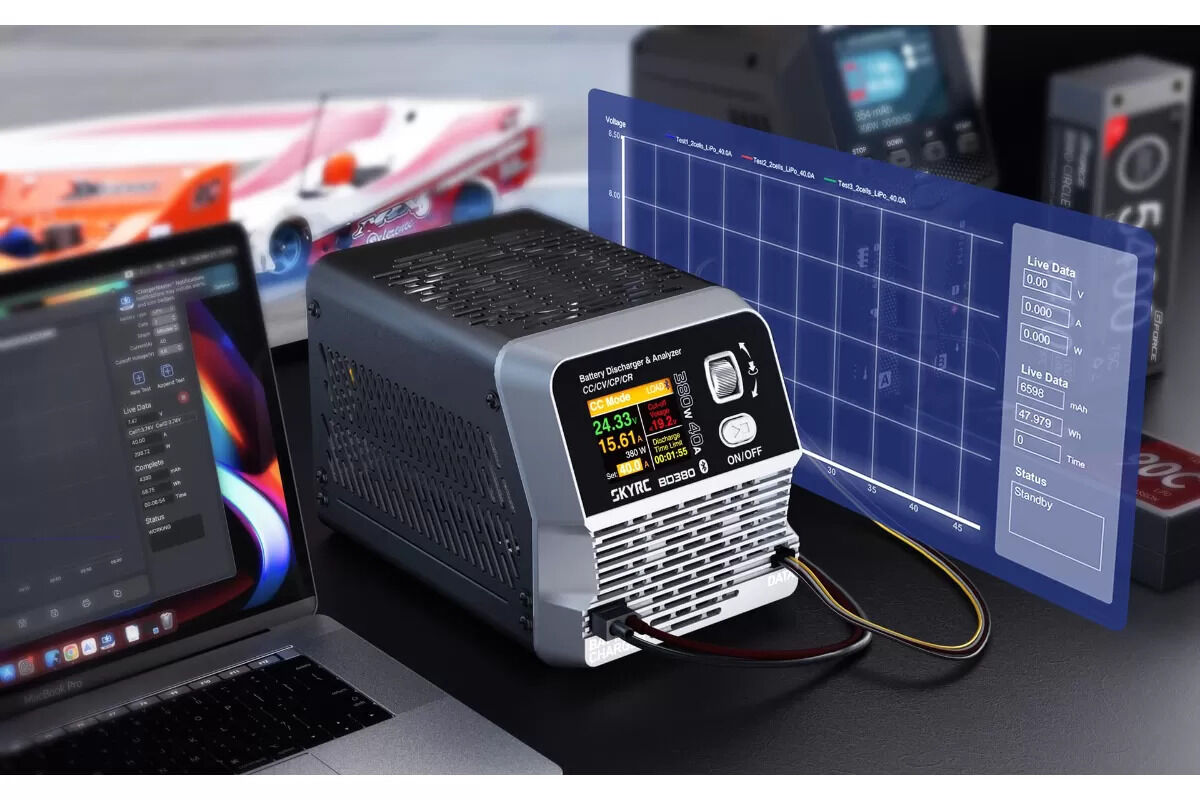

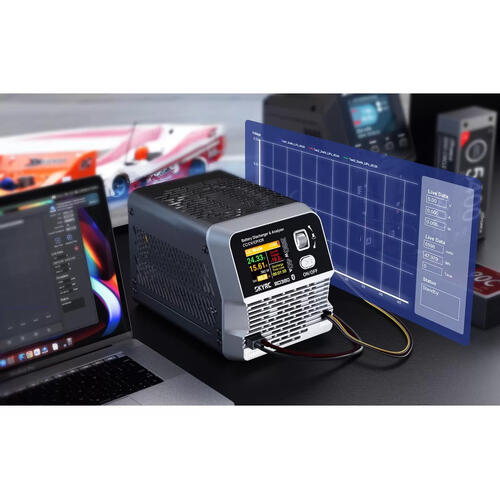

Skyrc bd380 battery discharger and; analyser

Case material: pc-abs v0

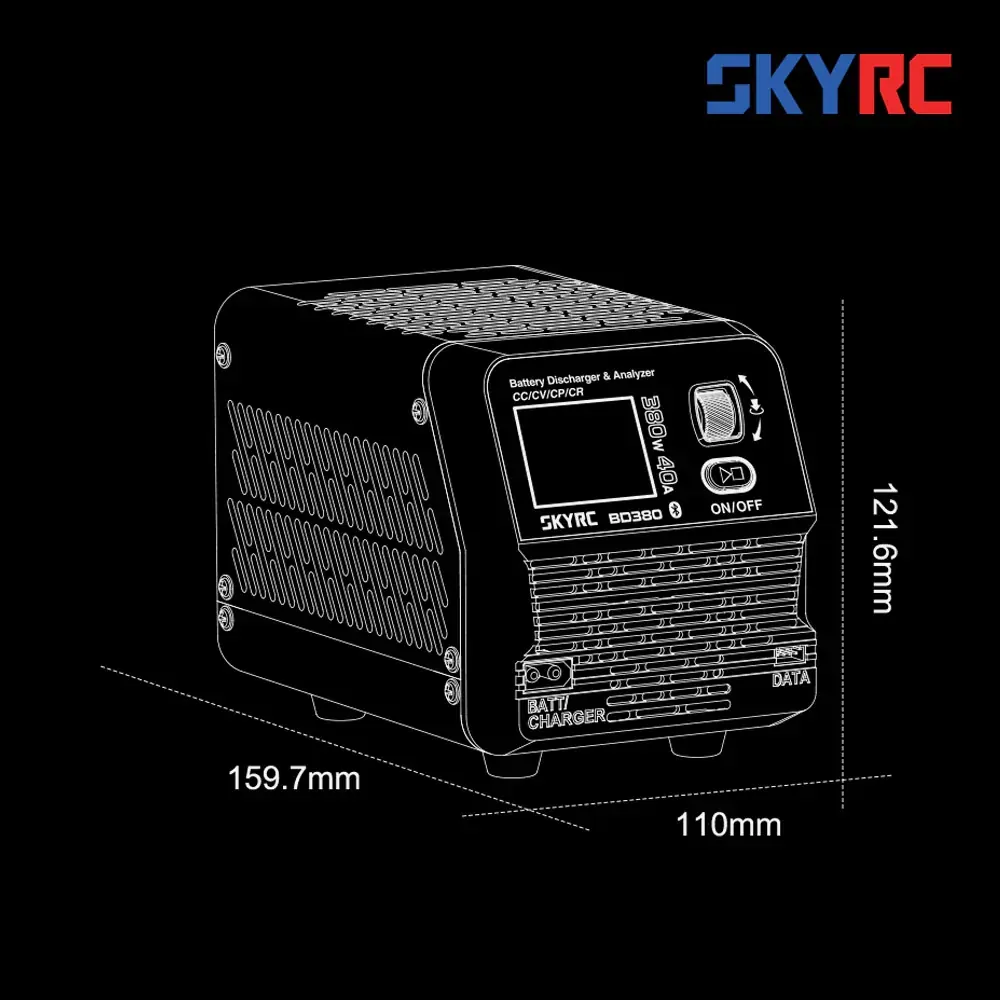

case size: 159. 7*110*121. 6mm
weight: approximately 1100g

Display

Display type: tn
size: 1. 77 inch
panel active area: 43. 20*57. 60mm
resolution: 160x128 pixel
number of colors: 262k

Power

Dc input voltage: 3-30v
discharge power: max. 380w
battery connector interface: xt60
discharge: 0. 3a-40. 0a

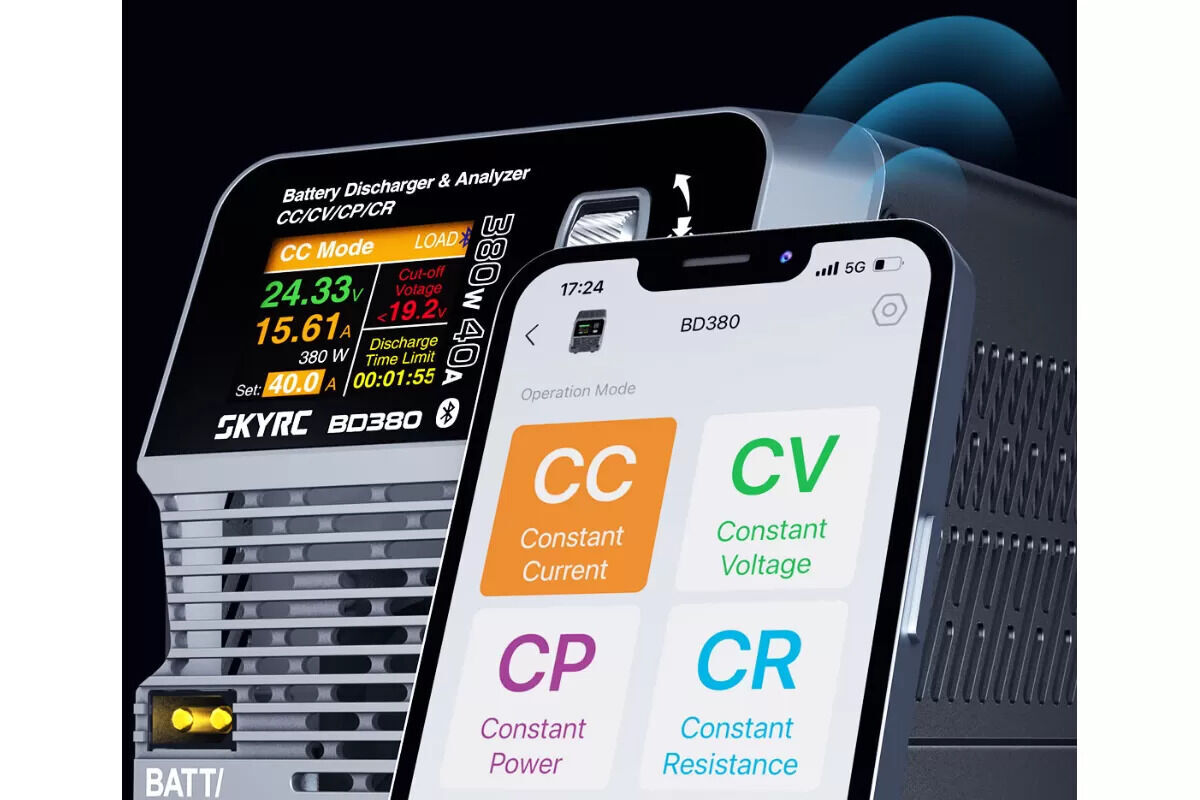

Operating mode

Cc constant current: 0. 3-40. 0a
cr constant resistance: 1-100©
cp constant power: 1-380w
cv constant voltage: maximum power is 180w. Note: do not connect the battery in this mode

Working and storage

Operating temperature: 0-40
working humidity: 0%-75%
storage temperature: -10-70
storage humidity: 0%-75%
