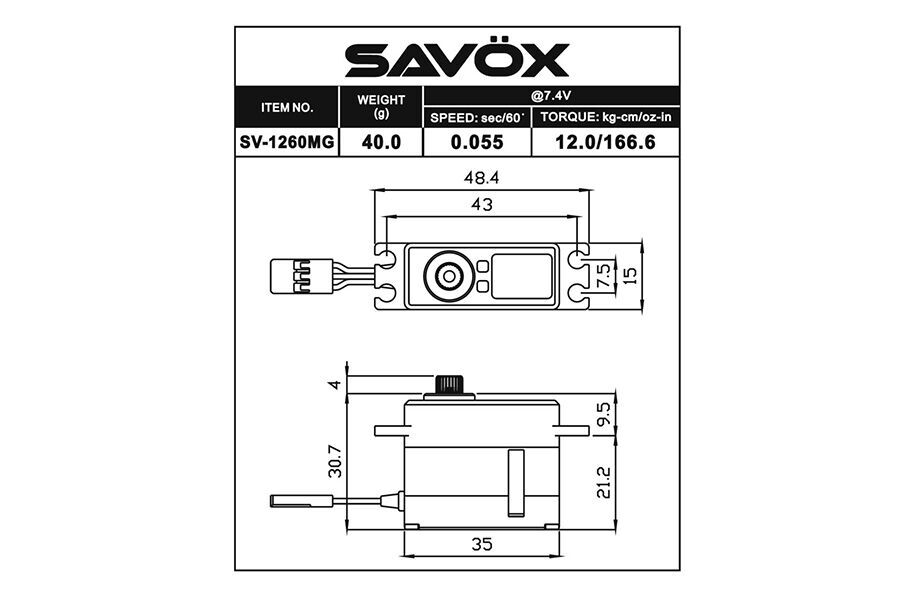

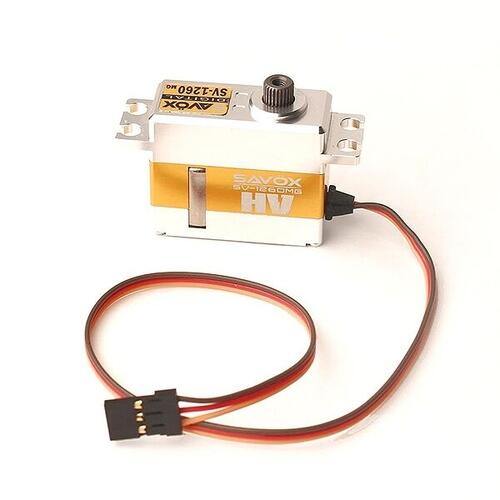

The SV-1260MG is a mini-sized, digital, high voltage, metal-geared servo with an all aluminum case and metal gearset, making it one of the strongest and fastest mini servos available. Features Metal gear train provide durability against heavy use. Capable of HV operation. All aluminum case provides strength and cooler operating temperatures. Specifications Torque @6v - 8.0kg/111.1oz-in Torque @7.4v - 12.0kg/166.6oz-in Speed @6v - 0.065 sec/60 deg Speed @7.4v - 0.055 sec/60 deg Dimensions L x W x H (mm): 35.0 x 15.0 x 30.7 Weight: 40.0g Technical Details Operating Temperature: 14° - 122°F (-10° - 50°C) Running Current (no load): 120mA @6.0V, 180mA @7.4V Stall Current (at locked): 4000mA @6.0 V, 4700mA @7.4V Idle Current: 5mA @6.0V, 5mA @7.4V Wire Length: 250 ± 5mm Output Gear Spline: 25 Tooth Bearings: 2BB Operating Travel: 100° (1000 ? 2000 µ second) Neutral Position: 1500 µ second Pulse Width Range: 800 ? 2200 µ second Maximum Travel: Appx 165° (800 ? 2200 µ second) Refresh Rate: 333 Hz (SAV-SV1260MG)
