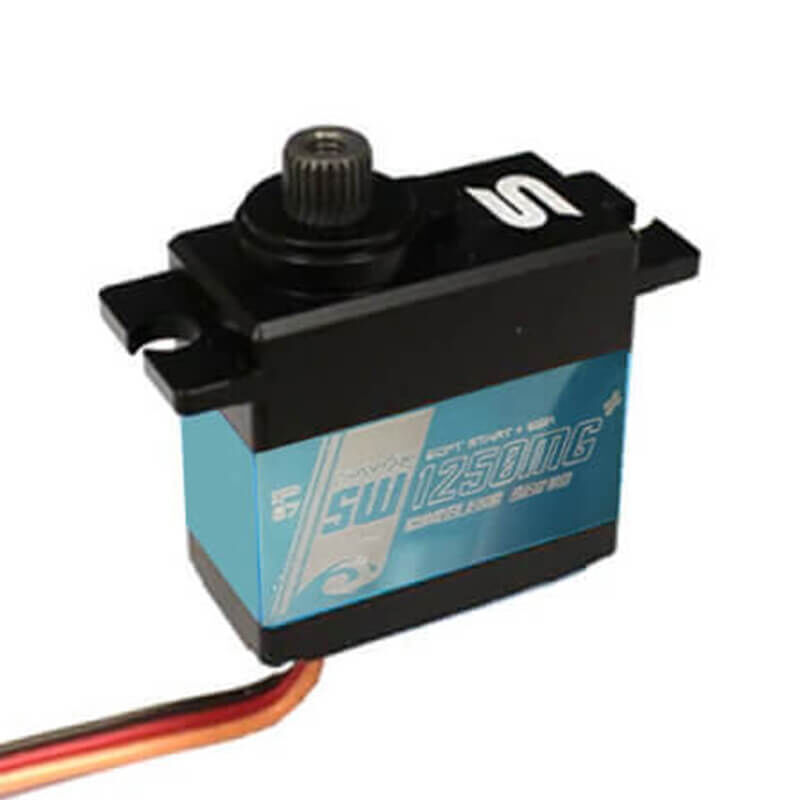

SAVOX W/PROOF DIGITAL MINI SERVO 8KG/0.10S@6V (TRX 1/16) PLUS The SW1250MG+ is a premium waterproof, ultra torque, digital mini servo that is the ultimate replacement for Traxxas 1/16 scale applications. FEATURES Full aluminium waterproof case. Strong metal gear train for increased durability. Ultra torque and speed for mini applications Designed for Traxxas 1/16 vehicles. SPECIFICATIONS Torque @ 6.0v - 5.0 kg-cm/69.4 oz-in Torque @ 7.4v - 8.0 kg-cm/111.1 oz-in Speed @ 6.0v - 0.12 sec/60 deg Speed @ 7.4v - 0. 10sec/60 deg TECHNICAL DETAILS Operating Temperature: 14° - 122°F (-10° - 50°C) Running Current (no load): 80mA @4.8V, 100mA @6.0V Stall Current (at locked): 1500mA @4.8V, 1900mA @6.0V Idle Current: 5mA @4.8V, 5mA @6.0V Wire Length: 200 ± 5mm Output Gear Spline: 25 Tooth Bearings: 1BB Operating Travel: 100° (1000 ? 2000 µ second) Neutral Position: 1500 µ second Pulse Width Range: 800 ? 2200 µ second Maximum Travel: Appx 130° (800 ? 2200 µ second) Refresh Rate: 333 Hz Motor Type: Coreless Savox Plus / ""+"" Models: feature a new Soft Start Mode and Sanwa SSR compatibility. (SAV-SW1250MG)
