RPM axle carriers for the Traxxas Revo, Slayer, T-Maxx 2.5R & 3.3 and newer versions of the E-Maxx have been painstakingly redesigned to improve the durability, strength, and reliability of these much-abused parts. Check out this laundry list of features built into each set of RPM Revo carriers:

Axle Carriers:

• Stock replacement – no modifications are needed to bolt them in.
• Larger bearing bores accept RPM oversized bearings.
• Included in each kit are two 15mm bearings and two 21mm bearings.
• The wall thickness around the pillow-balls has been increased by 40% – eliminating split walls!
• More than 20% more material supports the pillow-balls, preventing them from pulling through.
• Redesigned reinforcing rib supporting the tie rod mount.
• Redesigned boot lock tabs making removal of the silicone boots easier.
• Press-fit bearings in the carrier means reduced movement of the axle in the carrier.

Oversized Bearings:

• Outer bearings are 6x15x5mm (stock is 6x12x4mm).
• Inner bearings are 12x21x5mm (stock is 12x18x4mm).
• Wider bearings create an additional 2mm of contact with the axle for smoother, longer running performance.
• 3mm. larger bearings have balls a full 33% larger than stock!
• The load ratings of RPM oversized bearings are double that of stock bearings and more than triple the fatigue rating of stock bearings as well!

Pillow-Ball Setscrews:

• Two-piece design uses aluminum and Delrin for the ultimate in holding power under extreme situations.
• Our aluminum setscrews reduce movement of the pillow-balls in the carrier.
• Our Delrin bushing caps have more than twice the contact area on the pillow-ball, keeping the pillow-balls locked in place at all times.

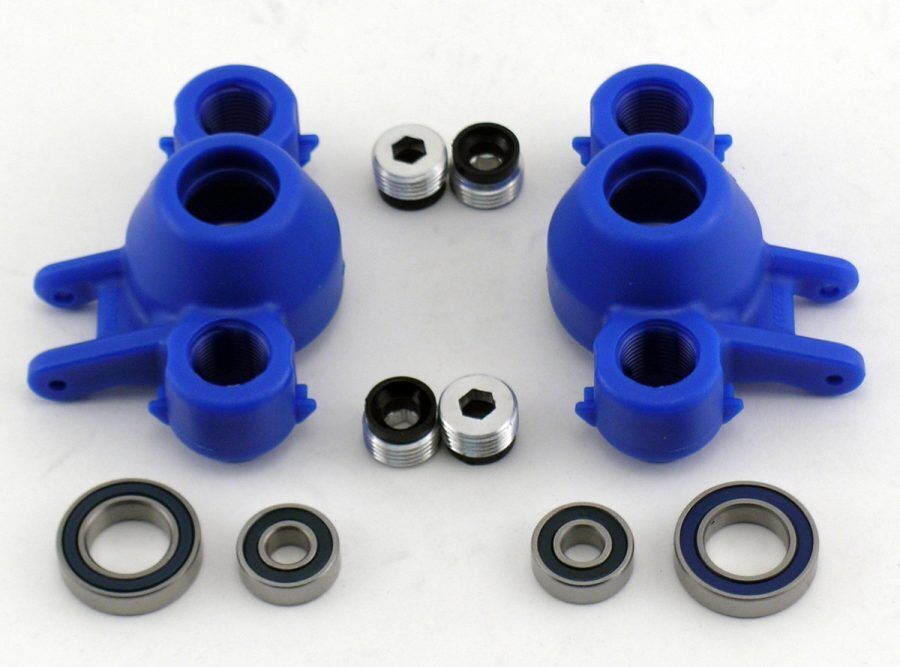

What’s Included: RPM Revo axle carriers are sold with 1 left and 1 right axle carrier, 2 outer 15mm bearings, 2 inner 21mm bearings, 4 aluminum setscrews, 4 Delrin bushing caps, and detailed instructions to help install them on your truck. TWO packages will be needed to complete one vehicle (unless used with the RPM True-Track Rear End Conversion, then one package is all that is needed).

Tech Notes: Due to increased material to support the pillow balls from pulling through the carrier, RPM Revo Axle Carriers will not work in conjunction with 120-LT Long Travel rockers (Traxxas #5356). RPM Axle Carriers will not work on the E-Revo 2.0.
