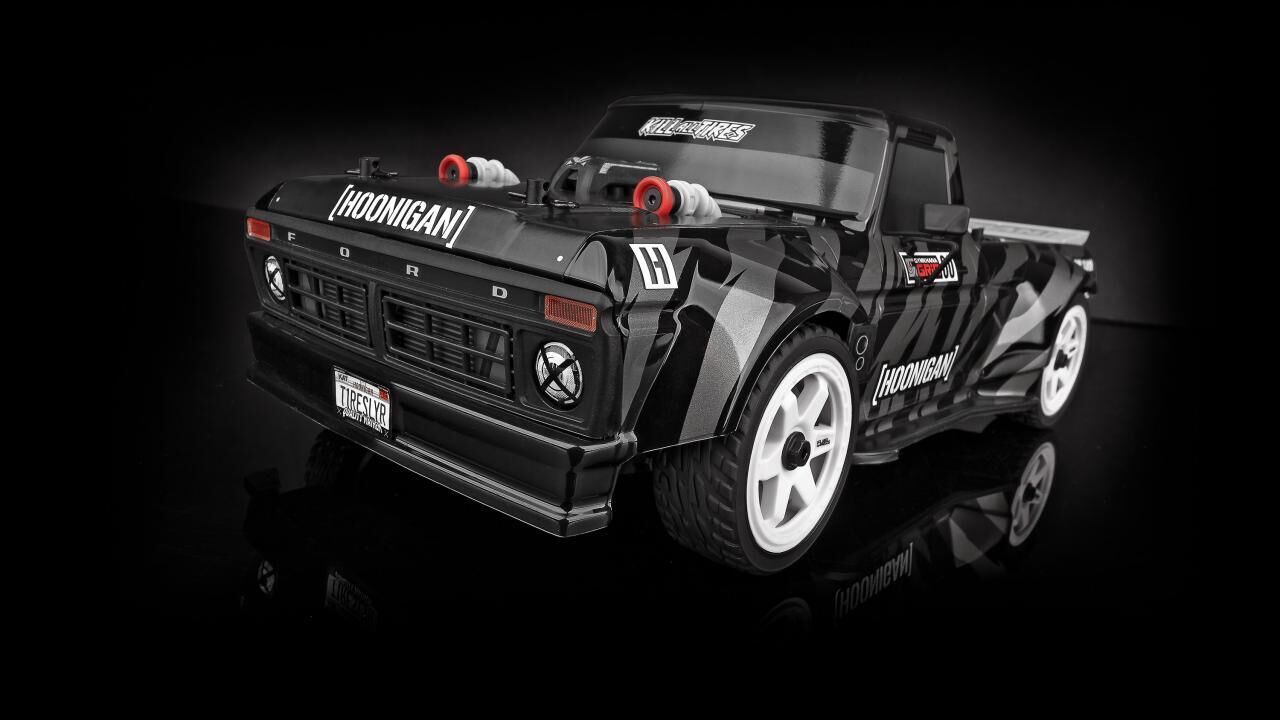

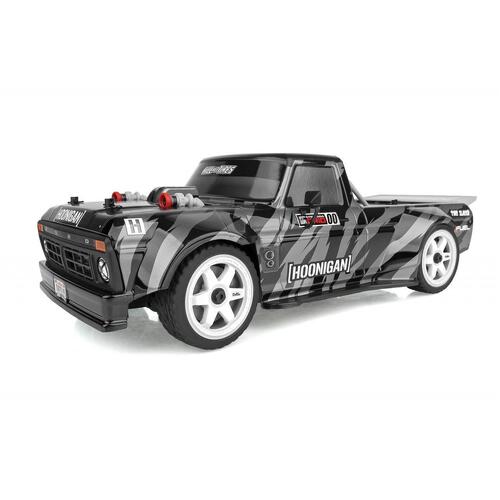

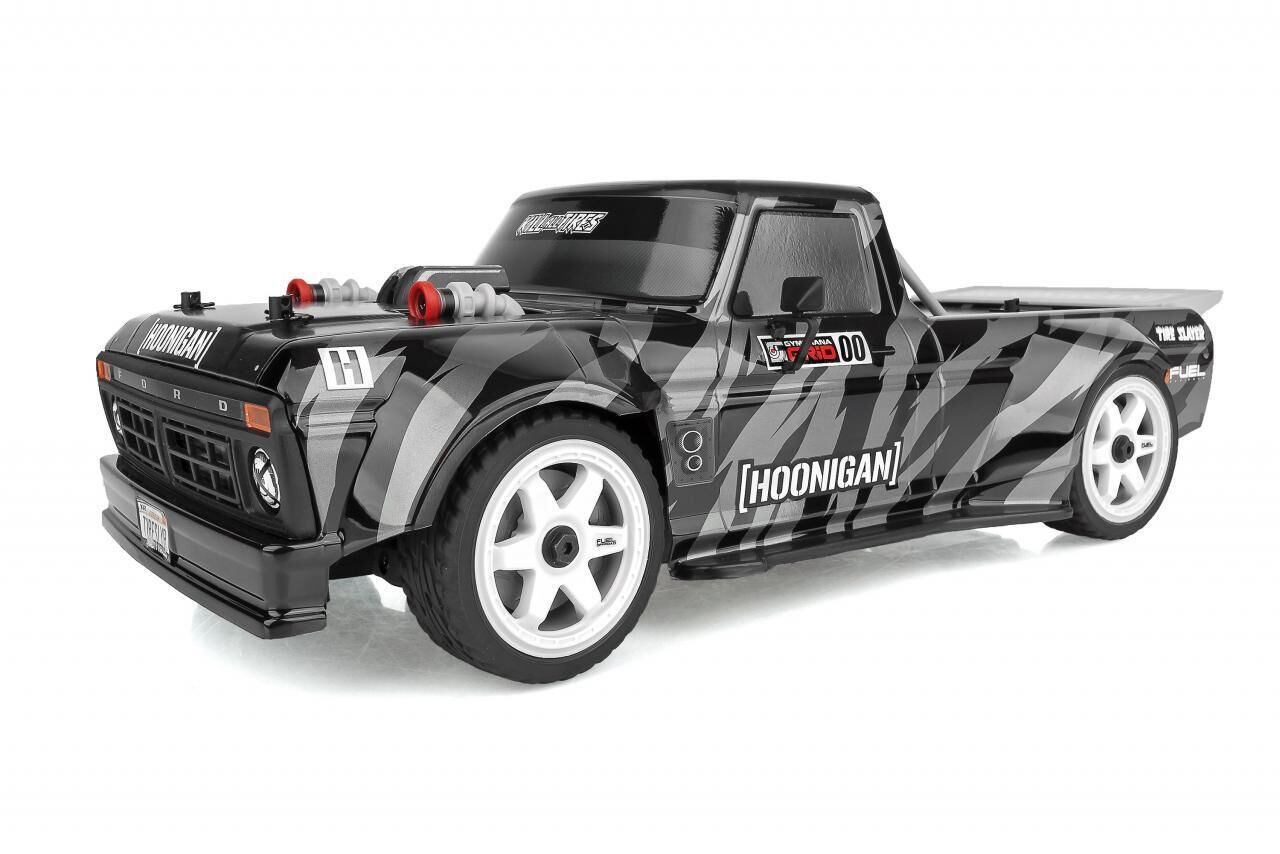

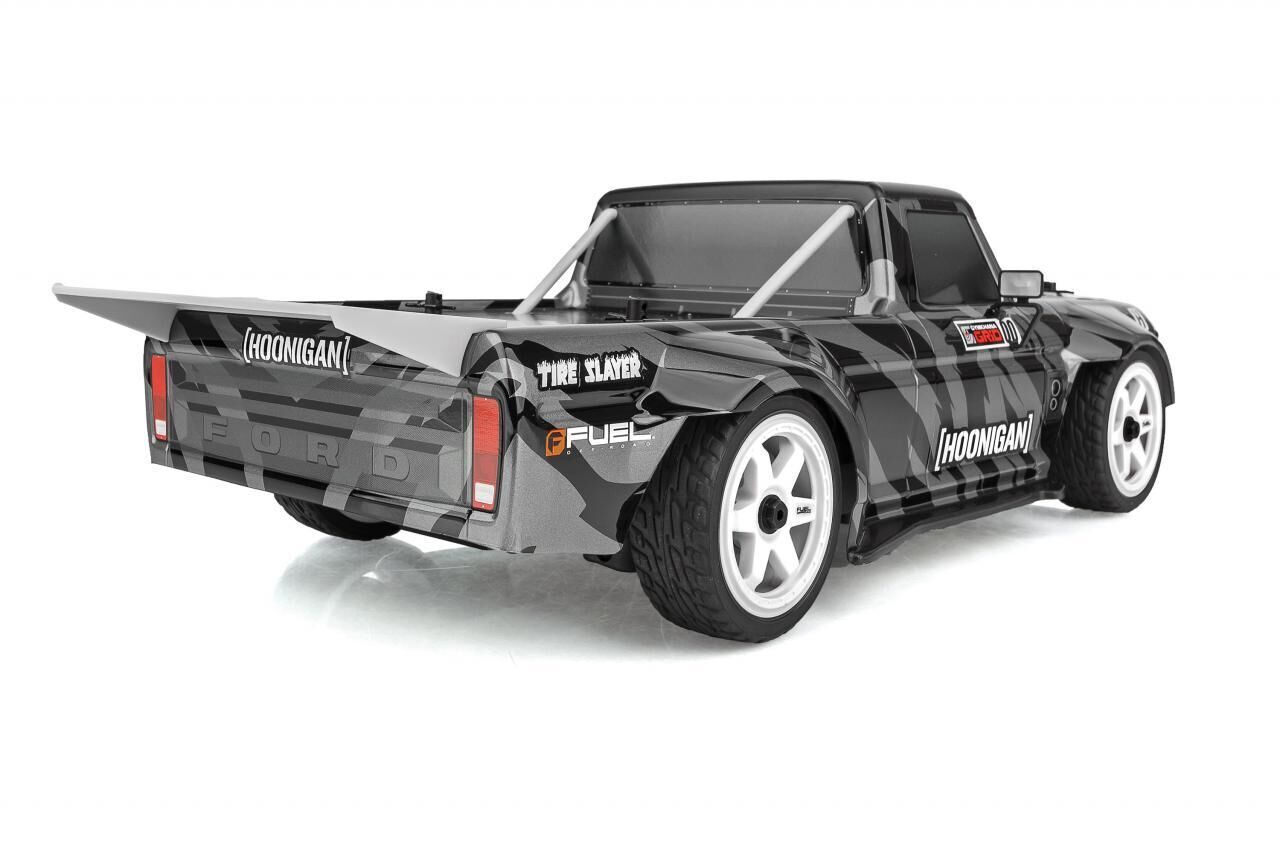

Experience the tyre-smoking style of the legendary Hoonigan Hoonitruck with the Team Associated Reflex 14R. This officially licensed 1/14 scale replica captures the distinctive appearance of Ken Block’s heavily modified 1977 Ford F-150 in a compact, ready-to-run package.

Underneath the detailed Hoonitruck body is Team Associated’s capable Reflex 14R platform. Its full-time four-wheel-drive system, sealed front and rear gear differentials and aluminium centre driveshaft provide dependable power delivery and responsive handling.

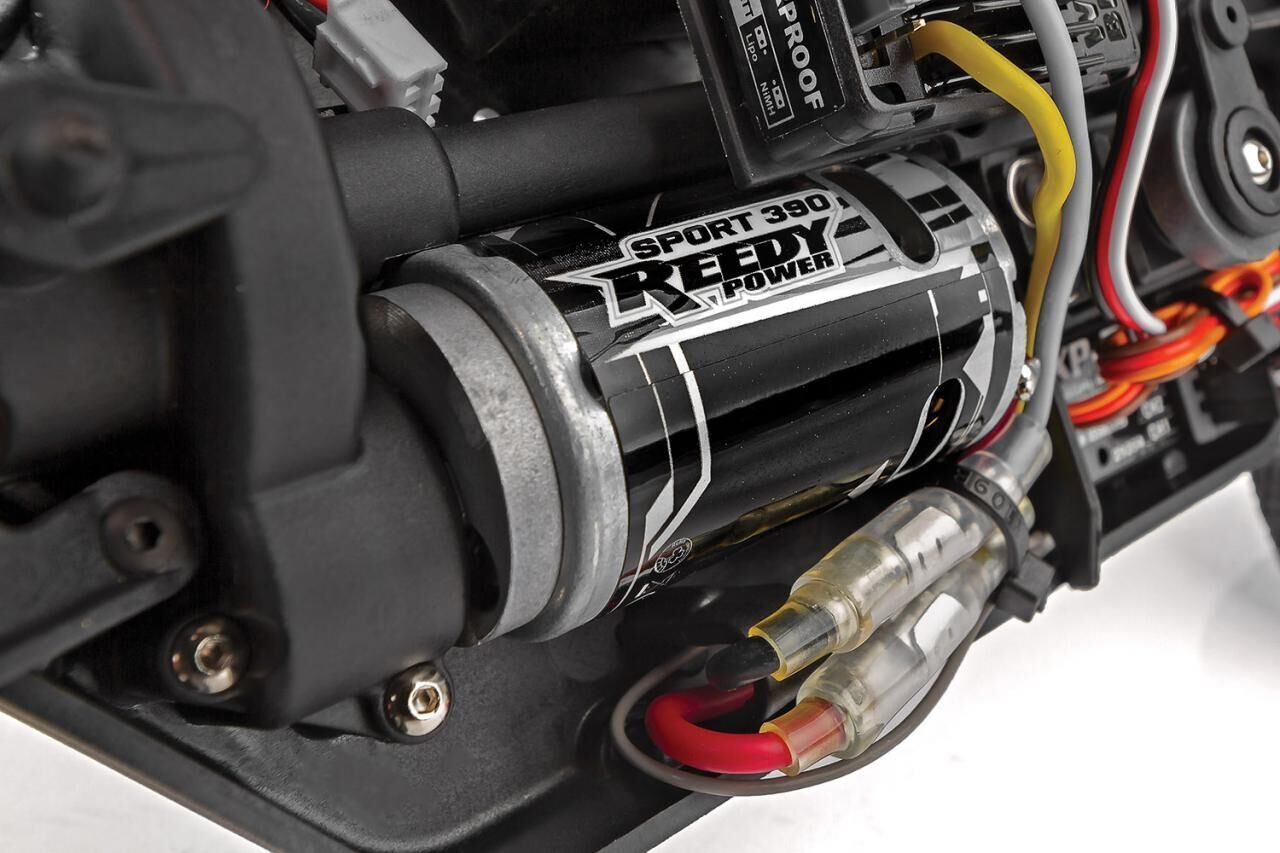

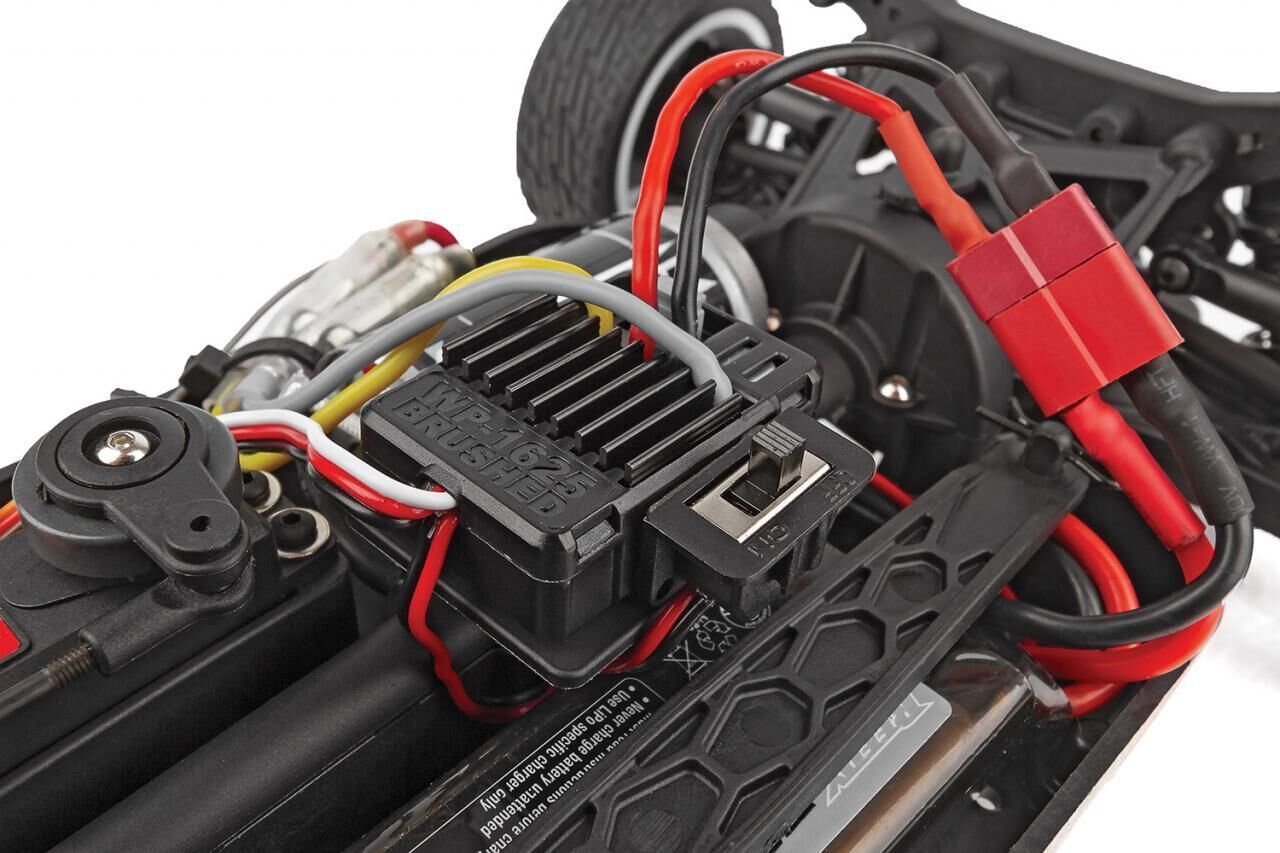

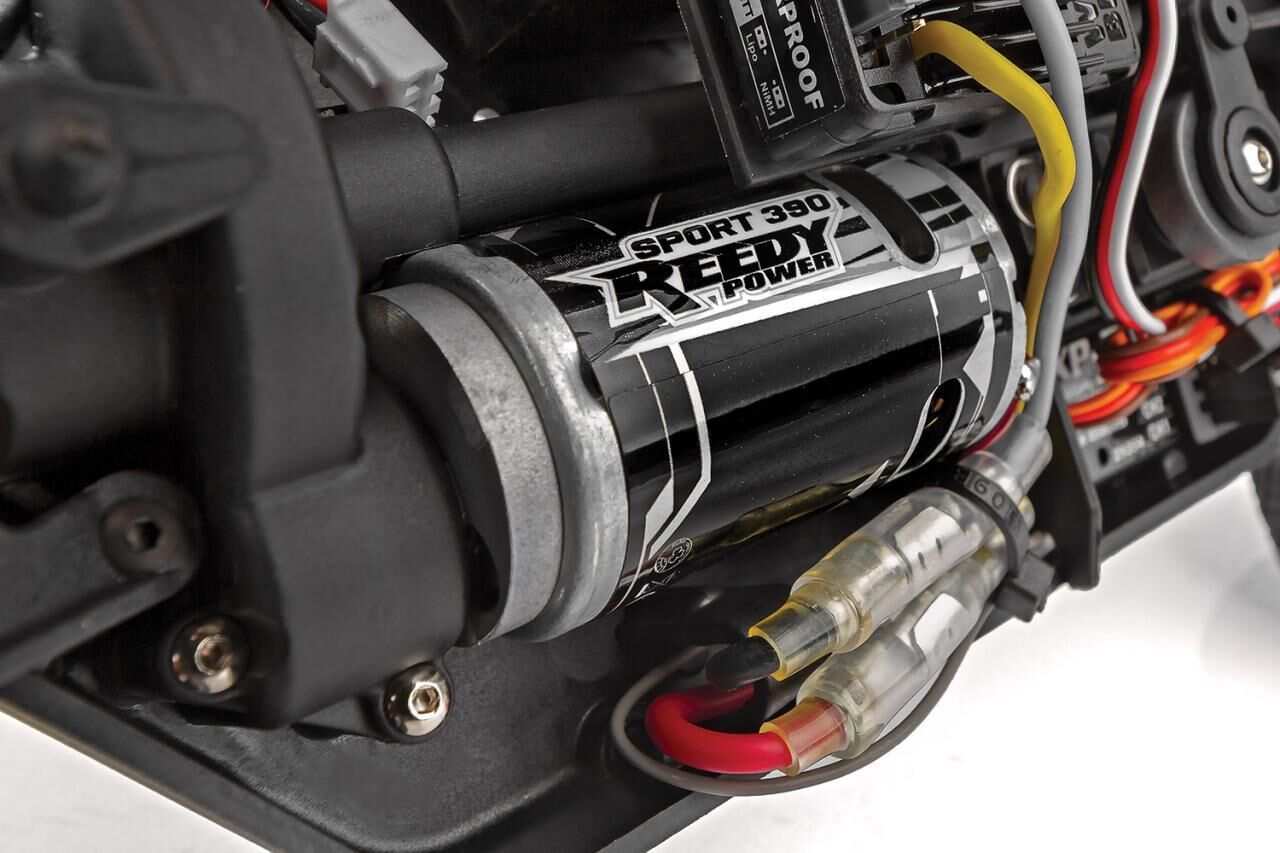

Power comes from a Reedy Sport 390 30-turn brushed motor matched with a waterproof Reedy WP1625 electronic speed controller. A high-torque digital steering servo with a spring-style servo saver and the included 2.4GHz radio system complete the factory-installed electronics.

The moulded tub chassis protects the centre driveshaft and provides a strong foundation for the adjustable coil-over suspension. Multiple shock mounting positions allow the handling to be tuned, while the foam front bumper helps protect the vehicle during enthusiastic on-road driving.

Rubber tyres are fitted as standard for general driving, with optional drift wheels and tyres available separately for sliding, doughnuts and Hoonigan-style action.

This version requires a suitable 2S LiPo battery, compatible charger and four AA batteries before use.

Features

• Officially licensed Ford Hoonigan Hoonitruck body
• Based on the Team Associated Reflex 14R platform
• Compact 1/14 scale
• Fully assembled Ready-to-Run vehicle
• Full-time four-wheel drive
• Reedy Sport 390 30T brushed motor
• Waterproof Reedy WP1625 brushed speed controller
• Included 2.4GHz two-channel radio system
• High-torque digital steering servo
• Spring-style servo saver
• Sealed front and rear gear differentials
• Aluminium centre driveshaft
• Centre spool with protective cover
• Factory-fitted 58-tooth spur gear
• Alternative 70-tooth spur gear included
• Coil-over shock absorbers
• Multiple shock mounting positions
• Moulded front universal driveshafts
• Rear dogbone driveshafts
• Adjustable battery tray
• Injection-moulded brake calipers and rotors
• 12mm wheel hexes

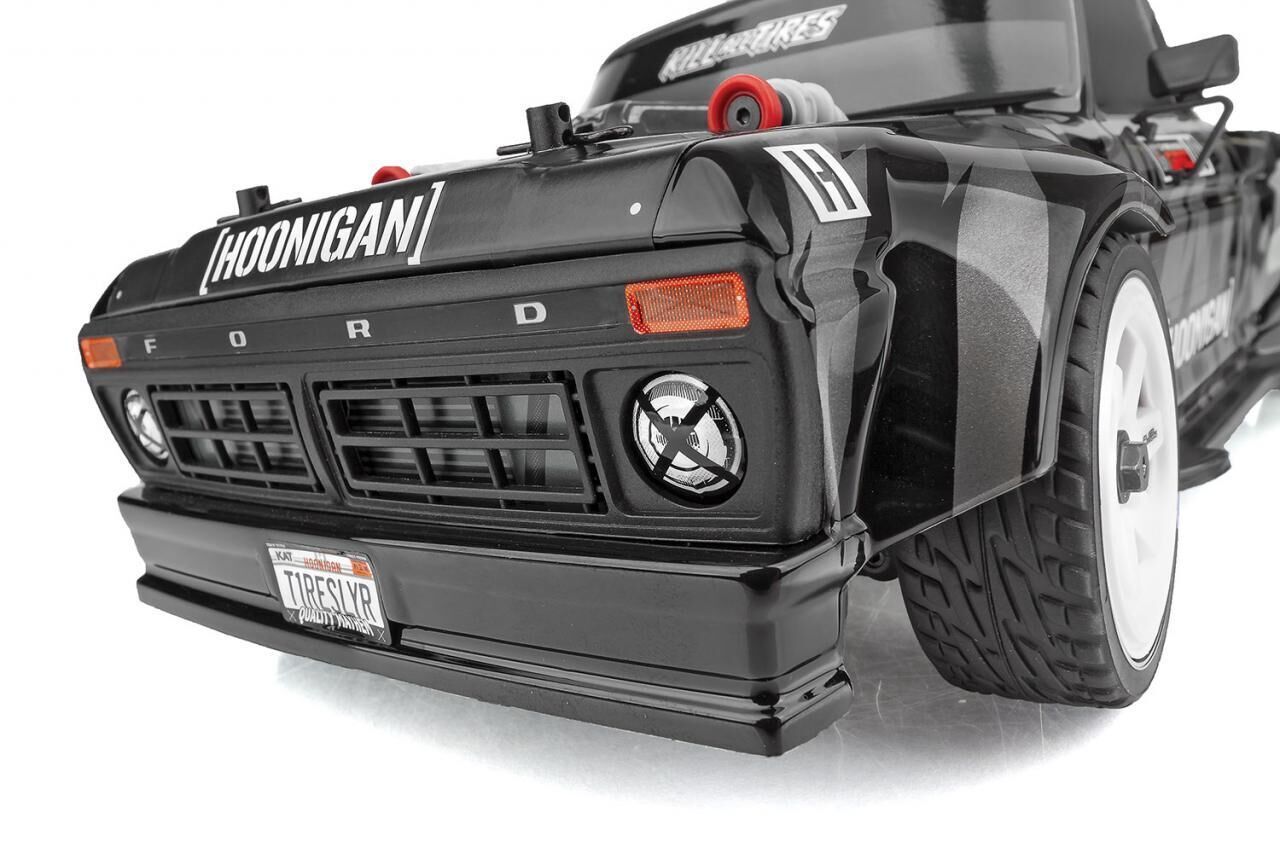

• Foam front bumper
• Optional drift tyres available separately

Specifications

• Brand: Team Associated
• Model: Reflex 14R Hoonitruck
• Product code: ASS20177 / 20177
• UPC: 784695201774
• Scale: 1/14
• Completion level: Ready-to-Run
• Power source: Electric
• Drive system: 4WD
• Suitable terrain: On-road
• Motor: Reedy Sport 390 30T brushed
• Speed controller: Reedy WP1625 brushed ESC
• Radio system: 2.4GHz two-channel
• Steering servo: High-torque digital
• Differentials: Sealed front and rear gear differentials
• Internal gear ratio: 1.5:1
• Standard spur gear: 58T
• Alternative spur gear: 70T
• Wheel hex: 12mm
• Length: 330mm
• Width: 173mm
• Wheelbase: 190mm
• Battery compartment: Approximately 114 × 33 × 18mm

Package Includes

• 1 x Team Associated Reflex 14R Hoonitruck
• 1 x 2.4GHz two-channel transmitter
• 1 x Factory-installed Reedy brushed motor
• 1 x Factory-installed Reedy brushed speed controller
• 1 x Factory-installed digital steering servo
• 1 x 70T optional spur gear
• 1 x Instruction manual

Required to Complete

• 1 x Compatible 7.4V 2S LiPo battery
• 1 x Suitable LiPo battery charger
• 4 x AA batteries for the transmitter

Recommended Battery

• Reedy WolfPack 1600mAh 7.4V 2S 30C LiPo – #27331

The battery must fit within the approximately 114 × 33 × 18mm battery compartment and use a compatible connector. Battery and charger are not included with ASS20177.
