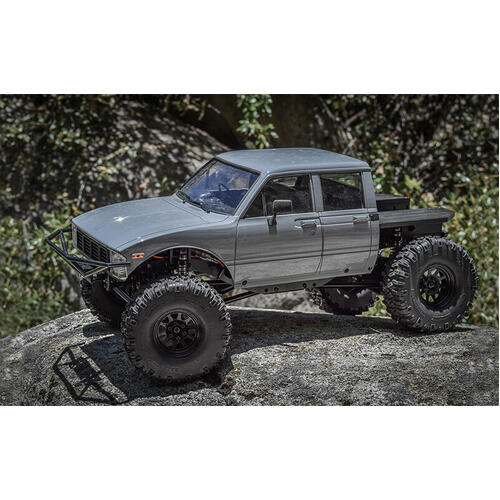

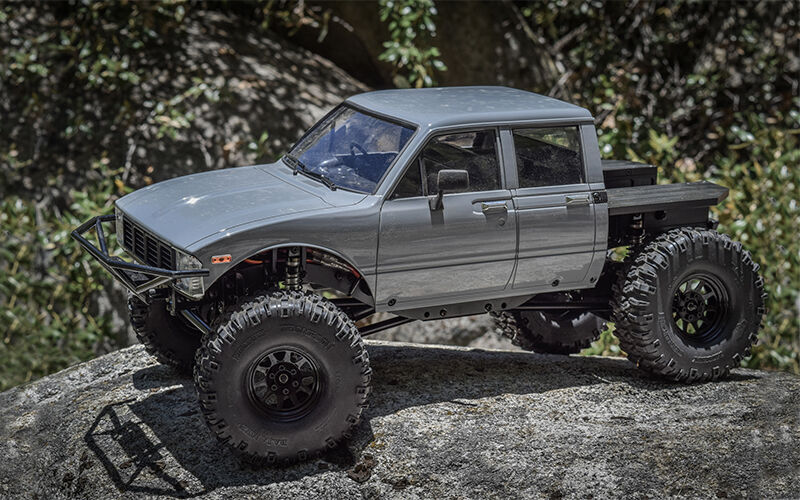

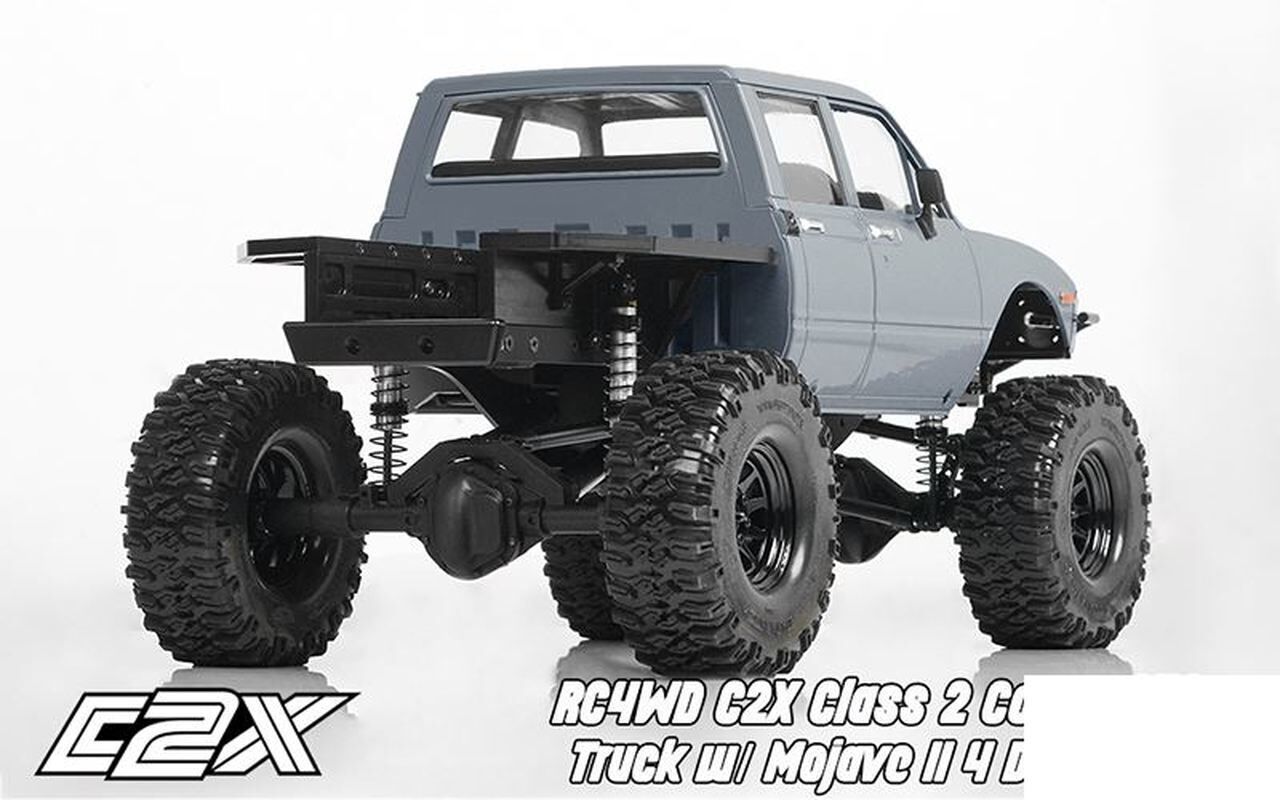

Rc4wd c2x class 2 competition truck w/ mojave ii 4 door body

Built from the ground up to be one of the most capable scale trucks rc4wd has created, the c2x was designed with performance and looks in mind. Whether you are an experienced competitor or a casual trail driver this truck is ready right out of the box

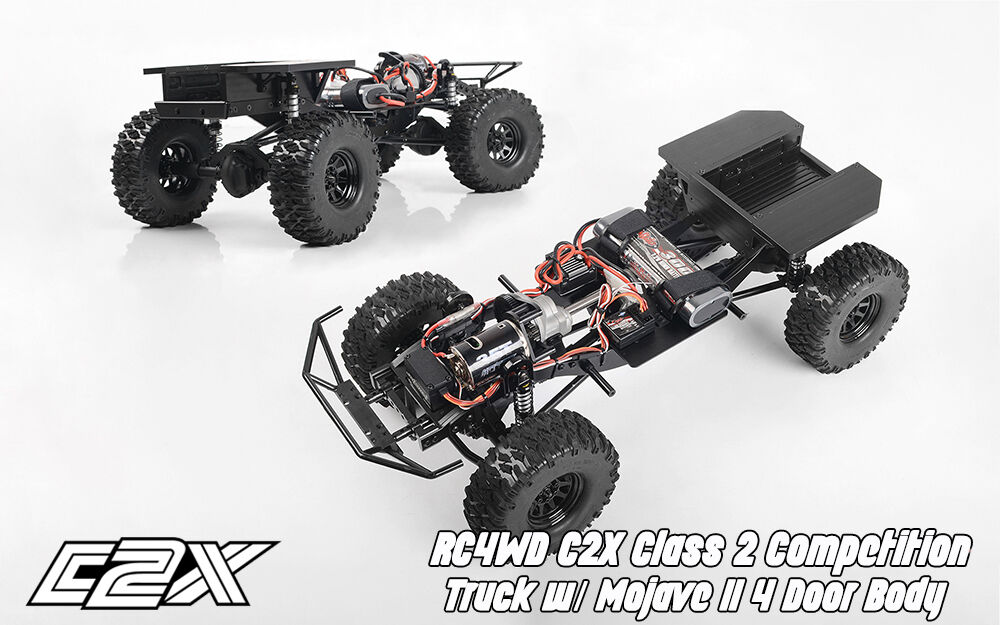

The c2x features the classic styling of the 4 door mojave body mated with the marlin style grille and machined delrin bed. Underneath, the chassis is 3mm thick cnc aluminum offering multiple mounting positions for the suspension links and rear shocks. Slide over obstacles with ease thanks to the machined delrin skid plate. The heart of the chassis is made up of our trusted r3 single speed transmission with the hammer transfer case

Whether you're driving for competition or just out trailing on the weekends, the c2x is sure to exceed your expectations.

Features:

• rc4wd d44 narrow front and rear axles
• custom designed for looks and performance
• twister high torque metal gear digital servo
• chassis mounted steering servo
• 540 crawler brushed motor 35t
• rock krawler rrd emulsion scale dual spring shocks
• mickey thompson 1. 9" scale tires
• r3 single speed transmission
• cnc machined and bent aluminum chassis frame
• center mounted realistic 4x4 transfer case
• outcry iii waterproof esc
• scale off-road style custom delrin bed
• 4 link rear and 3-link w/ panhard bar front suspension
• oem stamped steel 1. 9" beadlock wheels
• 6-cell 3000mah nimh battery pack
• nimh peak battery charger

Hammer transfer case
ratio: 1. 47: 1
gears: wide. 8 mod steel gears
features: 8 bearings, cast casing,hardened gears

R3 single speed transmission
ratios: pinion/spur 14/64 = 4. 57:1
internal ratio = 1. 78:1
gears: wide steel. 8 mod, delrin spur, slipper clutch

D44 plastic complete rear axle
ratio: 38/13 = 2. 92: 1
width at pin:182. 5mm

C2x chassis
features: billet aluminum construction, adjustable shock hoops

Drive shafts
high quality plastic material, ultra durable high quality steel yokes

Wheels
name: oem 1. 9" stamped steel beadlock wheels
hub: 12mm hex
width: 24. 3mm
od: 48. 3mm
features: stamped steel, aluminum hubs, internal beadlock, scale 6 lug design

Truck dimensions

• wheelbase: 318mm (12. 5")
• length: 499mm( 19. 6")
• width: 239mm (9. 4")
• height: 236mm (9. 3")
• ground clearance: 74mm (2. 9")
• final drive ratio: 34. 9:1
• weight: 7. 60lbs/3. 45kg
